DLN-58
< DISASSEMBLY AND ASSEMBLY >
[REAR FINAL DRIVE: R200]
DRIVE PINION

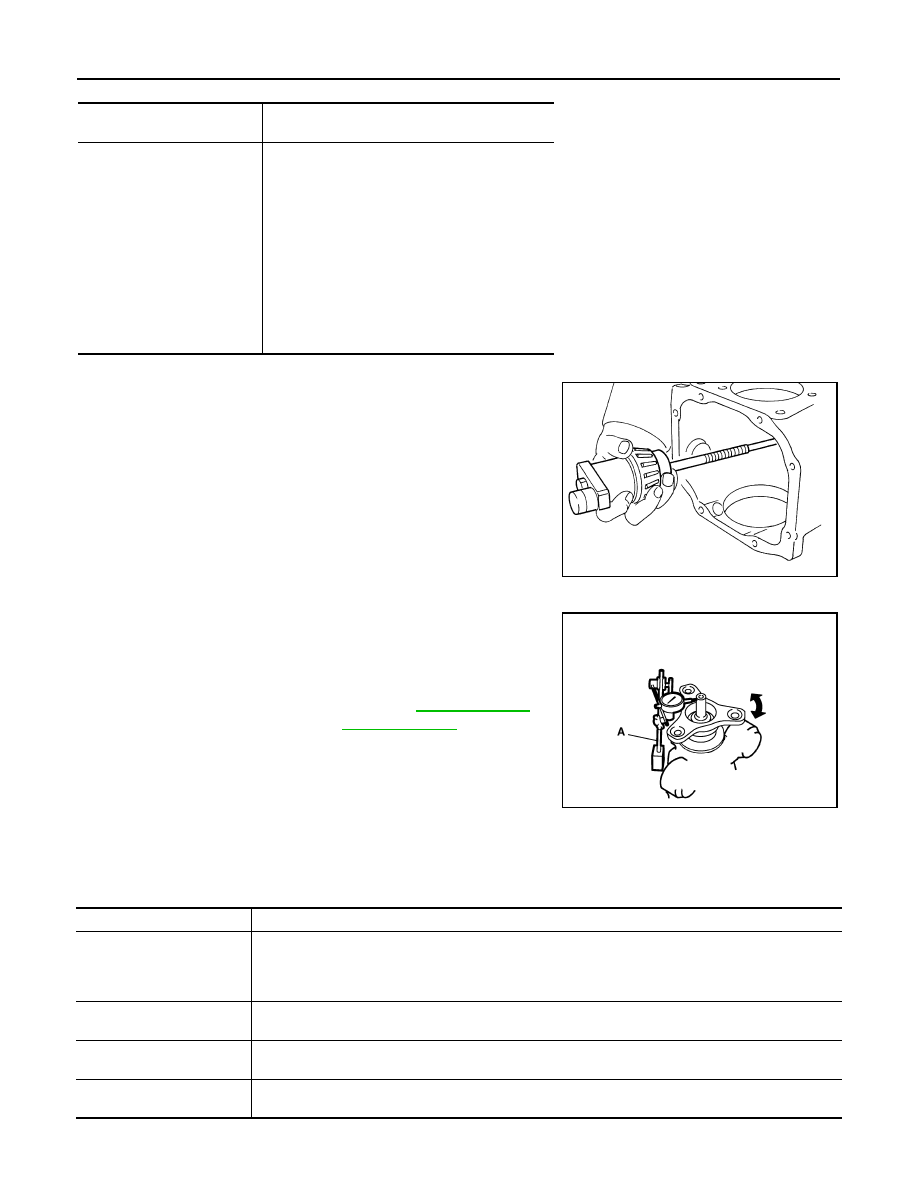

12. Select the correct pinion height adjusting washer.
13. Remove the J-34309 differential shim selector tool from the final
drive housing. Then disassemble to retrieve the pinion bearings.
DRIVE PINION RUNOUT
1.
Set a dial indicator (A) vertically to the tip of the drive pinion.
2.
Rotate drive pinion to check for runout.
3.
If the runout value is outside of the limit, possible causes are an
assembly malfunction of drive pinion and pinion bearing and
malfunction of pinion bearing. Check for these items and repair if
necessary.
Inspection After Disassembly
INFOID:0000000001714239
Clean up the disassembled parts. Then, inspect if the parts are worn or damaged. If so, follow the measures
below.
Pinion head height number
Add or remove from the standard pinion height ad-
justing washer thickness measurement
−
6
−
5
−
4
−
3
−
2
−
1
0
+1
+2
+3
+4
+5
+6
Add 0.06 mm (0.0024 in)
Add 0.05 mm (0.0020 in)
Add 0.04 mm (0.0016 in)
Add 0.03 mm (0.0012 in)
Add 0.02 mm (0.0008 in)
Add 0.01 mm (0.0004 in)
Use the selected washer thickness
Subtract 0.01 mm (0.0004 in)
Subtract 0.02 mm (0.0008 in)
Subtract 0.03 mm (0.0012 in)
Subtract 0.04 mm (0.0016 in)
Subtract 0.05 mm (0.0020 in)
Subtract 0.06 mm (0.0024 in)
SPD205A
Limit
Drive pinion runout
: Refer to
.
JSDIA0032ZZ
Content
Conditions and Measures
Hypoid gear
• If the gear teeth do not mesh or line-up correctly, determine the cause and adjust or replace as nec-
essary.
• If the gears are worn, cracked, damaged, pitted or chipped (by friction) noticeably, replace with new
drive gear and drive pinion as a set.
Bearing
• If any chipped (by friction), pitted, worn, rusted or scratched mark, or unusual noise from the bearing
is observed, replace as a bearing assembly (as a new set).
Side gear and pinion mate
gear
• If any cracks or damage on the surface of the tooth is found, replace.
• If any worn or chipped mark on the contact sides of the thrust washer is found, replace.
Side gear thrust washer and
pinion mate thrust washer
• If it is chipped (by friction), damaged, or unusually worn, replace.
