HOOD

DLK-213

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

CAUTION:

While pulling, do not damage (peel off) the outside of the hood lock control cable.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Do not bend the cable too much, keeping the radius 100 mm (3.937 in) or more.
• Check that the hood lock control cable is properly engaged with the hood lock.
• After installing, perform hood fitting adjustment. Refer to

DLK-210, "HOOD ASSEMBLY : Adjust-

ment"

.

• After installing, perform the hood lock control inspection. Refer to

DLK-213, "HOOD LOCK CON-

TROL : Inspection"

.

HOOD LOCK CONTROL : Inspection

INFOID:0000000001722591

NOTE:
If the hood lock cable is bent or deformed, replace it.

1.

Check that the secondary latch is properly engaged with the hood lock stay by hood weight.

2.

While operating the hood opener, carefully check that the front end of the hood is raised by approximately
20 mm (0.787 in). Also check that the hood opener returns to the original position.

3.

Check that the hood opener operating is 49 N (5.0 kg) or below.

4.

Install so that static closing face of hood is 94 – 490 N·m (9.6 – 50.0 kg-m).
NOTE:
• Exercise vertical force on right side and left side of hood lock.
• Do not press simultaneously both sides.

5.

Check the hood lock lubrication condition. If necessary, apply body grease to the hood lock.

DLK-214

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

RADIATOR CORE SUPPORT

RADIATOR CORE SUPPORT

Exploded View

INFOID:0000000001722592

Removal and Installation

INFOID:0000000001722593

REMOVAL

1.

Remove the front bumper fascia and front bumper reinforcement. Refer to

EXT-13, "Removal and Installa-

tion"

.

2.

Remove the radiator reservoir tank. Refer to

CO-14, "Exploded View"

.

3.

Remove horn (High/Low). Refer to

HRN-6, "Removal and Installation"

.

4.

Remove the radiator core support ornament.
• Remove the radiator core support ornament mounting bolts and clips.

NOTE:

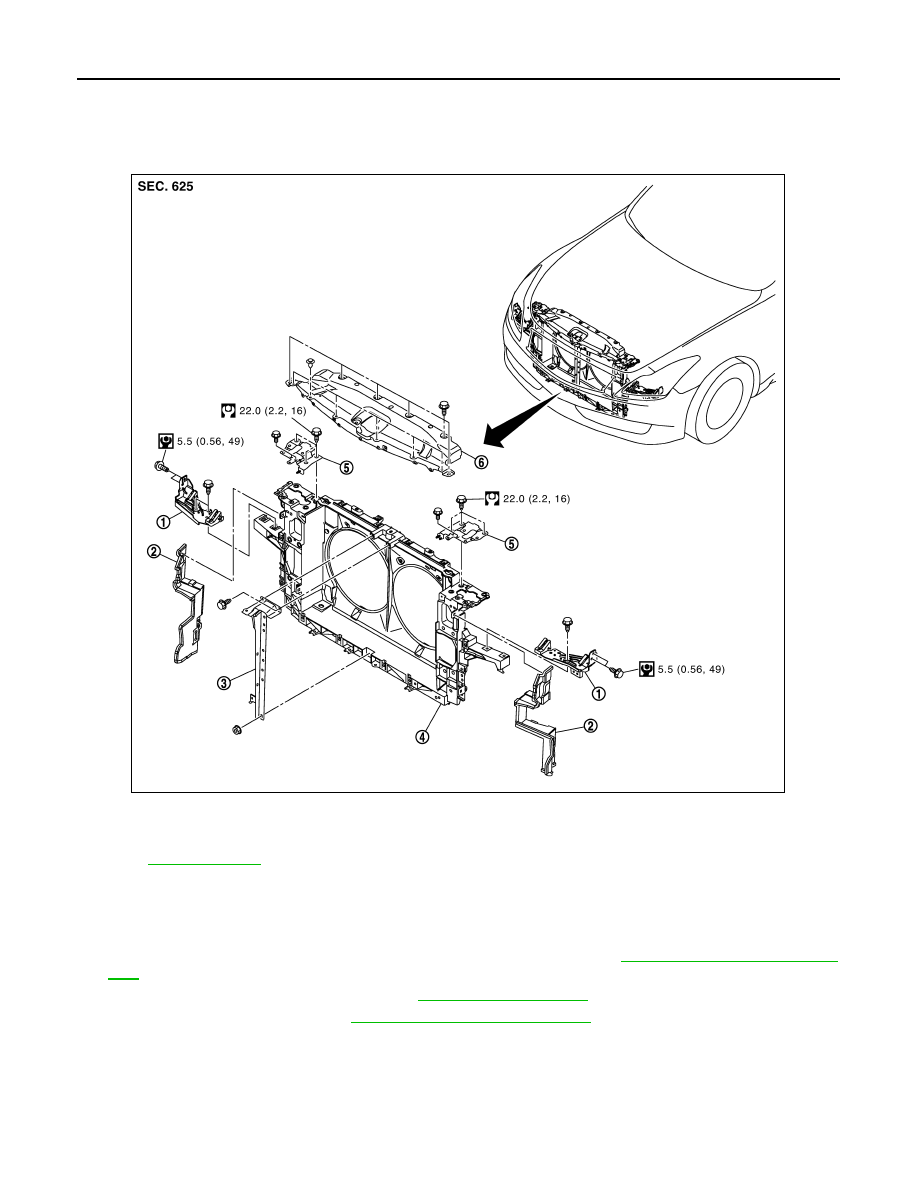

1.

Headlamp bracket

2.

Air guide

3.

Hood lock stay

4.

Radiator core support assembly

5.

Hood lock bracket

6.

Radiator core support ornament

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA1214GB

RADIATOR CORE SUPPORT

DLK-215

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

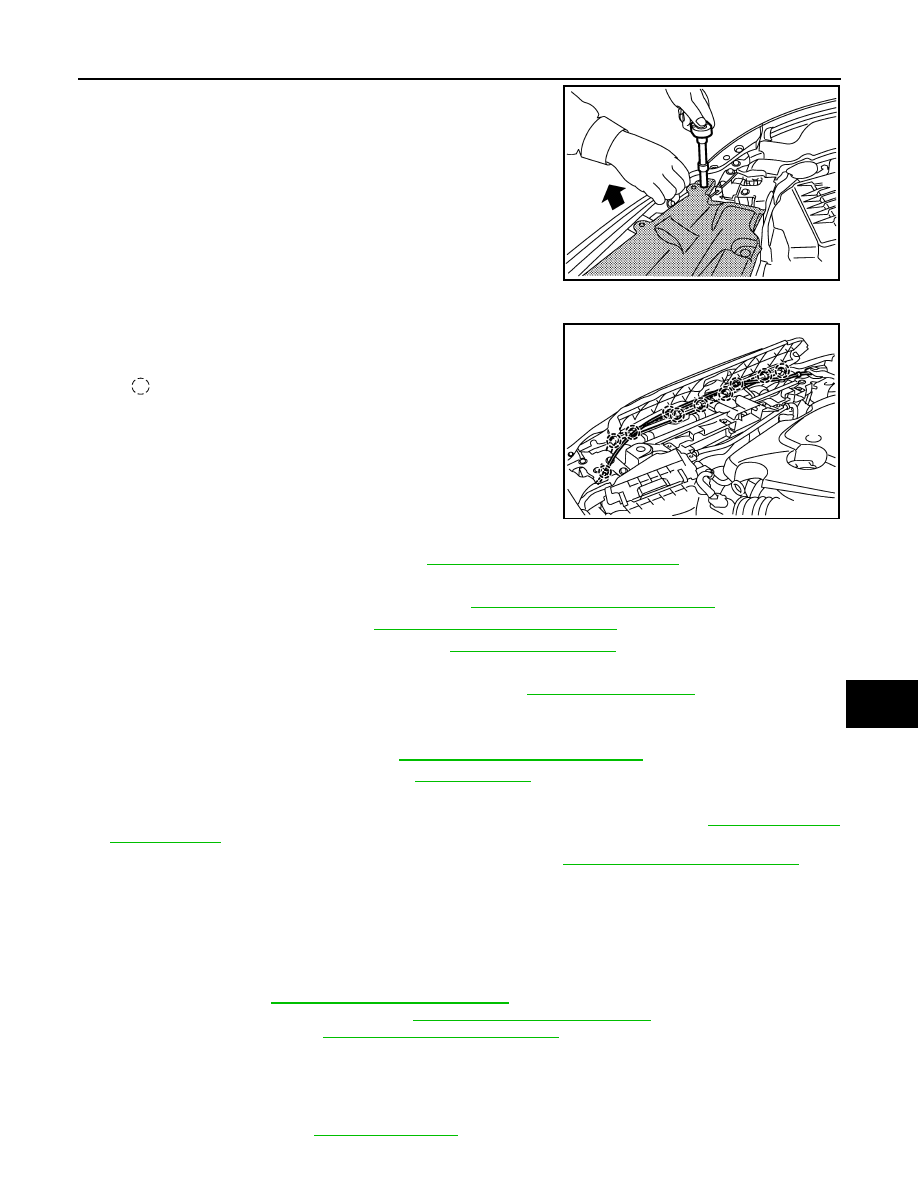

In the case that only radiator core support ornament is
removed (front bumper is not removed), remove them accord-
ing to the procedures shown below.

- To remove the mounting bolts on both sides of radiator core

support ornament, first remove the mounting bolts of front
bumper (shown by arrows in the figure) and pull up the
bumper edge slightly to get working clearance.

CAUTION:

Do not apply excessive force while pulling front bumper
to prevent front bumper and front fender from being dam-
aged.

• Hold both sides of radiator core support ornament, pull it upwards and slide it rearwards of the vehicle.
• Disconnect the harness clip and hood lock control cable clip

on radiator core support.

5.

Remove the front combination lamp. Refer to

EXL-189, "Removal and Installation"

.

6.

Remove the hood lock bracket assembly.

7.

Remove the washer inlet and washer tank. Refer to

WW-83, "Removal and Installation"

.

8.

Remove the ambient sensor. Refer to

VTL-25, "Removal and Installation"

.

9.

Remove the power steering fluid cooler. Refer to

ST-45, "Exploded View"

.

10. Remove the air guide mounting clips and then remove air guide.

11. Disconnect the harness connector from liquid tank. Refer to

HA-51, "Exploded View"

.

12. Disconnect harness clamp from radiator core support.

13. Remove the hood lock stay.

14. Remove the engine lower cover. Refer to

EXT-29, "Removal and Installation"

.

15. Drain engine coolant from radiator. Refer to

CO-8, "Draining"

.

16. Remove the radiator upper hose and lower hose on radiator & condenser assembly sides.

17. Remove the A/T fluid cooler hose on radiator & condenser assembly sides. Refer to

TM-261, "Removal

and Installation"

.

18. Disconnect condenser pipe assembly at one touch joint. Refer to

HA-49, "Removal and Installation"

.

19. Remove the radiator core support assembly mounting bolts, and pull out radiator core support assembly

toward the front of the vehicle.

20. Disconnect the cooling fan and crush zone sensor harness connector and clamp.

21. Remove the radiator core support assembly.

22. Remove the following parts after removing the radiator core support assembly.

• Headlamp bracket.
• Cooling fan. Refer to

CO-17, "Removal and Installation"

.

• Radiator & condenser assembly. Refer to

CO-15, "Removal and Installation"

.

• Crush zone sensor. Refer to

SR-14, "Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

After installation, refill the following.
• Power stealing fluid. Refer to

ST-10, "Inspection"

.

JMKIA0140ZZ

: Clip

JMKIA0141ZZ

DLK-216

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

RADIATOR CORE SUPPORT

• A/T fluid. Refer to

TM-215, "Changing"

.

• Engine coolant. Refer to

CO-9, "Refilling"

.
