TRUNK OPEN FUNCTION

DLK-29

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

TRUNK LID OPENER SWITCH : Component Description

INFOID:0000000001683025

TRUNK REQUEST SWITCH

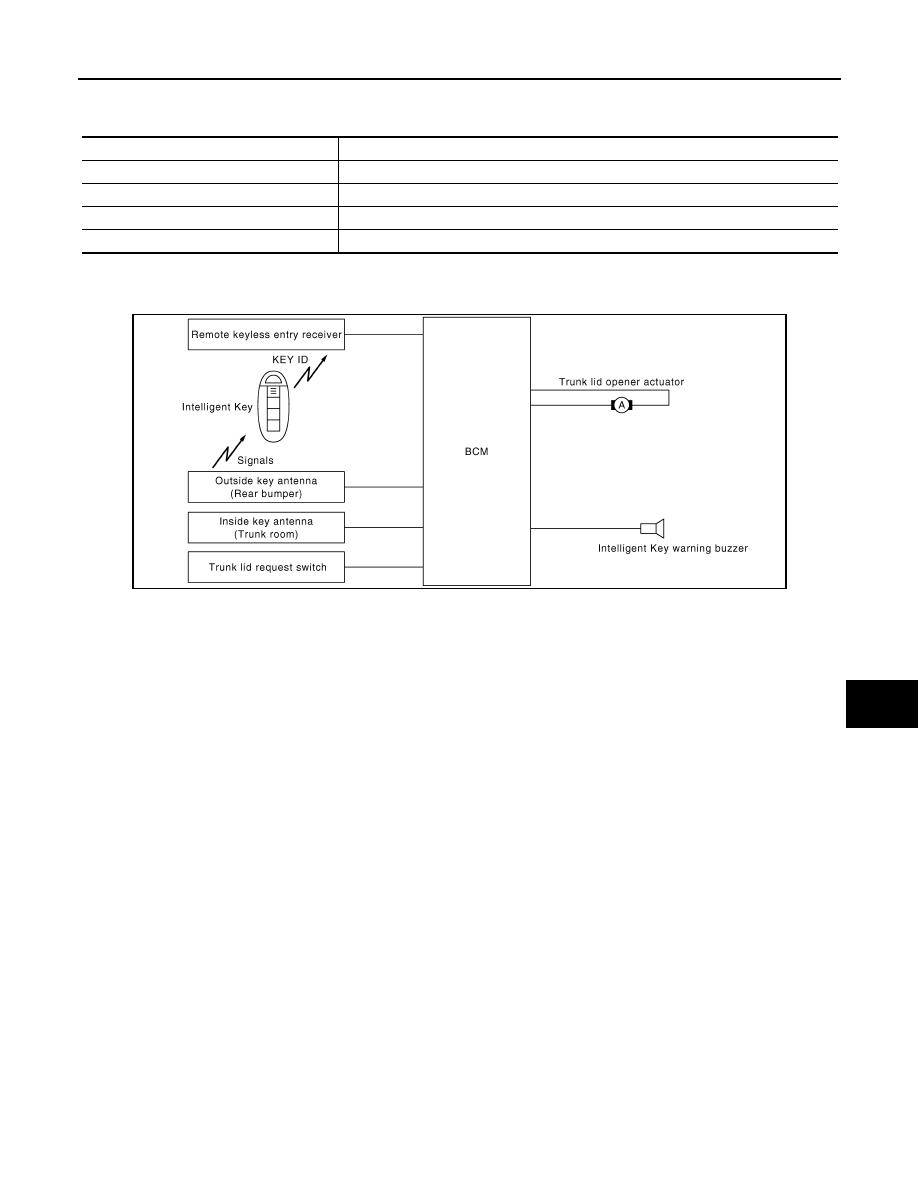

TRUNK REQUEST SWITCH : System Diagram

INFOID:0000000001683026

TRUNK REQUEST SWITCH : System Description

INFOID:0000000001683027

Only when pressing the request switch, it is possible to open the trunk by carrying the Intelligent Key.
• The Intelligent Key system makes it possible to open the trunk (trunk open function) by carrying the Intelli-

gent Key which operates based on the results of electronic ID verification using two-way communications
between the Intelligent Key and the vehicle. (BCM)

CAUTION:

The driver should always carry the Intelligent Key

• If an action that does not meet the operating conditions of the Intelligent Key system is taken, the buzzer

goes on to inform the driver. (Warning chime functions)

• When trunk opens with request switch or remote controller button operation, the hazard lamps flash and the

Intelligent Key warning buzzer or horn sounds (Hazard and buzzer/horn reminder function).

• The settings for each function can be changed with the CONSULT-III.
• If an Intelligent Key is lost, a new Intelligent Key can be registered. A maximum of 4 Intelligent Keys can be

registered.

• It is possible to perform a diagnosis on the system and register an Intelligent Key with the CONSULT-III.

OPERATION DESCRIPTION/TRUNK OPEN

• When the BCM detects that trunk open request switch is pressed, it starts the outside key antenna (trunk

room) and inside key antenna corresponding to the pressed trunk open request switch and transmits the
request signal to the Intelligent Key. Then, it checks that the Intelligent Key is near the trunk.

• If the Intelligent Key is within the outside key antenna (trunk room) detection area, it receives the request sig-

nal and transmits the key ID signal to the BCM via remote keyless entry receiver.

• BCM receives the key ID signal and compares it with the registered key ID.
• BCM transmits the trunk open request signal and sounds Intelligent Key warning buzzer 4 times at the same

time.

• When BCM receives the trunk open request signal, it operates the trunk lid opener actuator and opens the

trunk.

OPERATION CONDITION

Item

Function

BCM

Controls trunk open operation to BCM.

Trunk lid opener switch

Transmits trunk open operation to BCM.

Trunk lid opener actuator

Opens the trunk with the open signal from BCM

Trunk lid opener cancel switch

Cancels the trunk open operation.

JMKIA0054GB

DLK-30

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

TRUNK OPEN FUNCTION

If the following conditions are not satisfied, trunk open operation is not performed even if the request switch is
operated.

*: Even with a registered Intelligent Key remaining inside the vehicle, door locks can be unlocked from outside of the vehicle with a spare
Intelligent Key as long as key IDs are different.

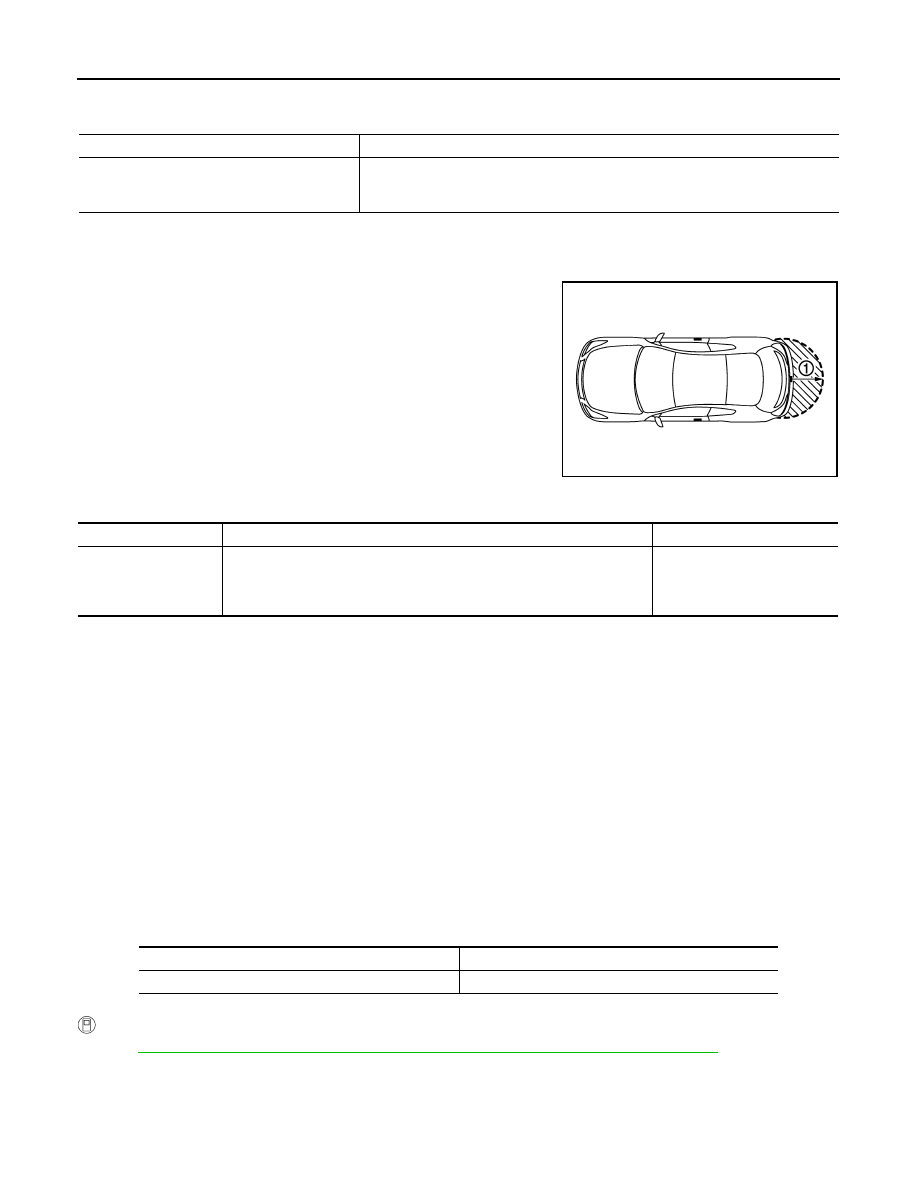

OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of trunk open function is in
the range of approximately 80 cm (31.50 in) surrounding trunk
opener request switch (1). However, this operating range depends
on the ambient conditions.

KEY REMINDER FUNCTION

*:If the door closing impact shocks the door lock knob, or contacts against baggage with the door lock knob might activate the door locks
accidentally but unlock operation will be perform at these cases.

CAUTION:

• The above function operates when the Intelligent Key is inside the vehicle. However, there may be

times when the Intelligent Key cannot be detected, and this function will not operate when the Intelli-
gent Key is on the instrument panel, rear parcel shelf, or in the glove box. Also, this system some-
times does not operate if the Intelligent Key is in the door pocket for the open door.

• When the key reminder function is operated when the trunk is opened/closed and the buzzers

sound, if the following operations are performed, the key reminder function is cleared and buzzer
sounds are stopped.

- Remote controller door lock button operation of Intelligent Key
- Remote controller door unlock button operation of Intelligent Key
- When the trunk is closed, the Intelligent Key is not inside the vehicle
- When any door is open

BUZZER REMINDER FUNCTION

During trunk opening operation by request switch, the Intelligent Key warning buzzer will honk as a reminder.
When trunk open by each request switch, IPDM E/R honks Intelligent Key warning buzzer as a reminder.

Operating function of buzzer reminder

How to change buzzer reminder mode

With CONSULT-III

Refer to

DLK-52, "INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)"

.

LIST OF OPERATION RELATED PARTS

Parts marked with

×

 are the parts related to operation.

Each request switch operation

Operation condition

Trunk open operation

• Intelligent Key is within outside key antenna (trunk room) detection area*
• Trunk cancel switch is ON
• Key reminder functions operate (trunk)

JMKIA1210ZZ

Key remainder function

Operation condition

Operation

Trunk is closed

Right after trunk is closed under the following conditions
• Intelligent Key is inside trunk room
• All doors are closed
• All doors are locked

• Trunk open
• Honk Intelligent Key warning

buzzer

Operation

Intelligent Key warning buzzer honk

Trunk open

Fourth

TRUNK OPEN FUNCTION

DLK-31

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Trunk open function

In

te

llige

n

t Key

Ke

y s

lo

t

Re

mo

te

 ke

yl

es

s en

try rec

e

iv

e

r

Do

or swit

ch

T

run

k roo

m

 l

a

m

p

 swi

tch

T

run

k op

en

er re

qu

es

t s

w

it

c

h

T

ru

nk

 l

id

op

en

er a

c

tuat

or

In

si

de

 ke

y an

ten

n

a

Ou

ts

ide

 k

e

y

 an

te

nn

a (T

ru

nk

)

In

te

llige

n

t Key

 wa

rnin

g

bu

zz

er

CAN co

mm

un

ic

ati

o

n

 s

y

s

tem

BC

M

Hazard w

a

rning

lamp

T

ru

n

k

 l

id

op

en

er c

a

n

c

e

l s

w

itc

h

Trunk open function by the trunk opener request switch

×

×

×

×

×

×

×

×

×

×

×

Buzzer reminder for trunk open operation

×

×

×

Key reminder function

×

×

×

×

×

×

×

×

×

×

DLK-32

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

TRUNK OPEN FUNCTION

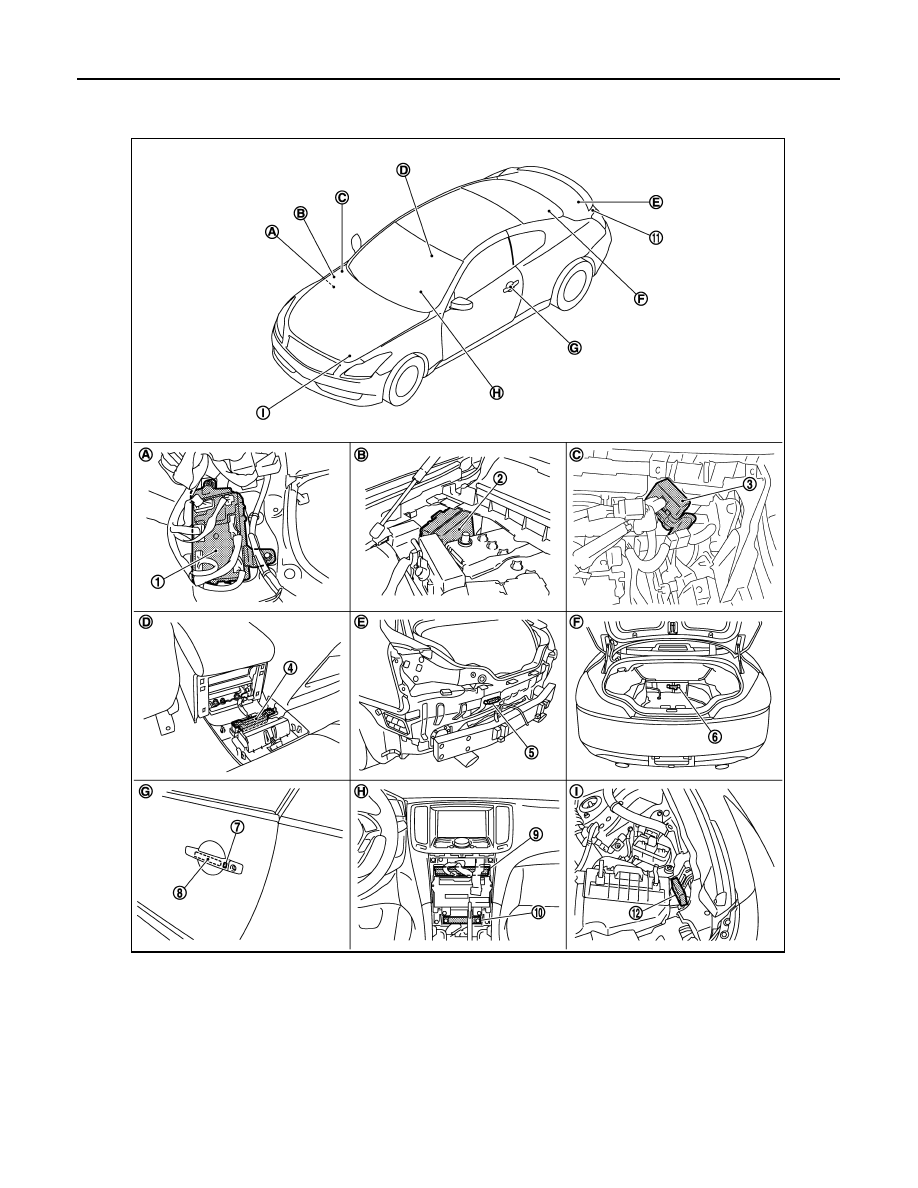

TRUNK REQUEST SWITCH : Component Parts Location

INFOID:0000000001735258

1.

BCM
M118,M119,M120,M121,M122,M123

2.

IPDM E/R E5,E6,E7

3.

Remote keyless entry receiver
M104

4.

Inside key antenna (console) M146

5.

Outside key antenna (rear bumper)
B63

6.

Inside key antenna (trunk room)
B49

7.

Outside handle LH (request switch) D13

8.

Outside handle LH (outside key anten-
na) D14

9.

Unified meter and A/C AMP
M66,M67

10. Inside key antenna (instrument center)

M131

11.

Rear combination lamp LH
(Trunk lid opener request switch) B60

12.

Intelligent Key warning buzzer (en-
gine room) E57

JMKIA1118ZZ
