CL-16

< REMOVAL AND INSTALLATION >

CSC (CONCENTRIC SLAVE CYLINDER)

2.

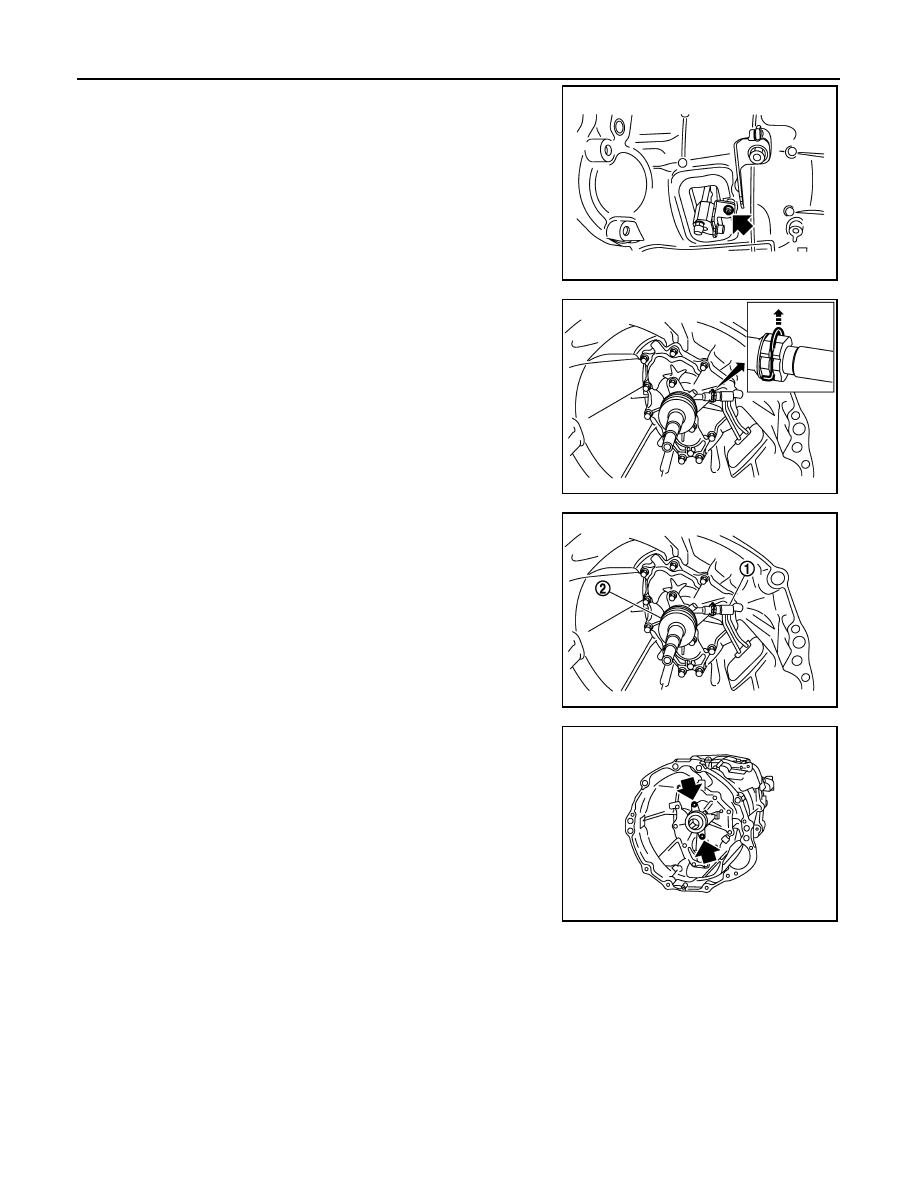

Remove CSC tube mounting bolt.

3.

Pull up the lock pin of the CSC body.

4.

Pull out the CSC tube (1) from the CSC body (2).

5.

Remove CSC tube and dust cover from transmission case.

6.

Remove air bleeder valve from CSC tube.

7.

Remove CSC body from transmission case.

INSTALLATION

JPDIB0012ZZ

JPDIB0019ZZ

JPDIB0031ZZ

JPDIB0020ZZ

CSC (CONCENTRIC SLAVE CYLINDER)

CL-17

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

1.

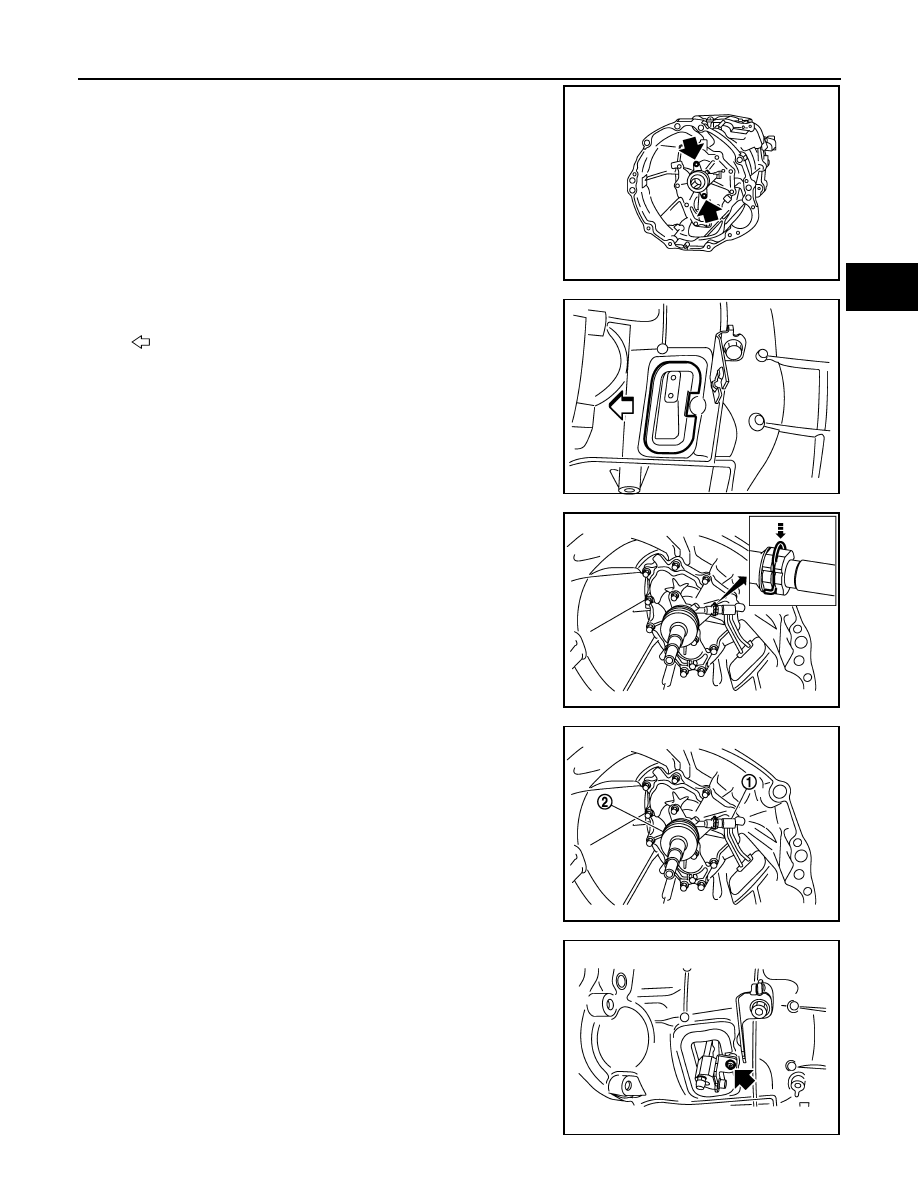

Install CSC body to transmission case and then tighten mount-
ing bolts to the specified torque.

CAUTION:

• Never reuse CSC body.
• Never insert and operate CSC body because piston and

stopper of CSC body components may fall off.

2.

Install dust cover to transmission case.

CAUTION:

Be careful with the orientation of dust cover.

3.

Insert CSC tube to dust cover.

CAUTION:

• Never reuse CSC tube.
• Be sure not to damage O-ring of CSC tube.

4.

Press down the lock pin of the CSC body.

5.

Insert the CSC tube (1) into the connector of the CSC body (2)
until it clicks.

6.

Install CSC tube mounting bolt and then tighten mounting bolt to
the specified torque.

JPDIB0020ZZ

: Vehicle front

JPDIB0021ZZ

JPDIB0023ZZ

JPDIB0031ZZ

JPDIB0012ZZ

CL-18

< REMOVAL AND INSTALLATION >

CSC (CONCENTRIC SLAVE CYLINDER)

CAUTION:

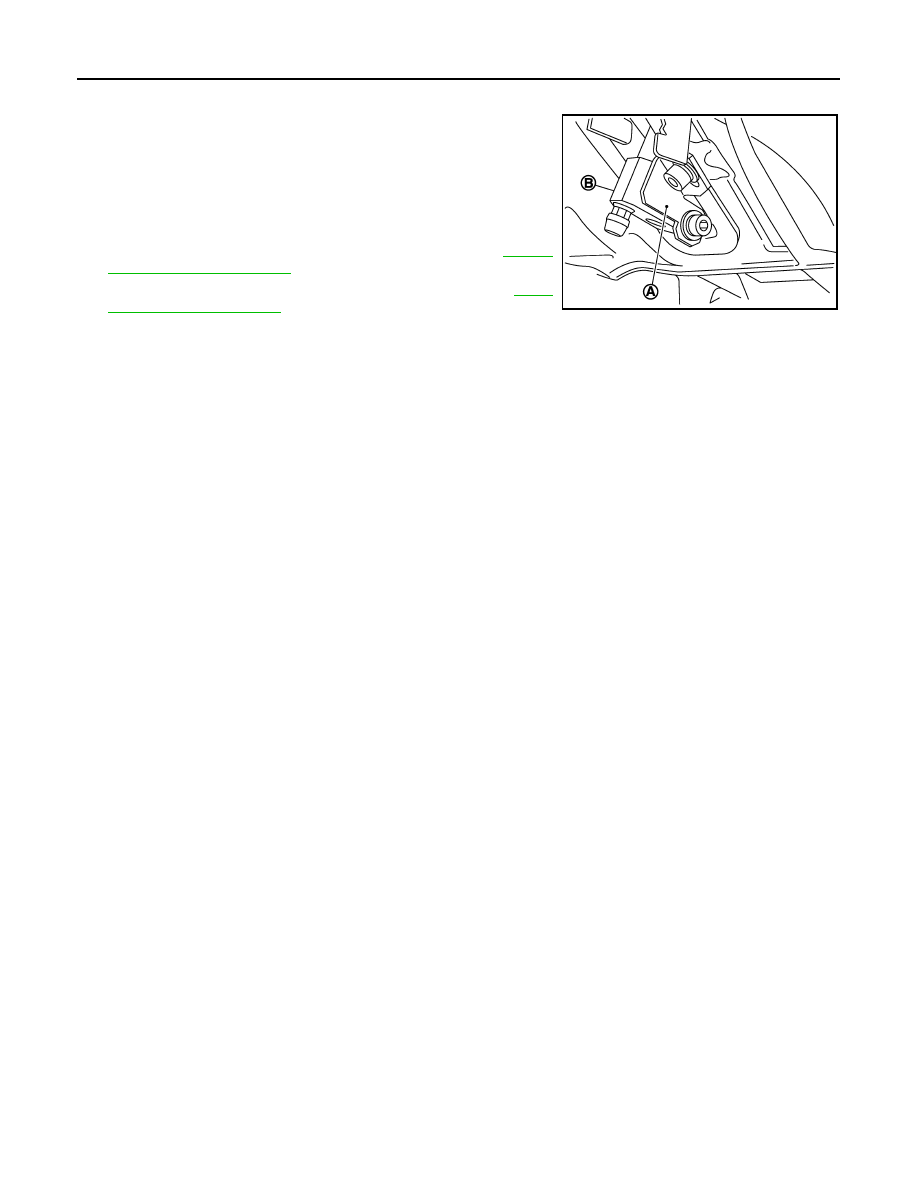

Assemble the components checking that the bracket (A) on
the CSC body and the nozzle (B) closely contact each other
before tightening the bolt. When assembled correctly, the
components should not move beyond the allowable loose-
ness of the connector on the CSC body.

7.

Install air bleeder valve to CSC tube and then tighten air bleeder
valve to the specified torque.

8.

Install transmission assembly to the vehicle. Refer to

TM-25,

"Removal and Installation"

.

9.

Bleed the air from the clutch hydraulic system. Refer to

CL-6,

"Air Bleeding Procedure"

.

JPDIB0022ZZ

CLUTCH DISC AND CLUTCH COVER

CL-19

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

CLUTCH DISC AND CLUTCH COVER

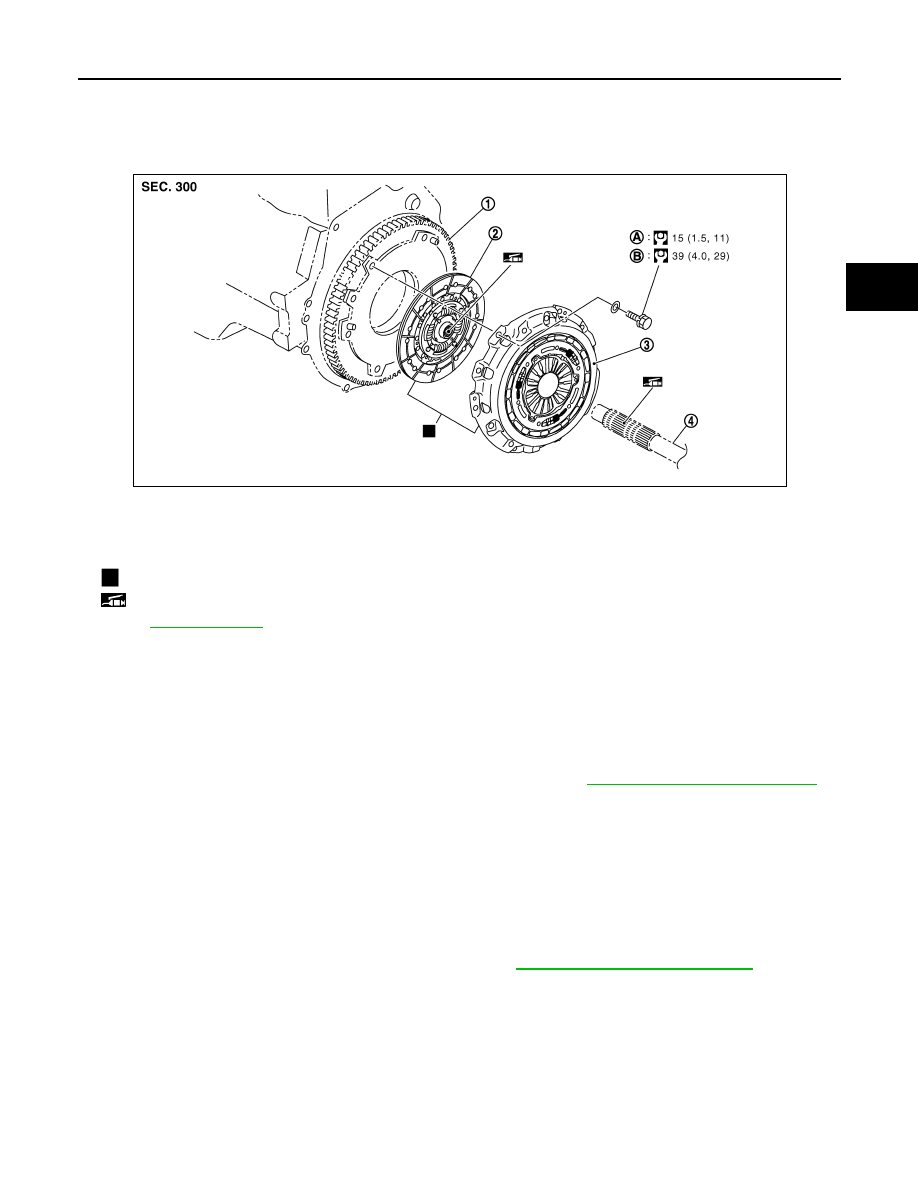

Exploded View

INFOID:0000000001731698

CAUTION:

• If transmission assembly is removed from the vehicle, always replace CSC (Concentric Slave Cylinder) body and CSC tube.

Return CSC body insert to original position to remove transmission assembly. Dust on clutch disc sliding parts may damage
seal of CSC body and may cause clutch fluid leakage.

• Never bring any grease to the clutch disc facing, pressure plate surface and flywheel surface.

• When installing, be careful that grease applied to main drive gear does not adhere to clutch disc.

• Never clean in solvent on clutch disc.

• If flywheel is removed, align dowel pin with the smallest hole of flywheel. Refer to

EM-111, "Disassembly and Assembly"

.

Removal and Installation

INFOID:0000000001731699

CAUTION:

If transmission assembly is removed from the vehicle, always replace CSC (Concentric Slave Cylin-
der) body and CSC tube. Return CSC body insert to original position to remove transmission assem-
bly. Dust on clutch disc sliding parts may damage seal of CSC body and may cause clutch fluid
leakage.

REMOVAL

1.

Remove transmission assembly from the vehicle. Refer to

TM-25, "Removal and Installation"

.

2.

Loosen clutch cover mounting bolts with power tool.

3.

Remove clutch cover and clutch disc.

CAUTION:

Never drop clutch disc.

INSTALLATION

1.

Clean clutch disc and main drive gear splines to remove grease and powder arisen from abrasion.

2.

Apply recommended grease to clutch disc and main drive gear splines.

CAUTION:

1.

Flywheel

2.

Clutch disc

3.

Clutch cover

4.

Main drive gear

A.

First step

B.

Final step

 : Replace the parts as a set.

 : Apply lithium-based grease including molybdenum disulphide.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPDIB0024GB
