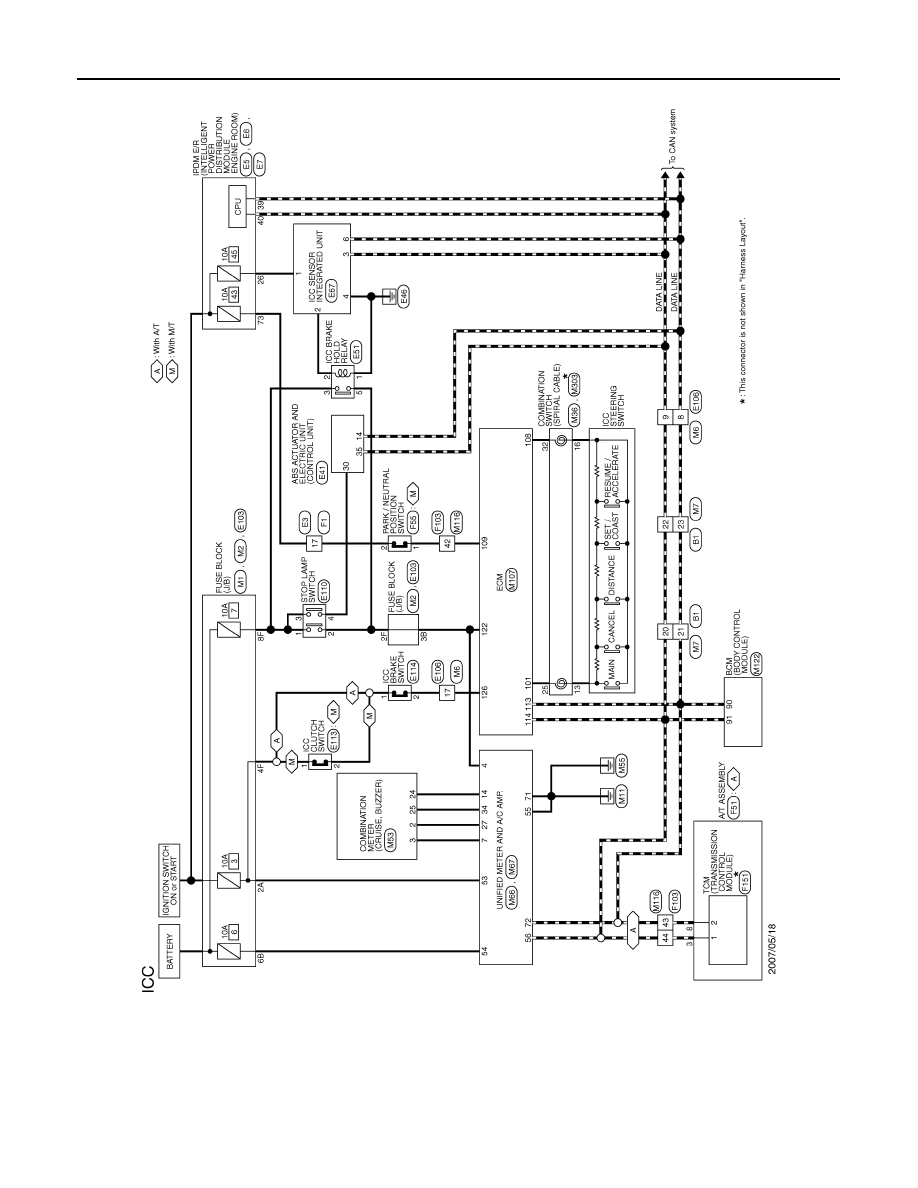

CCS ICC SENSOR INTEGRATED UNIT CCS-85 < ECU DIAGNOSIS > [INTELLIGENT CRUISE CONTROL] C D E F G H I J K L M B N P A ECU DIAGNOSIS ICC SENSOR INTEGRATED UNIT Reference Value INFOID:0000000001606948 VALUES ON THE DIAGNOSIS TOOL CONSULT-III MONITOR ITEM Monitor Item Condition Value/Status MAIN SW Ignition switch ON When MAIN switch is pressed On When MAIN switch is not pressed Off SET/COAST SW Ignition switch ON When SET/COAST switch is pressed On When SET/COAST switch is not pressed Off CANCEL SW Ignition switch ON When CANCEL switch is pressed On When CANCEL switch is not pressed Off RESUME/ACC SW Ignition switch ON When RESUME/ACCELERATE switch is pressed On When RESUME/ACCELERATE switch is not pressed Off DISTANCE SW Ignition switch ON When DISTANCE switch is pressed On When DISTANCE switch is not pressed Off CRUISE OPE Drive the vehicle and activate the ICC system control active On ICC system control inactive Off BRAKE SW Ignition switch ON Brake pedal depressed Off Brake pedal not depressed On STOP LAMP SW Ignition switch ON Brake pedal depressed On Brake pedal not depressed Off IDLE SW Engine running Idling On Except idling (depress acceleration pedal) Off SET DISTANCE • Start the engine and activate the vehicle-to-vehicle distance • Press the DISTANCE switch to change the vehicle-to-vehicle When set to “LONG” LONG When set to “MIDDLE” MID When set to “SHORT” SHOR CRUISE LAMP Start the engine and press the ICC system ON (CRUISE indicator turned on) On ICC system OFF (CRUISE indicator turned off) Off OWN VHCL Start the engine and press the ICC system ON (Own vehicle indicator turned on) On ICC system OFF (Own vehicle indicator turned off) Off VHCL AHEAD • Start the engine and press the MAIN switch • Drive the vehicle in the vehi- cle-to-vehicle distance control Vehicle ahead detected (Vehicle ahead indicator On Vehicle ahead not detected (Vehicle ahead indicator Off ICC WARNING Engine running ICC system malfunctioning (CRUISE warning lamp On ICC system operating normally (CRUISE warning Off VHCL SPEED SE While driving Value of vehicle SET VHCL SPD While driving When vehicle speed is set Displays the set |
