Infiniti G37 Coupe. Manual - part 200

AV

IPOD ADAPTER

AV-553

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

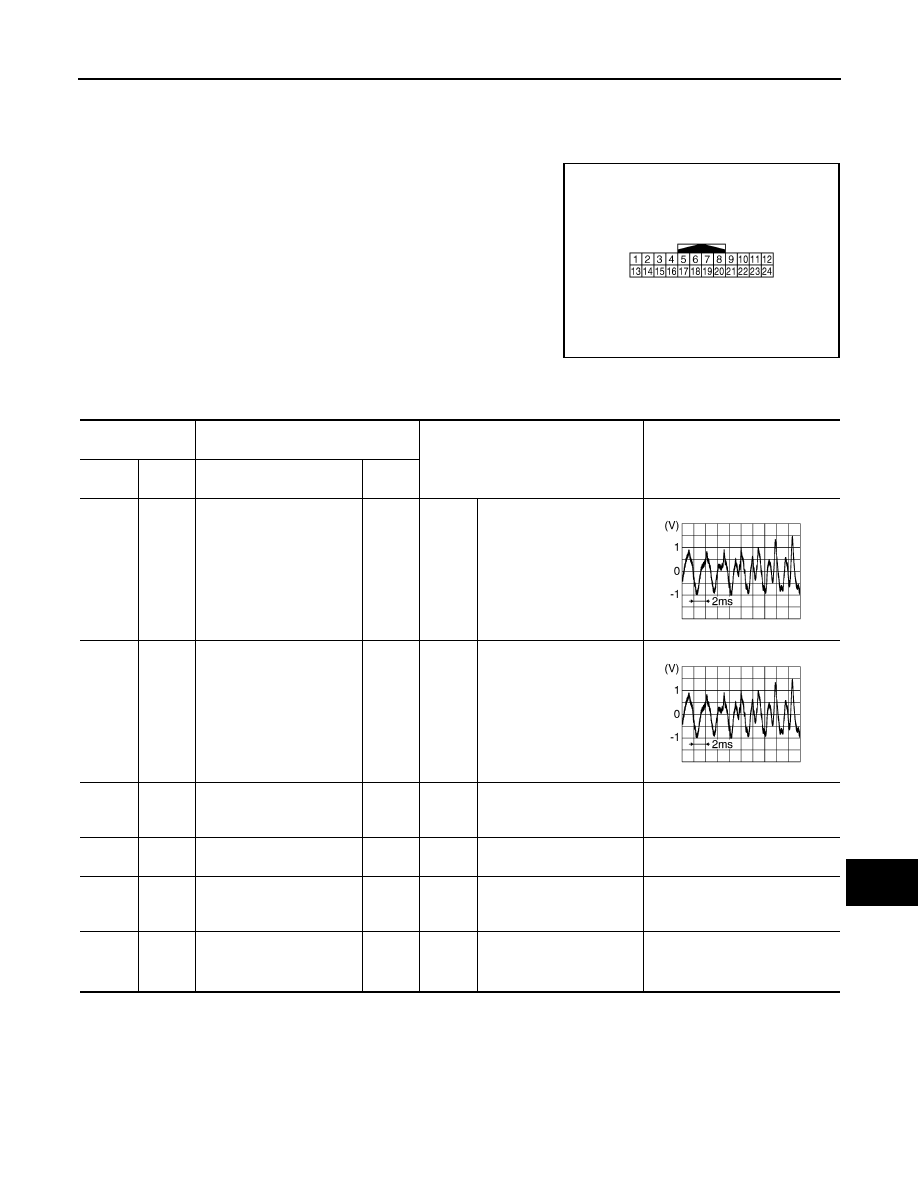

IPOD ADAPTER

Reference Value

INFOID:0000000001558916

TERMINAL LAYOUT

PHYSICAL VALUES

JSNIA0618ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

1

(R)

13

(W)

iPod sound signal LH

Output

Ignition

switch

ON

When iPod mode is select-
ed

2

(B)

14

(G)

iPod sound signal RH

Output

Ignition

switch

ON

When iPod mode is select-
ed

3

(V)

Ground

ACC power supply

Input

Ignition

switch

ACC

—

Battery voltage

4

(R)

—

AV communication signal

(L)

Input/

Output

—

—

—

5

(Y)

Ground

Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

8

(W)

*1

(L)

*2

Ground

iPod battery charge

Output

Ignition

switch

ON

Connected to iPod

®

12 V

SKIB3609E

SKIB3609E

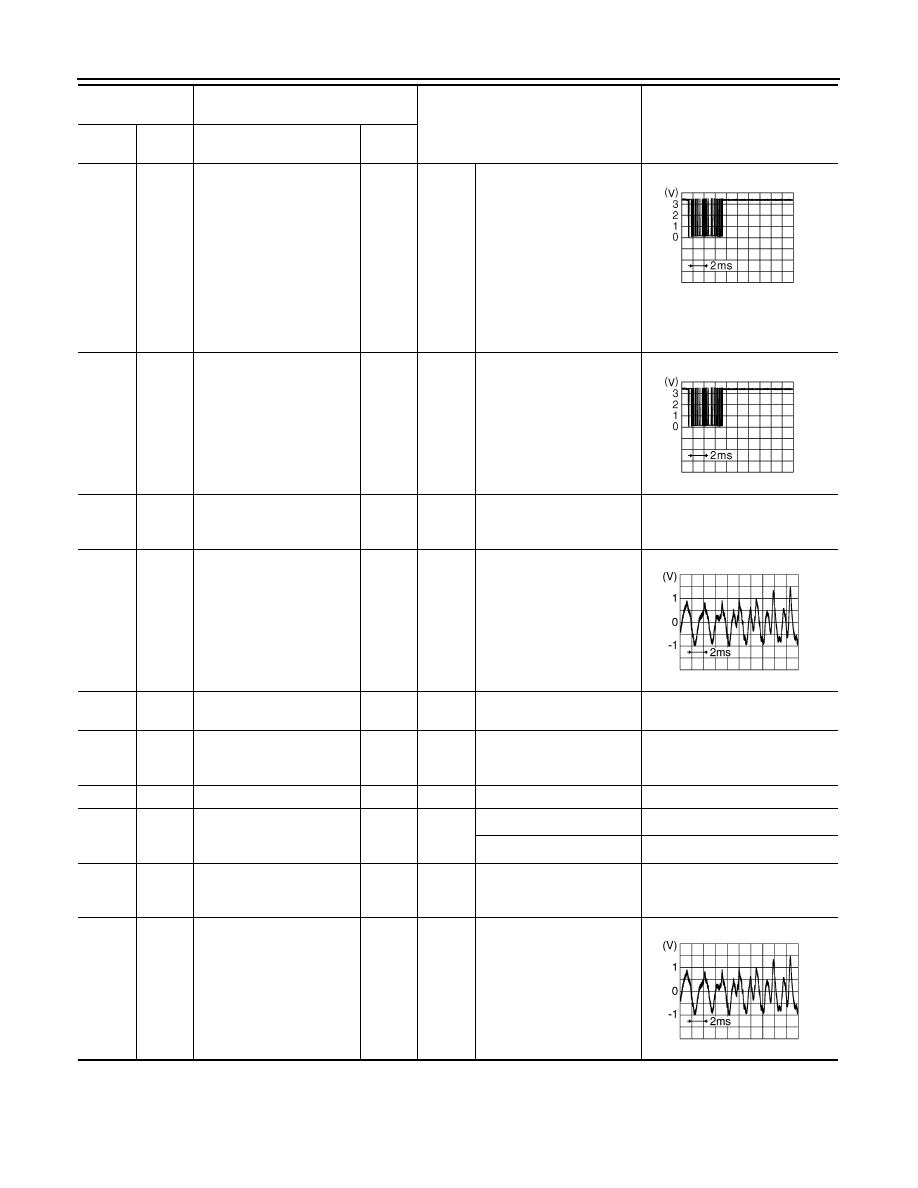

AV-554

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

IPOD ADAPTER

*1: With A/T models.

*2: With M/T models.

9

(P)

Ground

Communication signal

(iPod adapter

→

iPod

®

)

Output

Ignition

switch

ON

The wave pattern is dis-
played just after iPod con-
nection.

NOTE:
After the wave pattern display,
the value continues Approx 3.3 V

10

(L)

Ground

Communication signal

(iPod

®

→

iPod adapter)

Input

Ignition

switch

ON

Connected to iPod

®

11

(O)

Ground

ACCESSORY-IDENTIFY

—

Ignition

switch

ON

Connected to iPod

®

0 V

12

(W)

23

(R)

iPod sound signal RH

Input

Ignition

switch

ON

When iPod mode is select-
ed

16

(G)

—

AV communication signal

(H)

Input/

Output

—

—

—

17

(BR)

Ground

GND

—

Ignition

switch

ON

—



0  V

19

—

Shield

—

—

—

—

21

(W)

Ground

iPod connection recogni-

tion signal

Input

Ignition

switch

ON

Not connected to iPod

®

4 V

Connected to iPod

®

0 V

22

(G)

Ground

ACCESSORY-DETECT

—

Ignition

switch

ON

Connected to iPod

®

0 V

24

(B)

23

(R)

iPod sound signal LH

Input

Ignition

switch

ON

When iPod mode is select-
ed

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

JPNIA0462GB

JPNIA0462GB

SKIB3609E

SKIB3609E

AV

IPOD ADAPTER

AV-555

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

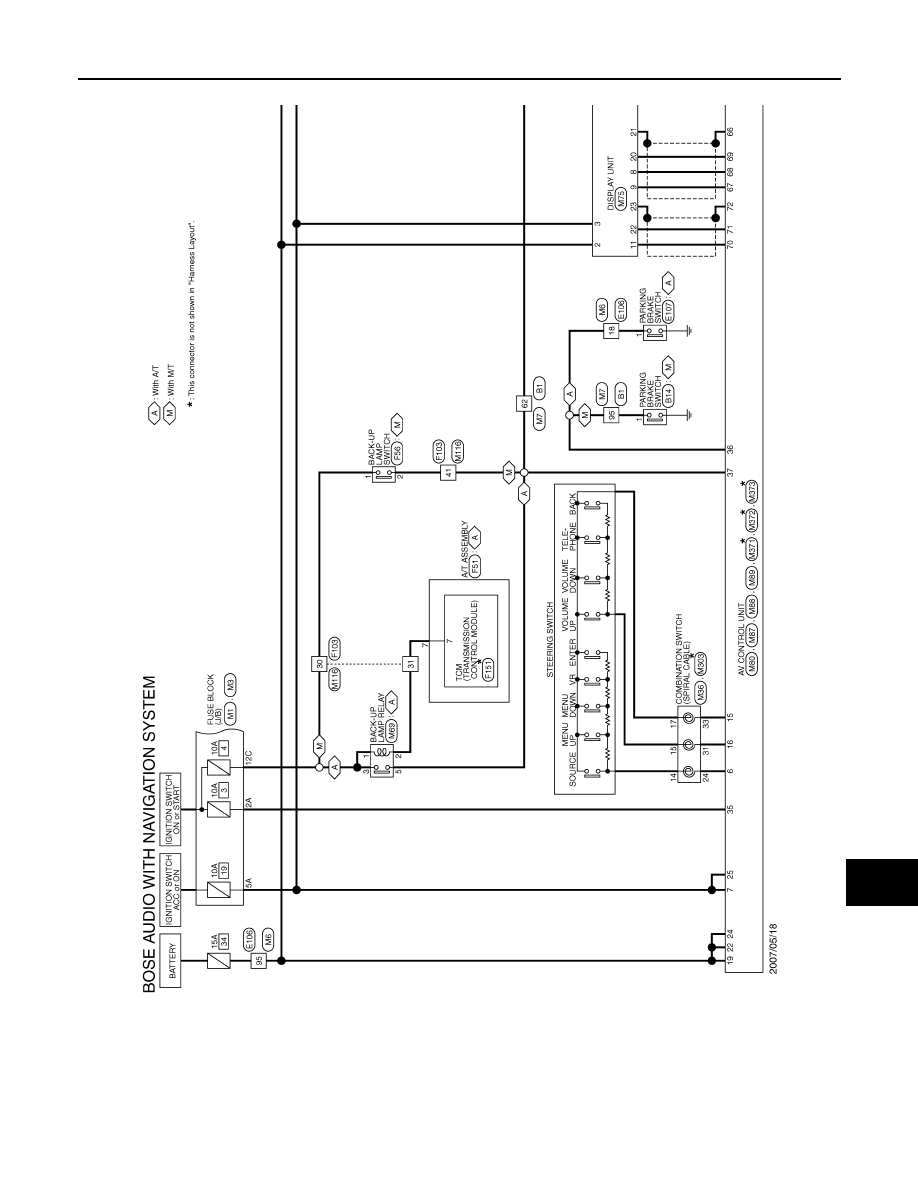

Wiring Diagram - BOSE AUDIO WITH NAVIGATION SYSTEM -

INFOID:0000000001689697

JCNWA0480GB

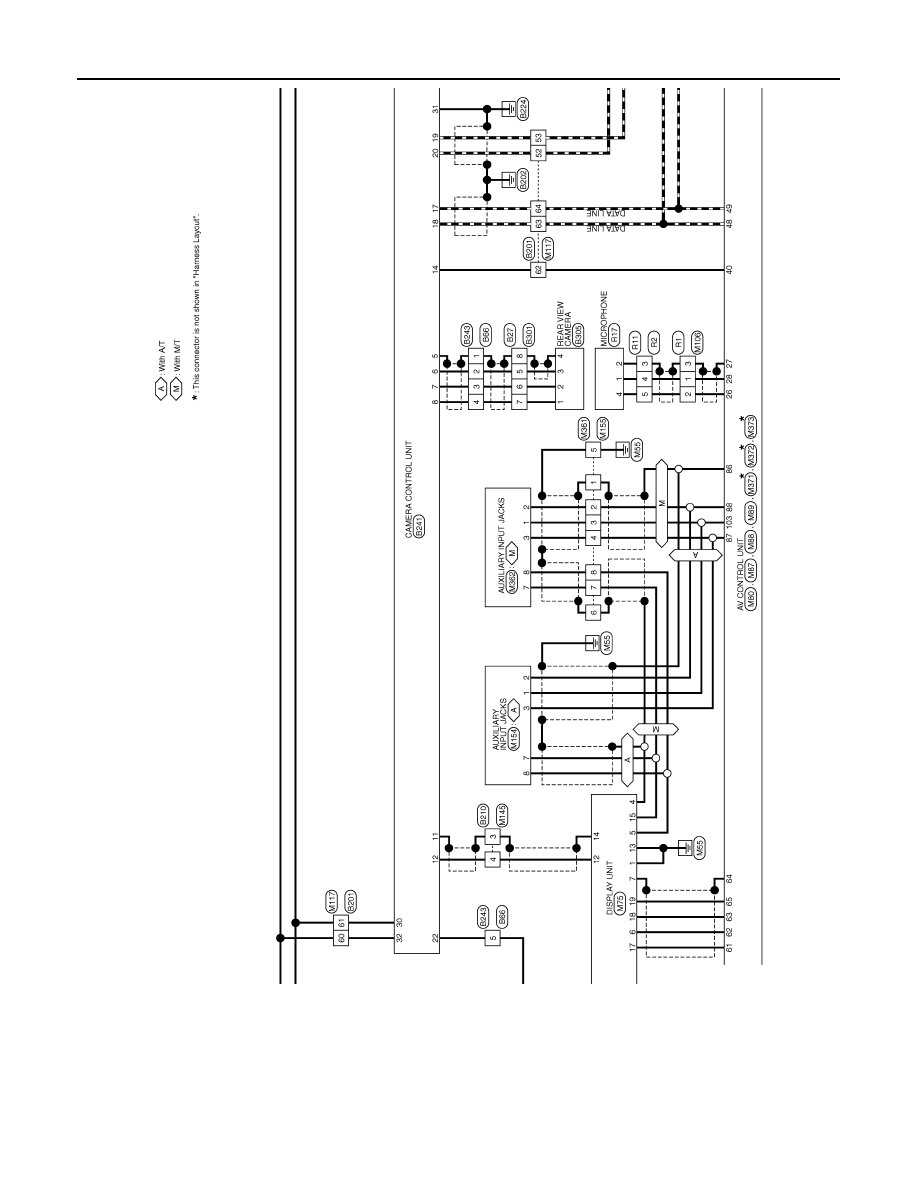

AV-556

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

IPOD ADAPTER

JCNWA0481GB
