UNIFIED METER AND A/C AMP.

UNIFIED METER AND A/C AMP.

Reference Value

INFOID:0000000001677400

VALUES ON THE DIAGNOSIS TOOL

CONSULT-III MONITOR ITEM

Monitor Item

Condition

Value/Status

SPEED METER
[km/h]

Ignition switch
ON

While driving

Equivalent to speedometer reading
NOTE:
655.35 is displayed when the malfunc-
tion signal is received

SPEED OUTPUT
[km/h]

Ignition switch
ON

While driving

Equivalent to speedometer reading
NOTE:
655.35 is displayed when the malfunc-
tion signal is received

ODO OUTPUT
[km]

Ignition switch
ON

—

Equivalent to odometer reading in
combination meter

TACHO METER
[rpm]

Ignition switch
ON

While driving

Equivalent to tachometer reading
NOTE:
8191.875 is displayed when the mal-
function signal is received

FUEL METER
[L]

Ignition switch
ON

—

Values according to fuel level

W TEMP METER
[

°

C]

Ignition switch
ON

—

Values according to engine coolant
temperature
NOTE:
215 is displayed when the malfunction
signal is input

ABS W/L

Ignition switch
ON

ABS warning lamp ON

On

ABS warning lamp OFF

Off

VDC/TCS IND

Ignition switch
ON

VDC OFF indicator lamp ON

On

VDC OFF indicator lamp OFF

Off

SLIP IND

Ignition switch
ON

SLIP indicator lamp ON

On

SLIP indicator lamp OFF

Off

BRAKE W/L

Ignition switch
ON

Blake warning lamp ON

On

Blake warning lamp OFF

Off

DOOR W/L

Ignition switch
ON

Door warning displayed

On

Door warning not displayed

Off

TRUNK/GLAS-H

Ignition switch
ON

Trunk warning displayed

On

Trunk warning not displayed

Off

HI-BEAM IND

Ignition switch
ON

Hi-beam indicator lamp ON

On

Hi-beam indicator lamp OFF

Off

TURN IND

Ignition switch
ON

Turn indicator lamp ON

On

Turn indicator lamp OFF

Off

FR FOG IND

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

RR FOG IND

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

LIGHT IND

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

WCS

UNIFIED METER AND A/C AMP.

WCS-45

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

OIL W/L

Ignition switch
ON

Oil pressure warning lamp ON

On

Oil pressure warning lamp OFF

Off

MIL

Ignition switch
ON

Malfunction warning lamp ON

On

Malfunction warning lamp OFF

Off

GLOW IND

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

C-ENG2 W/L

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

CRUISE IND

Ignition switch
ON

Cruise indicator displayed

On

Cruise indicator not displayed

Off

SET IND

Ignition switch
ON

Set indicator lamp ON

On

Set indicator lamp OFF

Off

CRUISE W/L

Ignition switch
ON

Cruise warning lamp ON

On

Cruise warning lamp OFF

Off

BA W/L

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

ATC/T-AMT W/L

Ignition switch
ON

A/T check warning lamp ON

On

A/T check warning lamp OFF

Off

4WD W/L

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

4WD LOCK IND

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

FUEL W/L

Ignition switch
ON

Low-fuel warning lamp displayed

On

Low-fuel warning lamp not displayed

Off

WASHER W/L

Ignition switch
ON

Washer warning displayed

On

Washer warning not displayed

Off

AIR PRES W/L

Ignition switch
ON

Low tire pressure lamp ON

On

Low tire pressure lamp OFF

Off

KEY G/Y W/L

Ignition switch
ON

Key warning lamp ON

On

Key warning lamp OFF

Off

AFS OFF IND

Ignition switch
ON

AFS OFF indicator lamp ON

On

AFS OFF indicator lamp OFF

Off

4WAS/RAS W/L

Ignition switch
ON

4WAS warning lamp ON

On

4WAS warning lamp OFF

Off

HDC W/L

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

LDP R IND

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

LDP G Y IND

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

Monitor Item

Condition

Value/Status

WCS-46

< ECU DIAGNOSIS >

UNIFIED METER AND A/C AMP.

LCD

Ignition switch
ON

Engine start information display (A/T model)

B&P I

Engine start information display (M/T model)

C&P I

Ignition switch
ACC

Engine start information display (A/T model)

B&P N

Engine start information display (M/T model)

C&P N

Ignition switch
LOCK

Key ID warning display

ID NG

Ignition switch
LOCK

Steering lock information display

ROTAT

Ignition switch
LOCK

P position warning display

SFT P

Ignition switch
LOCK

Intelligent Key insert information display

INSRT

Ignition switch
LOCK

Intelligent Key low battery warning display

BATT

Ignition switch
ON

Take away warning display

NO KY

Ignition switch
LOCK

Key warning display

OUTKY

Ignition switch
ON

ICC sensor integrated unit warning display

LK WN

ACC TARGET

Ignition switch
ON

Vehicle ahead detection indicator displayed

On

Vehicle ahead detection indicator not dis-
played

Off

ACC DISTANCE

Ignition switch
ON

When following distance set to "LONG"

LONG

When following distance set to "MIDDLE"

MID

When following distance set to "SHORT"

SHORT

Set distance indicator not displayed

Off

ACC OWN VHL

Ignition switch
ON

Own vehicle indicator displayed

On

Own vehicle indicator not displayed

Off

ACC SET SPEED

Ignition switch
ON

ICC set vehicle speed display

Vehicle speed

ACC UNIT

Ignition switch
ON

Set vehicle speed indicator unit display ON

On

Set vehicle speed indicator unit display OFF

Off

O/D OFF SW

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

SHIFT IND

Ignition switch
ON

Shift position indicator P display

P

Shift position indicator R display

R

Shift position indicator N display

N

Shift position indicator D display

D

Shift position indicator M1 display

M1

Shift position indicator M2 display

M2

Shift position indicator M3 display

M3

Shift position indicator M4 display

M4

Shift position indicator M5 display

M5

AT S MODE SW

Ignition switch
ON

Snow mode switch ON

On

Snow mode switch OFF

Off

Monitor Item

Condition

Value/Status

WCS

UNIFIED METER AND A/C AMP.

WCS-47

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

NOTE:

Some items are not available according to vehicle specification.

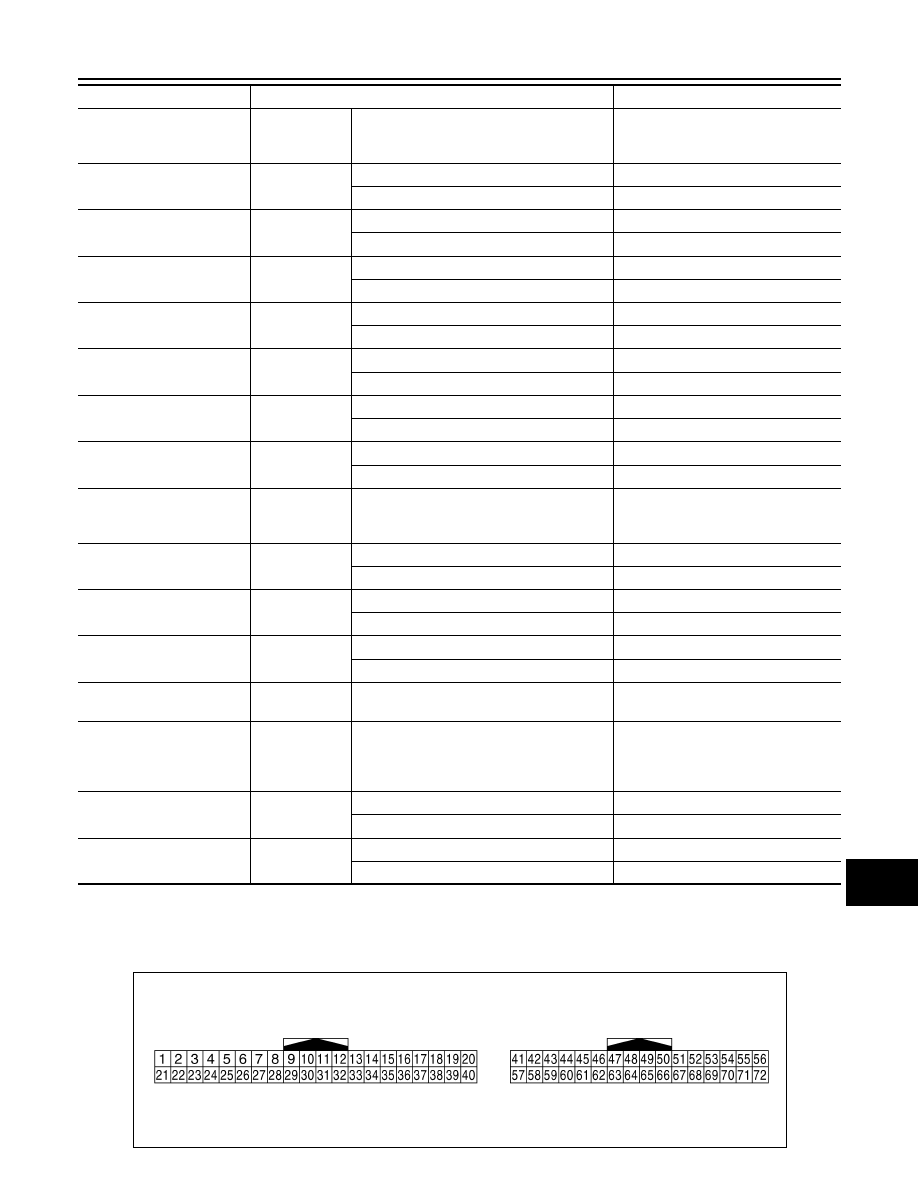

TERMINAL LAYOUT

AT P MODE SW

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

M RANGE SW

Ignition switch
ON

Selector lever DS position

On

Other than the above

Off

NM RANGE SW

Ignition switch
ON

Selector lever DS position

Off

Other than the above

On

AT SFT UP SW

Ignition switch
ON

Selector lever up position

On

Other than the above

Off

AT SFT DWN SW

Ignition switch
ON

Selector lever – position

On

Other than the above

Off

ST SFT UP SW

Ignition switch
ON

Paddle shifter up operation

On

Other than the above

Off

ST SFT DWN SW

Ignition switch
ON

Paddle shifter down operation

On

Other than the above

Off

COMP F/B SIG

Ignition switch
ON

A/C compressor activation condition

On

A/C compressor deactivation condition

Off

4WD LOCK SW

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

PKB SW

Ignition switch
ON

Parking brake applied

On

Parking brake released

Off

BUCKLE SW

Ignition switch
ON

Seat belt (driver side) unfastened

On

Seat belt (driver side) fastened

Off

BRAKE OIL SW

Ignition switch
ON

Brake fluid level is lower than the low level

On

Brake fluid level is normal

Off

DISTANCE
[km]

Ignition switch
ON

—

Possible driving distance calculated by
unified meter and A/C amp.

OUTSIDE TEMP
[

°

C] or [

°

F]

Ignition switch
ON

—

Equivalent to ambient temperature
NOTE:
This may not match the indicated val-
ue on the information display.

FUEL LOW SIG

Ignition switch
ON

Low-fuel warning signal output

On

Low-fuel warning signal not output

Off

BUZZER

Ignition switch
ON

Buzzer ON

On

Buzzer OFF

Off

Monitor Item

Condition

Value/Status

JSNIA0097ZZ
