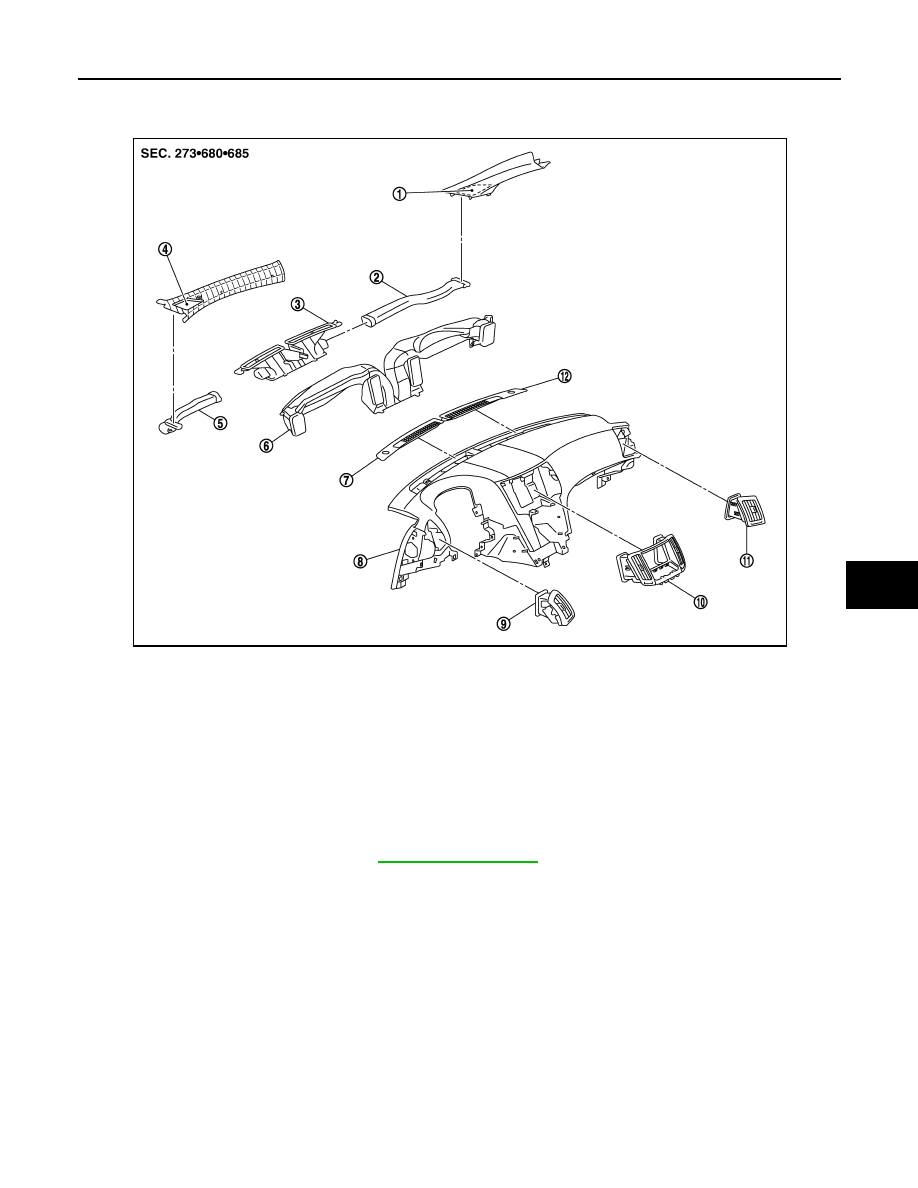

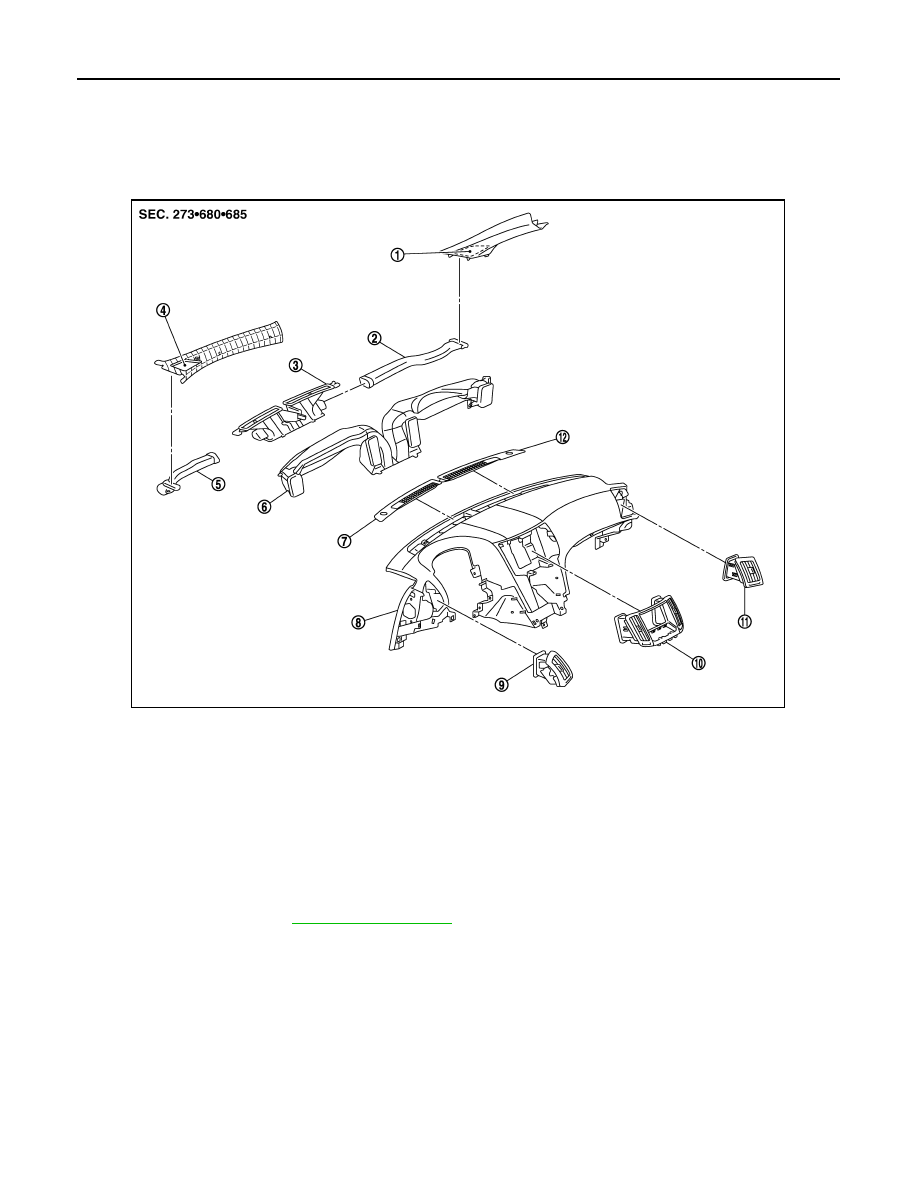

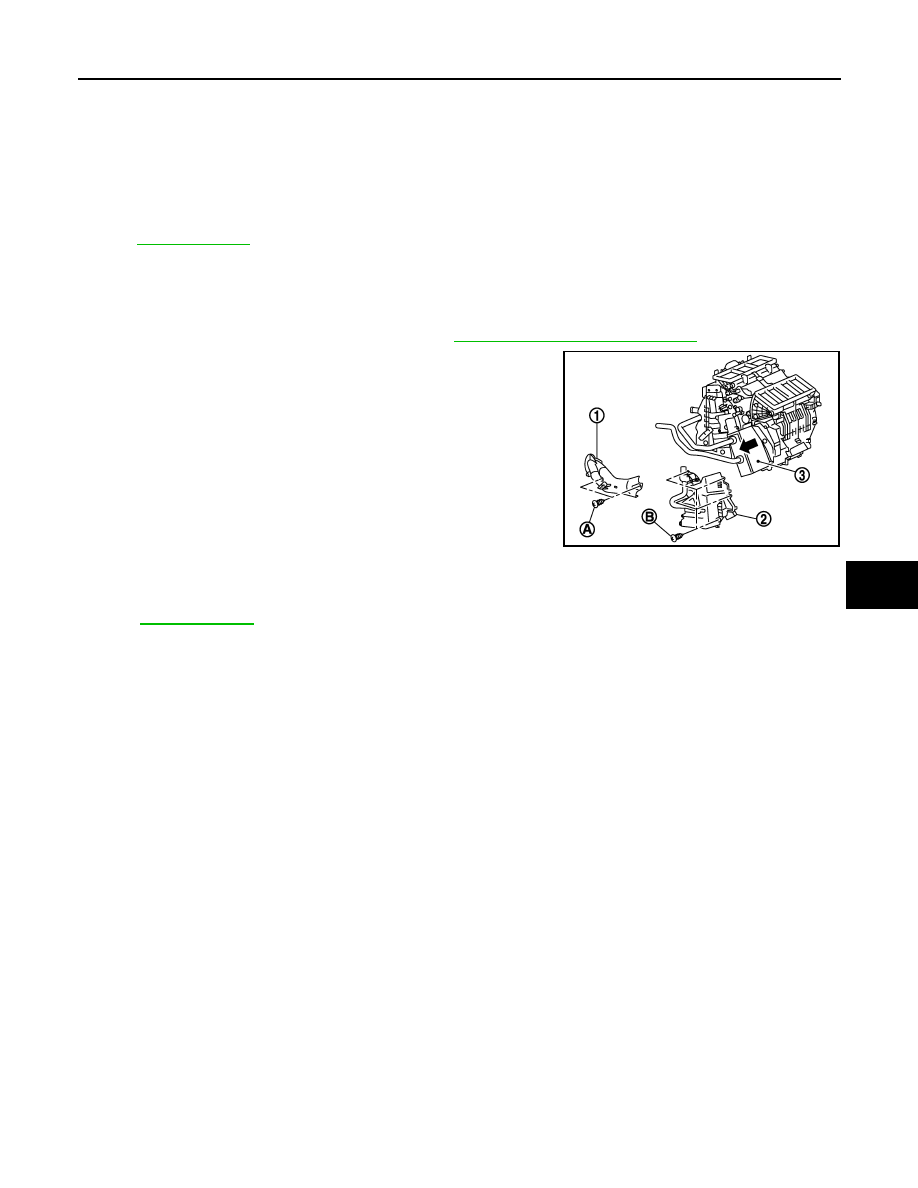

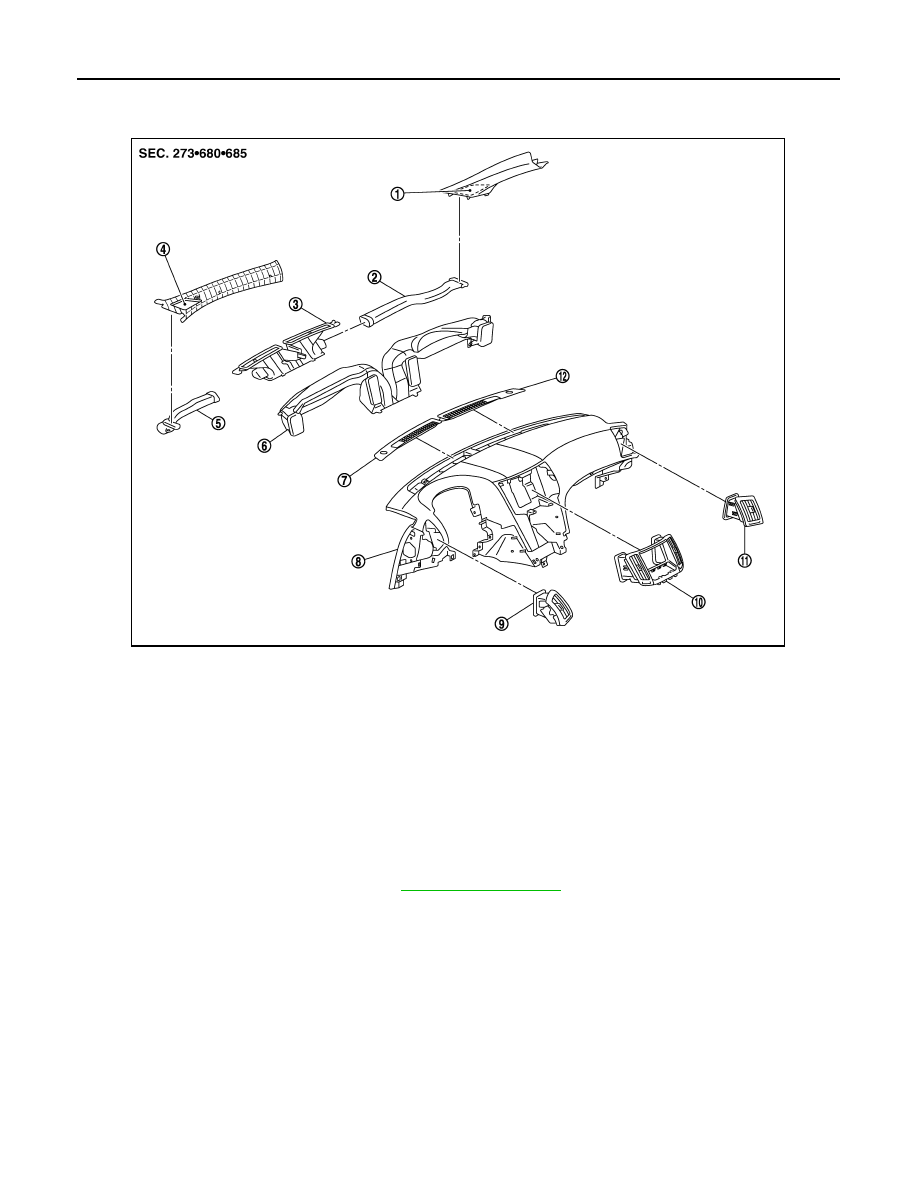

HEATER CORE VTL-43 < ON-VEHICLE REPAIR > C D E F G H J K L M A B VTL N O P Removal and Installation INFOID:0000000001665950 REMOVAL 1. Remove heater & cooling unit assembly. Refer to VTL-35, "Removal and Installation" . 2. Remove mounting screws (A), and then remove heater pipe 3. Remove mounting screws (B), and then remove foot duct (left) 4. Slide heater core (3) to leftward (as shown in the figure). INSTALLATION Installation is basically the reverse order of removal. when filling radiator with engine coolant. 37. Max. cool door lever 38. Foot door link 39. Defroster door link 40. Max. cool door link 41. Main link sub 42. Evaporator cover 43. Heater & cooling unit case (right) 44. Evaporator 45. Drain hose 46. Clamp 47. Air mix door (Slide door) 48. Air mix door adapter 49. Heater pipe cover 50. Max. cool door (left) 51. Defroster door (left) 52. Center case 53. Defroster door (right) 54. Max. cool door (right) * With left and right ventilation temperature separately system. Refer to for symbols in the figure. JSIIA0017GB |
