SUNLOAD SENSOR

VTL-27

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

SUNLOAD SENSOR

Exploded View

INFOID:0000000001665933

Removal and Installation

INFOID:0000000001665934

REMOVAL

1.

Remove front defroster grille (left). Refer to

IP-11, "Exploded View"

.

2.

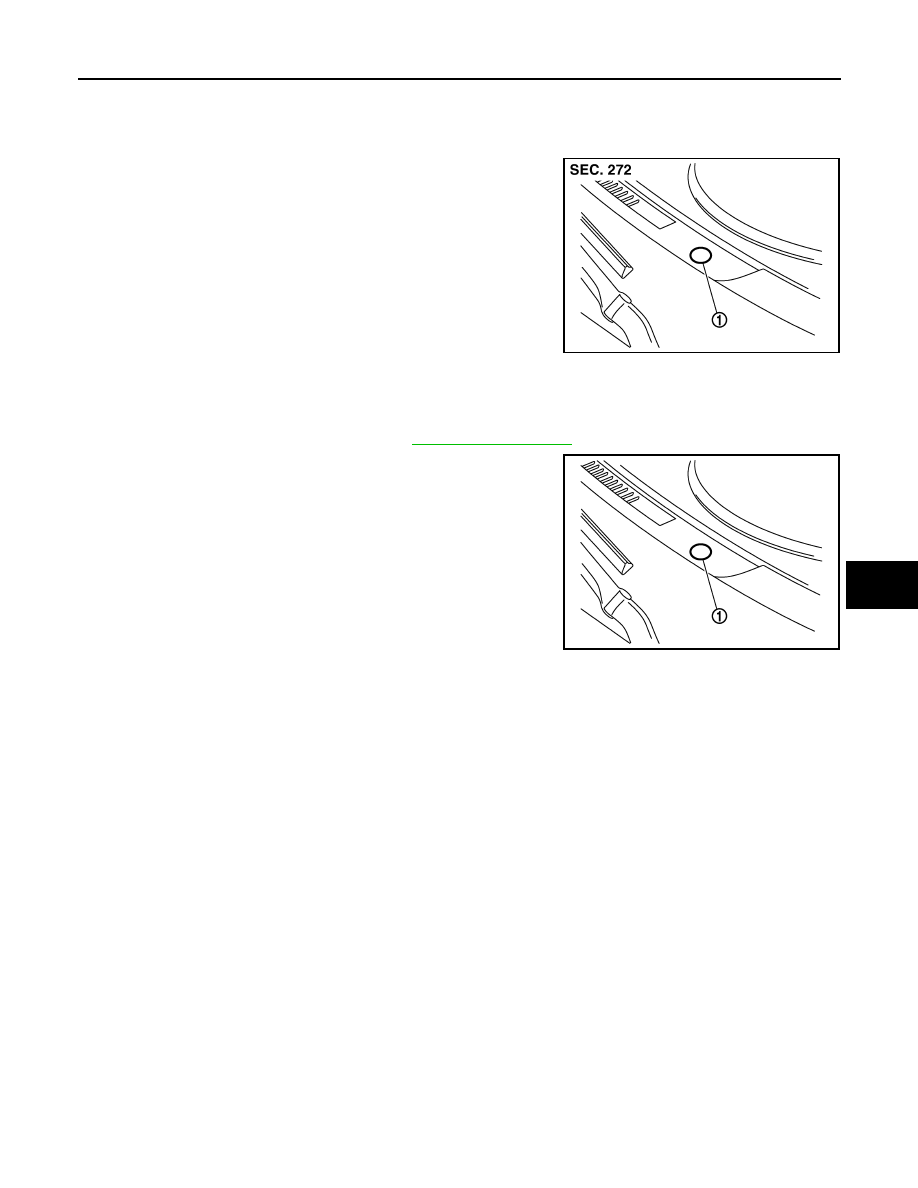

Disconnect sunload sensor connector, and then remove sunload
sensor (1).

INSTALLATION

Installation is basically the reverse order of removal.

1.

Sunload sensor

JSIIA0218ZZ

JSIIA0050ZZ

VTL-28

< ON-VEHICLE REPAIR >

INTAKE SENSOR

INTAKE SENSOR

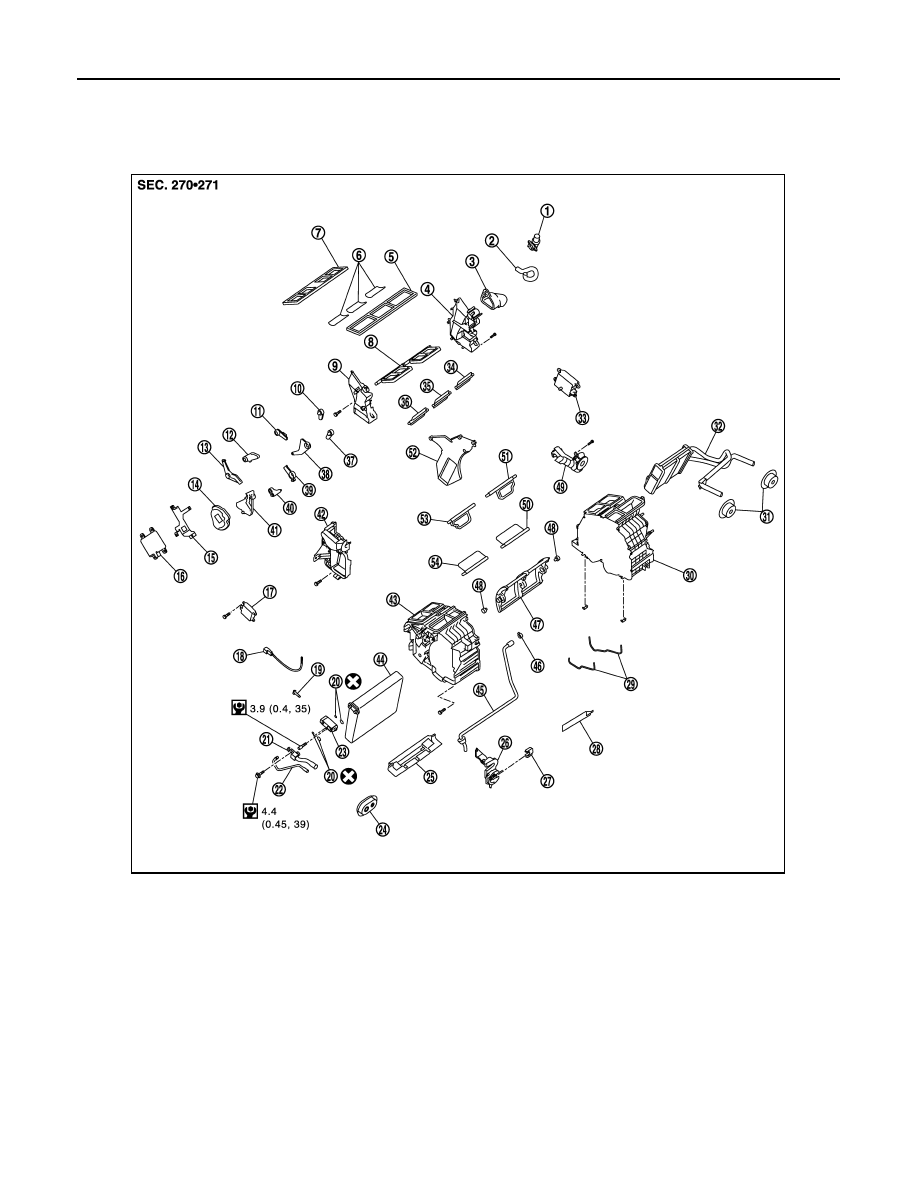

Exploded View

INFOID:0000000001713720

1.

Aspirator

2.

Aspirator hose

3.

Front heater duct

4.

Foot duct (left)

5.

Defroster seal

6.

Packing

7.

Ventilator seal

8.

Ventilator door

9.

Foot duct (right)

10. Defroster door lever

11.

Foot door lever

12.

Ventilator door lever

13. Ventilator door link

14.

Main link

15.

Mode door motor bracket

16. Mode door motor

17.

Air mix door motor (passenger side)

18.

Intake sensor

19. Intake sensor bracket

20.

O-ring

21.

Low-pressure pipe 1

22. High-pressure pipe 2

23.

Expansion valve

24.

Cooler pipe grommet

25. Insulator

26.

Evaporator cover adapter

27.

Heater pipe bracket

28. Case rubber

29.

Case packing

30.

Heater & cooling unit case (left)

31. Heater pipe grommet

32.

Heater core

33.

Air mix door motor (driver side)

*

34. Foot door (left)

35.

Rear ventilator door

36.

Foot door (right)

JSIIA0863GB

INTAKE SENSOR

VTL-29

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

Removal and Installation

INFOID:0000000001665936

REMOVAL

1.

Remove low-pressure pipe 1 and high-pressure pipe 2. Refer to

HA-46, "Exploded View"

.

CAUTION:

Cap or wrap the joint of the A/C piping with suitable material such as vinyl tape to avoid the entry
of air.

2.

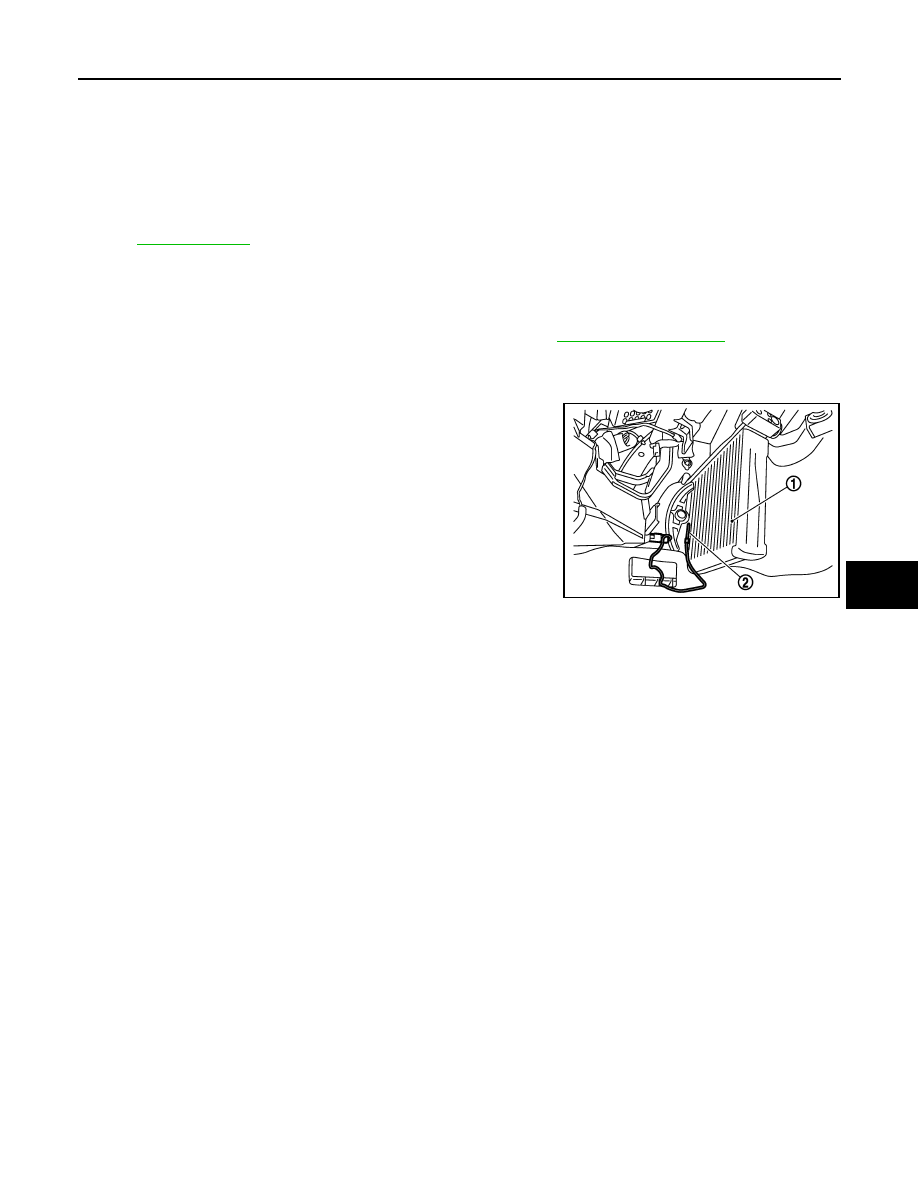

Slide evaporator (1) to passenger side, and then remove intake
sensor (2).

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings with new ones. Then apply compressor oil to them when installing.
• Mark the mounting position of intake sensor bracket prior to removal so that the reinstalled sensor

can be located in the same position.

• Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping

straight in axial direction.

• Insert piping securely until a click is heard.
• After piping connection is completed, pull male-side piping by hand to make sure that connection

does not come loose.

• Check for leakages when recharging refrigerant.

37.

Max. cool door lever

38.

Foot door link

39. Defroster door link

40.

Max. cool door link

41.

Main link sub

42. Evaporator cover

43.

Heater & cooling unit case (right)

44.

Evaporator

45. Drain hose

46.

Clamp

47.

Air mix door (Slide door)

48. Air mix door adapter

49.

Heater pipe cover

50.

Max. cool door (left)

51. Defroster door (left)

52.

Center case

53.

Defroster door (right)

54. Max. cool door (right)

*

With left and right ventilation temperature separately system.

Refer to

GI-4, "Components"

 for symbols in the figure.

JSIIA0052ZZ

VTL-30

< ON-VEHICLE REPAIR >

BLOWER UNIT

BLOWER UNIT

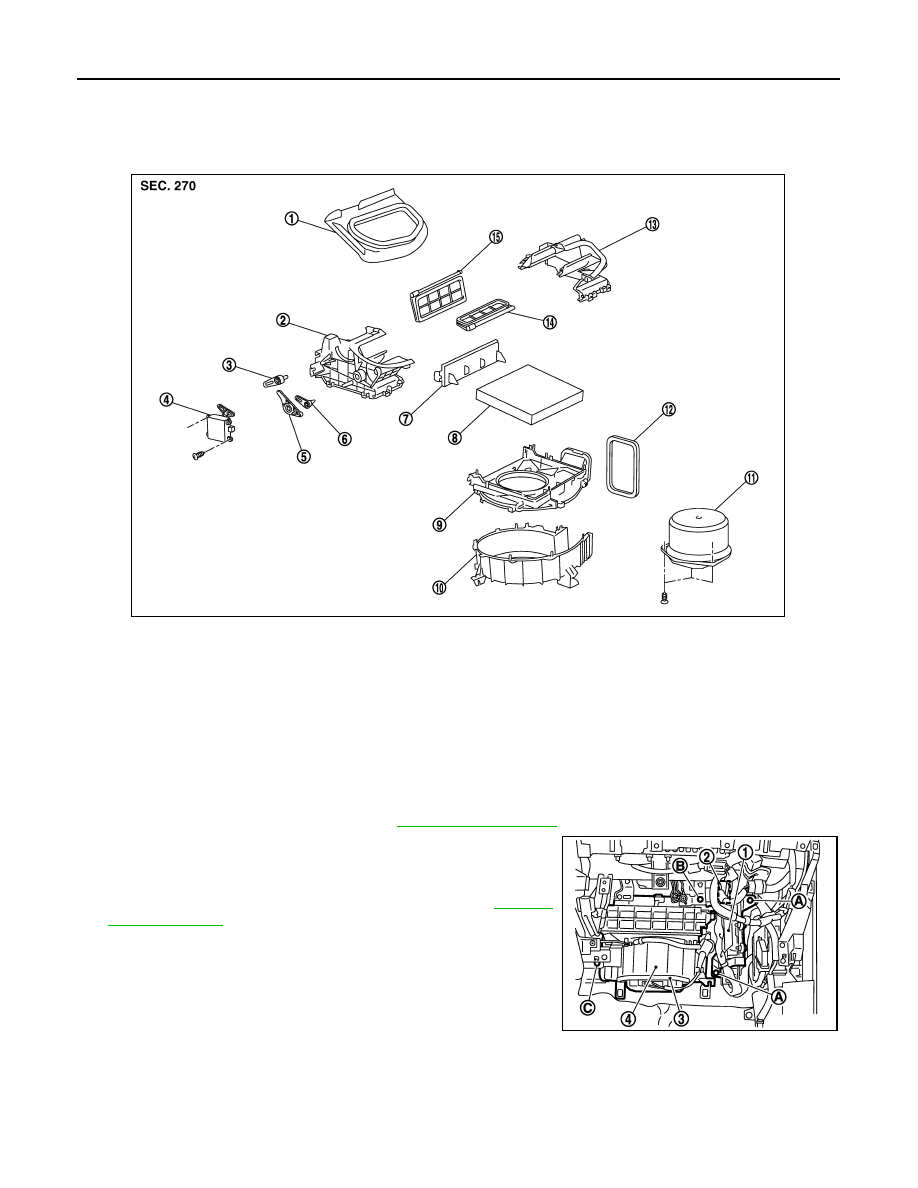

Exploded View

INFOID:0000000001665937

Removal and Installation

INFOID:0000000001665938

REMOVAL

1.

Remove instrument lower panel. Refer to

IP-11, "Exploded View"

.

2.

Disconnect ECM (1) connectors.

3.

Remove mounting nuts (A), and then remove ECM with bracket
attached.

4.

Remove power steering control unit. Refer to

STC-24,

"Exploded View"

.

5.

Disconnect intake door motor (2) connector and blower motor
(3) connector.

6.

Remove mounting bolt (B) and screw (C), from blower unit (4).

7.

Remove blower unit.

CAUTION:

Move blower unit rightward, and remove locating pin (1
part) and joint. Then remove blower unit downward.

INSTALLATION

Installation is basically the reverse order of removal.

1.

Adapter

2.

Intake box (right)

3.

Intake door lever 2

4.

Intake door motor

5.

Intake door link

6.

Intake door lever 1

7.

Filter cover

8.

In-cabin microfilter

9.

Intake upper case

10. Intake lower case

11.

Blower motor assembly

12. Seal

13. Intake box (left)

14.

Intake door 1

15. Intake door 2

JSIIA0009ZZ

JSIIA0855ZZ
