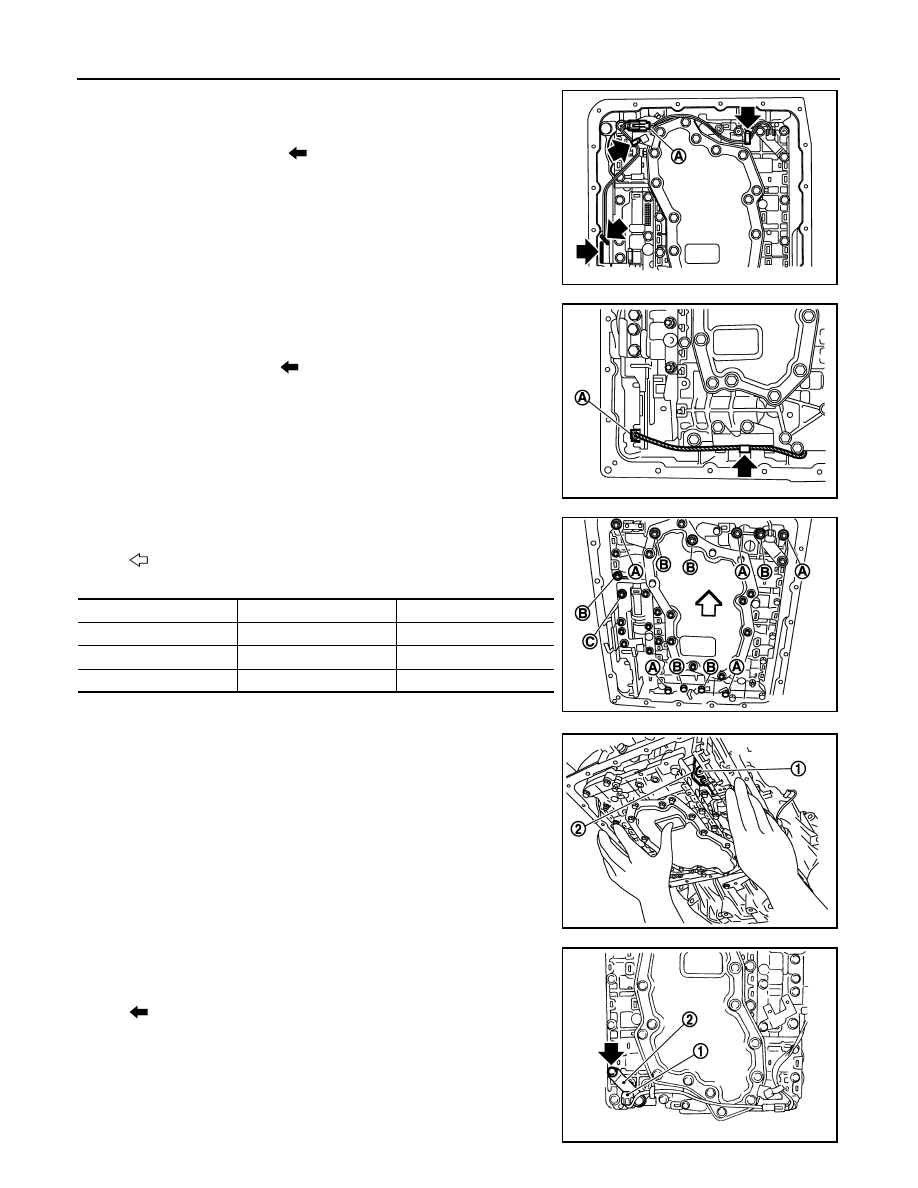

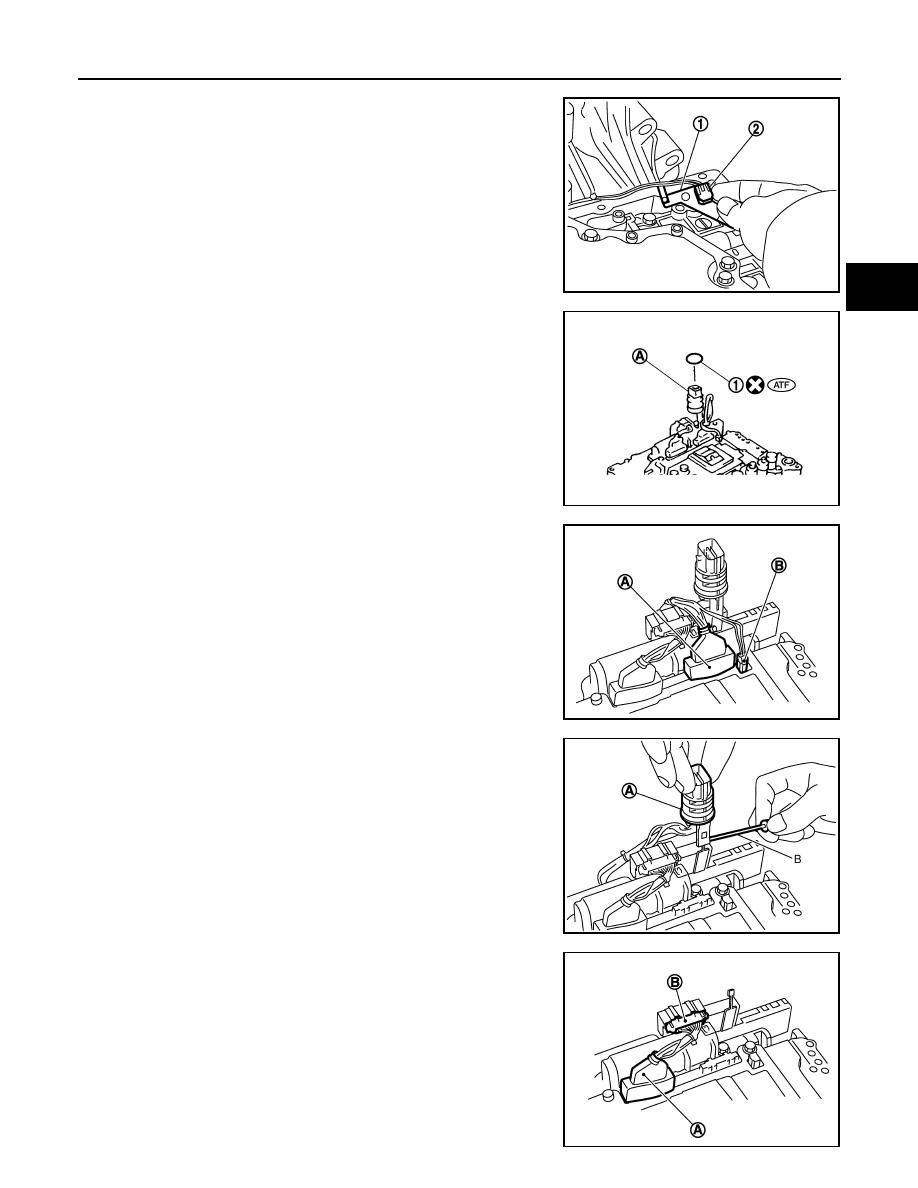

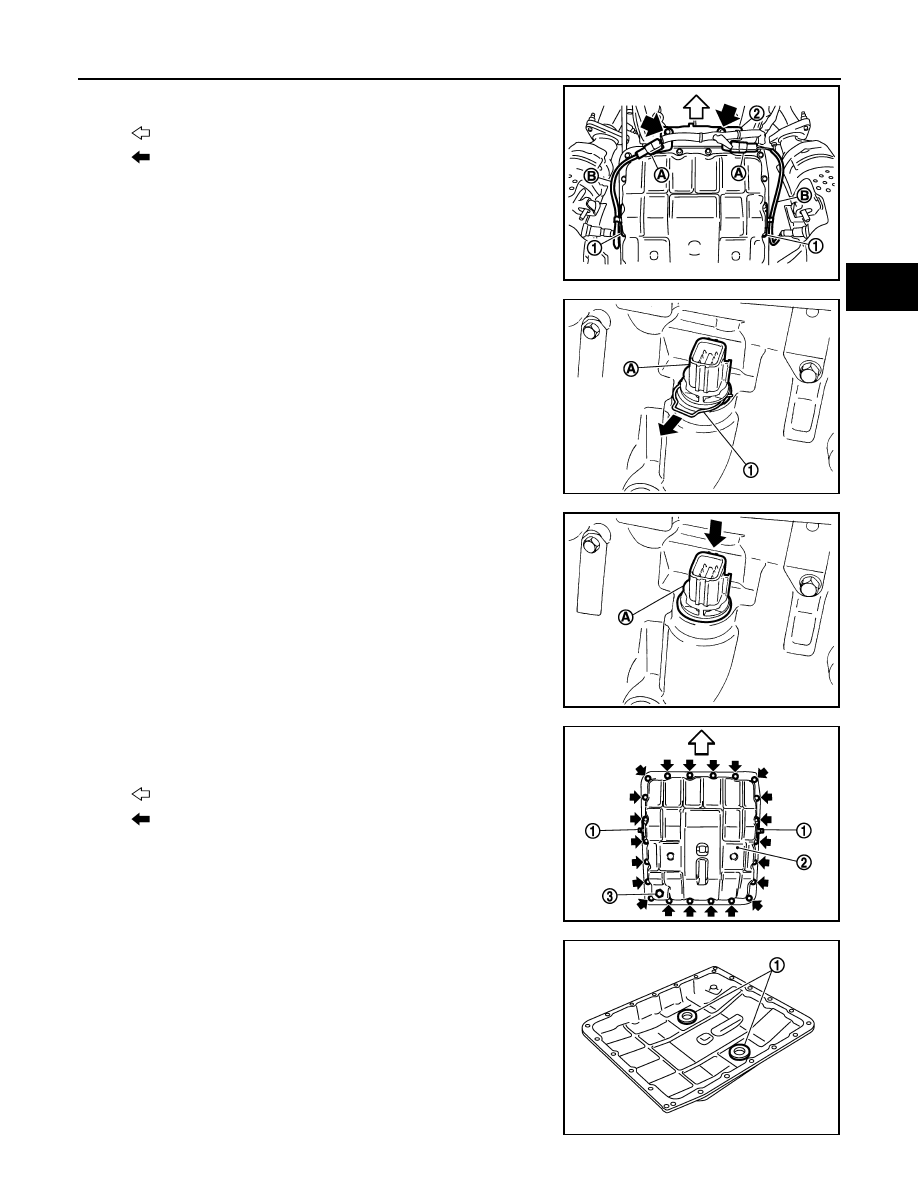

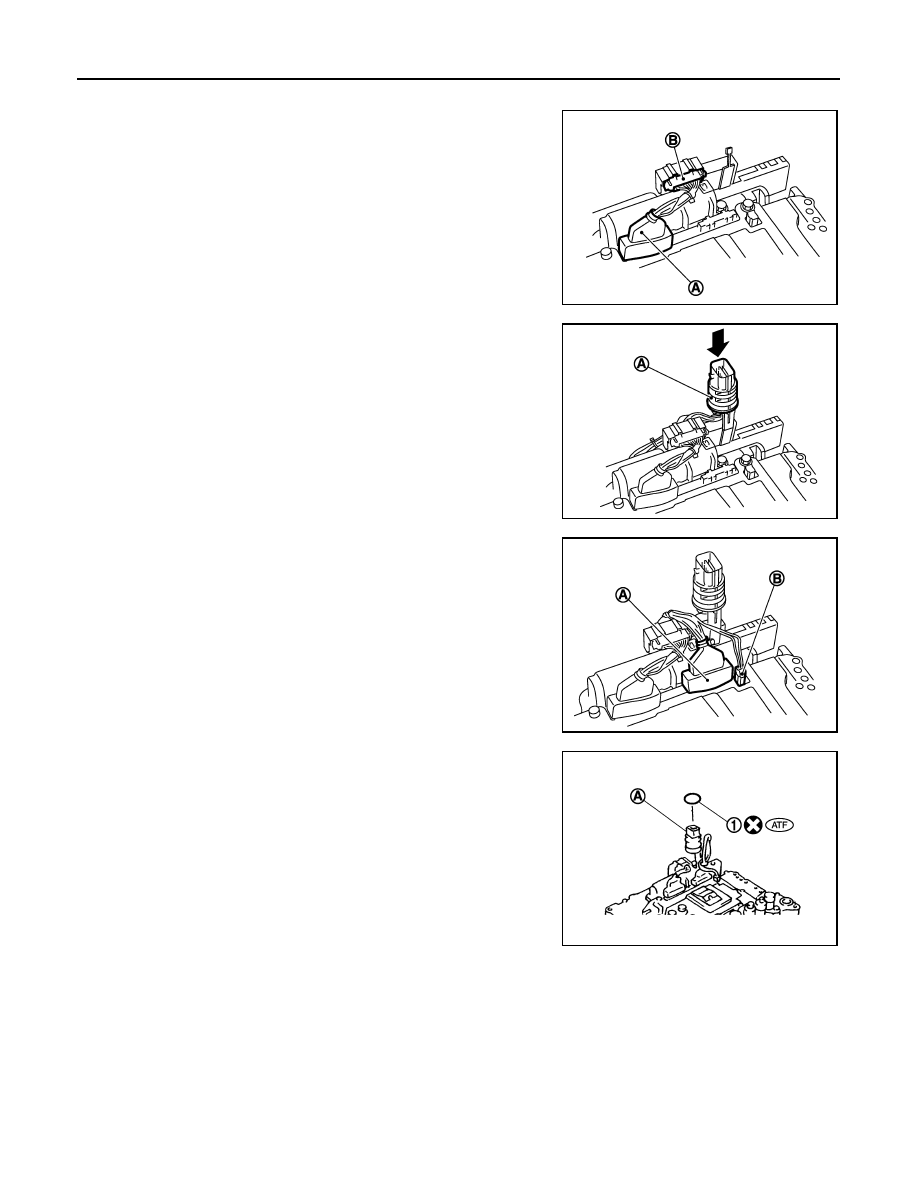

CONTROL VALVE WITH TCM TM-233 < ON-VEHICLE REPAIR > [5AT: RE5R05A] C E F G H I J K L M A B TM N O P 4. Disconnect heated oxygen sensor 2 harness connectors (A). 5. Remove heated oxygen sensor 2 harness (B) from clips (1). 6. Remove bracket (2) from transmission assembly. 7. Disconnect A/T assembly harness connector. 8. Remove snap ring (1) from A/T assembly harness connector 9. Push A/T assembly harness connector (A). CAUTION: Be careful not to damage connector. 10. Remove clips (1). 11. Remove oil pan (2) and oil pan gasket. 12. Remove magnets (1) from oil pan. : Vehicle front : Bolt SCIA8269E JPDIA0007ZZ JPDIA0008ZZ 3 : Drain plug : Vehicle front : Oil pan mounting bolt SCIA8117E JPDIA0009ZZ |
