ECU DIAGNOSIS

TCM

Reference Value

INFOID:0000000001672220

VALUES ON DIAGNOSIS TOOL

NOTE:
1.

The CONSULT-III electrically displays shift timing and lock-up timing (that is, operation timing of each
solenoid).
Check for time difference between actual shift timing and the CONSULT-III display. If the difference is
noticeable, mechanical parts (except solenoids, sensors, etc.) may be malfunctioning. Check mechanical
parts using applicable diagnostic procedures.

2.

Shift schedule (which implies gear position) displayed on CONSULT-III and that indicated in Service Man-
ual may differ slightly. This occurs because of the following reasons:

-

Actual shift schedule has more or less tolerance or allowance

-

Shift schedule indicated in Service Manual refers to the point where shifts start

-

Gear position displayed on CONSULT-III indicates the point where shifts are completed

3.

Display of solenoid valves on CONSULT-III changes at the start of shifting, while gear position is displayed
upon completion of shifting (which is computed by TCM).

CONSULT-III MONITOR ITEM

Item name

Condition

Value / Status (Ap-

prox.)

VHCL/S SE-A/T

During driving

Approximately

matches the speed-

ometer reading.

VHCL/S SE-MTR

During driving

Approximately

matches the speed-

ometer reading.

ACCELE POSI

Released accelerator pedal.

0.0/8

Fully depressed accelerator pedal.

8.0/8

CLSD THL POS

Released accelerator pedal.

On

Fully depressed accelerator pedal.

Off

W/O THL POS

Fully depressed accelerator pedal.

On

Released accelerator pedal.

Off

BRAKE SW

Depressed brake pedal.

On

Released brake pedal.

Off

GEAR

During driving

1, 2, 3, 4, 5

ENGINE SPEED

Engine running

Closely matches the

tachometer reading.

TURBINE REV

During driving (lockup ON)

Approximately

matches the engine

speed.

ATF TEMP SE 1

0

°

C (32

°

 F) – 20

°

C (68

°

F) – 80

°

C (176

°

F)

3.3 – 2.7 – 0.9 V

ATF TEMP SE 2

0

°

C (32

°

 F) – 20

°

C (68

°

F) – 80

°

C (176

°

F)

3.3 – 2.5 – 0.7 V

ATF TEMP 1

Ignition switch ON

Temperature of ATF
in the oil pan is indi-

cated

ATF TEMP 2

Ignition switch ON

Temperature of ATF

at the exit of torque

converter is indicat-

ed.

ATF PRES SW 2

Low coast brake engaged. Refer to

TM-92

.

On

Low coast brake disengaged. Refer to

TM-92

.

Off

TM-178

< ECU DIAGNOSIS >

[5AT: RE5R05A]

TCM

TERMINAL LAYOUT

SLCT LVR POSI

Selector lever in “N” and “P” positions

N/P

Selector lever in “R” position

R

Selector lever in “D” position

D

Selector lever in “M” position: 5th gear

5

Selector lever in “M” position: 4th gear

4

Selector lever in “M” position: 3rd gear

3

Selector lever in “M” position: 2nd gear

2

Selector lever in “M” position: 1st gear

1

MANU MODE SW

Manual shift gate position (neutral)

On

Other than the above

Off

NON M-MODE SW

Manual shift gate position

Off

Other than the above

On

UP SW LEVER

Selector lever: UP (+ side)

On

Other than the above

Off

DOWN SW LEVER

Selector lever: DOWN (

 side)

On

Other than the above

Off

SFT UP ST SW

Paddle shifter: UP (+ side)

On

Other than the above

Off

SFT DWN ST SW

Paddle shifter: DOWN (

 side)

On

Other than the above

Off

TCC SOLENOID

Slip lock-up is active

0.2 – 0.4 A

Lock-up is active

0.4 – 0.6 A

Other than the above

0 – 0.05 A

LINE PRES SOL

During driving

0.2 – 0.6 A

FR/B SOLENOID

Front brake engaged. Refer to

TM-92

.

0.6 – 0.8 A

Front brake disengaged. Refer to

TM-92

.

0 – 0.05 A

I/C SOLENOID

Input clutch disengaged. Refer to

TM-92

.

0.6 – 0.8 A

Input clutch engaged. Refer to

TM-92

.

0 – 0.05 A

D/C SOLENOID

Direct clutch disengaged. Refer to

TM-92

.

0.6 – 0.8 A

Direct clutch engaged. Refer to

TM-92

.

0 – 0.05 A

HLR/C SOL

High and low reverse clutch disengaged. Refer to

TM-92

.

0.6 – 0.8 A

High and low reverse clutch engaged. Refer to

TM-92

.

0 – 0.05 A

ON OFF SOL

Low coast brake engaged. Refer to

TM-92

.

On

Low coast brake disengaged. Refer to

TM-92

.

Off

STARTER RELAY

Selector lever in “N” and “P” positions.

On

Selector lever in “R” and “D” positions.

Off

VEHICLE SPEED

During driving

Approximately

matches the speed-

ometer reading.

Item name

Condition

Value / Status (Ap-

prox.)

TCM

TM-179

< ECU DIAGNOSIS >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

PHYSICAL VALUES

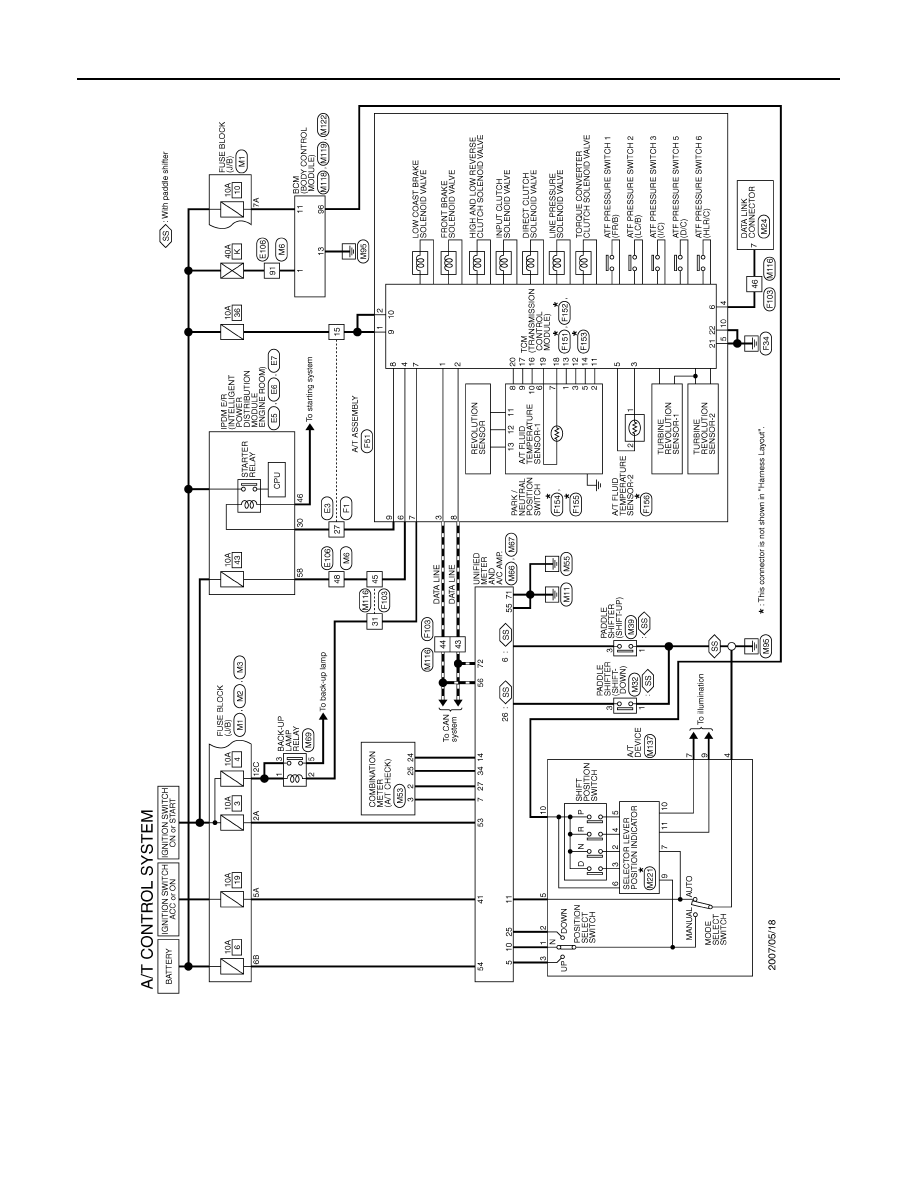

Wiring Diagram - A/T CONTROL SYSTEM -

INFOID:0000000001672221

Click here to view the eWD.

SCIA1658E

Terminal

(Wire color)

Description

Condition

Value (Approx.)

+

Signal name

Input/

Output

1

(BR)

Ground

Power supply
(Memory back-up)

Input

Always

Battery voltage

2

(BR)

Ground

Power supply
(Memory back-up)

Input

Always

Battery voltage

3

(L)

CAN-H

Input/

Output

4

(V)

K-line (CONSULT-
III signal)

Input/

Output

5

(B)

Ground

Ground

Output

Always

0 V

6

(Y)

Ground

Power supply

Input

Ignition switch ON

Battery voltage

Ignition switch OFF

0 V

7

(R)

Ground

Back-up lamp relay

Input

Ignition switch ON

Selector lever in “R” position.

0 V

Selector lever in other positions.

Battery voltage

8

(P)

CAN-L

Input/

Output

9

(GR)

Ground

Starter relay

Output

Ignition switch ON

Selector lever in “N” and “P” po-
sitions.

Battery voltage

Selector lever in other positions.

0 V

10

(B)

Ground

Ground

Output

Always

0 V

TM-180

< ECU DIAGNOSIS >

[5AT: RE5R05A]

TCM

JCDWA0121GB
