SHIFT FORK AND FORK ROD

TM-73

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SHIFT FORK AND FORK ROD

Exploded View

INFOID:0000000001732898

Refer to

TM-29, "Exploded View"

.

Disassembly

INFOID:0000000001732899

Refer to

TM-34, "Disassembly"

 for disassembly procedure.

Assembly

INFOID:0000000001732900

Refer to

TM-43, "Assembly"

 for assembly procedure.

Inspection

INFOID:0000000001732901

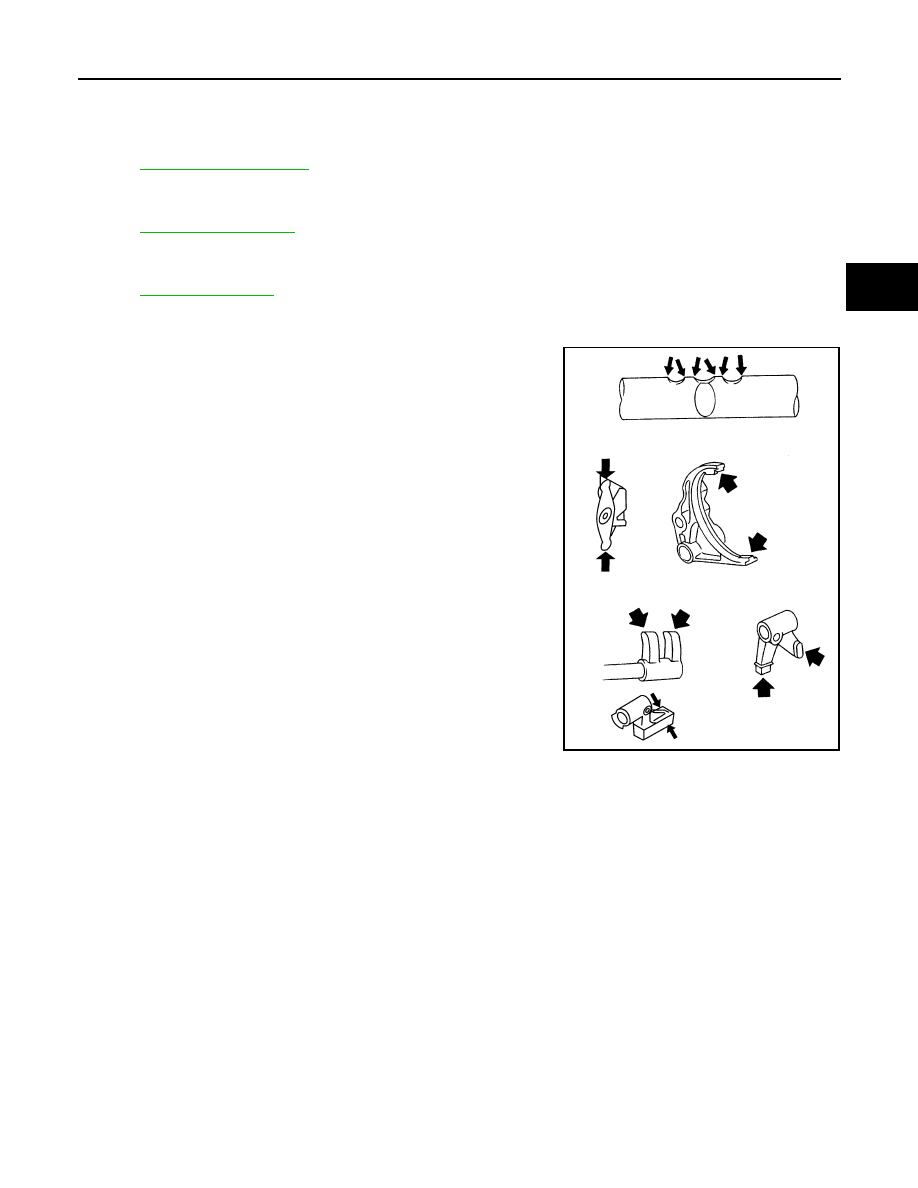

If the contact surface on striking lever, fork rod, shift fork, etc. has
excessive wear, abrasion, bend, or any other damage, replace the
components.

SCIA1681E

TM-74

< SERVICE DATA AND SPECIFICATIONS (SDS)

[6MT: FS6R31A]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000001732902

Engine type

VQ37VHR

Transmission

FS6R31A

Model code number

JK400

Number of speed

6

Shift pattern

Synchromesh type

Warner

Gear ratio

1st

3.794

2nd

2.324

3rd

1.624

4th

1.271

5th

1.000

6th

0.794

Reverse

3.446

Main gear
(Number of teeth)

Drive

26

1st

37

2nd

34

3rd

33

4th

31

6th

31

Reverse

42

Counter shaft gear
(Number of teeth)

Drive

32

1st

12

2nd

18

3rd

25

4th

30

6th

48

Reverse

15

Reverse idler gear (Number of teeth)

26

Oil capacity

 (US pt, Imp pt)

Approx. 2.93 (6-1/4, 5-1/8)

Remarks

Reverse synchronizer

Installed

Double cone synchronizer

4th

Triple cone synchronizer

1st, 2nd, and 3rd

SCIA0955E

SERVICE DATA AND SPECIFICATIONS (SDS)

TM-75

< SERVICE DATA AND SPECIFICATIONS (SDS)

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

End Play

INFOID:0000000001732903

Unit: mm (in)

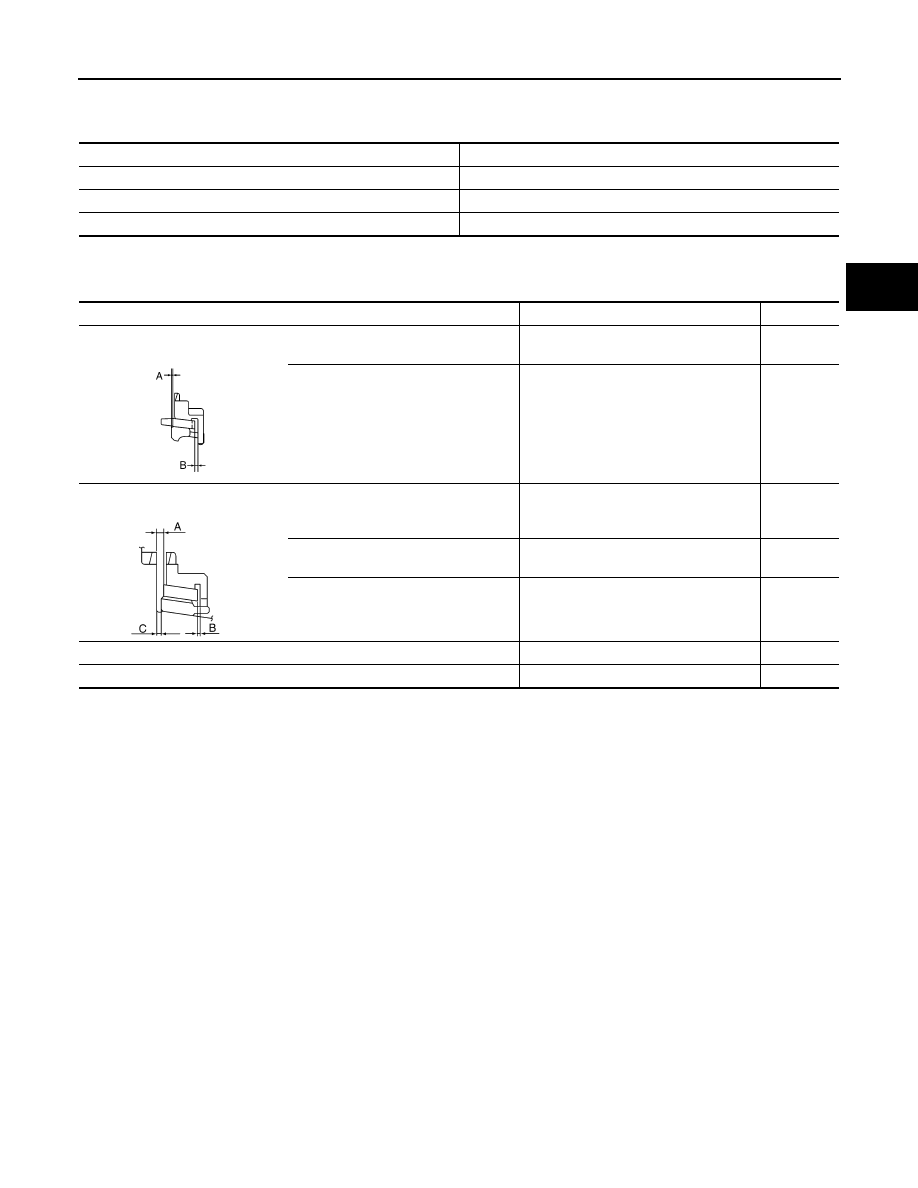

Baulk Ring Clearance

INFOID:0000000001732904

Unit: mm (in)

Item

Standard value

Counter shaft

0 - 0.10 (0 - 0.004)

Main drive gear

0 - 0.10 (0 - 0.004)

Mainshaft

0 - 0.10 (0 - 0.004)

Measurement point

Standard value

Limit value

4th
(Double-cone synchronizer)

Clearance between synchronizer cone
and inner baulk ring end face “A”

0.50 - 0.70 (0.020 - 0.028)

0.3 (0.012)

Clearance between outer baulk ring
pawl and synchronizer cone “B”

0.85 - 1.35 (0.033 -0.053)

0.7 (0.028)

1st, 2nd, and 3rd
(Triple-cone synchronizer)

Clearance between synchronizer cone
and clutch gear end face “A”

1st: 0.65 - 1.25 (0.026 - 0.049)

2nd: 0.60 - 1.30 (0.024 - 0.051)

3rd: 0.60 - 1.30 (0.024 - 0.051)

0.3 (0.012)
0.3 (0.012)
0.3 (0.012)

Clearance between outer baulk ring
pawl and synchronizer cone “B”

0.85 - 1.35 (0.033 - 0.053)

0.7 (0.028)

Clearance between inner baulk ring
and clutch gear end face “C”

1st: 0.80 - 1.2 (0.031 - 0.047)

2nd: 0.75 - 1.25 (0.030 - 0.049)

3rd: 0.75 - 1.25 (0.030 - 0.049)

0.3 (0.012)
0.3 (0.012)
0.3 (0.012)

5th and 6th

0.70 - 1.35 (0.028 - 0.053)

0.5 (0.020)

Reverse

0.75 - 1.20 (0.030 - 0.047)

0.5 (0.020)

PCIB0249E

PCIB0835J

TM-76

< BASIC INSPECTION >

[5AT: RE5R05A]

DIAGNOSIS AND REPAIR WORK FLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000001672103

INTRODUCTION

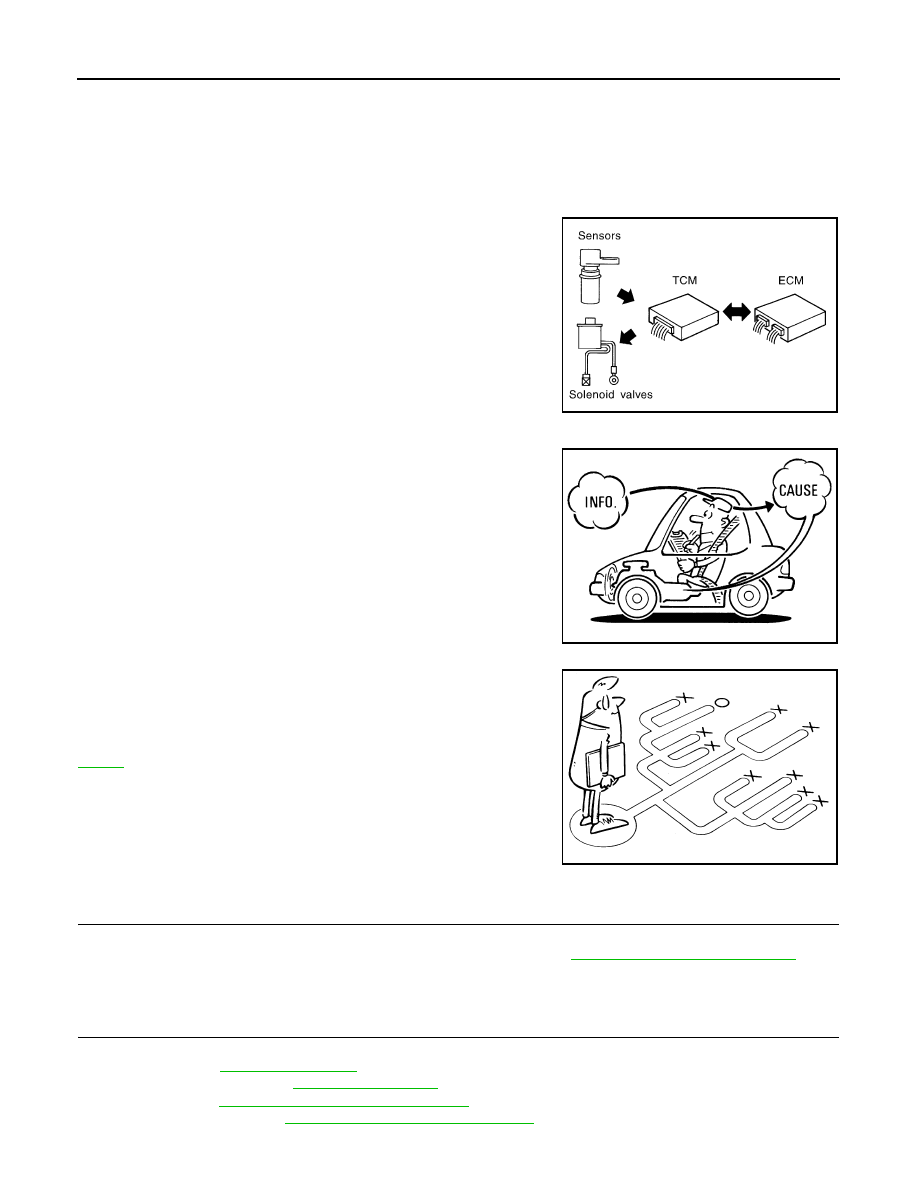

The TCM receives a signal from the vehicle speed sensor, accelera-
tor pedal position sensor (throttle position sensor) or PNP switch.
Then provides shift control or lock-up control via A/T solenoid valves.
The TCM also communicates with the ECM by means of a signal
transmitted from sensing elements used with the OBD-related parts
of the A/T system for malfunction-diagnostic purposes. The TCM is
capable of diagnosing malfunctioning parts while the ECM can store
malfunctions in its memory.
Input and output signals must always be correct and stable in the
operation of the A/T system. The A/T system must be in good oper-
ating condition and be free of valve seizure, solenoid valve malfunc-
tion, etc.

It is much more difficult to diagnose an error that occurs intermit-
tently rather than continuously. Most intermittent errors are caused
by poor electric connections or improper wiring. In this case, careful
checking of suspected circuits may help prevent the replacement of
good parts.
A visual check may not find the cause of the errors. A road test with
CONSULT-III (or GST) or a circuit tester connected should be per-
formed. Follow the “DETAILED FLOW”.

Before undertaking actual checks, take a few minutes to talk with the
customer who has the driveability complaint. The customer can sup-
ply good information about such errors, especially intermittent ones.
Find out what symptoms are present and under what conditions they
occur. A “Diagnostic work sheet” as shown in the example (Refer to

TM-77

) should be used.

Start your diagnosis by looking for “conventional” errors first. This will
help troubleshoot driveability errors on an electronically controlled
engine vehicle.
Also check related Service bulletins.

DETAILED FLOW

1.

COLLECT THE INFORMATION FROM THE CUSTOMER

Get the detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurred) using diagnosis worksheet. Refer to

TM-77, "Diagnostic Work Sheet"

.

>> GO TO 2.

2.

CHECK SYMPTOM 1

Check the following items based on the information obtained from the customer.
• Fail-safe. Refer to

TM-184, "Fail-Safe"

.

• A/T fluid inspection. Refer to

TM-214, "Inspection"

.

• Stall test. Refer to

TM-219, "Inspection and Judgment"

.

• Line pressure test. Refer to

TM-220, "Inspection and Judgment"

.

SAT631IB

SAT632I

SEF234G
