TRANSMISSION ASSEMBLY

TM-49

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

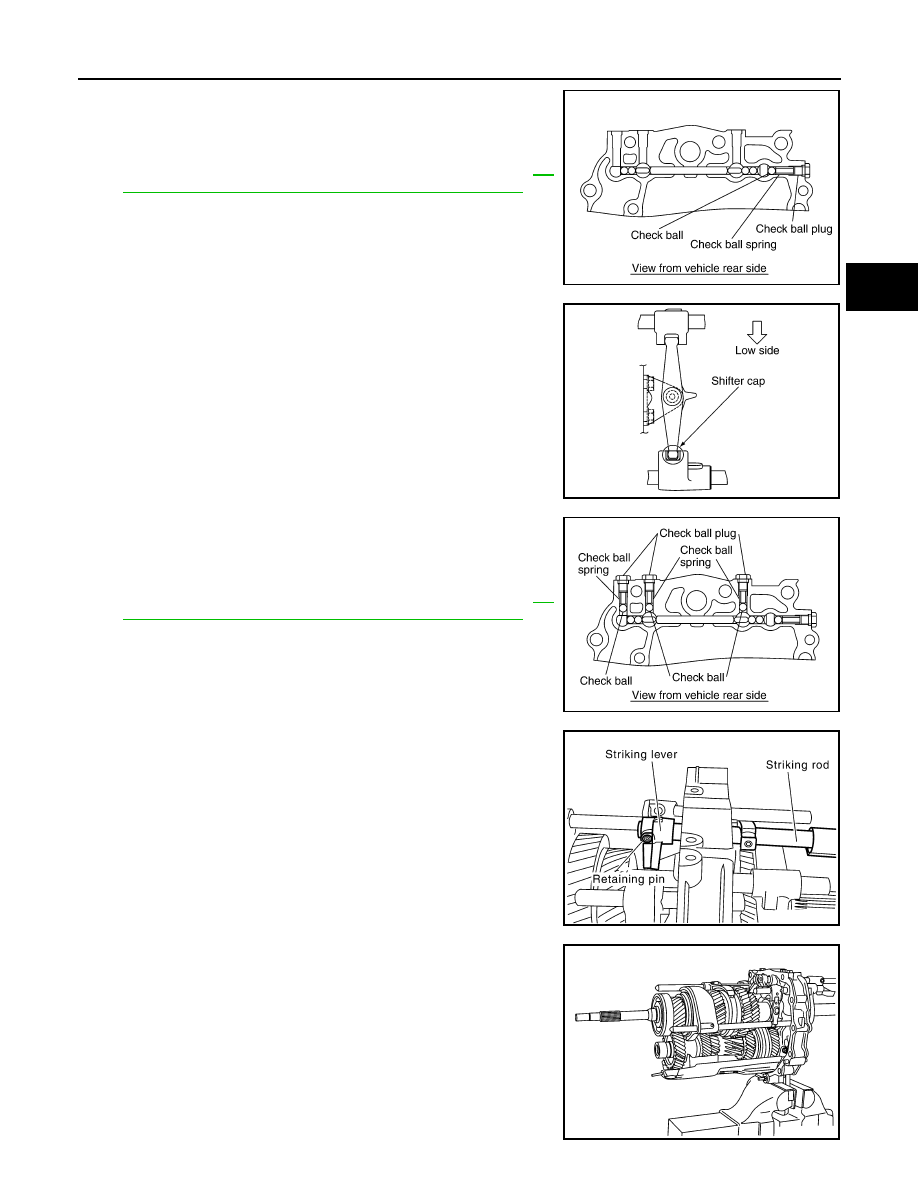

25. Apply recommended grease to check ball and then install check

ball and check ball spring into adapter plate.

26. Apply recommended sealant to threads of check ball plugs and

then tighten check ball plug to the specified torque.
• Use Genuine Silicone RTV or an equivalent. Refer to

GI-

15, "Recommended Chemical Products and Sealants"

.

CAUTION:

Remove old sealant and oil adhering to threads.

27. Install 3rd-4th control lever to adapter plate and then tighten

mounting bolts to the specified torque.

CAUTION:

• Make sure the top and bottom are oriented correctly.
• Never drop shifter cap.

28. Apply recommended grease to check ball and then install check

balls and check ball springs into adapter plate.

29. Apply recommended sealant to threads of check ball plugs and

then tighten check ball plugs to the specified torque.
• Use Genuine Silicone RTV or an equivalent. Refer to

GI-

15, "Recommended Chemical Products and Sealants"

.

CAUTION:

Remove old sealant and oil adhering to threads.

30. Install striking rod to adapter plate.

31. Install striking lever to striking rod.
32. Using a pin punch to tap retaining pin into striking lever.

CAUTION:

Never reuse retaining pin.

33. Install baffle plate to adapter plate and then tighten mounting

bolts to the specified torque.

PCIB0144E

PCIB1352E

PCIB0143E

PCIB0414E

PCIB0154E

TM-50

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

TRANSMISSION ASSEMBLY

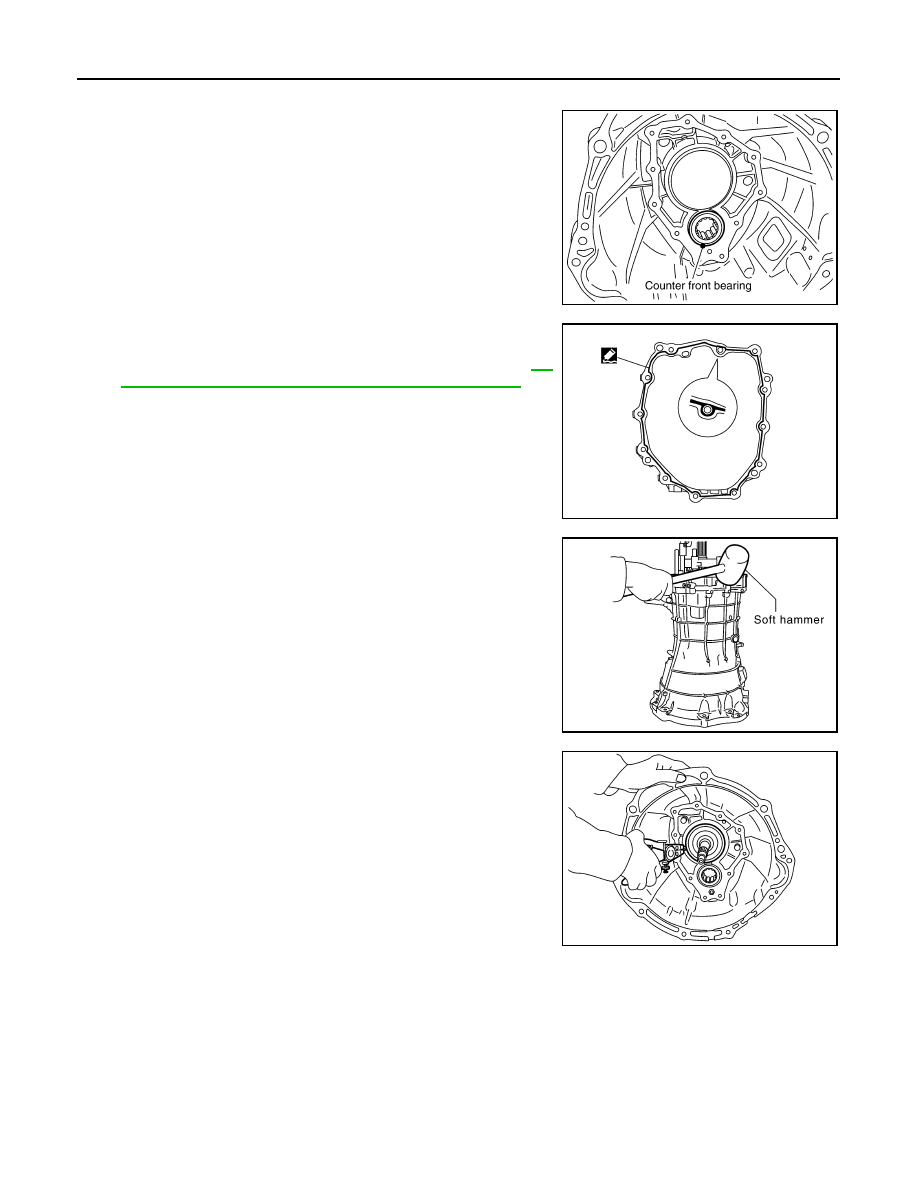

CASE AND EXTENSION

1.

Install counter front bearing to transmission case.

2.

Install oil gutter to transmission case.

3.

Install breather tube to transmission case.

CAUTION:

Never reuse breather tube.

4.

Apply recommended sealant to transmission case adapter plate
mounting surface as shown in the figure.
• Use Genuine Silicone RTV or an equivalent. Refer to

GI-

15, "Recommended Chemical Products and Sealants"

.

CAUTION:

Remove old sealant adhering to the mounting surfaces.
Also remove any moisture, oil, or foreign material adhering
to both mounting surfaces.

5.

Place adapter plate in transmission case using a soft hammer to
tap adapter plate to install it into transmission case.

6.

Install snap ring to main drive gear bearing using snap ring pli-
ers.

CAUTION:

Never reuse snap ring.

PCIB0436E

PCIB1373E

SCIA1436E

SCIA1532E

TRANSMISSION ASSEMBLY

TM-51

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

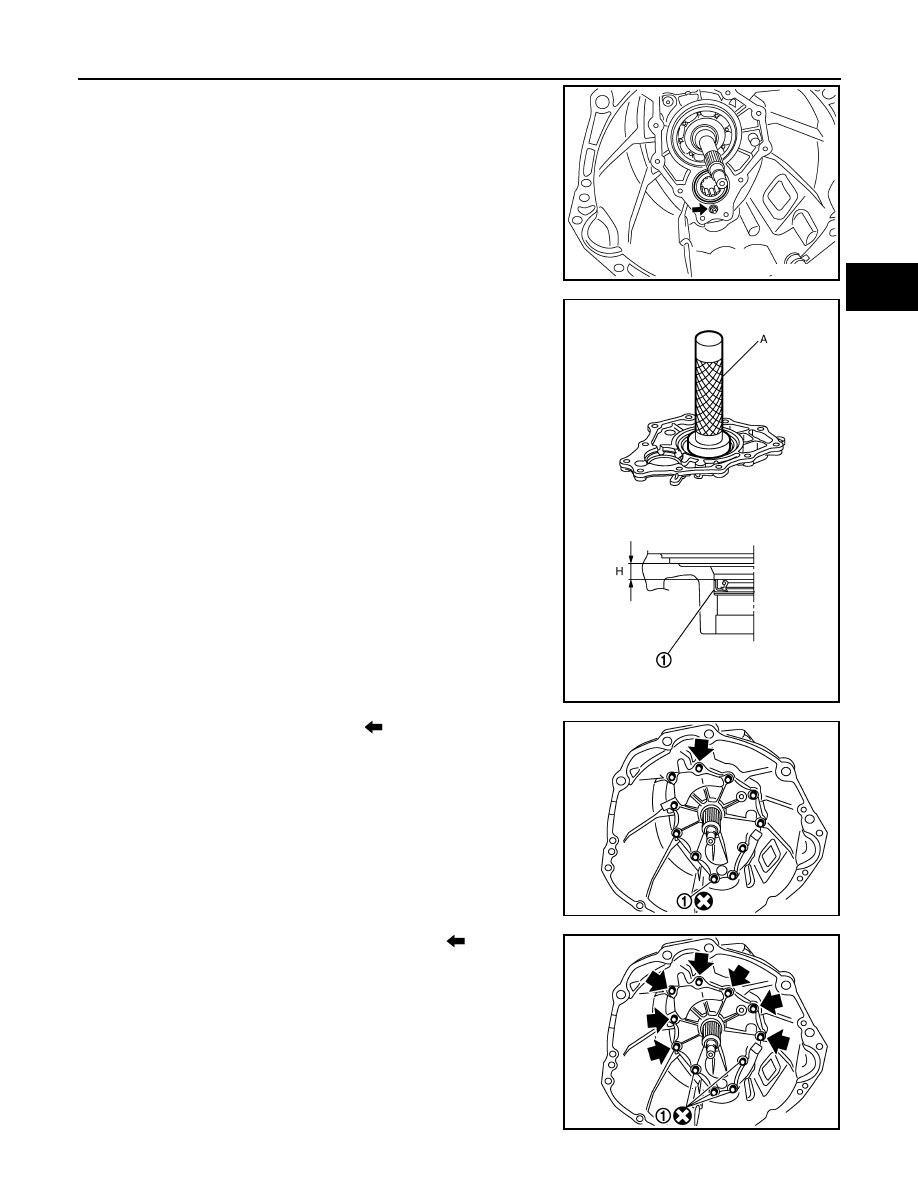

7.

Tighten baffle plate mounting nut to the specified torque.

8.

Apply multi-purpose grease to lip of front cover oil seal (1).

9.

Install front cover oil seal to front cover using the drift (A) [SST:
KV38102100 (J-25803-01)].

CAUTION:

• Never reuse front cover oil seal.
• When installing, never incline front cover oil seal.

10. Install front cover according to the following.
a.

Install front cover gasket and front cover to transmission case.

CAUTION:

• Never reuse front cover gasket.
• Never damage front cover oil seal.
• Remove any moisture, oil, or foreign material adhering to

both mating surfaces.

b.

Temporary tightening mounting bolt (

) and sealing bolt (1).

c.

Temporary tightening remaining mounting bolts (

) and sealing

bolts (1).

SCIA1443E

Dimension “H”

: 8.55 - 9.55 mm (0.3366 - 0.3760 in)

JPDIC0028ZZ

JPDIC0344ZZ

JPDIC0343ZZ

TM-52

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

TRANSMISSION ASSEMBLY

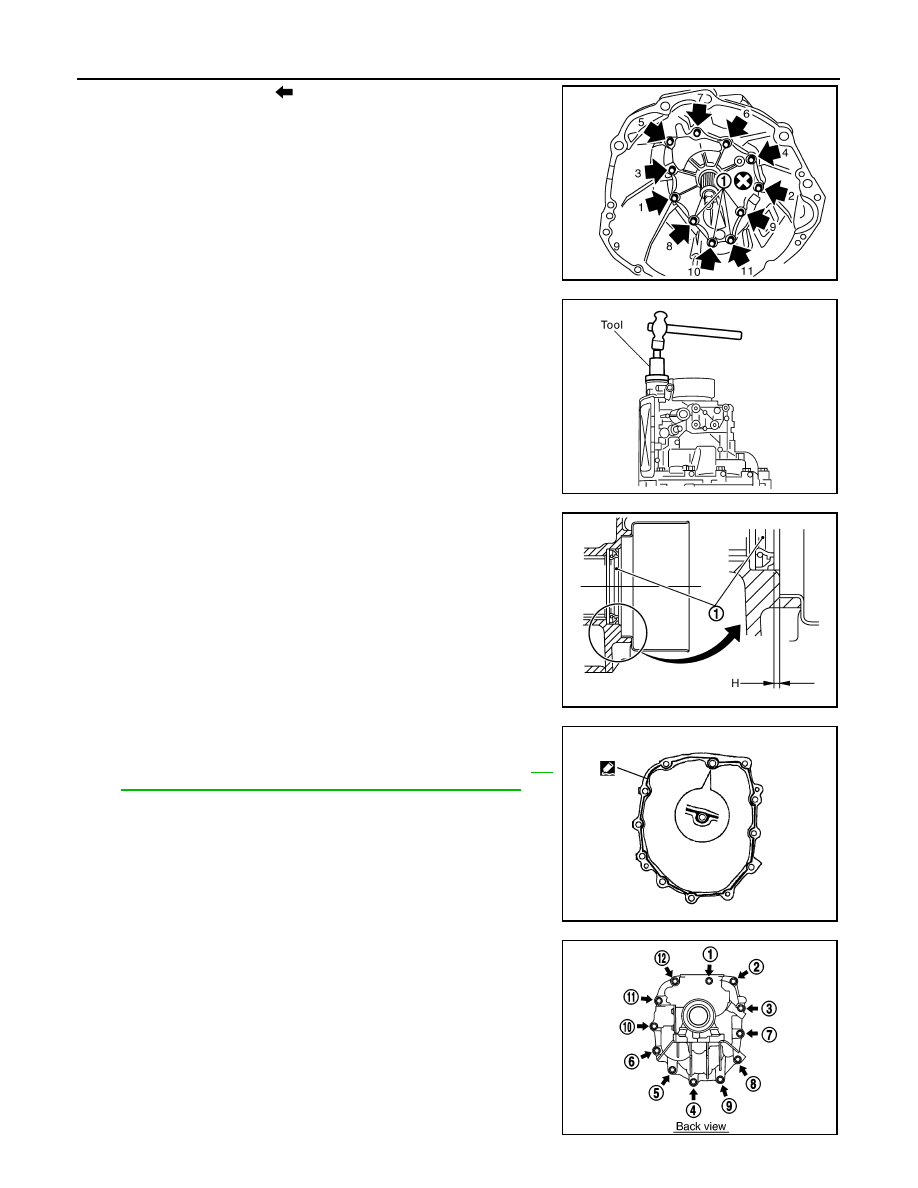

d.

Tighten mounting bolts (

) and sealing bolts (1) to the specified

torque in order as shown on the figure.

11. Install rear extension oil gutter and cap to rear extension and

then tighten mounting bolt to specified torque.

12. Install bracket to transmission case and then tighten mounting

bolt to specified torque.

13. Apply recommended grease to reverse idler needle bearing.
14. Install reverse idler shaft, reverse idler needle bearing, reverse

idler gear and reverse idler thrust washer to adapter plate.

15. Apply multi-purpose grease to striking rod oil seal lip.

CAUTION:

Never reuse striking rod oil seal.

16. Install striking rod oil seal to rear extension using the drift [SST:

ST33061000 (J-8107-2)].

CAUTION:

When installing, never incline striking rod oil seal.

17. Apply multi-purpose grease to lip of rear oil seal (1).

CAUTION:

Never reuse rear oil seal.

18. Install rear oil seal to rear extension using the drift [SST:

ST33400001 (J-26082)].

CAUTION:

When installing, never incline rear oil seal.

19. Apply recommended sealant to adapter plate rear extension

mounting surface as shown in the figure.
• Use Genuine Silicone RTV or an equivalent. Refer to

GI-

15, "Recommended Chemical Products and Sealants"

.

CAUTION:

Remove old sealant adhering to the mounting surfaces.
Also remove any moisture, oil, or foreign material adhering
to both mounting surfaces.

20. Install rear extension to adapter plate and then tighten mounting

bolts to the specified torque in order as shown on the figure.

CAUTION:

Never damage rear oil seal and striking rod oil seal.

21. Install control lever housing to rear extension and then tighten

mounting bolts to the specified torque.

CAUTION:

Never hold control lever housing to prevent bushing of con-
trol lever housing from deformation when moving transmis-
sion assembly.

JPDIC0345ZZ

PCIB0213E

Dimension “H”

: 1.2 - 2.2 mm (0.047 - 0.087 in)

JPDIC0033ZZ

PCIB1374E

PCIB0256E
