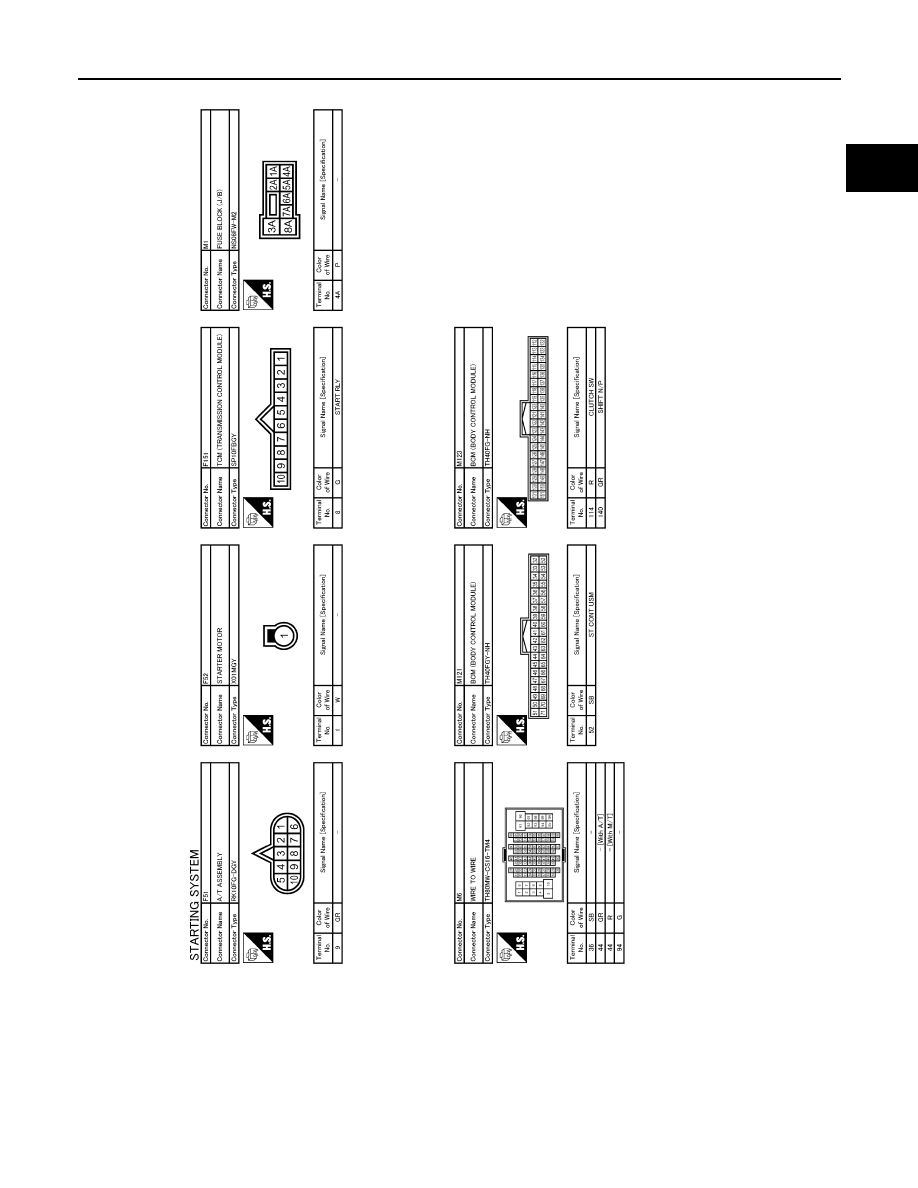

STARTING SYSTEM

STR-11

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

JCBWA0370GB

STR-12

< SYMPTOM DIAGNOSIS >

STARTING SYSTEM

SYMPTOM DIAGNOSIS

STARTING SYSTEM

Symptom Table

INFOID:0000000001665986

Symptom

Reference

No normal cranking

Refer to

STR-2, "Work Flow"

.

Starter motor does not rotate

PRECAUTIONS

STR-13

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001910554

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIRBAG” and “SEAT BELT” of this
Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIRBAG”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Precaution for Battery Service

INFOID:0000000001910552

Before disconnecting the battery, lower both the driver and passenger windows. This will prevent any interfer-
ence between the window edge and the vehicle when the door is opened/closed. During normal operation, the
window slightly raises and lowers automatically to prevent any window to vehicle interference. The automatic
window function will not work with the battery disconnected.

STR-14

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Special Service Tools

INFOID:0000000001665988

Commercial Service Tools

INFOID:0000000001665989

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-44373 Model MCR620)
Starting/Charging System Tester

Tests starting and charging systems.
For operating instructions, refer to Technical
Service Bulletin.

SEL403X

Tool name

Description

Power tool

Loosening bolts, nuts and screws

PIIB1407E
