Infiniti G37 Coupe. Manual - part 1224





SRC-146

< ECU DIAGNOSIS >

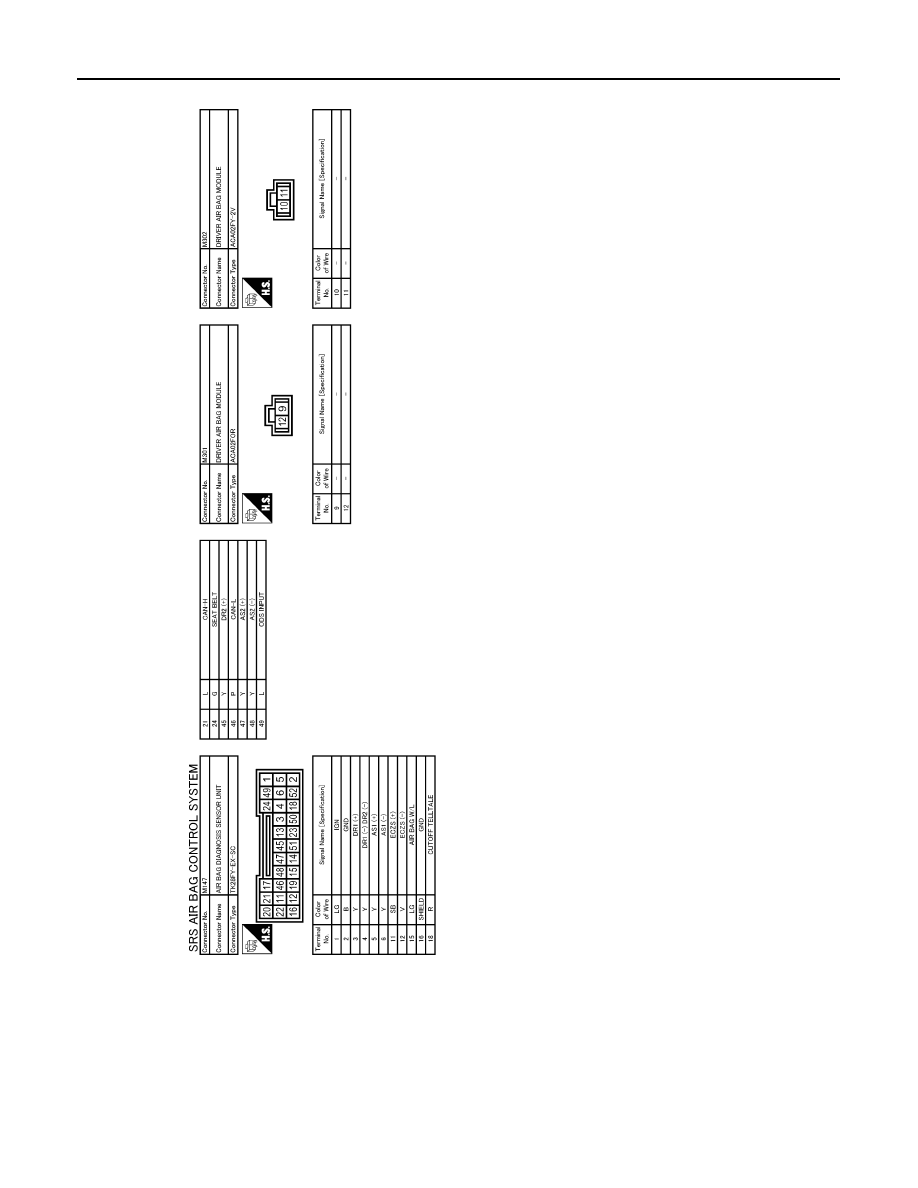

DIAGNOSIS SENSOR UNIT

JCHWA0106GB

SRS AIR BAG WARNING LAMP DOES NOT TURN OFF

SRC-147

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

SYMPTOM DIAGNOSIS

SRS AIR BAG WARNING LAMP DOES NOT TURN OFF

Diagnosis Procedure

INFOID:0000000001694652

1.

CHECK FRONT AIR BAG MODULE

Check the deployment of front air bag module.

Is air bag module deployed?

YES

>> Refer to

SRC-129

 or

SRC-131, "Diagnosis Procedure (Component diagnosis)"

.

NO

>> GO TO 2.

2.

CHECK AIR BAG FUSE

Check the air bag fuse. Refer to

PG-92, "Fuse and Fusible Link Arrangement"

.

Is 10A fuse [No.2, located in fuse block (J/B)] normal?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

CHECK AIR BAG FUSE AGAIN

Replace air bag fuse and turn ignition switch ON.

Did the air bag fuse blow again?

YES

>> Repair or replace main harness.

NO

>> INSPECTION END

4.

CHECK DIAGNOSIS SENSOR UNIT

Check the screen of CONSULT-III.
Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace diagnosis sensor unit (ACU). Refer to

SR-16, "Exploded View"

.

5.

CHECK HARNESS CONNECTION

Check harness connection between air bag warning lamp and diagnosis sensor unit.

Is the inspection result normal?

YES

>> Check the intermittent incident. Refer to

GI-38, "Intermittent Incident"

.

NO

>> Replace wiring harness connector.

SRC-148

< SYMPTOM DIAGNOSIS >

SRS AIR BAG WARNING LAMP DOES NOT TURN ON

SRS AIR BAG WARNING LAMP DOES NOT TURN ON

Diagnosis Procedure

INFOID:0000000001879545

“SRS AIR BAG” Warning Lamp Does Not Turn ON

1.

CHECK METER FUSE

Check the meter fuse. Refer to

PG-92, "Fuse and Fusible Link Arrangement"

.

Is 10A fuse [No.4, located in fuse block (J/B)] normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK METER FUSE AGAIN

Replace 10A fuse [No.4, located in fuse block (J/B)] and turn ignition switch ON.

Did the meter fuse blow again?

YES

>> Repair or replace the related harness.

NO

>> INSPECTION END

3.

CHECK HARNESS CONNECTION

1.

Check harness connection between diagnosis sensor unit and combination meter.

2.

Disconnect diagnosis sensor unit connector and turn ignition switch ON.

Did air bag warning lamp turn ON?

YES

>> Replace diagnosis sensor unit (ACU). Refer to

SR-16, "Exploded View"

.

NO

>> Replace combination meter assembly. Refer to

MWI-160, "Removal and Installation"

.

PASSENGER SEAT BELT WARNING SYSTEM

SRC-149

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

PASSENGER SEAT BELT WARNING SYSTEM

Diagnosis Procedure

INFOID:0000000001694653

1.

CHECK THE SYSTEM 1

Check the seat belt warning lamp function.

Sea tbelt warning lamp turns ON in the following conditions.
• Driver seat belt is fastened.
• Occupant is on passenger seat.
• Passenger seat belt is not fasten.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>>

Check the followings.

• Harness between air bag diagnosis sensor unit and combination meter.
• Seat belt buckle switch (passenger side) circuit.
• Seat belt buckle switch (passenger side).

If these are OK, replace air bag diagnosis sensor unit.

2.

CHECK THE SYSTEM 2

Check the seat belt warning lamp function.

Seat belt warning lamp turns OFF in the following conditions.
• Driver seat belt is fastened.
• Occupant is on passenger seat.
• Passenger seat belt is fastened.

Is the inspection result normal?

YES

>> System is OK.

NO

>>

Check the followings.

• Seat belt buckle switch (passenger side) circuit.
• Seat belt buckle switch (passenger side).

If these are OK, replace air bag diagnosis sensor unit.
