< ECU DIAGNOSIS >

DIAGNOSIS SENSOR UNIT

CRASH ZONE SEN
[UNIT FAIL]
[B1033]
[B1034]
CRASH ZONE SEN
[COMM FAIL]
[B1035]
[UNMATCH]
[B1036]

[OPEN/UPR-VB-
SHORT]
[B1038]

[SHORT/UPR-GND-
SHORT]
[B1040]

• Crash zone sensor is out of order.

1.

Repair or replace wiring harness /
harness connector.

2.

Replace crash zone sensor.

3.

Replace diagnosis sensor unit
(ACU).

CONTROL UNIT
[B1042-B1047]

• Diagnosis sensor is out of order.

• Replace diagnosis sensor unit

(ACU).

DRIVER AIRBAG MOD-
ULE
[OPEN]
[B1049] [B1054]

• Driver air bag module circuit is open. (including the spiral cable.)

1.

Repair or replace wiring harness/
harness connector.

2.

Replace driver air bag module.

3.

Replace spiral cable. Refer to

SRC-42,
"Diagnosis Procedure (Compon
ent diagnosis)"

.

4.

Replace diagnosis sensor unit
(ACU).

DRIVER AIRBAG MOD-
ULE
[VB-SHORT]
[B1050] [B1055]

• Driver air bag module circuit is shorted to some power supply cir-

cuit. (including the spiral cable.)

DRIVER AIRBAG MOD-
ULE
[GND-SHORT]
[B1051] [B1056]

• Driver air bag module circuit is shorted to ground. (including the

spiral cable.)

DRIVER AIRBAG MOD-
ULE
[SHORT]
[B1052] [B1057]

• Driver air bag module circuits are shorted to each other. (includ-

ing spiral cable.)

• Driver air bag module circuit is shorted to itself.

CONTROL UNIT
[B1058-B1063]

• Diagnosis sensor is out of order.

• Replace diagnosis sensor unit

(ACU).

ASSIST A/B MODULE
[OPEN]
[B1065] [B1070]

• Front passenger air bag module circuit is open.

1.

Repair or replace wiring harness/
harness connector.

2.

Replace front passenger air bag
module.

3.

Replace diagnosis sensor unit
(ACU).

ASSIST A/B MODULE
[VB-SHORT]
[B1066] [B1071]

• Front passenger air bag module circuit is shorted to some power

supply circuit.

ASSIST A/B MODULE
[GND-SHORT]
[B1067] [B1072]

• Front passenger air bag module circuit is shorted to ground.

ASSIST A/B MODULE
[SHORT]
[B1068] [B1073]

• Front passenger air bag module circuits are shorted to each oth-

er.

• Front passenger air bag module circuit is shorted to itself.

CONTROL UNIT
[B1074-B1079]

• Diagnosis sensor is out of order.

• Replace diagnosis sensor unit

(ACU).

Diagnostic item

Explanation

Repair order

“Recheck SRS at each replacement”

DIAGNOSIS SENSOR UNIT

SRC-135

< ECU DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

PRE-TEN FRONT RH
[OPEN]
[B1081]

• Front RH seat belt pre-tensioner circuit is open.

1.

Repair or replace wiring harness/
harness connector.

2.

Replace front RH seat belt pre-
tensioner.

3.

Replace diagnosis sensor unit
(ACU).

PRE-TEN FRONT RH
[VB-SHORT]
[B1082]

• Front RH seat belt pre-tensioner circuit is shorted to some power

supply circuit.

PRE-TEN FRONT RH
[GND-SHORT]
[B1083]

• Front RH seat belt pre-tensioner circuit is shorted to ground.

PRE-TEN FRONT RH
[SHORT]
[B1084]

• Front RH seat belt pre-tensioner circuits are shorted to each oth-

er.

• Front RH seat belt pre-tensioner circuit is shorted to itself.

PRE-TEN FRONT LH
[OPEN]
[B1086]

• Front LH seat belt pre-tensioner circuit is open.

1.

Repair or replace wiring harness/
harness connector.

2.

Replace front LH seat belt pre-
tensioner.

3.

Replace diagnosis sensor unit
(ACU).

PRE-TEN FRONT LH
[VB-SHORT]
[B1087]

• Front LH seat belt pre-tensioner circuit is shorted to some power

supply circuit.

PRE-TEN FRONT LH
[GND-SHORT]
[B1088]

• Front LH seat belt pre-tensioner circuit is shorted to ground.

PRE-TEN FRONT LH
[SHORT]
[B1089]

• Front LH seat belt pre-tensioner circuits are shorted to each oth-

er.

• Front LH seat belt pre-tensioner circuit is shorted to itself.

CONTROL UNIT
[B1106-B1111]

• Diagnosis sensor is out of order.

• Replace diagnosis sensor unit

(ACU).

SATELLITE SENS RH
[UNIT FAIL]
[B1113]
[B1114]
SATELLITE SENS RH
[COMM FAIL]
[B1115]
[UNMATCH]
[B1116]

• RH satellite sensor is out of order.

1.

Repair or replace wiring harness/
harness connector.

2.

Replace RH satellite sensor.

3.

Replace diagnosis sensor unit
(ACU).

SATELLITE SENS LH
[UNIT FAIL]
[B1118]
[B1119]
SATELLITE SENS LH
[COMM FAIL]
[B1120]
[UNMATCH]
[B1121]

• LH satellite sensor is out of order.

1.

Repair or replace wiring harness/
harness connector.

2.

Replace LH satellite sensor.

3.

Replace diagnosis sensor unit
(ACU).

CONTROL UNIT
[B1122-B1127]

• Diagnosis sensor is out of order.

• Replace diagnosis sensor unit

(ACU).

Diagnostic item

Explanation

Repair order

“Recheck SRS at each replacement”

SRC-136

< ECU DIAGNOSIS >

DIAGNOSIS SENSOR UNIT

SIDE MODULE RH
[OPEN]
[B1129]

• Front RH side air bag module circuit is open.

1.

Repair or replace wiring harness/
harness connector.

2.

Replace front RH side air bag
module.

3.

Replace diagnosis sensor unit
(ACU).

SIDE MODULE RH
[VB-SHORT]
[B1130]

• Front RH side air bag module circuit is shorted to some power

supply circuit.

SIDE MODULE RH
[GND-SHORT]
[B1131]

• Front RH side air bag module circuit is shorted to ground.

SIDE MODULE RH
[SHORT]
[B1132]

• Front LH seat belt pre-tensioner circuits are shorted to each oth-

er.

• Front LH seat belt pre-tensioner circuit is shorted to itself.

SIDE MODULE LH
[OPEN]
[B1134]

• Front LH side air bag module circuit is open.

1.

Repair or replace wiring harness/
harness connector.

2.

Replace front LH side air bag
module.

3.

Replace diagnosis sensor unit
(ACU).

SIDE MODULE LH
[VB-SHORT]
[B1135]

• Front LH side air bag module circuit is shorted to some power

supply circuit.

SIDE MODULE LH
[GND-SHORT]
[B1136]

• Front LH side air bag module circuit is shorted to ground.

SIDE MODULE LH
[SHORT]
[B1137]

• Front LH side air bag module circuits are shorted to each other.
• Front LH side air bag module circuit is shorted to itself.

CONTROL UNIT
[B1138-B1143]

• Diagnosis sensor is out of order.

• Replace diagnosis sensor unit

(ACU).

CURTAIN MODULE RH
[OPEN]
[B1145]

• RH side curtain air bag module circuit is open.

1.

Repair or replace wiring harness/
harness connector.

2.

Replace RH side curtain air bag
module.

3.

Replace diagnosis sensor unit
(ACU).

CURTAIN MODULE RH
[VB-SHORT]
[B1146]

• RH side curtain air bag module circuit is shorted to some power

supply circuit.

CURTAIN MODULE RH
[GND-SHORT]
[B1147]

• RH side curtain air bag module circuit is shorted to ground.

CURTAIN MODULE RH
[SHORT]
[B1148]

• RH side curtain air bag module circuits are shorted to each other.
• RH side curtain air bag module circuit is shorted to itself.

CURTAIN MODULE LH
[OPEN]
[B1150]

• LH side curtain air bag module circuit is open.

1.

Repair or replace wiring harness/
harness connector.

2.

Replace LH side curtain air bag
module.

3.

Replace diagnosis sensor unit
(ACU).

CURTAIN MODULE LH
[VB-SHORT]
[B1151]

• LH side curtain air bag module circuit is shorted to some power

supply circuits.

CURTAIN MODULE LH
[GND-SHORT]
[B1152]

• LH side curtain air bag module circuit is shorted to ground.

CURTAIN MODULE LH
[SHORT]
[B1153]

• LH side curtain air bag module circuits are shorted to each other.
• LH side curtain air bag module circuit is shorted to itself.

CONTROL UNIT
[B1202-B1207]

• Diagnosis sensor is out of order.

• Replace diagnosis sensor unit

(ACU).

Diagnostic item

Explanation

Repair order

“Recheck SRS at each replacement”

DIAGNOSIS SENSOR UNIT

SRC-137

< ECU DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

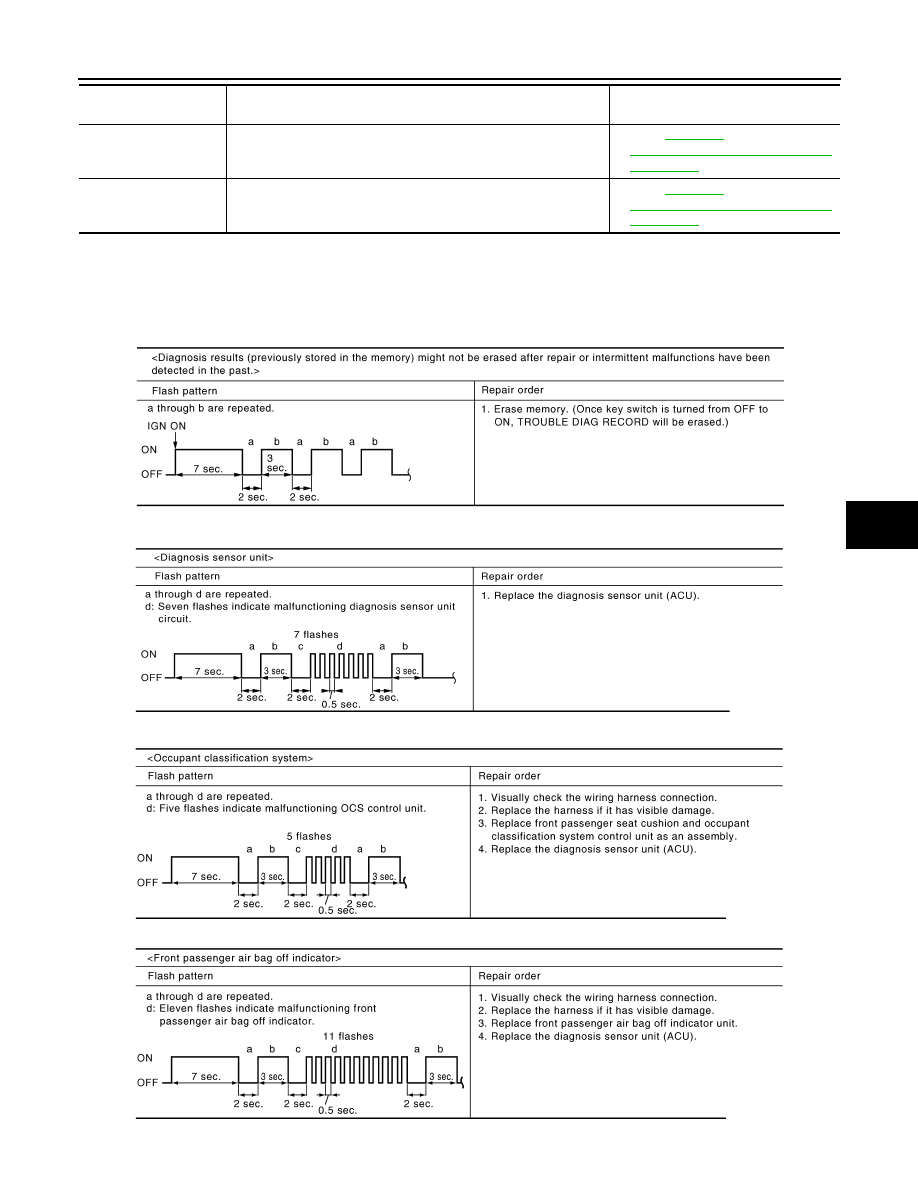

WARNING LAMP FLASH CODE CHART (Without CONSULT-lll)

NOTE:
Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is
eliminated using air bag warning lamp or CONSULT-IlI each time repair is completed. If malfunction is still
observed, proceed to the next step. When malfunction is eliminated, further repair work is not required.

FRONTAL COLLISION
DETECTION
[B1209]

• Seat belt pre-tensioner and front air bag is deployed.

• Go to

SRC-129,

"Diagnosis Procedure (Component

diagnosis)"

.

SIDE COLLISION DE-
TECTION
[B1210]

• Side and curtain air bag is deployed.

• Go to

SRC-131,

"Diagnosis Procedure (Component

diagnosis)"

.

Diagnostic item

Explanation

Repair order

“Recheck SRS at each replacement”
