SRC-18

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (AIRBAG)

From Diagnosis Mode to User Mode

To return to User mode from Diagnosis mode, touch “BACK” key of CONSULT-III until “SELECT SYSTEM”
appears, then diagnosis mode automatically changes to User mode.

SELF-DIAGNOSIS FUNCTION (Without CONSULT-III)

• The reading of these results is accomplished by “User mode” and “Diagnosis mode”.
• After a malfunction is repaired, turn ignition switch ON. Diagnosis mode returns to the user mode. At that

time, the self-diagnosis result is cleared.

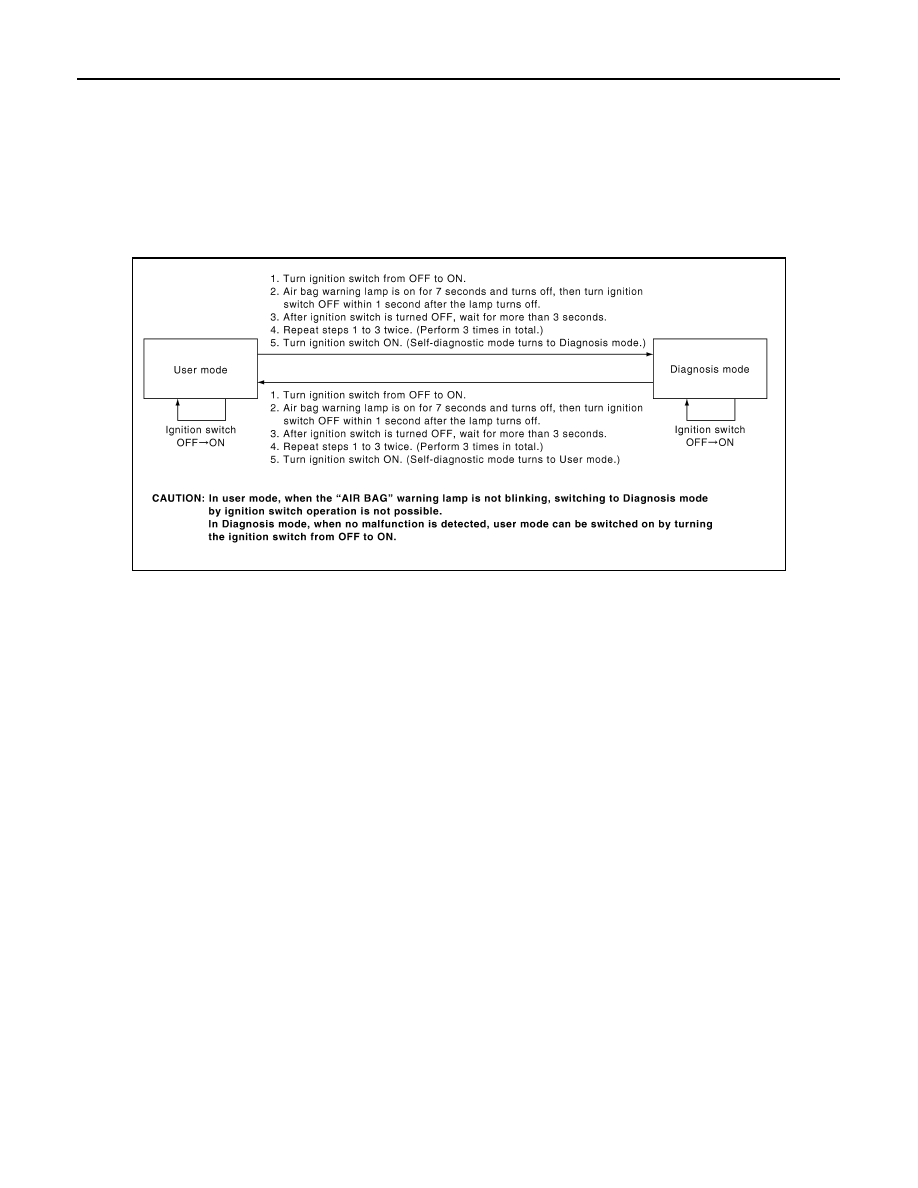

HOW TO CHANGE SELF-DIAGNOSIS MODE WITHOUT CONSULT-III

PHIA0709E

B1001, B1002, B1003, B1004, B1005 DIAGNOSIS SENSOR UNIT

SRC-19

< COMPONENT DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

COMPONENT DIAGNOSIS

B1001, B1002, B1003, B1004, B1005 DIAGNOSIS SENSOR UNIT

Description

INFOID:0000000001694485

DTC B1001, B1002, B1003, B1004, B1005 DIAGNOSIS SENSOR UNIT

Detects the whole SRS electrical system and displays the malfunction either by illuminating or blinking the air
bag warning lamp in the combination meter. Malfunctioning part can be detected by on board self-diagnosis
system and electro-diagnosis tester CONSULT-lll.

OPERATION

It detects a shock that exceeds specified level and watches such systems as the driver and passenger air bag,
side air bag, curtain air bag, pre-tensioner seat belts and Occupant Classification System (OCS) operate prop-
erly.

STRUCTURE

It contains the “G” sensors for both frontal and side collisions and spare battery function in case of main bat-
tery damage in collision.

INSTALLATION

SRS diagnosis sensor unit is installed under the center console with fixed bolts.

DTC Logic

INFOID:0000000001694486

DTC DETECTION LOGIC

With CONSULT-lll

DTC No. Index (“SELF-DIAG [CURRENT]”), (“SELF-DIAG [PAST]” or “TROUBLE DIAG RECORD”)

DTC CONFIRMATION PROCEDURE (With CONSULT-lll)

1.

INSPECTION START

Turn ignition switch ON.

>> GO TO 2.

2.

CHECK SELF-DIAG RESULT

Check the screen of CONSULT-lll.

Is malfunctioning part detected?

YES

>> Refer to

SRC-20, "Diagnosis Procedure (Component diagnosis)"

.

NO

>> INSPECTION END.

DTC CONFIRMATION PROCEDURE (Without CONSULT-lll)

NOTE:
• SRS will not enter diagnosis mode if no malfunction is detected in user mode.

1.

INSPECTION START

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

B1001
B1002
B1003
B1004
B1005

CONTROL UNIT

Diagnosis sensor unit is out of order.

Internal breakdown in diagnosis sensor
unit (ACU).

SRC-20

< COMPONENT DIAGNOSIS >

B1001, B1002, B1003, B1004, B1005 DIAGNOSIS SENSOR UNIT

Turn ignition switch ON.

>> GO TO 2.

2.

CHECK AIR BAG WARNING LAMP

Check the warning lamp status.
Is malfunctioning part detected?

YES

>> Refer to

SRC-133, "DTC Index"

.

NO

>> INSPECTION END.

Diagnosis Procedure (Component diagnosis)

INFOID:0000000001694487

With CONSULT-lll

WARNING:

• Before servicing, turn ignition switch OFF, disconnect both battery terminals and wait at least 3 min-

utes. (To discharge backup capacitor.)

• Do not use unspecified tester or other measuring device.

DIAGNOSTIC PROCEDURE

1.

CHECK HARNESS CONNECTOR

Check the connection of harness connector.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness connectors.

2.

CHECK WIRING HARNESS

Check the wiring harness externals.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace wiring harness.

3.

CHECK DIAGNOSIS SENSOR UNIT

1.

Replace diagnosis sensor unit (ACU).

2.

Check the screen of CONSULT-III.

Is the inspection result normal?

YES

>> INSPECTION END.

NO

>> Check the intermittent incident. Refer to

GI-38, "Intermittent Incident"

.

B1006, B1007, B1008, B1009, B1010 DIAGNOSIS SENSOR UNIT

SRC-21

< COMPONENT DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

B1006, B1007, B1008, B1009, B1010 DIAGNOSIS SENSOR UNIT

Description

INFOID:0000000001694488

DTC B1006, B1007, B1008, B1009, B1010 DIAGNOSIS SENSOR UNIT

Detects the whole SRS electrical system and displays the malfunction either by illuminating or blinking the air
bag warning lamp in the combination meter. Malfunctioning part can be detected by on board self-diagnosis
system and electro-diagnosis tester CONSULT-lll.

OPERATION

It detects a shock that exceeds specified level and watches such systems as the driver and passenger air bag,
side air bag, curtain air bag, pre-tensioner seat belts and Occupant Classification System (OCS) operate prop-
erly.

STRUCTURE

It contains the “G” sensors for both frontal and side collisions and spare battery function in case of main bat-
tery damage in collision.

INSTALLATION

SRS diagnosis sensor unit is installed under the center console with fixed bolts.

DTC Logic

INFOID:0000000001694489

DTC DETECTION LOGIC

With CONSULT-lll

DTC No. Index (“SELF-DIAG [CURRENT]”), (“SELF-DIAG [PAST]” or “TROUBLE DIAG RECORD”)

DTC CONFIRMATION PROCEDURE (With CONSULT-lll)

1.

INSPECTION START

Turn ignition switch ON.

>> GO TO 2.

2.

CHECK SELF-DIAG RESULT

Check the screen of CONSULT-lll.

Is malfunctioning part detected?

YES

>> Refer to

SRC-22, "Diagnosis Procedure (Component diagnosis)"

.

NO

>> INSPECTION END.

DTC CONFIRMATION PROCEDURE (Without CONSULT-lll)

NOTE:
• SRS will not enter diagnosis mode if no malfunction is detected in user mode.

1.

INSPECTION START

Turn ignition switch ON.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

B1006
B1007
B1008
B1009
B1010

CONTROL UNIT

Diagnosis sensor unit is out of order.

Internal breakdown in diagnosis sensor
unit (ACU).
