Infiniti G37 Coupe. Manual - part 1170





BCM (BODY CONTROL MODULE)

SEC-177

< ECU DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

JCKWA0650GB

SEC-178

< ECU DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

JCKWA0651GB

BCM (BODY CONTROL MODULE)

SEC-179

< ECU DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

Fail Safe

INFOID:0000000001911535

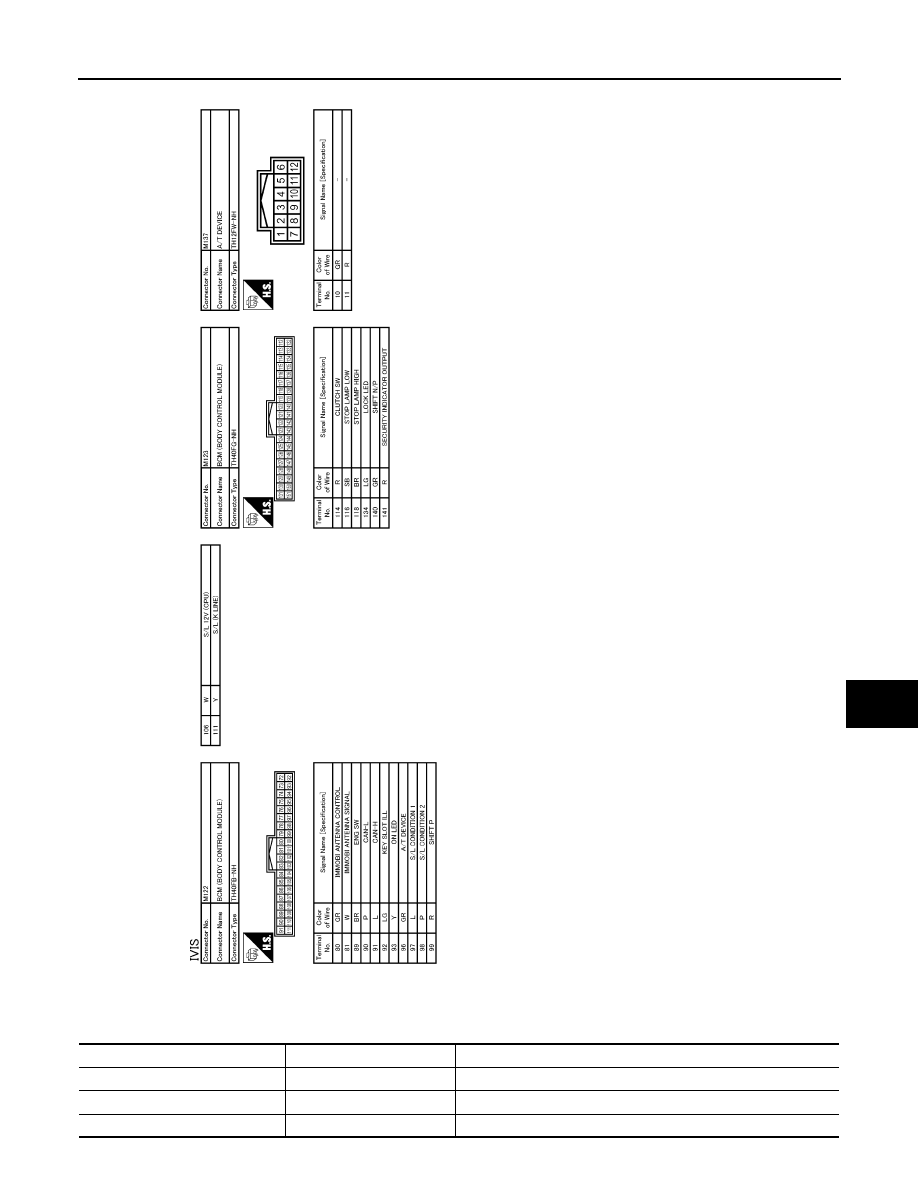

JCKWA0652GB

Display contents of CONSULT

Fail-safe

Cancellation

B2013: ID DISCORD BCM-S/L

Inhibit engine cranking

Erase DTC

B2014: CHAIN OF S/L-BCM

Inhibit engine cranking

Erase DTC

B2190: NATS ANTTENA AMP

Inhibit engine cranking

Erase DTC

SEC-180

< ECU DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

B2191: DIFFERENCE OF KEY

Inhibit engine cranking

Erase DTC

B2192: ID DISCORD BCM-ECM

Inhibit engine cranking

Erase DTC

B2193: CHAIN OF BCM-ECM

Inhibit engine cranking

Erase DTC

B2557: VEHICLE SPEED

Inhibit steering lock

When normal vehicle speed signals have been received from ABS
actuator and electric unit (control unit) for 500 ms

B2560: STARTER CONT RELAY

Inhibit engine cranking

500 ms after the following CAN signal communication status has
become consistent
• Starter control relay signal
• Starter relay status signal

B2563: HI VOLTAGE

• Inhibit engine cranking
• Inhibit steering lock

500 ms after the power supply voltage decreases to less than 18 V

B2601: SHIFT POSITION

Inhibit steering lock

500 ms after the following signal reception status becomes consis-
tent
• Selector lever P position switch signal
• P range signal (CAN)

B2602: SHIFT POSITION

Inhibit steering lock

5 seconds after the following BCM recognition conditions are ful-
filled
• Ignition switch is in the ON position
• Selector lever P position switch signal: Except P position (battery

voltage)

• Vehicle speed: 4 /h or more

B2603: SHIFT POSI STATUS

Inhibit steering lock

500 ms after the following BCM recognition conditions are fulfilled
• Ignition switch is in the ON position
• Selector lever P position switch signal: Except P position (battery

voltage)

• Selector lever P/N position signal: Except P and N positions (0 V)

B2604: PNP SW

Inhibit steering lock

500 ms after any of the following BCM recognition conditions is ful-
filled
• Status  1
- Ignition switch is in the ON position
- Selector lever P/N position signal: P and N position (battery volt-

age)

- P range signal or N range signal (CAN): ON
• Status  2
- Ignition switch is in the ON position
- Selector lever P/N position signal: Except P and N positions (0 V)
- P range signal and N range signal (CAN): OFF

B2605: PNP SW

Inhibit steering lock

500 ms after any of the following BCM recognition conditions is ful-
filled
• Ignition switch is in the ON position
- Power position: IGN
- Selector lever P/N position signal: Except P and N positions (0 V)
- Interlock/PNP switch signal (CAN): OFF
• Status  2
- Ignition switch is in the ON position
- Selector lever P/N position signal: P or N position (battery volt-

age)

- PNP switch signal (CAN): ON

B2606: S/L RELAY

Inhibit engine cranking

500 ms after the following CAN signal communication status has
become consistent
• Steering lock relay signal (Request signal)
• Steering lock relay signal (Condition signal)

B2607: S/L RELAY

Inhibit engine cranking

500 ms after the following CAN signal communication status has
become consistent
• Steering lock relay signal (Request signal)
• Steering lock relay signal (Condition signal)

Display contents of CONSULT

Fail-safe

Cancellation
