Infiniti G37 Coupe. Manual - part 1122





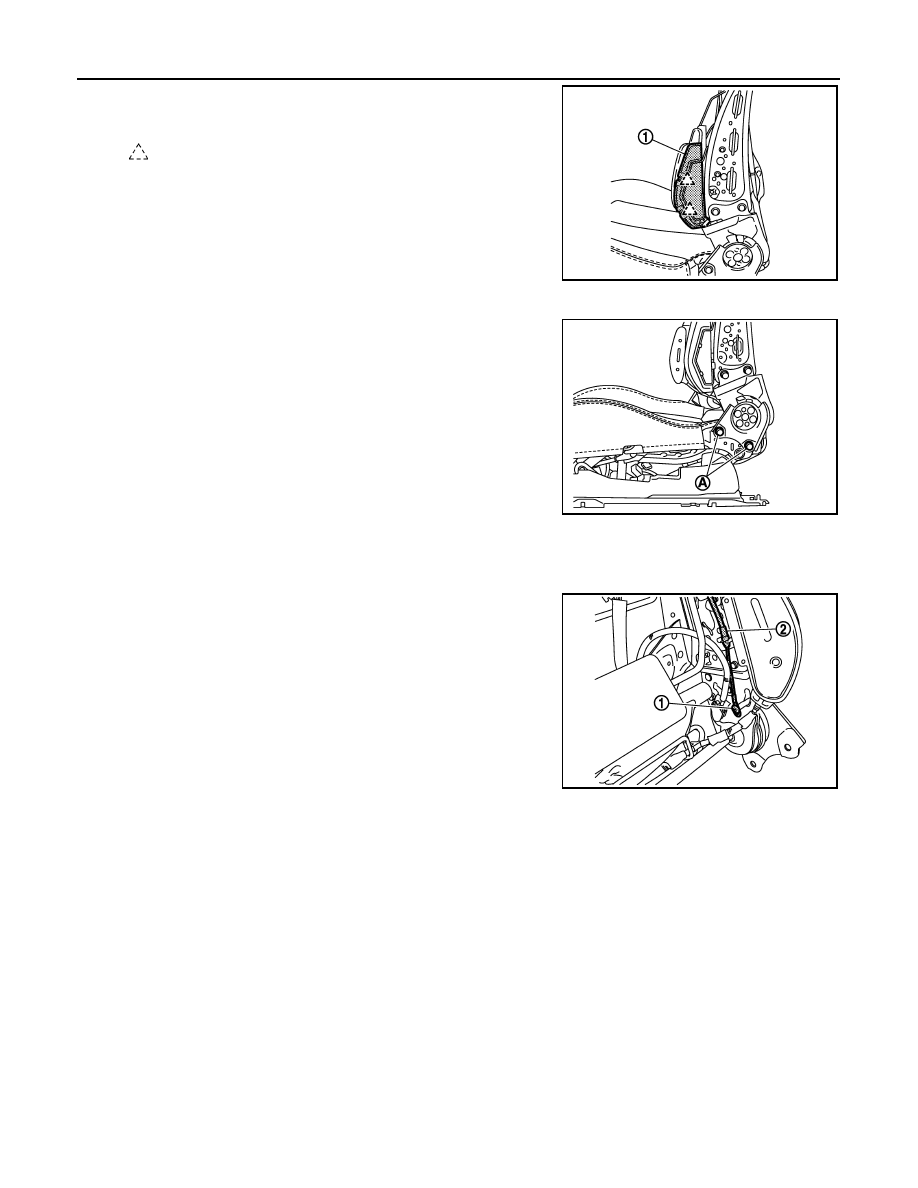

SE-156

< ON-VEHICLE REPAIR >

FRONT SEAT

• Remove the pawls, and then remove side support bag (1).
• Remove the side support unit.

8.

Remove the seatback frame.
Remove the seatback frame mounting bolt (A).

9.

Remove the reclining device outer cover (front, rear).

10. Remove the reclining device inner cover (front, rear).
11. Remove the reclining device wire.

• Remove the push nut (1).
• Remove the reclining device wire (2) from the seatback frame

and walk-in lever.

12. Remove the walk-in lever.

Assembly

Assemble in the reverse order of disassembly.

CAUTION:

Install the hog rings of seatback trim in position, and then securely connect the trim or trim cord with
the pad side wire.

SEAT CUSHION

Disassembly

CAUTION:

Do not disassemble front passenger seat cushion assembly.
Always replace as an assembly.
For front passenger seat service parts, refer to the service part catalogue.

1.

Remove the seat cushion outer finisher.

: Pawl

JMJIA0935ZZ

JMJIA0936ZZ

JMJIA1023ZZ

FRONT SEAT

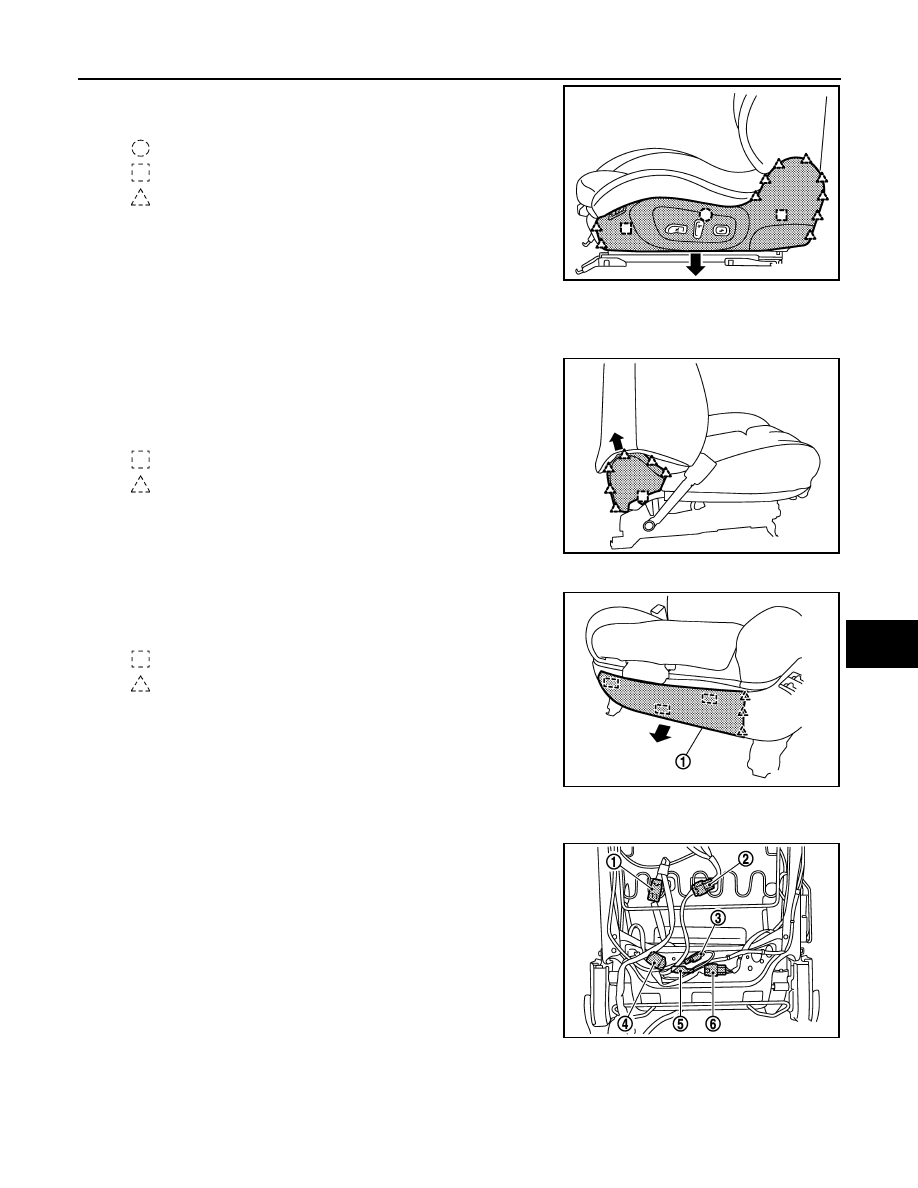

SE-157

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

• Remove the metal clips, clips and pawls, and then pull out seat

cushion outer finisher.

• Disconnect the seat control switch, lumbar support switch and side support switch harness connector.
• Remove the seat cushion outer finisher inside (front, rear).

2.

Remove the seat cushion inner finisher.
• Remove the seat cushion inner finisher inside (front, rear) by

releasing the metal clip and pull it up together with the cover.

• Remove the seat cushion inner finisher inside (front, rear) from

the seat cushion inner finisher by releasing the pawls.

3.

Remove the seat cushion front finisher.
Remove the metal clips, and then pull out seat cushion front fin-
isher (1).

4.

Remove the seatback assembly.
• Remove the seatback lower panel.
• Disconnect the side support unit harness connector (1) and

remove the harness clamp.(Side support model only.)

• Disconnect the reclining and slide relay harness connector (2)

and remove the harness clamp.

• Disconnect the power walk-in switch harness connector (3).
• Disconnect the forward switch harness connector (4).
• Disconnect the lumbar support motor harness connector (5)

and remove the harness clamp.(Power lumbar support model
only.)

• Disconnect the reclining motor harness connector (6) and

remove the harness clamp.

• Disconnect the slide switch (seatback) harness connector.

(Passenger's seat only)

• Remove the side support hose joint located backside the seat cushion.(Side support model only.)
• Remove the seat cushion retainer, and then side air bag harness clamp and seatback heater unit har-

ness connector.

: Clip

: Metal clip

: Pawl

JMJIA0937ZZ

: Metal clip

: Pawl

JMJIA0938ZZ

: Metal clip

: Pawl

JMJIA0017ZZ

JMJIA0934ZZ

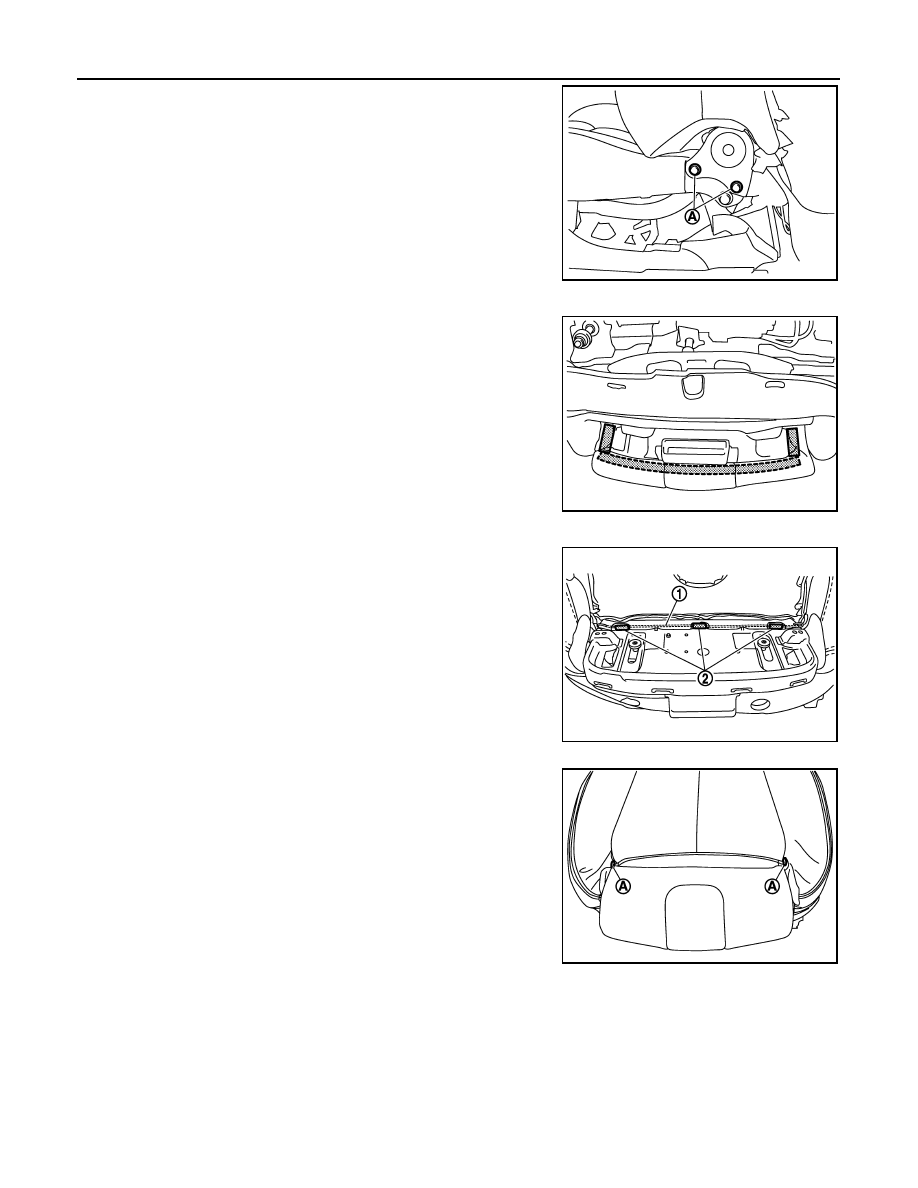

SE-158

< ON-VEHICLE REPAIR >

FRONT SEAT

• Remove the seatback mounting bolts (A), and then remove

the seatback assembly.

5.

Remove the seat cushion pad (front). (Thigh extension model only.)
• Remove the retainer.
• Remove the seat cushion pad (front).

6.

Remove the seat cushion trim and seat cushion pad.
• Remove the seat cushion trim wire (1) from the hook (2).

• Remove the clip (A).(Thigh extension model only.)

• Remove the seat cushion retainer.
• Disconnect the seat cushion heater unit harness connector.
• Remove the hog rings, and separate the seat cushion trim and seat cushion pad.

7.

Remove the side support bag.(Side support model only.)
• Remove the hose clamp.

JMJIA0018ZZ

JMJIA0019ZZ

JMJIA0939ZZ

JMJIA0021ZZ

FRONT SEAT

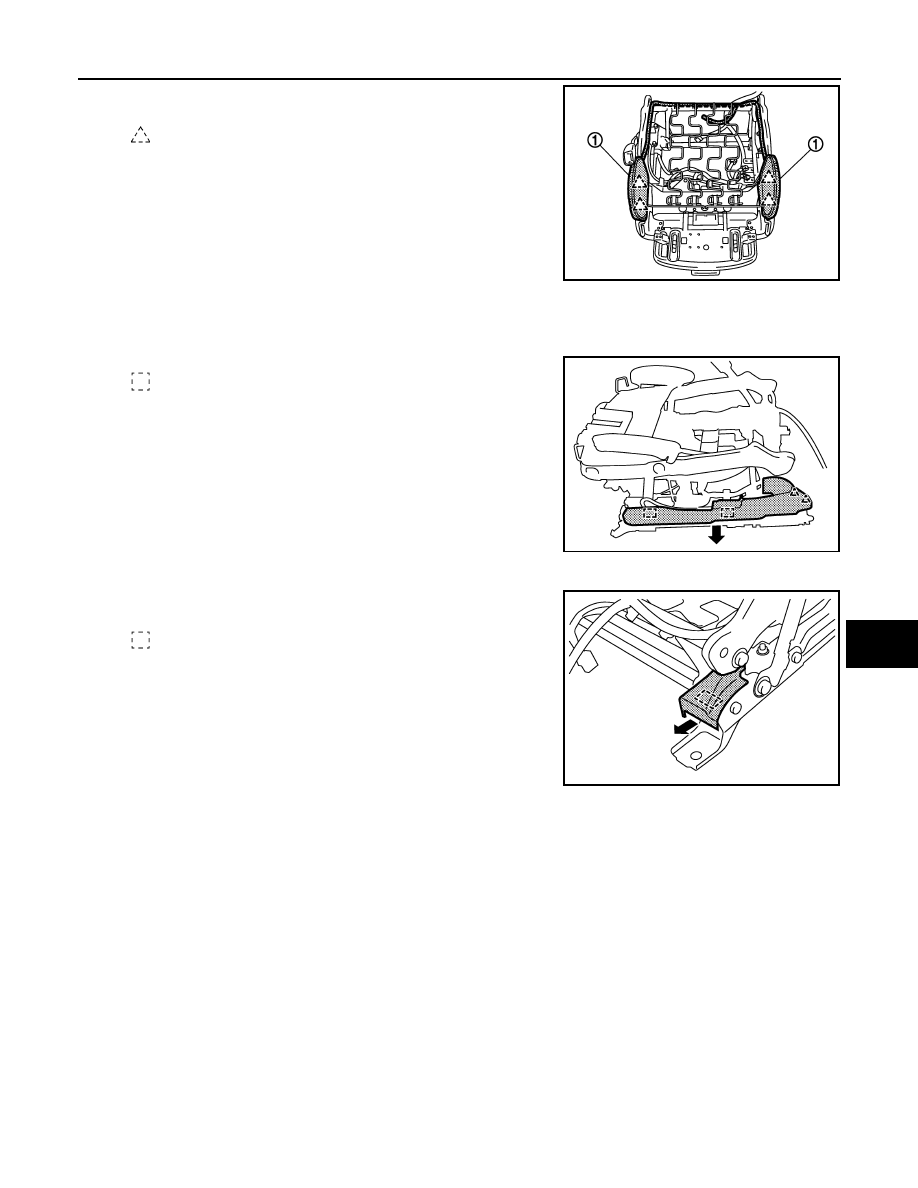

SE-159

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

• Remove the pawls, and then remove side support bag (1).

8.

Remove the seat slide outer finisher.
• Remove the metal clip and pawls, and then pull out seat slide outer finisher (outside).
• Remove the metal clip, and then pull out seat slide outer finisher (inside).

9.

Remove the seat slide inner finisher.
Remove the metal clip, and then pull out seat slide inner finisher.

Assembly

Assemble in the reverse order of disassembly.

CAUTION:

Install the hog rings of seat cushion trim in position, and then securely connect the trim or trim cord
with the pad side wire.

: Pawl

JMJIA0940ZZ

: Metal clip

JMJIA0023ZZ

: Metal clip

JMJIA0024ZZ
