PWO-6

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001680380

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIRBAG” and “SEAT BELT” of this
Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIRBAG”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Precaution for Battery Service

INFOID:0000000002912429

Before disconnecting the battery, lower both the driver and passenger windows. This will prevent any interfer-
ence between the window edge and the vehicle when the door is opened/closed. During normal operation, the
window slightly raises and lowers automatically to prevent any window to vehicle interference. The automatic
window function will not work with the battery disconnected.

PWO

CIGARETTE LIGHTER

PWO-7

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ON-VEHICLE REPAIR

CIGARETTE LIGHTER

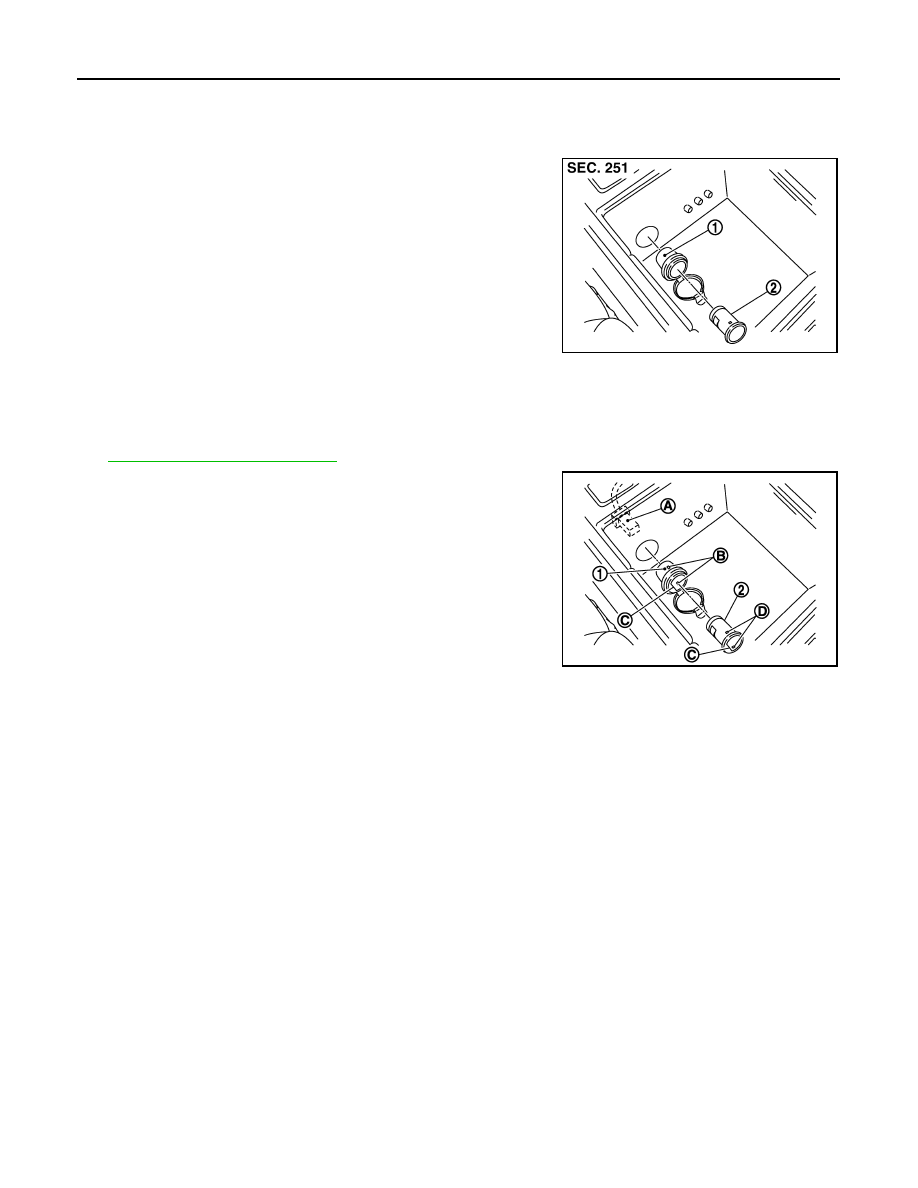

Exploded View

INFOID:0000000001680381

Removal and Installation

INFOID:0000000001680382

REMOVAL

1.

Remove console finisher. Refer to

IP-24, "Removal and Installation"

.

2.

Remove screws (A) from reverse side cigarette lighter socket
(1).

3.

Pull out cigarette lighter (1).

4.

Pull out the cigarette lighter socket (2) by pushing the cigarette
lighter ring pawl (C) from the cigarette lighter socket hole
(square).

INSTALLATION

Install in the reverse order of removal.
NOTE:
Align the cigarette lighter socket and the cigarette lighter ring cut out.

1

: Cigarette lighter

2

: Cigarette lighter socket

3

: Cigarette lighter ring

JPMIA0494ZZ

JPMIA0493ZZ

3

: Cigarette lighter ring

A

: Cut out

B

: Hole (square)

JPMIA0492ZZ

PWO-8

< ON-VEHICLE REPAIR >

POWER SOCKET

POWER SOCKET

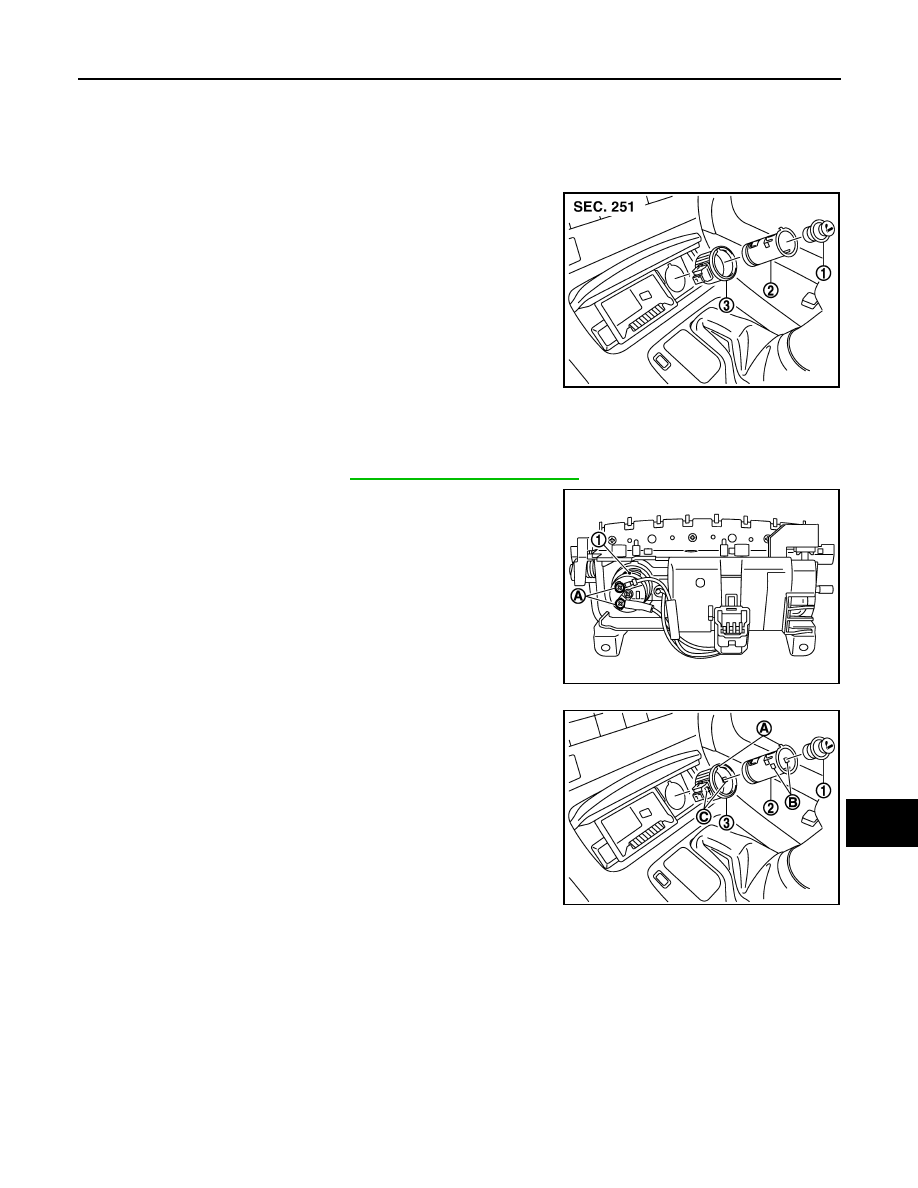

Exploded View

INFOID:0000000001680383

Removal and Installation

INFOID:0000000001680384

REMOVAL

1.

Remove rear upper console assembly (A/T models) or center console assembly (M/T models). Refer to

IP-24, "Removal and Installation"

.

2.

Disconnect power socket connector (A).

3.

Pull out the inner socket (2) by pushing the ring pawl (B) from
the inner socket hole (square).

4.

Remove ring (1) from console box while pressing pawls.

INSTALLATION

Install in the reverse order of removal.
NOTE:
Align the inner socket and the ring cut out.

1

:  Ring

2

: Inner socket

JPLIA0098ZZ

C

: Cut out

D

: Hole (square)

JPLIA0109ZZ
