POWER WINDOW SUB-SWITCH

PWC-73

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

POWER WINDOW SUB-SWITCH

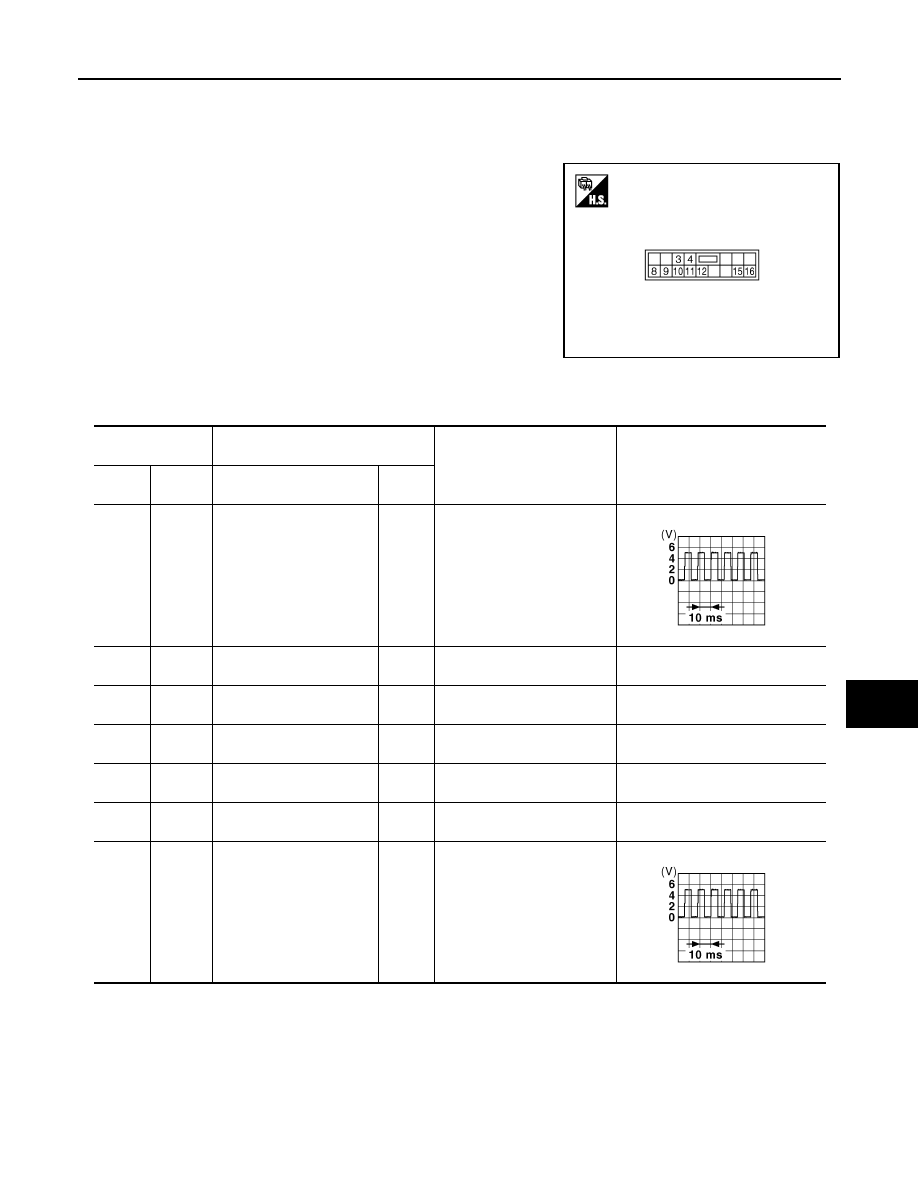

Reference Value

INFOID:0000000001694046

TERMINAL LAYOUT

PHYSICAL VALUES

JMKIA0134ZZ

Terminal No.

(Wire color)

Description

Condition

Voltage [V]

(Approx.)

+

-

Signal name

Input/

Output

3

(G)

Ground

Encoder pulse signal 2

Input

When power window motor
operates.

4

(O)

Ground

Encoder power supply

Output

When ignition switch ON or
power window timer operates

Battery voltage

8

(L)

Ground

Power window motor
UP signal

Output

When power window motor is
UP at operated.

 Battery voltage

9

(BR)

Ground

Power window motor
DOWN signal

Output

When power window motor is
DOWN at operated.

Battery voltage

10

(W)

Ground

Battery power supply

Input

—

Battery voltage

11

(B)

Ground

Ground

—

—

0

12

(R)

Ground

Encoder pulse signal 1

Input

When power window motor
operates.

JMKIA0070GB

JMKIA0070GB

PWC-74

< ECU DIAGNOSIS >

POWER WINDOW SUB-SWITCH

15

(LG)

Ground

Encoder ground

—

—

0

16

(Y)

Ground

Power window serial link

Input/

Output

IGN SW ON or power window
timer operating.

Terminal No.

(Wire color)

Description

Condition

Voltage [V]

(Approx.)

+

-

Signal name

Input/

Output

JPMIA0013GB

POWER WINDOW SUB-SWITCH

PWC-75

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

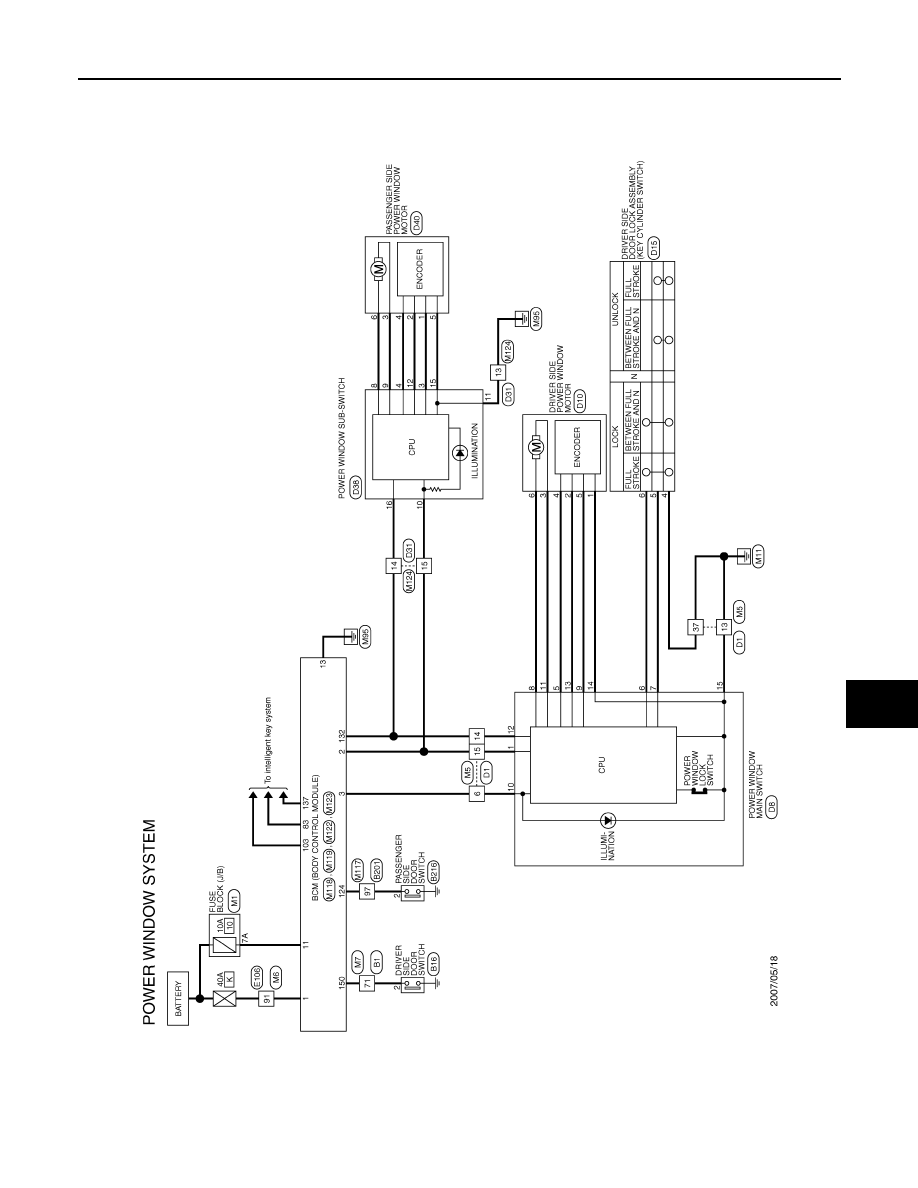

Wiring Diagram - POWER WINDOW CONTROL SYSTEM -

INFOID:0000000001838133

JCKWA0653GB

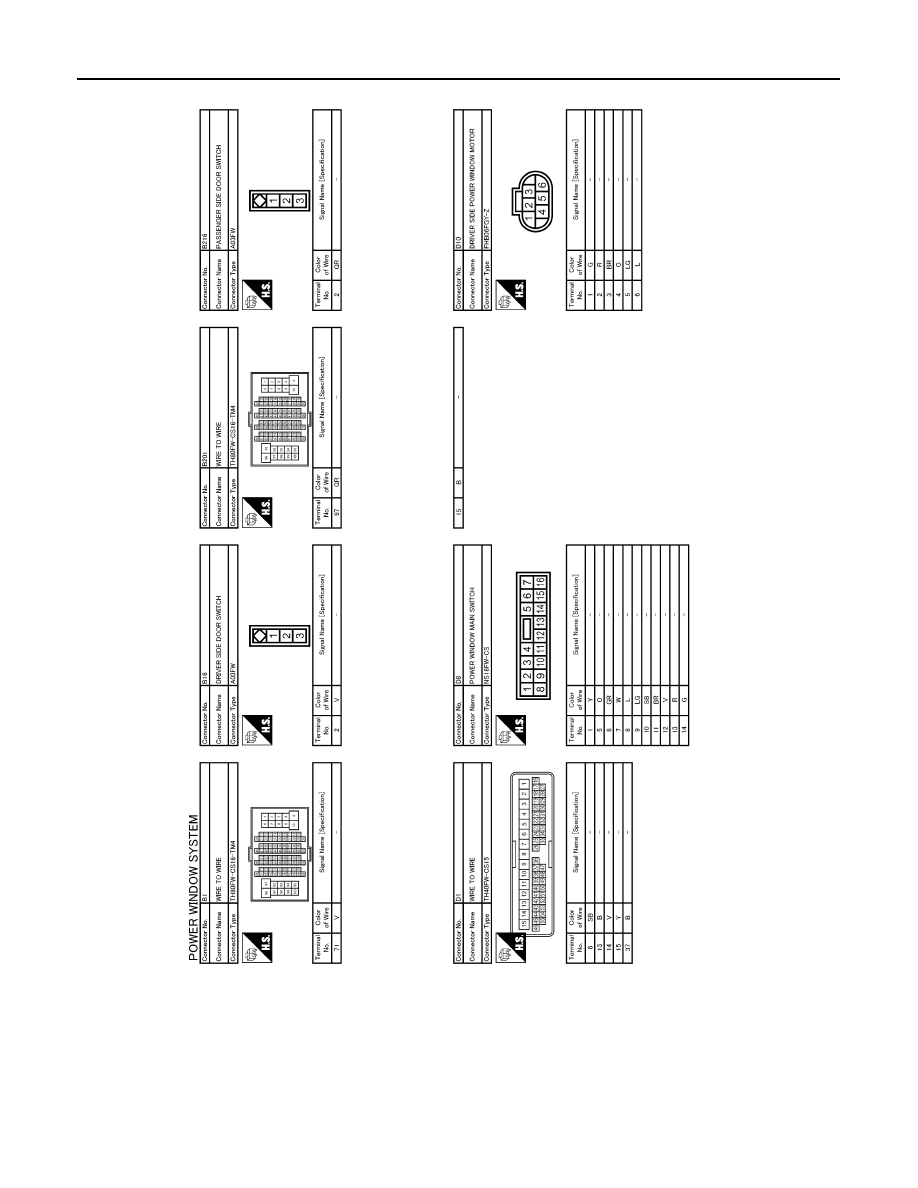

PWC-76

< ECU DIAGNOSIS >

POWER WINDOW SUB-SWITCH

JCKWA0654GB
