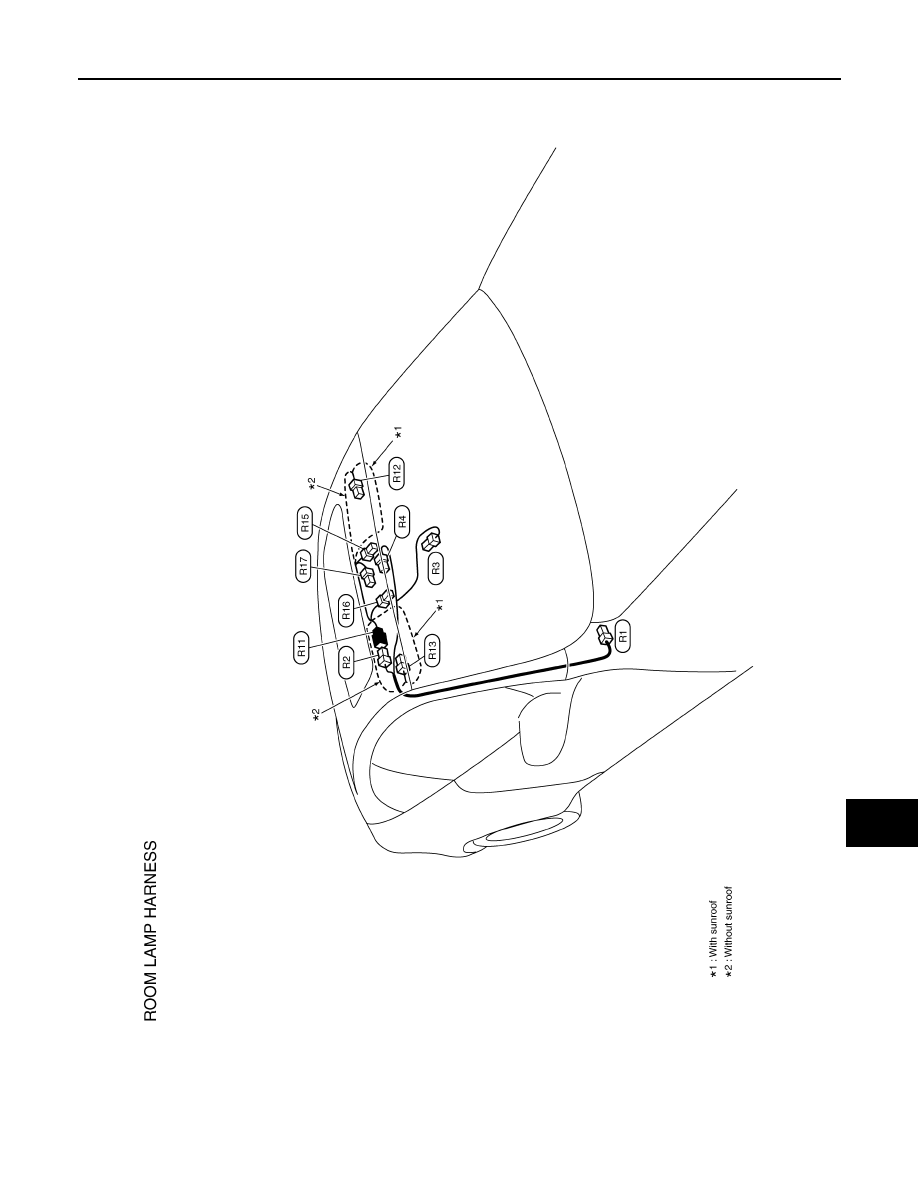

Room Lamp Harness

INFOID:0000000001680431

Click here to view the eWD.

JCMIA0190GB

PG-84

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

HARNESS LAYOUT

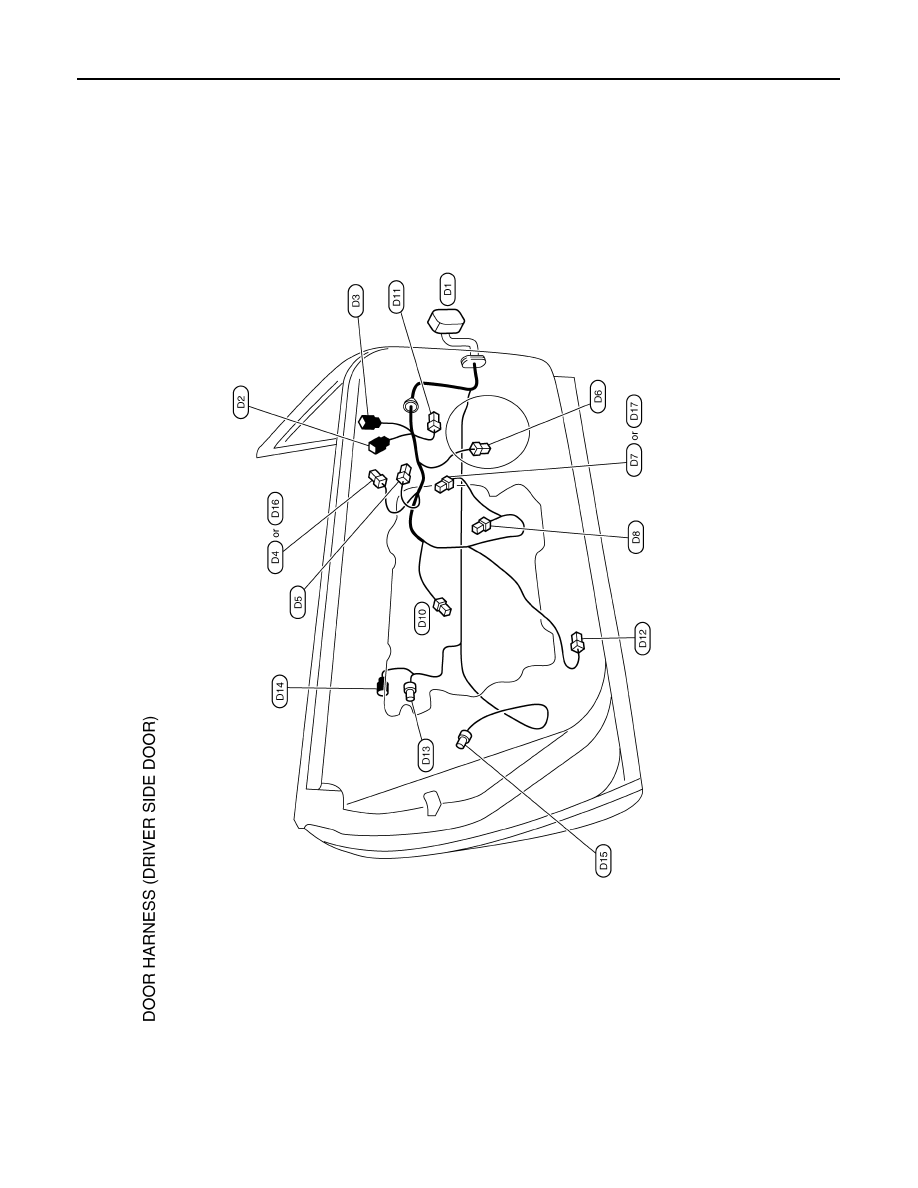

Door Harness (Driver Side Door)

INFOID:0000000001841384

Click here to view the eWD.

JCMIA0191GB

PG

HARNESS LAYOUT

PG-85

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

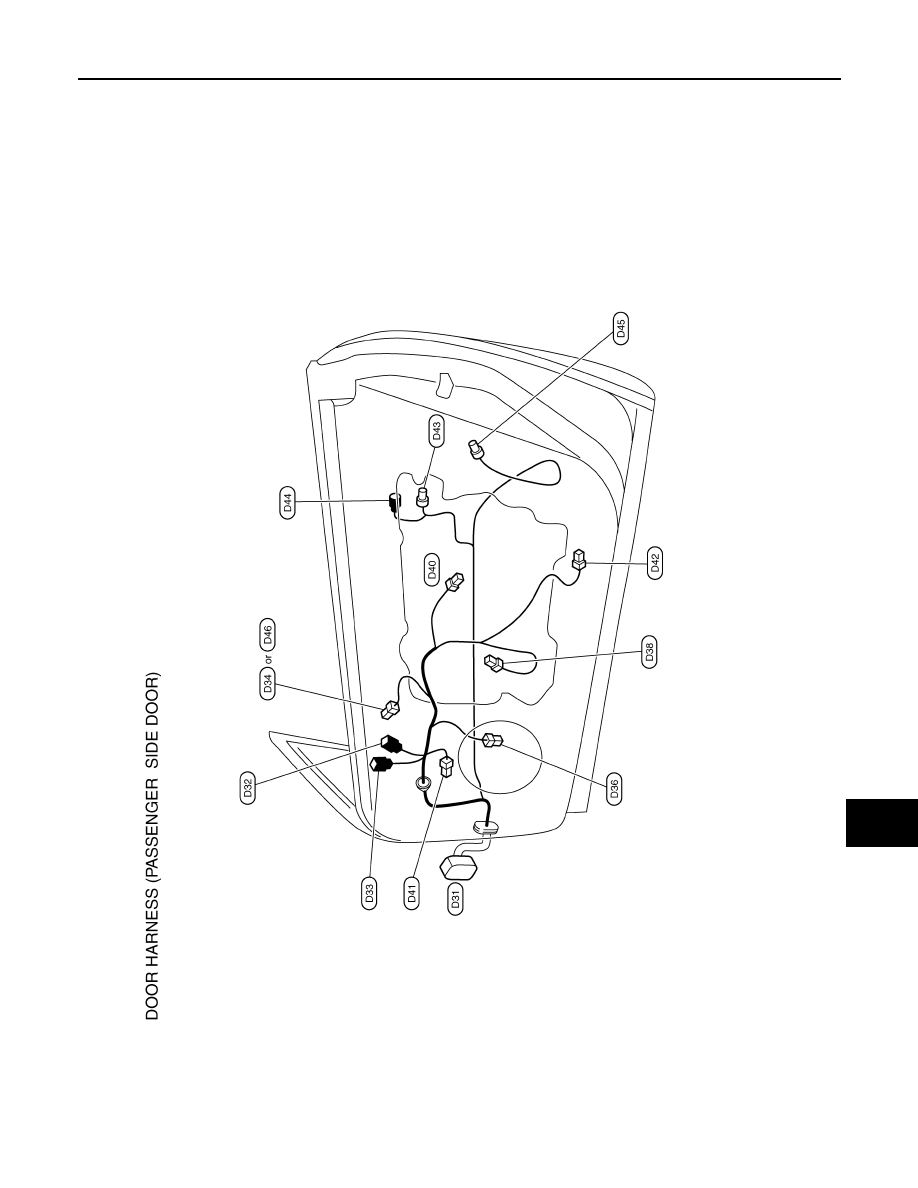

Door Harness (Passenger Side Door)

INFOID:0000000001680432

Click here to view the eWD.

JCMIA0192GB

PG-86

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

HARNESS CONNECTOR

HARNESS CONNECTOR

Description

INFOID:0000000001680434

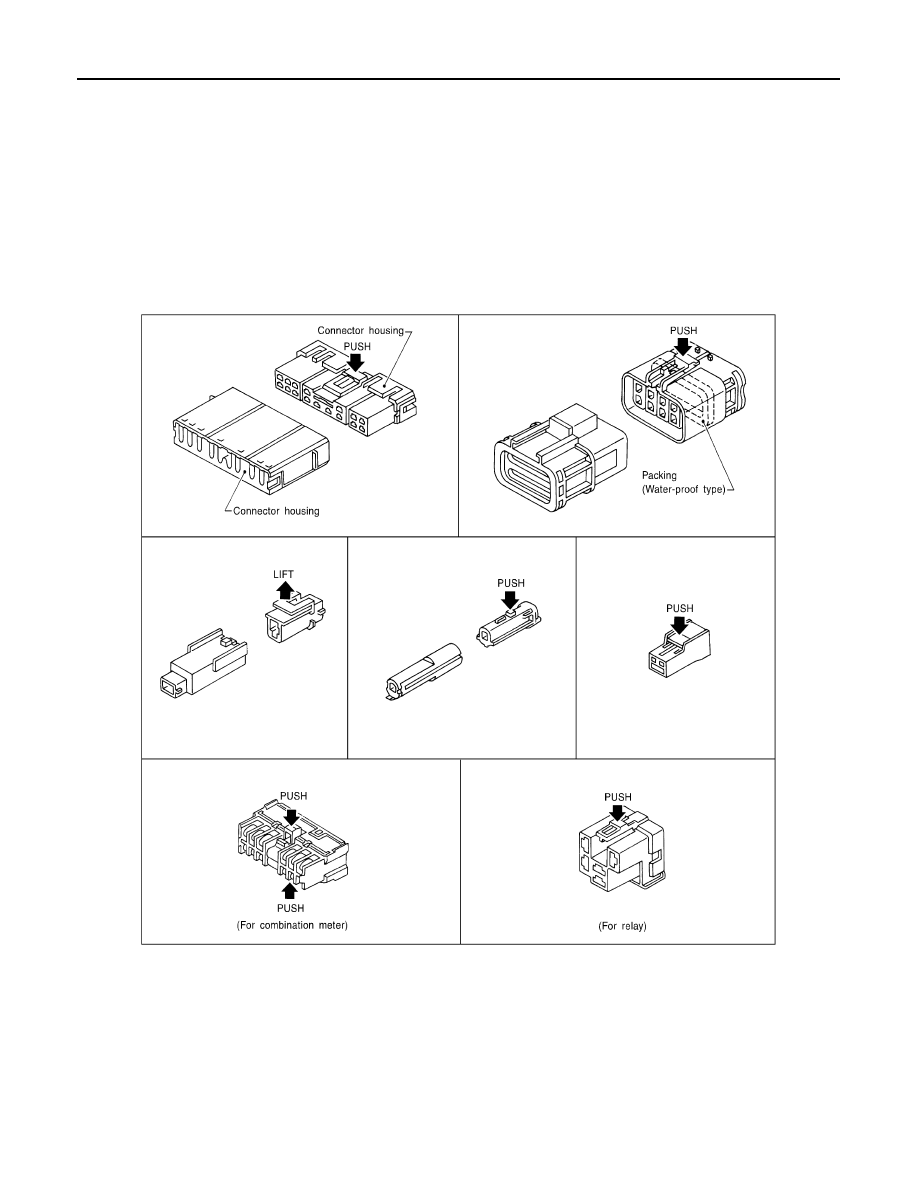

HARNESS CONNECTOR (TAB-LOCKING TYPE)

• The tab-locking type connectors help prevent accidental looseness or disconnection.
• The tab-locking type connectors are disconnected by pushing or lifting the locking tab(s). Refer to the figure

below.

CAUTION:

Never pull the harness or wires when disconnecting the connector.

[Example]

HARNESS CONNECTOR (SLIDE-LOCKING TYPE)

• A new style slide-locking type connector is used on certain systems and components, especially those

related to OBD.

• The slide-locking type connectors help prevent incomplete locking and accidental looseness or disconnec-

tion.

• The slide-locking type connectors are disconnected by pushing or pulling the slider. Refer to the figure

below.

SEL769DA
