Infiniti G35 (V35) Sedan. Manual - part 982

MWI

AIR BAG (PATTERN 2)

MWI-155

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

PRECAUTION

AIR BAG (PATTERN 2)

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000000964455

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SRS section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

MWI-156

< ON-VEHICLE REPAIR >

COMBINATION METER

ON-VEHICLE REPAIR

COMBINATION METER

Exploded View

INFOID:0000000000964456

REMOVAL

Cluster lid A assembly

Refer to

IP-11, "Exploded View"

.

Combination meter

DISASSEMBLY

Removal and Installation

INFOID:0000000000964457

REMOVAL

JSNIA0098ZZ

1.

Cluster lid A

2.

Meter control switch

3.

Cluster lid A under cover

4.

Bracket (LH)

5.

Bracket (RH)

6.

Steering column cover upper

7.

Steering column blind

8.

Blind

9.

Meter housing

10. Combination meter stay

11. Combination meter

12. Cluster lid A cover

JSNIA0102ZZ

1.

Front cover

2.

Unified meter control unit

MWI

COMBINATION METER

MWI-157

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

1.

Remove cluster lid A assembly. Refer to

IP-12, "Removal and Installation"

.

2.

Remove screw (A) and remove combination meter stay (1).

3.

Remove screws (B) and remove cluster lid A cover (2).

4.

Remove screws (A), (B) and remove combination meter (1).

5.

Remove meter control switch connector (2) from combination
meter (1).

INSTALLATION

Install in the reverse order of removal.

Disassembly and Assembly

INFOID:0000000000964458

DISASSEMBLY

Disengage the tabs to separate front cover.

ASSEMBLY

Assemble in the reverse order of disassembly.

JSNIA0100ZZ

JSNIA0101ZZ

MWI-158

< ON-VEHICLE REPAIR >

UNIFIED METER AND A/C AMP.

UNIFIED METER AND A/C AMP.

Exploded View

INFOID:0000000000964459

REMOVAL

Refer to

IP-11, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000000964460

REMOVAL

1.

Remove the display unit. Refer to

AV-112, "Removal and Installation"

.

2.

Remove the unified meter and A/C amp and AV control unit as an assembly.

3.

Remove the bracket screws and remove the unified meter and A/C amp.

INSTALLATION

Install in the reverse order of removal.
NOTE:
Unified meter and A/C amp. screws are different from other screws. Never confuse them when installing.

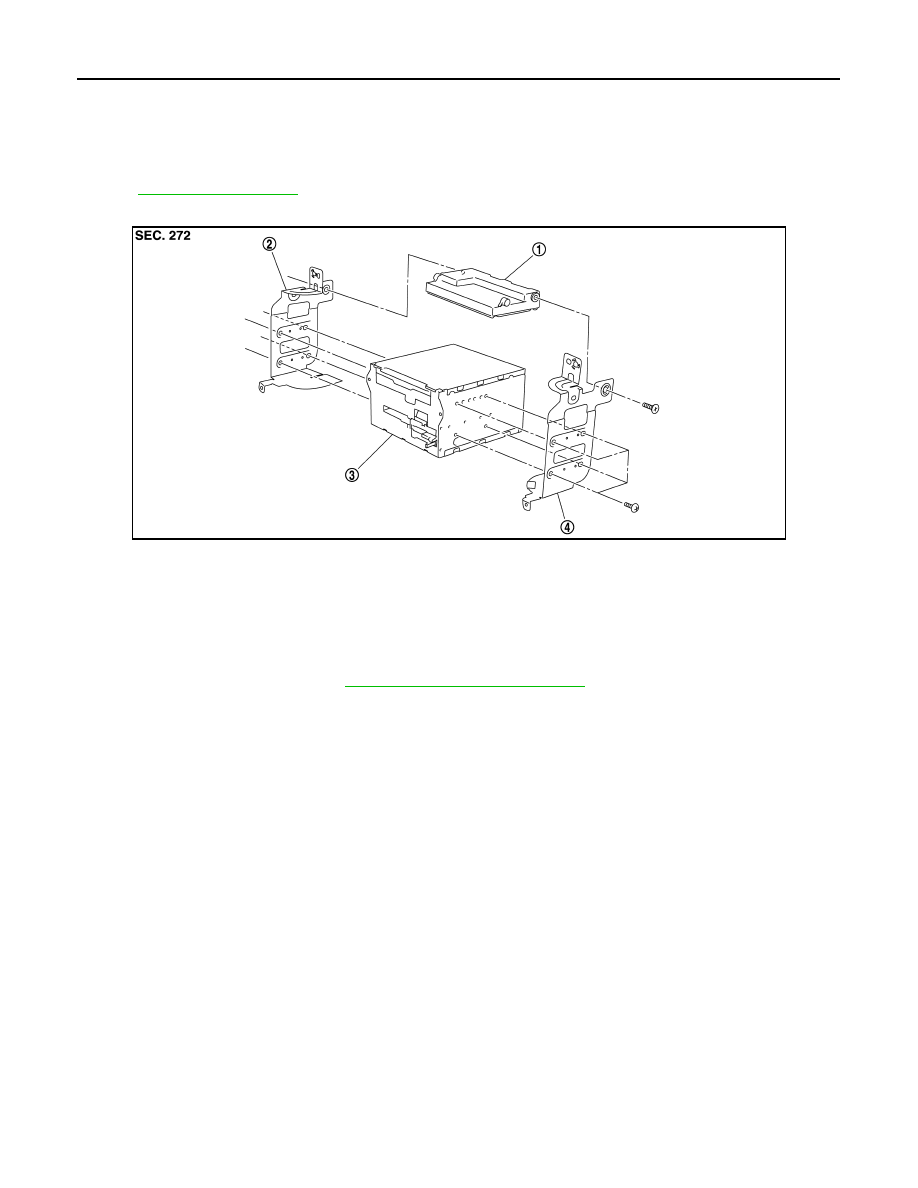

JSNIA0105ZZ

1.

Unified meter and A/C amp.

2.

Bracket (LH)

3.

AV control unit

4.

Bracket (RH)
