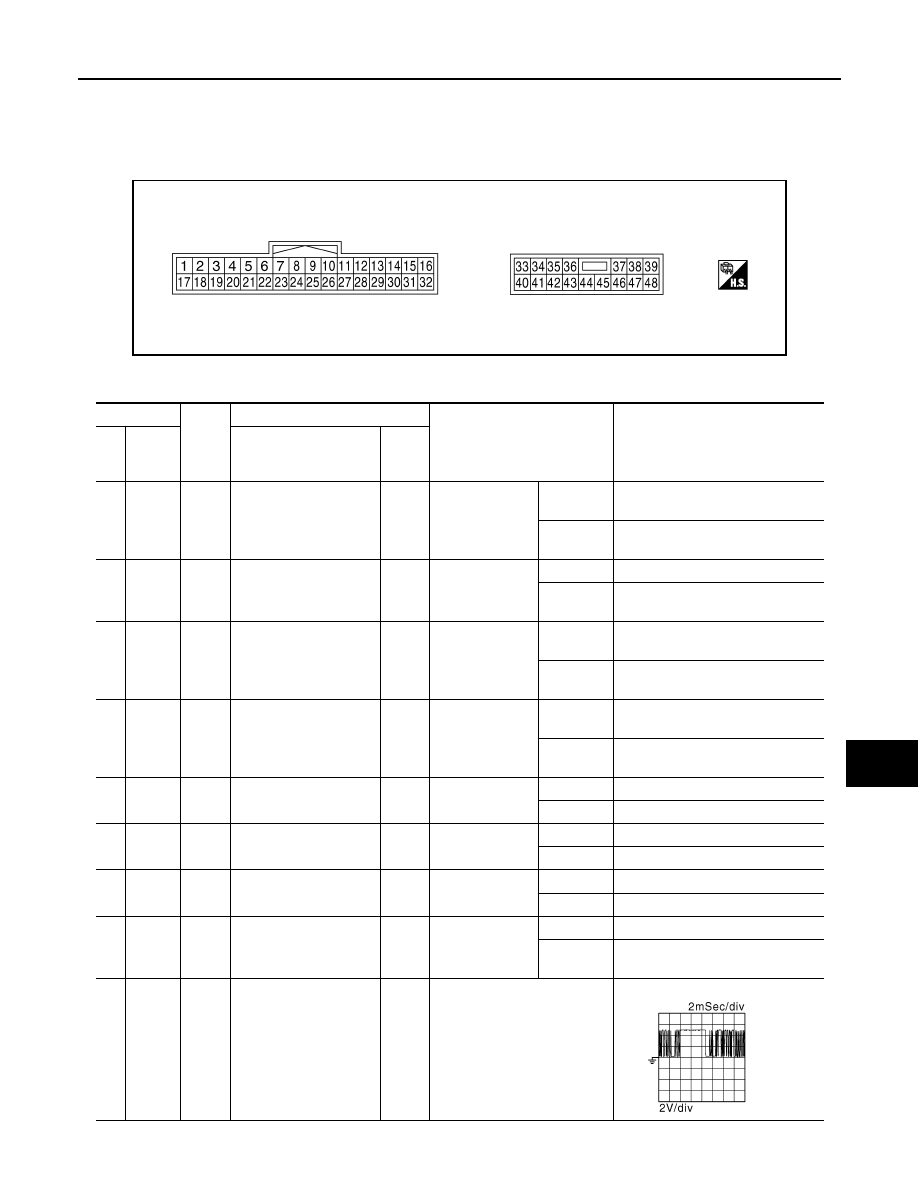

AUTOMATIC DRIVE POSITIONER CONTROL UNIT MIR-39 < ECU DIAGNOSIS > [WITH ADP] C D E F G H I J K M A B MIR N O P AUTOMATIC DRIVE POSITIONER CONTROL UNIT Reference Value INFOID:0000000000962336 TERMINAL LAYOUT PHYSICAL VALUES JMJIA0199ZZ Terminal No. Wire color Description Condition Voltage (V) (Approx.) + - Signal name Input/ Out- put 1 Ground Y Tilt switch up signal Input Tilt switch Operate 0 Other than 5 2 Ground LG Changeover switch RH Input Changeover RH 0 Neutral or 5 3 Ground G Mirror switch up signal Input Mirror switch Operated 0 Other than 5 4 Ground V Mirror switch left signal Input Mirror switch Operated 0 Other than 5 5 Ground R Door mirror sensor (RH) Input Door mirror RH Peak 3.4 Valley 0.6 6 Ground GR Door mirror sensor (LH) Input Door mirror LH Peak 3.4 Valley 0.6 7 Ground O Tilt sensor signal Input Tilt position Top 1.2 Bottom 3.4 9 Ground L Memory switch 1 signal Input Memory switch 1 Push 0 Other than 5 10 Ground V UART communication Out- put Ignition switch ON JMJIA0118ZZ |
