Infiniti G35 (V35) Sedan. Manual - part 905





LU-4

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Liquid Gasket

INFOID:0000000000956307

LIQUID GASKET APPLICATION PROCEDURE

1.

Remove old liquid gasket adhering to the liquid gasket application surface and the mating surface.
• Remove liquid gasket completely from the liquid gasket application surface, mounting bolts, and bolt

holes.

2.

Wipe the liquid gasket application surface and the mating surface with white gasoline (lighting and heating
use) to remove adhering moisture, grease and foreign materials.

3.

Apply liquid gasket to the liquid gasket application surface.
Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-15, "Recommended Chemical Prod-

ucts and Sealants"

.

• Within five minutes of liquid gasket application, install the mating component.
• If liquid gasket protrudes, wipe it off immediately.
• Do not retighten mounting bolts or nuts after the installation.
• After 30 minutes or more have passed from the installation, fill engine oil and engine coolant.

PREPARATION

LU-5

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

PREPARATION

PREPARATION

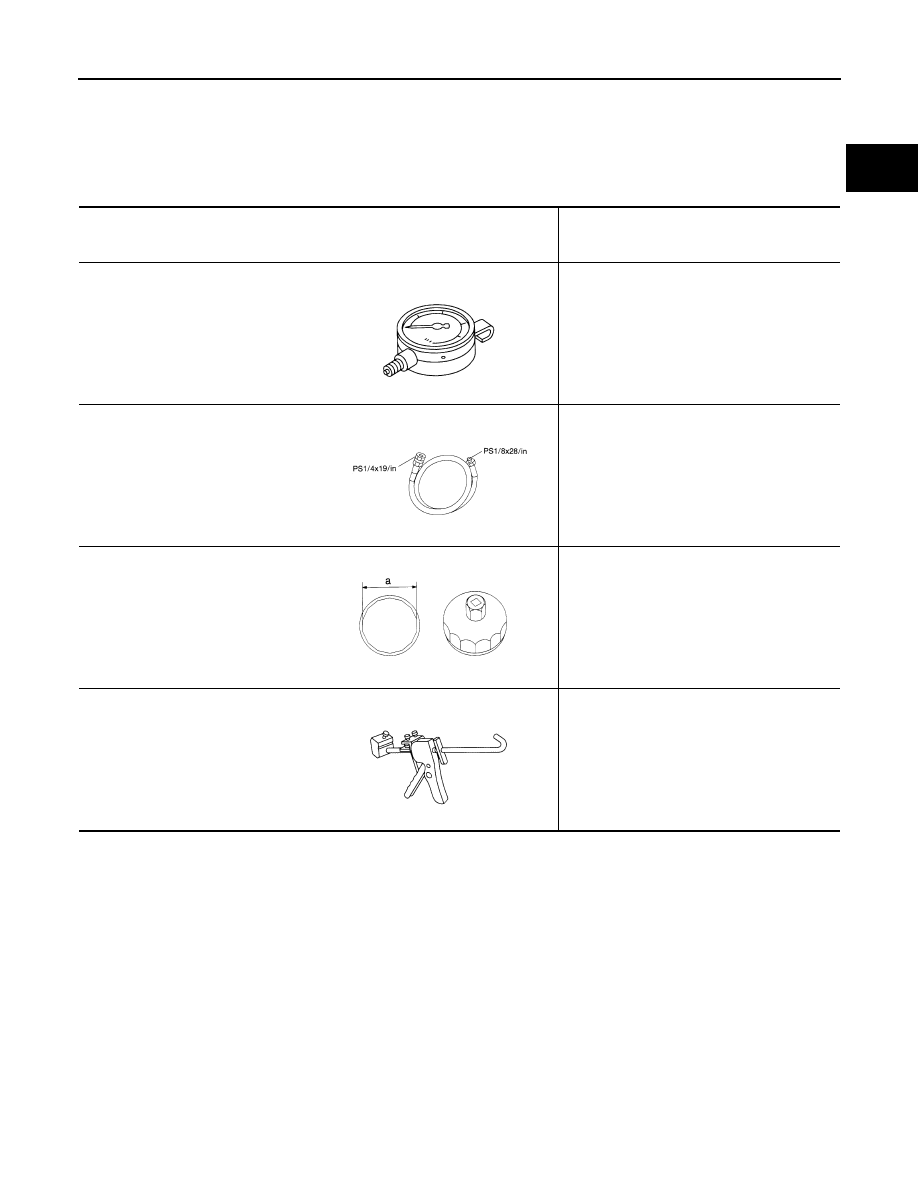

Special Service Tools

INFOID:0000000000956308

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

INFOID:0000000000956309

Tool number
(Kent-Moore No.)
Tool name

Description

ST25051001
(J25695-1)
Oil pressure gauge

Measuring oil pressure
Maximum measuring range: 2,452 kPa (25

kg-cm

2

, 356 psi)

ST25052000
(J25695-2)
Hose

Adapting oil pressure gauge to oil pan (upper)

KV10115801
(J38956)
Oil filter wrench

Removing and installing oil filter
a: 64.3 mm (2.531 in)

WS39930000
(

)

Tube presser

Pressing tube of liquid gasket

NT050

S-NT559

S-NT375

NT052

LU-6

< PREPARATION >

PREPARATION

Tool name

Description

Power tools

Loosening nuts and bolts

Deep socket

Removing and installing oil pressure switch
a: 27 mm (1.06 in)

PBIC0190E

PBIC4066E

ENGINE OIL

LU-7

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

ON-VEHICLE MAINTENANCE

ENGINE OIL

Inspection

INFOID:0000000000956310

ENGINE OIL LEVEL

NOTE:
Before starting engine, put vehicle horizontally and check the engine oil level. If engine is already started, stop
it and allow 10 minutes before checking.

1.

Pull out oil level gauge and wipe it clean.

2.

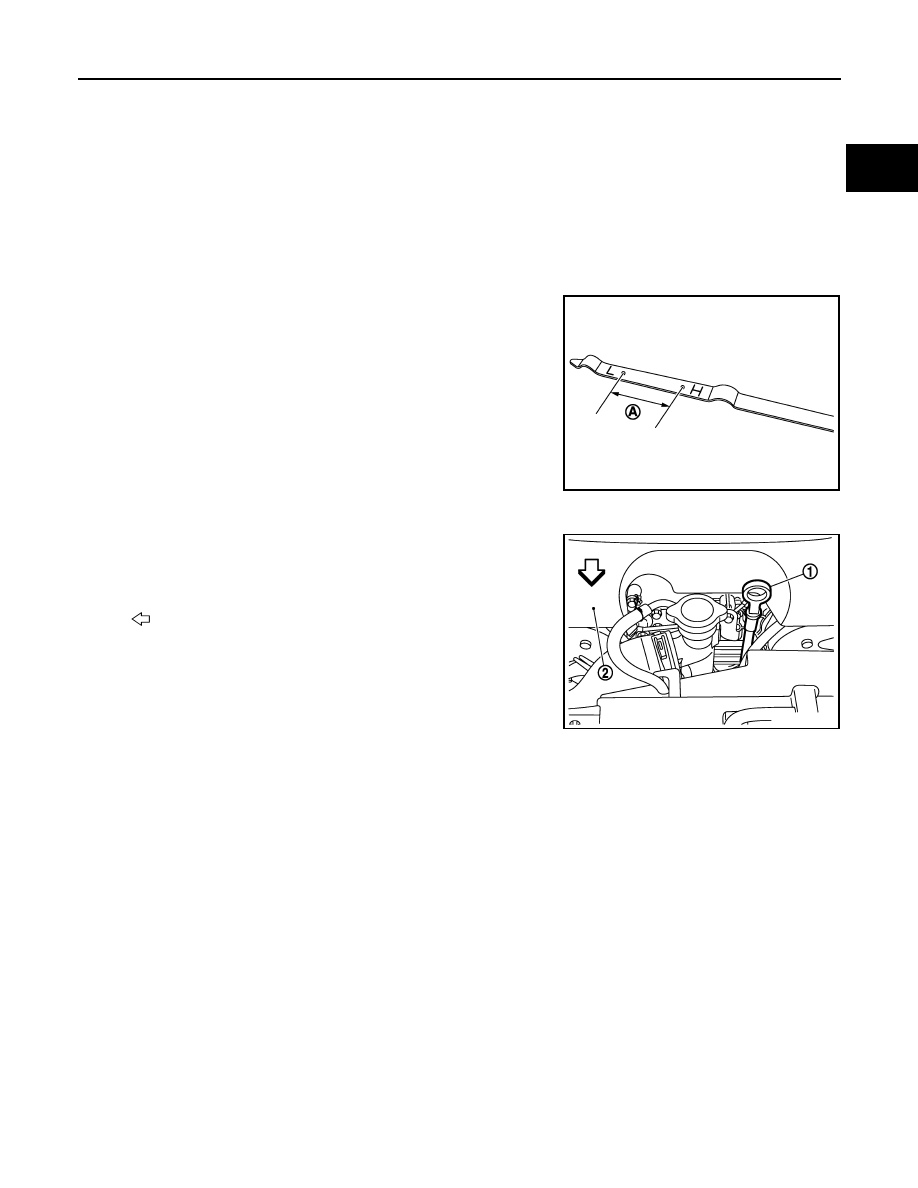

Insert oil level gauge and make sure the engine oil level is within
the range (A) shown in the figure.

3.

If it is out of range, adjust it.

NOTE:
When checking the engine oil level, insert oil level gauge (1)
with its tip aligned with oil level gauge guide.

ENGINE OIL APPEARANCE

• Check engine oil for white turbidity or heavy contamination.
• If engine oil becomes turbid and white, it is highly probable that it is contaminated with engine coolant.

Repair or replace damaged parts.

ENGINE OIL LEAKAGE

Check for engine oil leakage around the following areas:
• Oil pans (lower and upper)
• Oil pan drain plug
• Oil pressure switch
• Oil filter
• Oil filter bracket (AWD models)
• Oil cooler (AWD models)
• Valve timing control cover
• Mating surface between cylinder head and rocker cover
• Mating surface between front timing chain case and rear timing chain case
• Mating surface between rear timing chain case and cylinder head
• Mating surface between rear timing chain case and cylinder block
• Mating surface between rear timing chain case and oil pan (upper)
• Mating surface between cylinder block and cylinder head
• Mating surface between lower cylinder block and cylinder block
• Crankshaft oil seals (front and rear)
• Camshaft position sensor (PHASE) and exhaust valve timing control position sensor

JPBIA0070ZZ

2

: Engine cover

: Engine front

JPBIA0071ZZ
