Infiniti G35 (V35) Sedan. Manual - part 767





HAC-40

< FUNCTION DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

AUTOMATIC AIR CONDITIONER SYSTEM

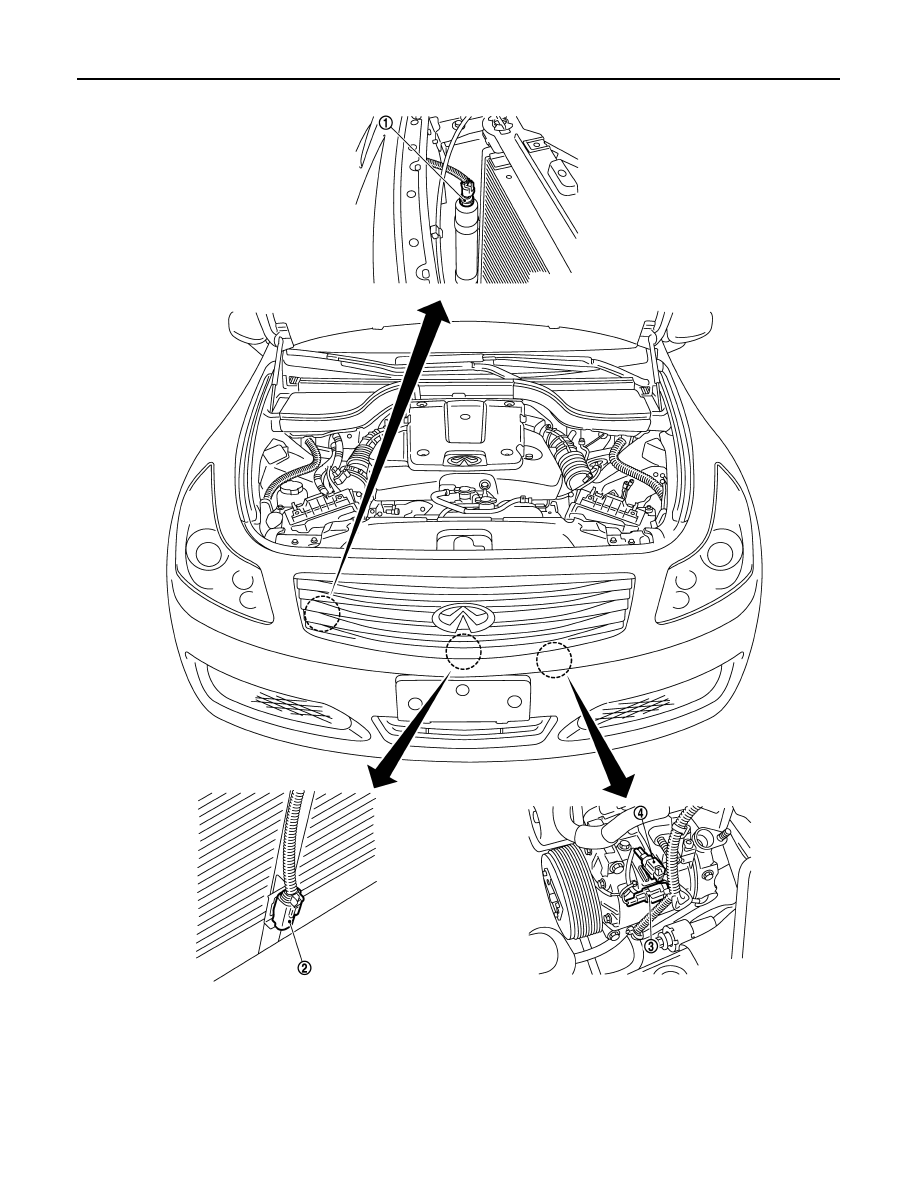

PASSENGER COMPARTMENT

1.

Refrigerant pressure sensor

2.

Ambient sensor

3.

Compressor (magnet clutch)

4.

Compressor (ECV)

JSIIA0081ZZ

AUTOMATIC AIR CONDITIONER SYSTEM

HAC-41

< FUNCTION DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

WITH LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CONTROL
SYSTEM : Component Description

INFOID:0000000000959915

1.

Intake door motor

2.

Mode door motor

3.

Air mix door motor (passenger side)

4.

Air mix door motor (driver side)

5.

Sunload sensor

6.

In-vehicle sensor

7.

Unified meter and A/C amp.

8.

Intake sensor

9.

Blower motor

JSIIA0082GB

HAC-42

< FUNCTION DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

AUTOMATIC AIR CONDITIONER SYSTEM

Component

Reference

Air mix door motor

HAC-74, "WITH LEFT AND RIGHT VENTILATION TEMPERA-
TURE SEPARATELY CONTROL SYSTEM : Description"

Ambient sensor

HAC-93, "Description"

Blower motor

HAC-86, "WITH LEFT AND RIGHT VENTILATION TEMPERA-
TURE SEPARATELY CONTROL SYSTEM : Description"

Compressor

HAC-90, "Description"

intake door motor

HAC-80, "Description"

intake sensor

HAC-102, "Description"

In-vehicle sensor

HAC-96, "Description"

Mode door motor

HAC-69, "Description"

Refrigerant pressure sensor

HAC-92, "Component Inspection"

Sunload sensor

HAC-99, "Description"

Unified meter and A/C amp.

HAC-105, "Description"

CAN COMMUNICATION SYSTEM

HAC-43

< FUNCTION DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

CAN COMMUNICATION SYSTEM

System Description

INFOID:0000000000959916

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN-H line, CAN-L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only. For details, refer to

LAN-27,

"CAN System Specification Chart"

.
