HAC-4

< BASIC INSPECTION >

[AUTOMATIC AIR CONDITIONER]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000000959897

DETAILED FLOW

1.

LISTEN TO CUSTOMER COMPLAINT

Listen to customer complaint. (Get detailed information about the conditions and environment when the symp-
tom occurs.)

>> GO TO 2.

2.

VERIFY THE SYMPTOM WITH OPERATIONAL CHECK

Verify the symptom with operational check. Refer to

HAC-5, "WITHOUT LEFT AND RIGHT VENTILATION

TEMPERATURE SEPARATELY CONTROL SYSTEM : Description & Inspection"

 (Without left and right venti-

lation temperature separately control system) or

HAC-9, "WITH LEFT AND RIGHT VENTILATION TEMPERA-

TURE SEPARATELY CONTROL SYSTEM : Description & Inspection"

 (With left and right ventilation

temperature separately control system).

>> GO TO 3.

3.

GO TO APPROPRIATE TROUBLE DIAGNOSIS

Go to appropriate trouble diagnosis (Refer to

HAC-117, "Diagnosis Chart By Symptom"

 below).

>> GO TO 4.

4.

REPAIR OR REPLACE

Repair or replace the specific parts

>> GO TO 5.

5.

FINAL CHECK

Final check.

Is the inspection result normal?

YES

>> CHECK OUT

NO

>> GO TO 3.

INSPECTION AND ADJUSTMENT

HAC-5

< BASIC INSPECTION >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

INSPECTION AND ADJUSTMENT

WITHOUT LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY
CONTROL SYSTEM

WITHOUT LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CON-
TROL SYSTEM : Description & Inspection

INFOID:0000000000959898

DESCRIPTION

The purpose of the operational check is to check if the individual system operates properly.

INSPECTION PROCEDURE

Memory Function

1.

Turn temperature control dial clockwise until 32

°

C (90

°

F) is displayed.

2.

Press OFF switch.

3.

Turn ignition switch OFF.

4.

Turn ignition switch ON.

5.

Press AUTO switch.

6.

Confirm that the set temperature remains at previous temperature.

7.

Press OFF switch.

If NG, go to trouble diagnosis procedure for

HAC-127, "Inspection procedure"

.

If OK, continue the check.

Blower

1.

Turn fan control dial clockwise. Blower should operate on low speed. The fan symbol should have one
blade lit.

2.

Turn fan control dial clockwise again, and continue checking blower speed and fan symbol until all speeds
are checked.

3.

Leave blower on max. speed.

If NG, go to trouble diagnosis procedure for

HAC-83, "WITHOUT LEFT AND RIGHT VENTILATION TEMPER-

ATURE SEPARATELY CONTROL SYSTEM : Diagnosis Procedure"

.

If OK, continue the check.

Discharge Air

1.

Press MODE switches and DEF switch.

2.

Each position indicator should change shape.

3.

Confirm that discharge air comes out according to the air distribution table. Refer to

HAC-23, "WITHOUT

LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CONTROL SYSTEM : System
Description"

.

If NG, go to trouble diagnosis procedure for

HAC-69, "Diagnosis Procedure"

.

If OK, continue the check.
NOTE:
Confirm that the compressor clutch is engaged (sound or visual inspection) and intake door position is at FRE
when the D/F or DEF is selected.

Intake Air

1.

Press intake switch. Recirculation indicator should illuminate.

2.

Press intake switch again. Fresh indicator should illuminate.

3.

Listen for intake door position change. (Slight change of blower sound can be heard.)

If NG, go to trouble diagnosis procedure for

HAC-80, "Diagnosis Procedure"

.

If OK, continue the check.
NOTE:
Confirm that the compressor clutch is engaged (sound or visual inspection) and intake door position is at FRE
when the D/F or DEF is selected.

Conditions

: Engine running at normal operating temperature

HAC-6

< BASIC INSPECTION >

[AUTOMATIC AIR CONDITIONER]

INSPECTION AND ADJUSTMENT

Temperature Decrease

1.

Turn temperature control dial counterclockwise until 18

°

C (60

°

F) is displayed.

2.

Check for cold air at discharge air outlets.

If NG, go to trouble diagnosis procedure for

HAC-119, "Inspection procedure"

.

If OK, continue the check.

Temperature Increase

1.

Turn temperature control dial clockwise until 32

°

C (90

°

F) is displayed.

2.

Check for hot air at discharge air outlets.

If NG, go to trouble diagnosis procedure for

HAC-122, "Inspection procedure"

.

If OK, continue the check.

A/C Switch

1.

Press AUTO switch and A/C switch.

2.

A/C switch indicator will turn ON.
• Confirm that the compressor clutch engages (sound or visual inspection).

Auto Mode

1.

Press AUTO switch and A/C switch.

2.

Display should indicate AUTO.
• Confirm that discharge air and blower speed will depend on ambient, in-vehicle, and set temperatures.

If NG, go to trouble diagnosis procedure for

HAC-106, "Diagnosis Procedure"

, then if necessary, trouble diag-

nosis procedure for

HAC-90, "Diagnosis Procedure"

.

If all operational checks are OK (symptom cannot be duplicated), go to Incident Simulation Tests in

GI-35,

"Work Flow"

 and perform tests as outlined to simulate driving conditions environment. If symptom appears,

refer to

HAC-117, "Diagnosis Chart By Symptom"

 and perform applicable trouble diagnosis procedures.

AUXILIARY MECHANISM

Temperature Setting Trimmer

The trimmer compensates for differences in range of

±

3

°

C (

±

6

°

F) between temperature setting (displayed dig-

itally) and temperature felt by customer.

Operating procedures for this trimmer are as follows:

1.

Begin self-diagnosis STEP-5 mode. Refer to

HAC-44, "WITHOUT LEFT AND RIGHT VENTILATION

TEMPERATURE SEPARATELY CONTROL SYSTEM : Diagnosis Description"

.

2.

Turn fan control dial clockwise to set system in auxiliary mode.

3.

Display shows “61” in auxiliary mechanism. It takes approximately 3 seconds to enable setting operation.

4.

Turn temperature control dial as desired. Temperature will change at a rate of 0.5

°

C (1.0

°

F) each time a

dial is turned.

CAUTION:

• A decimal point is not indicated on the display.

INSPECTION AND ADJUSTMENT

HAC-7

< BASIC INSPECTION >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

• Negative value is not displayed on the display.

When battery cable is disconnected or battery voltage is below 10 V, trimmer operation is canceled. Tempera-
ture set becomes that of initial condition, i.e. 0

°

C (0

°

F).

Foot Position Setting Trimmer

Wind distribution ratio in FOOT mode can be set.

Operating procedures for this trimmer are as follows:

1.

Begin self-diagnosis STEP-5 mode. Refer to

HAC-44, "WITHOUT LEFT AND RIGHT VENTILATION

TEMPERATURE SEPARATELY CONTROL SYSTEM : Diagnosis Description"

.

2.

Turn fan control dial clockwise to set system in auxiliary mode.

3.

Press each mode switch as desired.

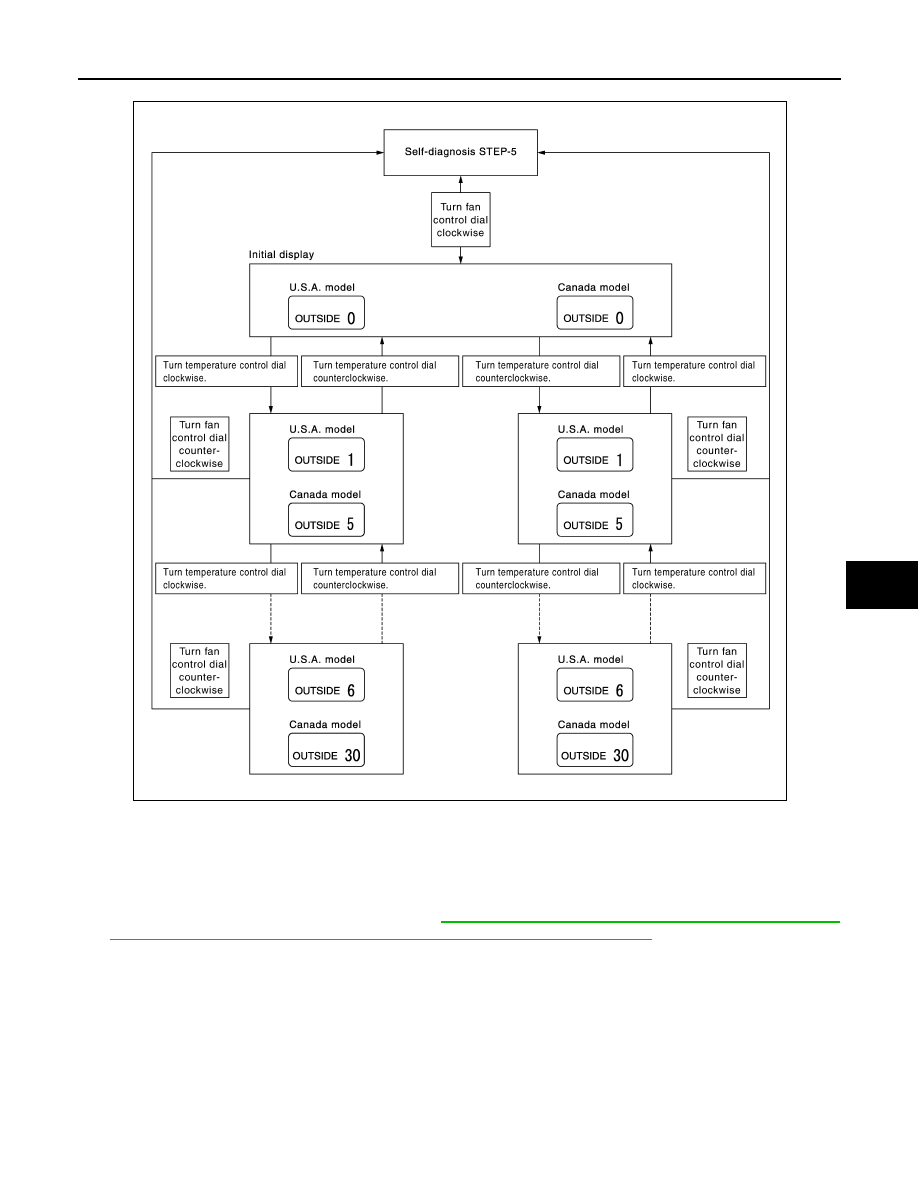

JSIIA0112GB
