FRONT DOOR GLASS

FRONT DOOR GLASS

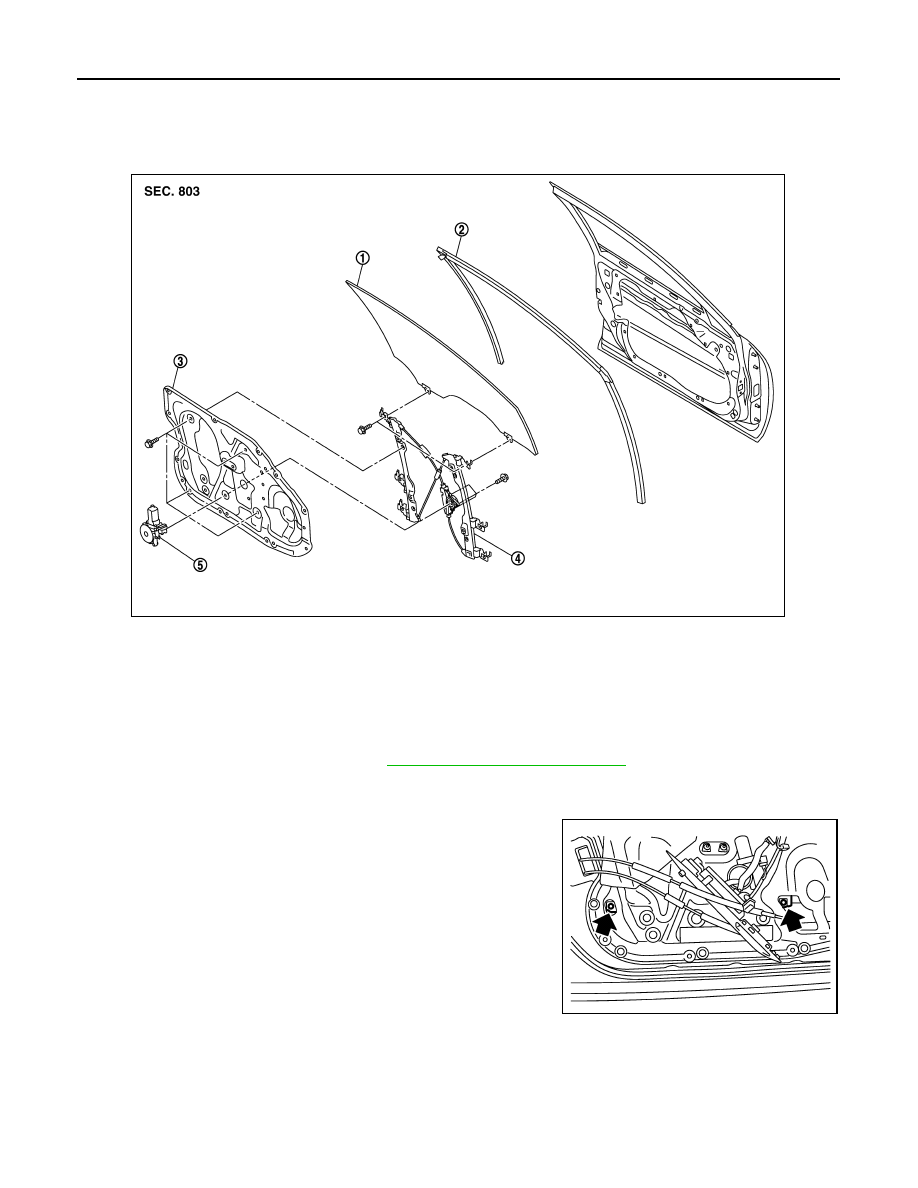

Exploded View

INFOID:0000000000961520

Removal and Installation

INFOID:0000000000961521

REMOVAL

1.

Remove the front door finisher. Refer to

INT-10, "Removal and Installation"

.

2.

Remove the corner cover.

3.

Remove the door speaker.

4.

Operate the power window main switch to raise/lower the door
window until the glass mounting bolts can be seen.

5.

Remove the glass mounting bolts.

1.    Door glass

2.

Door glass run

3.

Module assembly

4.

Regulator assembly

5.

Power window motor

JMKIA0003ZZ

JMKIA0005ZZ

FRONT DOOR GLASS

GW-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

6.

While holding the door glass, raise it at the rear end to pull the
glass out of the sash toward the inside of the door.

7.

Remove the door glass run.

INSTALLATION

Install in the reverse order of removal.

Inspection and Adjustment

INFOID:0000000000961522

SYSTEM INITIALIZATION

If any of the following work has been done, initialize the system.
• Electric power supply to power window switch or motor is interrupted by blown fuse or disconnecting battery

cable, etc.

• Removal and installation of the regulator assembly.
• Removal and installation of the motor from the regulator assembly.
• Removal and installation of the harness connector of the power window switch.
• Operation of the regulator assembly as a unit.
• Removal and installation of the door glass.
• Removal and installation of the door glass run.

Initialization

After installing each component to the vehicle, follow the steps below.

1.

Disconnect the minus terminal of battery or disconnect power window switch harness connector tempo-
rarily, then reconnect after at least 1 minute.

2.

Turn ignition switch ON.

3.

Operate power window switch to make over a half of the window area open.

4.

Fully draw the power window switch in the up direction (auto close position) and hold, keep holding the
switch even when window is completely closed and then release after 2 seconds have passed.

5.

Inspect the anti-pinch system function.
NOTE:
Initialization may be cancelled with continuous opening and closing operation. In this case, initialize the
system.

INSPECT THE FUNCTION OF THE ANTI-PINCH SYSTEM

1.

Fully open the door glass.

2.

Place a wooden piece (wooden hammer handle, etc.) at near fully closed position.

3.

Perform fully closing operation with auto up switch.

• Check that the glass reverses without pinching the wooden piece, is lowered approximately 150 mm (5.91

in) or for 2 seconds and then stops.

• The glass should not be raised with power window main switch operated while it is reversing or lowering.

CAUTION:

• Do not inspect by pinching a part of worker's body, a hand, etc. Be careful not to be pinched.
• Check that the auto up function is normal before inspection following the system initialization.

FITTING INSPECTION

• Check that the glass is securely fit into the glass run groove.
• Lower the glass slightly [approximately 10 to 20 mm (0.39 to 0.79 in)] and check that the clearance to the

sash is parallel. If the clearance between the glass and sash is not parallel, loosen the regulator mounting
bolts, guide rail mounting bolts, and glass and guide rail mounting bolts to correct the glass position.

SIIA1779J

GW-16

< ON-VEHICLE REPAIR >

FRONT REGULATOR

FRONT REGULATOR

Exploded View

INFOID:0000000000961523

Removal and Installation

INFOID:0000000000961524

REMOVAL

1.

Remove the front door finisher. Refer to

INT-13, "Removal and Installation"

.

2.

Remove the corner cover.

3.

Remove the door speaker.

4.

Operate the power window main switch to raise/lower the door
window until the glass mounting bolts can be seen.

5.

Remove the glass mounting bolts.

6.

Raise up the door glass and hold with a suction lifter.

7.

Disconnect the harness connector for the module assembly, and remove the harness clip.

1.    Door glass

2.

Door glass run

3.

Module assembly

4.

Regulator assembly

5.

Power window motor

JMKIA0003ZZ

JMKIA0005ZZ

FRONT REGULATOR

GW-17

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

8.

Remove the module assembly mounting bolts.

9.

Remove the module assembly.

INSTALLATION

Install in the reverse order of removal.

Disassembly and Assembly

INFOID:0000000000961525

DISASSEMBLY

1.

Remove power window motor from module assembly.

2.

Remove regulator assembly from module assembly.

ASSEMBLY

Assemble in the reverse order of disassembly.

Inspection and Installation

INFOID:0000000000961526

Inspection after Removal

Check the regulator assembly for the following items. If a malfunc-
tion is detected, replace or grease it.
• Wire wear
• Regulator deformation
• Grease condition for each sliding part
The arrows in the figure show the application points of the multi-pur-
pose grease.

SYSTEM INITIALIZATION

If any of the following work has been done, initialize the system.
• Electric power supply to power window switch or motor is interrupted by blown fuse or disconnecting battery

cable, etc.

• Removal and installation of the regulator assembly.
• Removal and installation of the motor from the regulator assembly.
• Removal and installation of the harness connector of the power window switch.
• Operation of the regulator assembly as a unit.
• Removal and installation of the door glass.
• Removal and installation of the door glass run.

Initialization

After installing each component to the vehicle, follow the steps below.

1.

Disconnect the minus terminal of battery or disconnect power window switch harness connector tempo-
rarily, then reconnect after at least 1 minute.

2.

Turn ignition switch ON.

3.

Operate power window switch to make over a half of the window area open.

4.

Fully draw the power window switch in the up direction (auto close position) and hold, keep holding the
switch even when window is completely closed and then release after 3 seconds have passed.

5.

Inspection of the anti-pinch system function.
NOTE:

JMKIA0006ZZ

JMKIA0007ZZ
