Infiniti G35 (V35) Sedan. Manual - part 647





EXL-30

< FUNCTION DIAGNOSIS >

[XENON TYPE]

EXTERIOR LAMP BATTERY SAVER SYSTEM

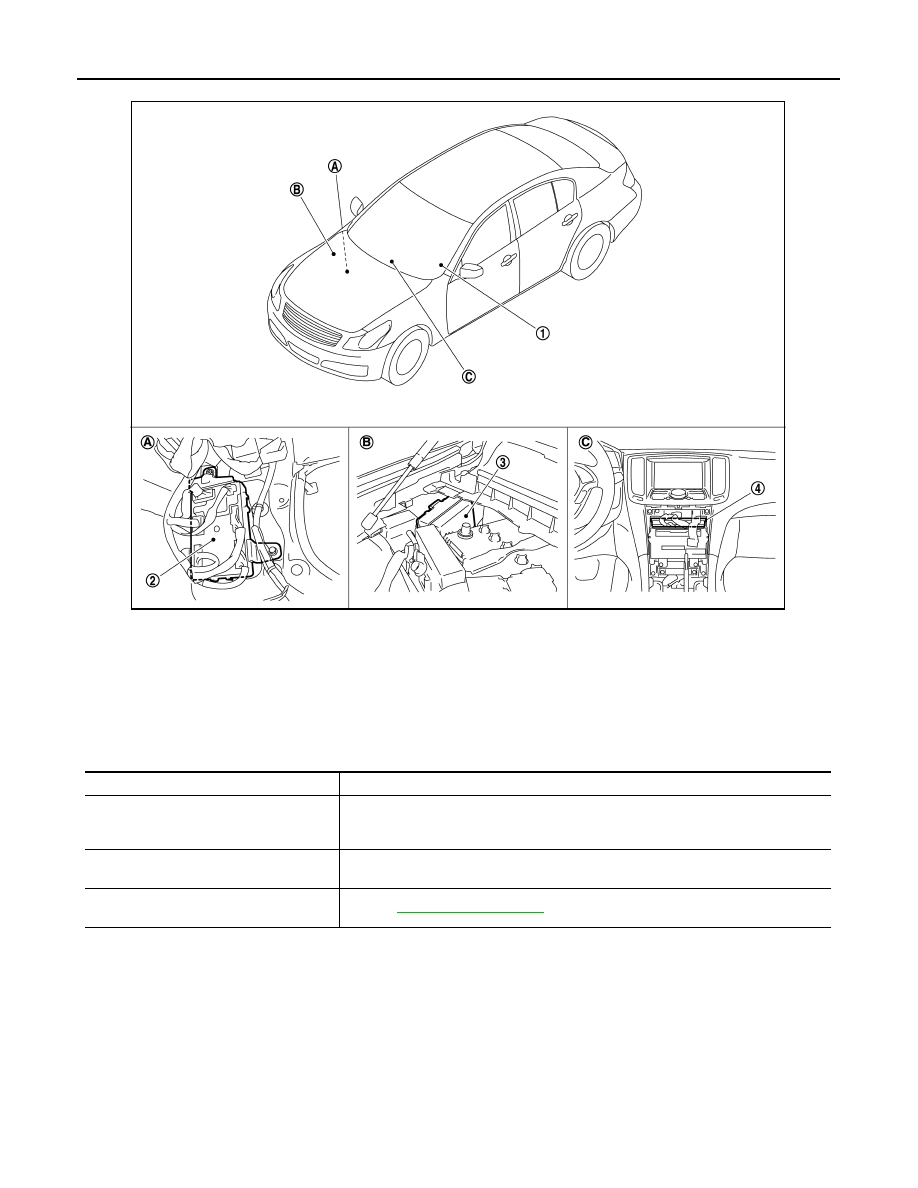

Component Description

INFOID:0000000000962427

1.

Combination switch

2.

BCM

3.

IPDM E/R

4.

Unified meter and A/C amp.

A.

Dash side lower (Passenger side)

B.

Engine room dash panel (RH)

C.

Behind cluster lid C

JPLIA0063ZZ

Part

Description

BCM

• Judges each switch condition by the combination switch reading function.
• Judges the exterior lamp OFF according to the vehicle condition. Requests each re-

lay OFF to IPDM E/R (with CAN communication).

IPDM E/R

Controls the integrated relay according to the request from BCM (with CAN communi-
cation).

Combination switch
(Lighting & turn signal switch)

Refer to

BCS-5, "System Diagram"

.

DIAGNOSIS SYSTEM (BCM)

EXL-31

< FUNCTION DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000000962428

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

*: This item is displayed, but is not used.

HEADLAMP

HEADLAMP : CONSULT-III Function (BCM - HEAD LAMP)

INFOID:0000000000962429

WORK SUPPORT

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM. Refer to

BCS-74, "DTC Index"

.

CAN DIAG SUPPORT MNTR

Monitors the reception status of CAN communication viewed from BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

ECU IDENTIFICATION

The BCM part number is displayed.

CONFIGURATION

This function is not used even though it is displayed.

System

Sub system selection item

Diagnosis mode

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

×

Air conditioner*

AIR CONDITONER

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

BCM

BCM

×

IVIS - NATS

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Trunk open

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

TPMS (AIR PRESSURE MONI-
TOR)

×

×

×

EXL-32

< FUNCTION DIAGNOSIS >

[XENON TYPE]

DIAGNOSIS SYSTEM (BCM)

*: Initial setting

DATA MONITOR

Service item

Setting item

Setting

BATTERY SAVER SET

ON*

With the exterior lamp battery saver function

OFF

Without the exterior lamp battery saver function

ILL DELAY SET

MODE 1*

45 sec.

Sets delay timer function timer operation time.
(All doors closed)

MODE 2

Without the func-
tion

MODE 3

30 sec.

MODE 4

60 sec.

MODE 5

90 sec.

MODE 6

120 sec.

MODE 7

150 sec.

MODE 8

180 sec.

CUSTOM A/LIGHT SET-
TING

MODE 1*

Normal

MODE 2

More sensitive setting than normal setting (Turns ON earlier than normal operation.)

MODE 3

More sensitive setting than MODE 2 (Turns ON earlier than MODE 2.)

MODE 4

Less sensitive setting than normal setting (Turns ON later than normal operation.)

Monitor item

[Unit]

Description

PUSH SW
[ON/OFF]

The switch status input from push-button ignition switch

ENGINE STATE
[STOP/STALL/CRANK/RUN]

The engine status received from ECM with CAN communication

VEH SPEED 1
[km/h]

The value of the vehicle speed received from unified meter and A/C amp. with CAN
communication

KEY SW-SLOT
[ON/OFF]

Key switch status input from key slot

TURN SIGNAL R
[ON/OFF]

Each switch status that BCM judges from the combination switch reading function

TURN SIGNAL L
[ON/OFF]

TAIL LAMP SW
[ON/OFF]

HI BEAM SW
[ON/OFF]

HEAD LAMP SW1
[ON/OFF]

HEAD LAMP SW2
[ON/OFF]

PASSING SW
[ON/OFF]

AUTO LIGHT SW
[ON/OFF]

FR FOG SW
[ON/OFF]

RR FOG SW
[ON/OFF]

NOTE:
The item is indicated, but not monitored.

DIAGNOSIS SYSTEM (BCM)

EXL-33

< FUNCTION DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

ACTIVE TEST

FLASHER

FLASHER : CONSULT-III Function (BCM - FLASHER)

INFOID:0000000000962430

WORK SUPPORT

*: Initial setting

DATA MONITOR

DOOR SW-DR
[ON/OFF]

The switch status input from front door switch (driver side)

DOOR SW-AS
[ON/OFF]

The switch status input from front door switch (passenger side)

DOOR SW-RR
[ON/OFF]

The switch status input from rear door switch RH

DOOR SW- RL
[ON/OFF]

The switch status input from rear door switch LH

DOOR SW-BK
[ON/OFF]

NOTE:
The item is indicated, but not monitored.

OPTICAL SENSOR
[V]

The value of exterior brightness voltage input from the optical sensor

Monitor item

[Unit]

Description

Test item

Operation

Description

TAIL LAMP

ON

Transmits the position light request signal to IPDM E/R with CAN com-
munication to turn the tail lamp ON.

OFF

Stops the tail lamp request signal transmission.

HEAD LAMP

HI

Transmits the high beam request signal with CAN communication to turn
the headlamp (HI).

LO

Transmits the low beam request signal with CAN communication to turn
the headlamp (LO).

OFF

Stops the high & low beam request signal transmission.

FR FOG LAMP

ON

Transmits the front fog lights request signal to IPDM E/R with CAN com-
munication to turn the front fog lamp ON.

OFF

Stops the front fog lights request signal transmission.

RR FOG LAMP

ON

NOTE:
The item is indicated, but cannot be tested.

OFF

DAYTIME RUNNING LIGHT

ON

NOTE:
The item is indicated, but cannot be tested.

OFF

CORNERING LAMP

RH

NOTE:
The item is indicated, but cannot be tested.

LH

OFF

ILL DIM SIGNAL

ON

NOTE:
The item is indicated, but cannot be tested.

OFF

Service item

Setting item

Setting

HAZARD ANSWER
BACK

LOCK ONLY*

With locking only

Sets the hazard warning lamp answer back function
when the door is lock/unlock with the request switch or
the key fob.

UNLK ONLY

With unlocking only

LOCK/UNLK

With locking/unlocking

OFF

Without the function
