Infiniti G35 (V35) Sedan. Manual - part 533





EC-278

< COMPONENT DIAGNOSIS >

[VQ35HR]

P0442 EVAP CONTROL SYSTEM

Is the inspection result normal?

YES

>> GO TO 13.

NO

>> Repair or reconnect the hose.

13.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

Refer to

EC-283, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 14.

NO

>> Replace EVAP canister purge volume control solenoid valve.

14.

CHECK FUEL TANK TEMPERATURE SENSOR

Refer to

EC-232, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 15.

NO

>> Replace fuel level sensor unit.

15.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR

Refer to

EC-298, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 16.

NO

>> Replace EVAP control system pressure sensor.

16.

CHECK EVAP PURGE LINE

Check EVAP purge line (pipe, rubber tube, fuel tank and EVAP canister) for cracks or improper connection.
Refer to

EC-75, "System Diagram"

.

Is the inspection result normal?

YES

>> GO TO 17.

NO

>> Repair or reconnect the hose.

17.

CLEAN EVAP PURGE LINE

Clean EVAP purge line (pipe and rubber tube) using air blower.

>> GO TO 18.

18.

CHECK EVAP/ORVR LINE

Check EVAP/ORVR line between EVAP canister and fuel tank for clogging, kink, looseness and improper con-
nection. For location, refer to

EC-472, "Description"

.

Is the inspection result normal?

YES

>> GO TO 19.

NO

>> Repair or replace hoses and tubes.

19.

CHECK RECIRCULATION LINE

Check recirculation line between filler neck tube and fuel tank for clogging, kink, cracks, looseness and
improper connection.

Is the inspection result normal?

YES

>> GO TO 20.

NO

>> Repair or replace hose, tube or filler neck tube.

20.

CHECK REFUELING EVAP VAPOR CUT VALVE

Refer to

EC-475, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 21.

NO

>> Replace refueling EVAP vapor cut valve with fuel tank.

21.

CHECK FUEL LEVEL SENSOR

Refer to

MWI-54, "Component Inspection"

.

Is the inspection result normal?

P0442 EVAP CONTROL SYSTEM

EC-279

< COMPONENT DIAGNOSIS >

[VQ35HR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

YES

>> GO TO 22.

NO

>> Replace fuel level sensor unit.

22.

CHECK INTERMITTENT INCIDENT

Refer to

GI-39, "Intermittent Incident"

.

>> INSPECTION END

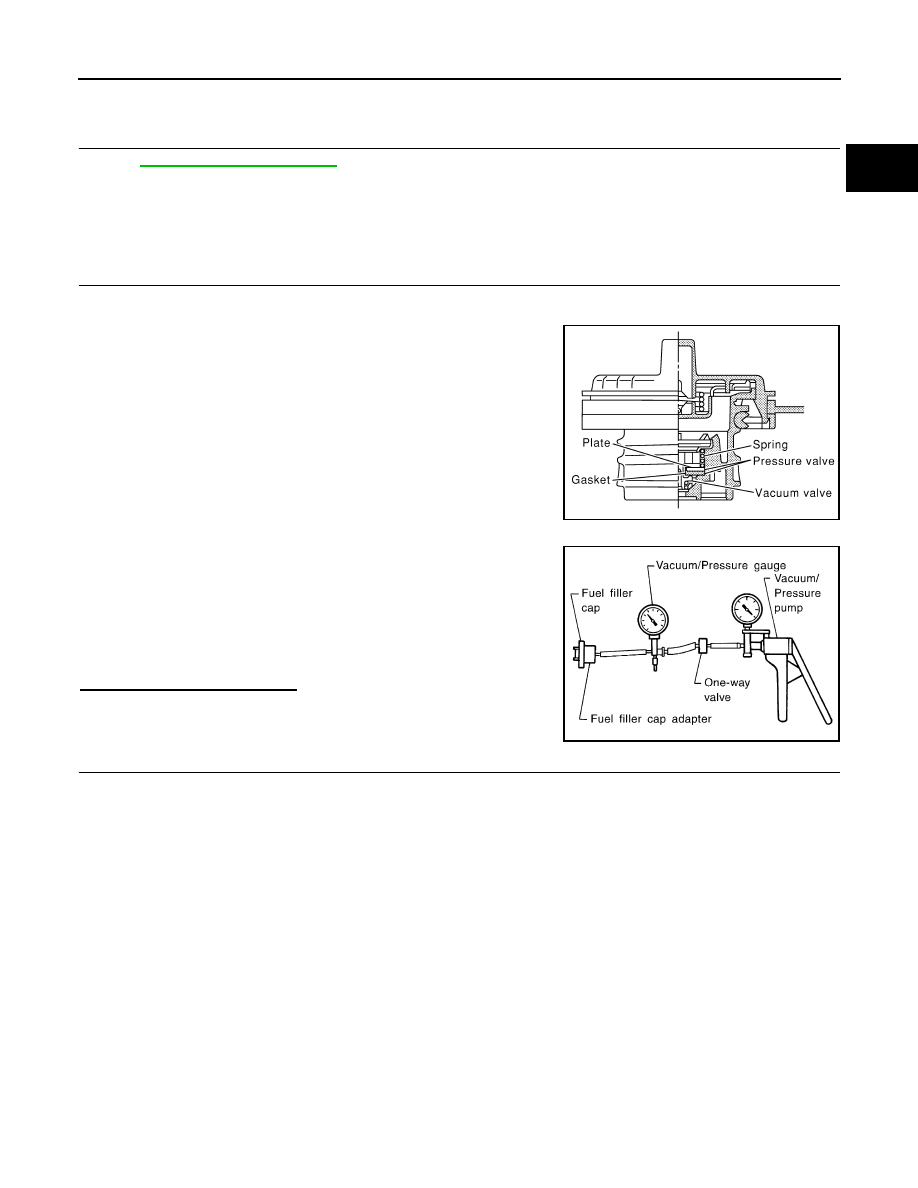

Component Inspection

INFOID:0000000000956658

1.

CHECK FUEL TANL VACUUM RELIEF VALVE

1.

Turn ignition switch OFF.

2.

Remove fuel filler cap.

3.

Wipe clean valve housing.

4.

Check valve opening pressure and vacuum.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

REPLACE FUEL FILLER CAP

Replace fuel filler cap.

CAUTION:

Use only a genuine fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the MIL may
come on.

>> INSPECTION END

SEF445Y

Pressure:

15.3 - 20.0 kPa (0.156 - 0.204 kg/cm

2

, 2.22 -

2.90 psi)

Vacuum:

6.0 to

3.3 kPa (

0.061 to

0.034 kg/cm

2

0.87 to

0.48 psi)

SEF943S

EC-280

< COMPONENT DIAGNOSIS >

[VQ35HR]

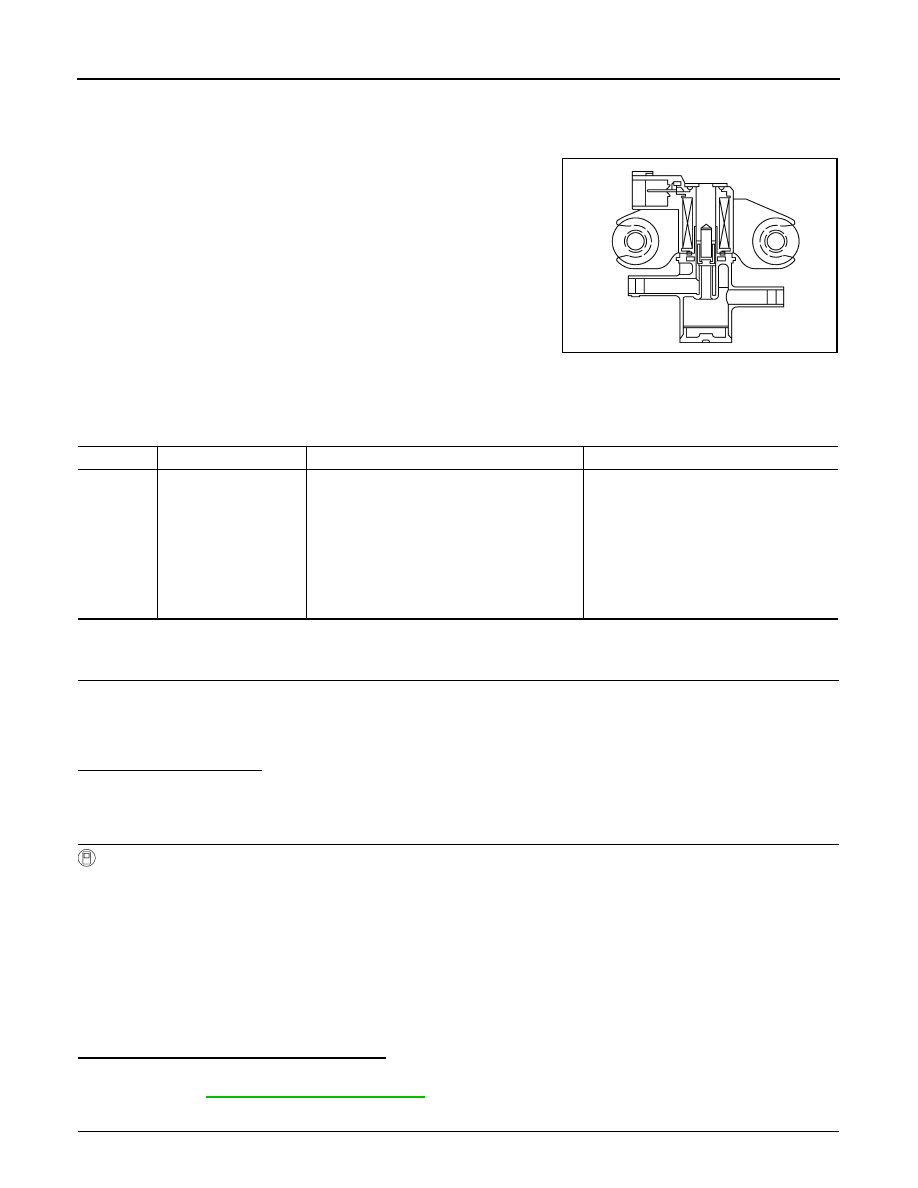

P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

Description

INFOID:0000000000956659

The EVAP canister purge volume control solenoid valve uses a ON/
OFF duty to control the flow rate of fuel vapor from the EVAP canis-
ter. The EVAP canister purge volume control solenoid valve is
moved by ON/OFF pulses from the ECM. The longer the ON pulse,
the greater the amount of fuel vapor that will flow through the valve.

DTC Logic

INFOID:0000000000956660

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Always perform test at a temperature of 5

°

C (41

°

F) or more.

Do you have CONSULT-III

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

PERFORM DTC CONFIRMATION PROCEDURE

 With CONSULT-III

1.

Start engine and warm it up to normal operating temperature.

2.

Turn ignition switch OFF and wait at least 10 seconds.

3.

Turn ignition switch ON.

4.

Select “PURG VOL CN/V P1444” of “EVAPORATIVE SYSTEM” in “DTC WORK SUPPORT” mode with
CONSULT-III.

5.

Touch “START”.

6.

Start engine and let it idle until “TESTING” on CONSULT-III changes to “COMPLETED”. (It will take
approximately 10 seconds.)
If “TESTING” is not displayed after 5 minutes, retry from step 2.

7.

Touch “SELF-DIAG RESULTS”.

Which is displayed on CONSULT-III screen?

OK

>> INSPECTION END

NG

>> Go to

EC-281, "Diagnosis Procedure"

.

3.

PERFORM DTC CONFIRMATION PROCEDURE

JMBIA0069ZZ

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0443

EVAP canister purge
volume control solenoid
valve

The canister purge flow is detected during the
specified driving conditions, even when EVAP
canister purge volume control solenoid valve is
completely closed.

• EVAP control system pressure sensor
• EVAP canister purge volume control so-

lenoid valve
(The valve is stuck open.)

• EVAP canister vent control valve
• EVAP canister
• Hoses

(Hoses are connected incorrectly or
clogged.)

P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

EC-281

< COMPONENT DIAGNOSIS >

[VQ35HR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

 With GST

1.

Start engine and warm it up to normal operating temperature.

2.

Turn ignition switch OFF and wait at least 10 seconds.

3.

Start engine and let it idle for at least 20 seconds.

4.

Check 1st trip DTC.

Is 1st trip DTC displayed?

YES

>> Go to

EC-281, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000000956661

1.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect EVAP canister purge volume control solenoid valve harness connector.

3.

Turn ignition switch ON.

4.

Check the voltage between EVAP canister purge volume control solenoid valve harness connector and
ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

DETECT MALFUNCTIONING PART

Check the following.
• Harness connectors E106, M6
• Harness connectors M116, F103
• Harness for open or short between EVAP canister purge volume control solenoid valve and IPDM E/R
• Harness for open or short between EVAP canister purge volume control solenoid valve and ECM

>> Repair open circuit or short to ground or short to power in harness or connectors.

3.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT

FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between EVAP canister purge volume control solenoid valve harness connector and
ECM harness connector.

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> GO TO 4.

4.

DETECT MALFUNCTIONING PART

Check the following.
• Harness connectors F104, F105
• Harness for open or short between EVAP canister purge volume control solenoid valve and ECM

>> Repair open circuit or short to ground or short to power in harness or connectors.

EVAP canister purge volume control solenoid valve

Ground

Voltage

Connector

Terminal

F7

1

Ground

Battery voltage

EVAP canister purge volume control solenoid valve

ECM

Continuity

Connector

Terminal

Connector

Terminal

F7

2

F101

21

Existed
