Infiniti G35 (V35) Sedan. Manual - part 484





EC-82

< FUNCTION DIAGNOSIS >

[VQ35HR]

EVAPORATIVE EMISSION SYSTEM

 : Vehicle front

1.

Engine coolant temperature sensor

2.

A/F sensor 1 (bank 1)

3.

Crankshaft position sensor (POS)

1.

IPDM E/R

2.

Battery current sensor

3.

Refrigerant pressure sensor

 : Vehicle front

1.

Power steering pressure sensor

2.

Alternator

3.

Engine oil temperature sensor

 : Vehicle front

JMBIA0011ZZ

JMBIA0013ZZ

JMBIA0014ZZ

JMBIA0012ZZ

EVAPORATIVE EMISSION SYSTEM

EC-83

< FUNCTION DIAGNOSIS >

[VQ35HR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

1.

EVAP service port

2.

EVAP canister purge volume control
solenoid valve

3.

EVAP canister

4.

EVAP canister vent control valve

5.

EVAP control system pressure sen-
sor

 : Vehicle front

1.

Fuel level sensor unit and fuel pump
harness connector

2.

Fuel level sensor unit and fuel pump 3.

Fuel pressure regulator

4.

Fuel tank temperature sensor

1.

Accelerator pedal position sensor

2.

ECM

1.

ICC steering switch

2.

CANCEL switch

3.

RESUME/ACCELERATE switch

4.

SET/COAST switch

5.

DISTANCE switch

6.

MAIN switch

JMBIA0019ZZ

JMBIA0015ZZ

JMBIA0016ZZ

EC-84

< FUNCTION DIAGNOSIS >

[VQ35HR]

EVAPORATIVE EMISSION SYSTEM

Component Description

INFOID:0000000000956506

1.

ASCD steering switch

2.

CANCEL switch

3.

RESUME/ACCELERATE switch

4.

SET/COAST switch

5.

MAIN switch

1.

Stop lamp switch

2.

ASCD brake switch (ASCD models)
ICC brake switch (ICC models)

3.

Brake pedal

4.

ASCD clutch switch (ASCD models)
ICC clutch switch (ICC models)

5.

Clutch pedal

JMBIA0017ZZ

JMBIA0051ZZ

Component

Reference

A/F sensor 1

EC-187, "Description"

Accelerator pedal position sensor

EC-425, "Description"

Camshaft position sensor (PHASE)

EC-258, "Description"

Crankshaft position sensor (POS)

EC-254, "Description"

Engine coolant temperature sensor

EC-174, "Description"

EVAP canister purge volume control solenoid valve

EC-280, "Description"

EVAP control system pressure sensor

EC-296, "Description"

Fuel tank temperature sensor

EC-230, "Description"

Mass air flow sensor

EC-159, "Description"

Throttle position sensor

EC-177, "Description"

Vehicle speed sensor

EC-328, "Description"

EXHAUST VALVE TIMING CONTROL

EC-85

< FUNCTION DIAGNOSIS >

[VQ35HR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

EXHAUST VALVE TIMING CONTROL

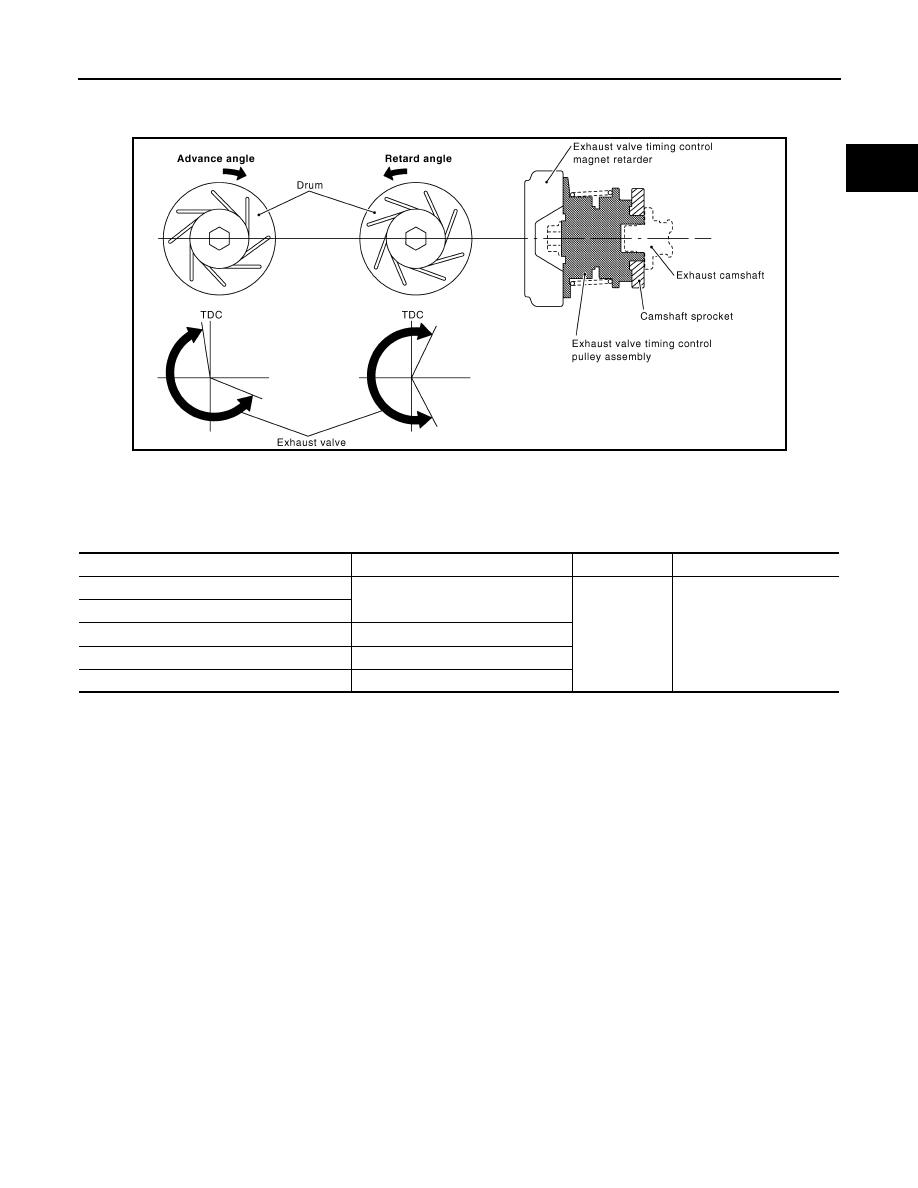

System Diagram

INFOID:0000000000956507

System Description

INFOID:0000000000956508

INPUT/OUTPUT SIGNAL CHART

*: This signal is sent to the ECM through CAN Communication line

SYSTEM DESCRIPTION

This mechanism magnetically controls cam phases continuously with the fixed operating angle of the exhaust
valve.
The ECM receives signals such as crankshaft position, camshaft position, engine speed, and engine oil tem-
perature. Then, the ECM sends ON/OFF pulse duty signals to the exhaust valve timing control magnet
retarder depending on driving status. This makes it possible to control the shut/open timing of the exhaust
valve to increase engine torque and output in a range of high engine speed.

Component Parts Location

INFOID:0000000000956509

PBIB2765E

Sensor

Input signal to ECM

ECM function

Actuator

Crankshaft position sensor (POS)

Engine speed and piston position

Exhaust valve
timing control

Exhaust valve timing con-
trol magnet retarder

Camshaft position sensor (PHASE)

Engine oil temperature sensor

Engine oil temperature

Exhaust valve timing control position sensor

Exhaust valve timing signal

Unified meter and A/C amp.

Vehicle speed*
