EC-66

< FUNCTION DIAGNOSIS >

[VQ35HR]

CAN COMMUNICATION

CAN COMMUNICATION

System Description

INFOID:0000000000956498

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
Refer to

LAN-28, "CAN Communication Signal Chart"

, about CAN communication for detail..

COOLING FAN CONTROL

EC-67

< FUNCTION DIAGNOSIS >

[VQ35HR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

COOLING FAN CONTROL

System Diagram

INFOID:0000000000956499

System Description

INFOID:0000000000956500

INPUT/OUTPUT SIGNAL CHART

*1: The ECM determines the start signal status by the signals of engine speed and battery voltage.

*2: This signal is sent to ECM through CAN communication line.

SYSTEM DESCRIPTION

ECM controls cooling fan speed corresponding to vehicle speed, engine coolant temperature, air conditioner
ON signal, refrigerant pressure, target A/C evaporator temperature and A/C evaporator temperature.
Cooling fan control signal is sent to IPDM E/R from ECM by CAN communication line. Then, IPDM E/R sends
ON/OFF pulse duty signal to cooling fan control module. Corresponding to this ON/OFF pulse duty signal,
cooling fan control module gives cooling fan motor operating voltage to cooling fan motors. Cooling fan speed
is controlled by duty cycle of cooling fan motor operating voltage sent from cooling fan control module.

Component Parts Location

INFOID:0000000000956501

JMBIA0075GB

Sensor

Input signal to ECM

ECM function

Actuator

Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)

Engine speed*

1

Cooling fan
control

IPDM E/R

Cooling fan control module

Cooling fan motor

Engine coolant temperature sensor

Engine coolant temperature

Refrigerant pressure sensor

Refrigerant pressure

Battery

Battery voltage*

1

Unified meter and A/C amp.

Vehicle speed*

2

Air conditioner ON signal*

2

A/C evaporator temperature*

2

Target A/C evaporator temperature*

2

EC-68

< FUNCTION DIAGNOSIS >

[VQ35HR]

COOLING FAN CONTROL

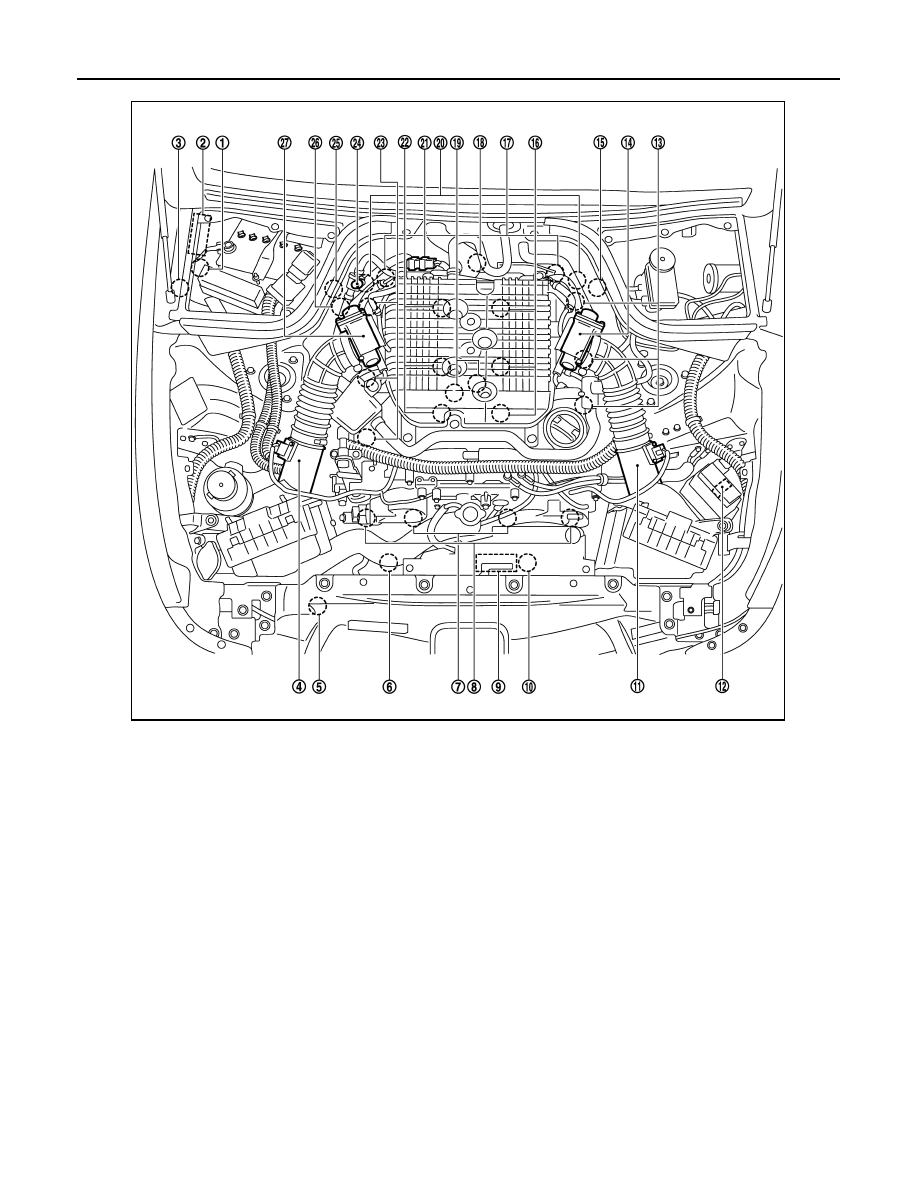

1.

Battery current sensor

2.

IPDM E/R

3.

Cooling fan relay

4.

Mass air flow sensor (with intake air
temperature sensor) (bank 1)

5.

Refrigerant pressure sensor

6.

Cooling fan motor-2

7.

Intake valve timing control solenoid
valve

8.

Exhaust valve timing control magnet
retarder

9.

Cooling fan control module

10. Cooling fan motor-1

11.

Mass air flow sensor (with intake air
temperature sensor) (bank 2)

12. ICC brake hold relay (ICC models)

13. Ignition coil (with power transistor)

and spark plug (bank 2)

14. Electric throttle control actuator

(bank 2)

15. A/F sensor 1 (bank 2)

16. Fuel injector (bank 2)

17. Camshaft position sensor (PHASE)

18. Engine coolant temperature sensor

19. Knock sensor

20. Exhaust valve timing control position

sensor

21. EVAP canister purge volume control

solenoid valve

22. Fuel injector (bank 1)

23. Ignition coil (with power transistor)

and spark plug (bank 1)

24. EVAP service port

25. A/F sensor 1 (bank 1)

26. Crankshaft position sensor (POS)

27. Electric throttle control actuator

(bank 1)

JMBIA0002ZZ

COOLING FAN CONTROL

EC-69

< FUNCTION DIAGNOSIS >

[VQ35HR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

1.

Mass air flow sensor (with intake air
temperature sensor) (bank 1)

2.

Mass air flow sensor (with intake air
temperature sensor) (bank 2)

1.

Electric throttle control actuator
(bank 1)

2.

Electric throttle control actuator
(bank 2)

 : Vehicle front

1.

Cooling fan motor-2

2.

Cooling fan control module

3.

Cooling fan motor-1

4.

Cooling fan relay

JMBIA0003ZZ

JMBIA0004ZZ

JMBIA0005ZZ
