Infiniti G35 (V35) Sedan. Manual - part 443





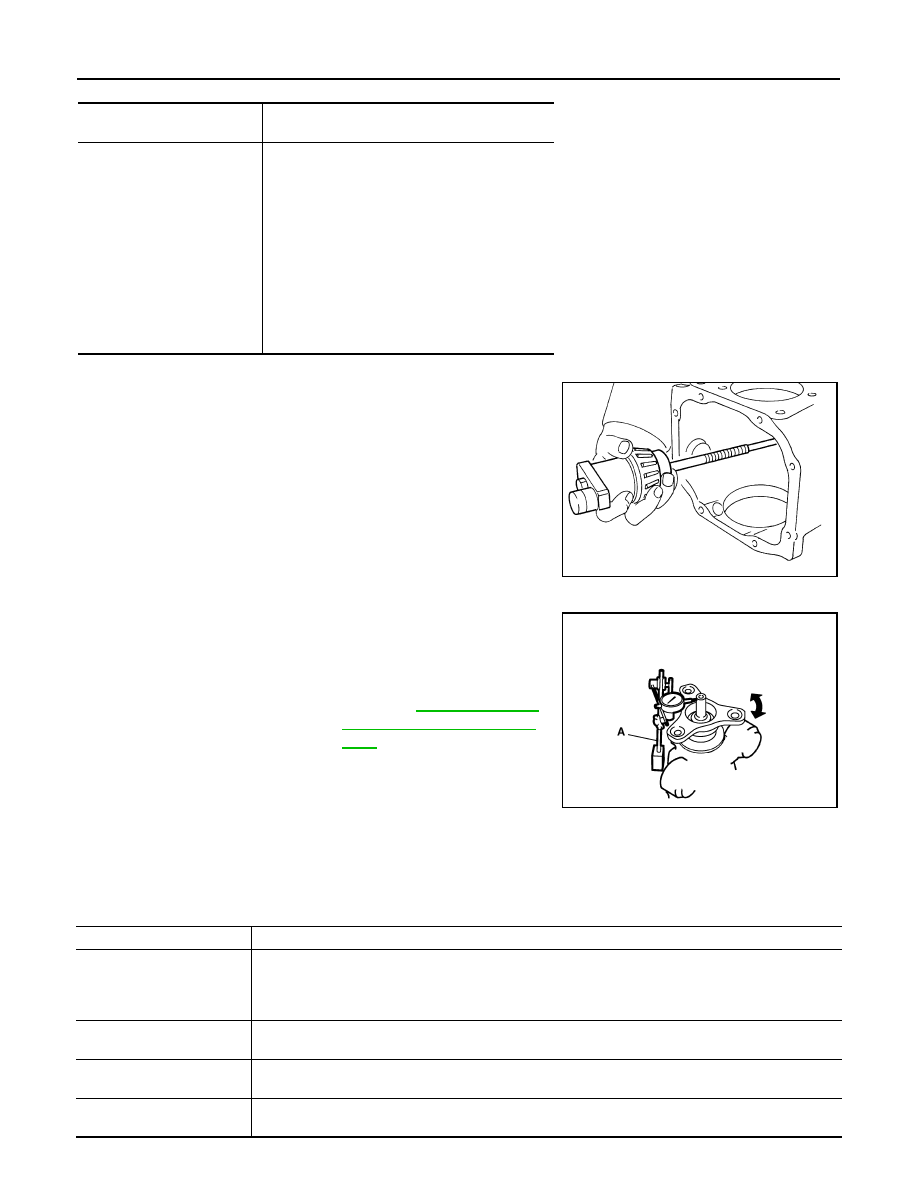

DLN-206

< DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R200]

DRIVE PINION

12. Select the correct pinion height adjusting washer.
13. Remove the J-34309 differential shim selector tool from the final

drive housing. Then disassemble to retrieve the pinion bearings.

DRIVE PINION RUNOUT

1.

Set a dial indicator (A) vertically to the tip of the drive pinion.

2.

Rotate drive pinion to check for runout.

3.

If the runout value is outside of the limit, possible cause will be
an assembly malfunction of drive pinion and pinion bearing and
malfunction of pinion bearing. Check for these items and repair if
necessary.

2WD : Inspection After Disassembly

INFOID:0000000000957409

Clean up the disassembled parts. Then, inspect if the parts are worn or damaged. If so, follow the measures
below.

Pinion head height number

Add or remove from the standard pinion height ad-

justing washer thickness measurement

 6

 5

 4

 3

 2

 1

0

+1
+2
+3
+4
+5
+6

Add 0.06 mm (0.0024 in)
Add 0.05 mm (0.0020 in)
Add 0.04 mm (0.0016 in)
Add 0.03 mm (0.0012 in)
Add 0.02 mm (0.0008 in)
Add 0.01 mm (0.0004 in)

Use the selected washer thickness

Subtract 0.01 mm (0.0004 in)
Subtract 0.02 mm (0.0008 in)
Subtract 0.03 mm (0.0012 in)
Subtract 0.04 mm (0.0016 in)
Subtract 0.05 mm (0.0020 in)
Subtract 0.06 mm (0.0024 in)

SPD205A

Limit

Drive pinion runout

: Refer to

DLN-216, "Drive

Pinion Runout (2WD Mod-
els)"

.

JSDIA0032ZZ

Content

Conditions and Measures

Hypoid gear

• If the gear teeth do not mesh or line-up correctly, determine the cause and adjust or replace as nec-

essary.

• If the gears are worn, cracked, damaged, pitted or chipped (by friction) noticeably, replace with new

drive gear and drive pinion as a set.

Bearing

• If any chipped (by friction), pitted, worn, rusted or scratched mark, or unusual noise from the bearing

is observed, replace as a bearing assembly (as a new set).

Side gear and Pinion mate
gear

• If any cracks or damage on the surface of the tooth is found, replace.
• If any worn or chipped mark on the contact sides of the thrust washer is found, replace.

Side gear thrust washer and
pinion mate thrust washer

• If it is chipped (by friction), damaged, or unusually worn, replace.

DRIVE PINION

DLN-207

< DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R200]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

AWD

AWD : Exploded View

INFOID:0000000000957410

Oil seal

• Whenever disassembled, replace.
• If wear, deterioration of adherence (sealing force lips), or damage is detected on the lips, replace them.

Differential case

• If any wear or crack on the contact sides of the differential case is found, replace.

Companion flange

• If any chipped mark (about 0.1 mm, 0.004 in) or other damage on the contact sides of the lips of the

companion flange is found, replace.

Content

Conditions and Measures

1.

Drive pinion lock nut

2.

Companion flange

3.

Front oil seal

4.

Pinion front bearing

5.

Gear carrier

6.

Side oil seal

7.

Side flange

8.

Collapsible spacer

9.

Pinion rear bearing

10. Pinion height adjusting washer

11.

Drive pinion

12. Side bearing adjusting washer

13. Side bearing

14. Side gear thrust washer

15. Circular clip

16. Side gear

17. Lock pin

18. Pinion mate gear

19. Pinion mate thrust washer

20. Pinion mate shaft

21. Drive gear

22. Differential case

23. Bearing cap

24. Filler plug

25. Gasket

26. Rear cover

27. Drain plug

A: Oil seal lip

B: Screw hole

C: After tightening the bolts to the specified torque, tighten the bolts additionally by turning the bolts 31 to 36 degrees.

:

Apply gear oil.

:

Apply anti-corrosion oil.

JSDIA0027GB

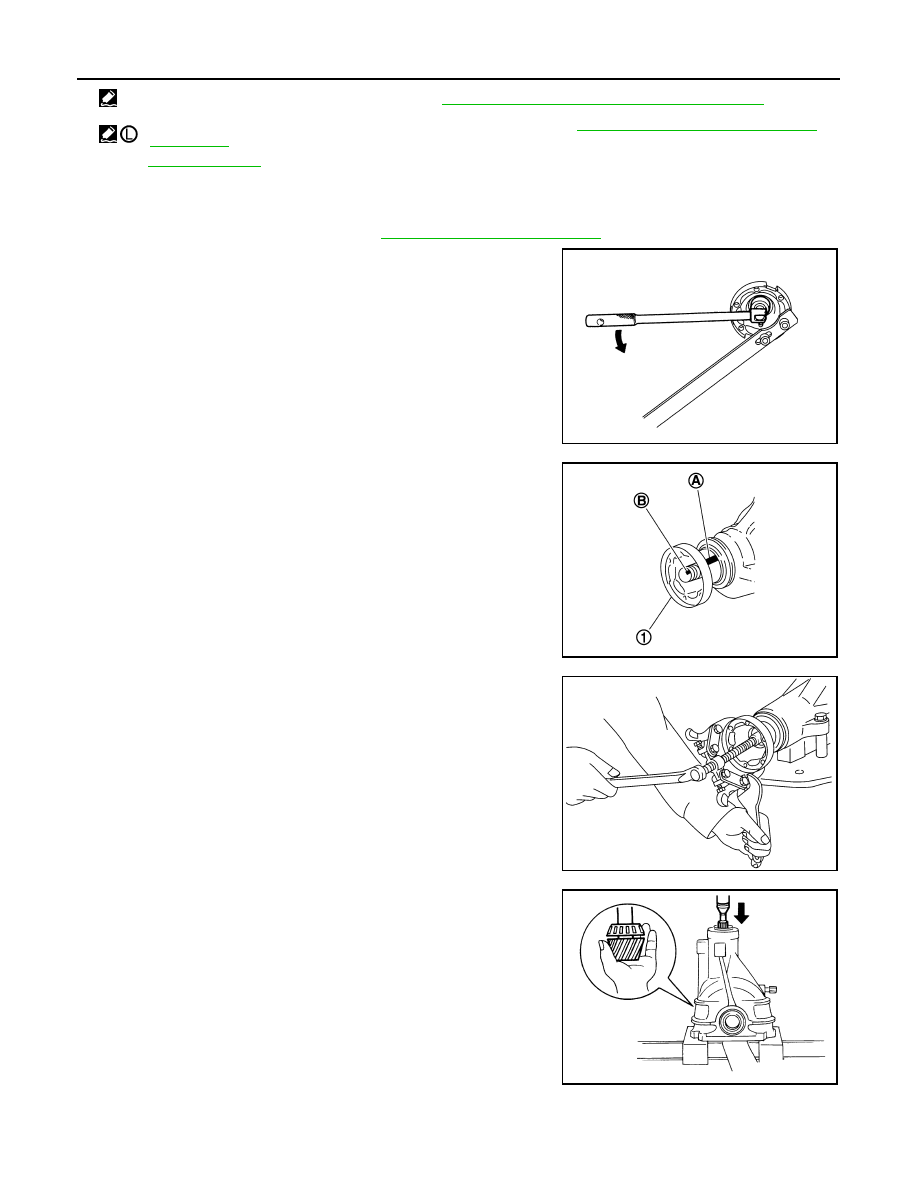

DLN-208

< DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R200]

DRIVE PINION

AWD : Disassembly

INFOID:0000000000957411

1.

Remove differential assembly. Refer to

DLN-175, "2WD : Disassembly"

.

2.

Remove drive pinion lock nut with the flange wrench.

3.

Put matching mark (B) on the end of drive pinion. The matching
mark should be in line with the matching mark (A) on companion
flange (1).

CAUTION:

For matching mark, use paint. Never damage companion
flange and drive pinion.
NOTE:
The matching mark (A) on the final drive companion flange (1)
indicates the maximum vertical runout position.
When replacing companion flange, matching mark is not neces-
sary.

4.

Remove companion flange using the suitable pullers.

5.

Press drive pinion assembly out of gear carrier.

CAUTION:

Never drop drive pinion assembly.

6.

Remove front oil seal.

7.

Remove side oil seal.

8.

Remove pinion front bearing inner race.

9.

Remove collapsible spacer.

:

Apply Genuine Silicone RTV or equivalent. Refer to

GI-15, "Recommended Chemical Products and Sealants"

.



:

Apply Genuine High Strength Thread Locking Sealant or equivalent. Refer to

GI-15, "Recommended Chemical Products

and Sealants"

.

Refer to

GI-4, "Components"

 for symbols not described on the above.

PDIA0837J

PDIA0750J

SDIA1129E

PDIA0760J

DRIVE PINION

DLN-209

< DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R200]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

10. Remove pinion rear bearing inner race and pinion height adjust-

ing washer with the replacer (A) [SST: ST30031000 (J-22912-
01)].

11. Tap pinion front/rear bearing outer races uniformly a brass rod or

equivalent to removed.

CAUTION:

Never damage gear carrier.

AWD : Assembly

INFOID:0000000000957412

1.

Install front bearing outer race (1) and rear bearing outer race
(2) using drifts.

CAUTION:

• At first, using a hammer, tap bearing outer race until it

becomes flat to gear carrier.

• Never reuse pinion front and rear bearing outer race.

2.

Select drive pinion height adjusting washer. Refer to

DLN-211,

"AWD : Adjustment"

.

PDIA0801J

SDIA0817E

A: Drift [SST: ST30720000 (J-25405)]

B: Drift [SST: KV40105230 (

)]

C: Drift bar [SST: ST30611000 (J-25742-1)]

D: Drift [SST: ST30613000 (J-25742-3)]

PDIA0761J
