Infiniti G35 (V35) Sedan. Manual - part 411

DLN-78

< PREPARATION >

[FRONT PROPELLER SHAFT: 2S56A]

PREPARATION

PREPARATION

PREPARATION

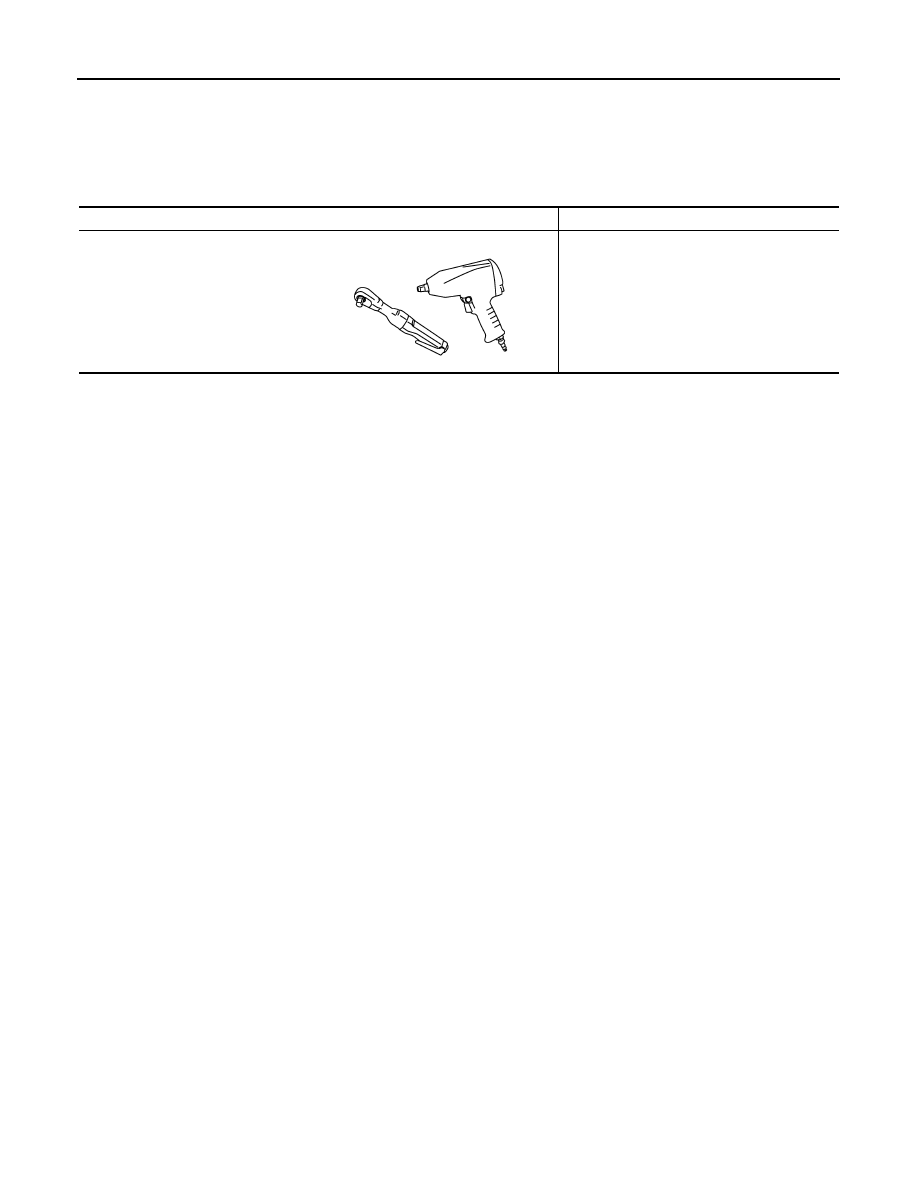

Commercial Service Tools

INFOID:0000000000957305

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0190E

FRONT PROPELLER SHAFT

DLN-79

< ON-VEHICLE MAINTENANCE >

[FRONT PROPELLER SHAFT: 2S56A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

ON-VEHICLE MAINTENANCE

FRONT PROPELLER SHAFT

Inspection

INFOID:0000000000957306

NOISE

• Check the propeller shaft tube surface for dents or cracks. If damaged, replace propeller shaft assembly.

VIBRATION

• If vibration is present at high speed, inspect propeller shaft runout first.
1.

Measure propeller shaft runout at several points by rotating final
drive companion flange with hands.

2.

If runout still exceeds specifications, separate propeller shaft at
final drive companion flange; then rotate companion flange 90,
180, 270 degrees and install propeller shaft.

3.

Check runout again. If runout still exceeds specifications, replace propeller shaft assembly.

4.

Check the vibration by driving vehicle.

RUNOUT MEASURING POINT

• Propeller shaft runout measuring point (Point “ ”).

: Vehicle front

Limit

Propeller shaft runout

: Refer to

DLN-82, "Propel-

ler Shaft Runout"

.

PDIA0767J

Dimension

A: 381.5 mm (15.02 in)

PDIA0768J

DLN-80

< ON-VEHICLE REPAIR >

[FRONT PROPELLER SHAFT: 2S56A]

FRONT PROPELLER SHAFT

ON-VEHICLE REPAIR

FRONT PROPELLER SHAFT

Exploded View

INFOID:0000000000957307

Removal and Installation

INFOID:0000000000957308

REMOVAL

1.

Move the A/T selector lever to N position and release the parking brake.

2.

Remove engine undercover with a power tool.

3.

Remove front cross bar.

4.

Remove the three way catalyst (right bank) with a power tool. Refer to

EX-5, "Exploded View"

.

5.

Remove heat bracket (1).

1.

O-ring

2.

Propeller shaft assembly

3.

Heat bracket

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JSDIA0001GB

JSDIA0013ZZ

FRONT PROPELLER SHAFT

DLN-81

< ON-VEHICLE REPAIR >

[FRONT PROPELLER SHAFT: 2S56A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

6.

Put matching marks onto propeller shaft flange yoke and final
drive companion flange.

CAUTION:

For matching marks, use paint. Never damage propeller
shaft flange and final drive companion flange.

7.

Remove the propeller shaft assembly fixing bolts.

8.

Remove propeller shaft assembly from the front final drive and
transfer.

CAUTION:

Never damage the transfer front oil seal.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Align matching marks to install propeller shaft assembly to final

drive companion flange.

• After assembly, perform a driving test to check propeller shaft

vibration. If vibration occurred, separate propeller shaft from final
drive or transfer. Reinstall companion flange after rotating it by 90,
180, 270 degrees. Then perform driving test and check propeller
shaft vibration again at each point.

CAUTION:

Never damage the transfer front oil seal.

Inspection

INFOID:0000000000957309

APPEARANCE

Check propeller shaft for bend and damage. If damage is detected, replace propeller shaft assembly.

PROPELLER SHAFT RUNOUT

Check propeller shaft runout at measuring point. If runout exceeds
specifications, replace propeller shaft assembly. For measuring
point, refer to

DLN-79, "Inspection"

.

JOURNAL AXIAL PLAY

As shown in the figure, while fixing yoke on one side, check axial
play of joint. If outside the standard, replace propeller shaft assem-
bly.

CAUTION:

Never disassemble joints.

SDIA1517E

SDIA1517E

Limit

Propeller shaft runout

: Refer to

DLN-82, "Propel-

ler Shaft Runout"

.

JSDIA0083ZZ

Standard

Journal axial play

: Refer to

DLN-82, "Journal

Axial Play"

.

PDA0005D
