DLN-66

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ETX13B]

FRONT CASE AND REAR CASE

18. Tighten front case and rear case fixing bolts.

19. Install spacer (1) to mainshaft.

CAUTION:

Apply ATF to spacer.

20. Install rear oil seal to rear case, using the drifts.

CAUTION:

• Never reuse rear oil seal.
• Apply ATF to rear oil seal.
• When installing, never incline rear oil seal.

21. Install companion flange while align the matching mark of main-

shaft with the mark of companion flange.

Bolts symbol

Quantity

Bolt length “

” mm (in)

A

11

42 (1.65)

B

1

162 (6.38)

C

1

97  (3.82)

TORX bolts

1

40 (1.57)

PDIA0251E

JSDIA0097ZZ

A: Drift [ST30720000 (J-25405)]

B: Drift [KV40104830 (

—

)]

Dimension “L”

: 6.7 – 7.3 mm (0.264 – 0.287 in)

JSDIA0168ZZ

SDIA2378E

FRONT CASE AND REAR CASE

DLN-67

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ETX13B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

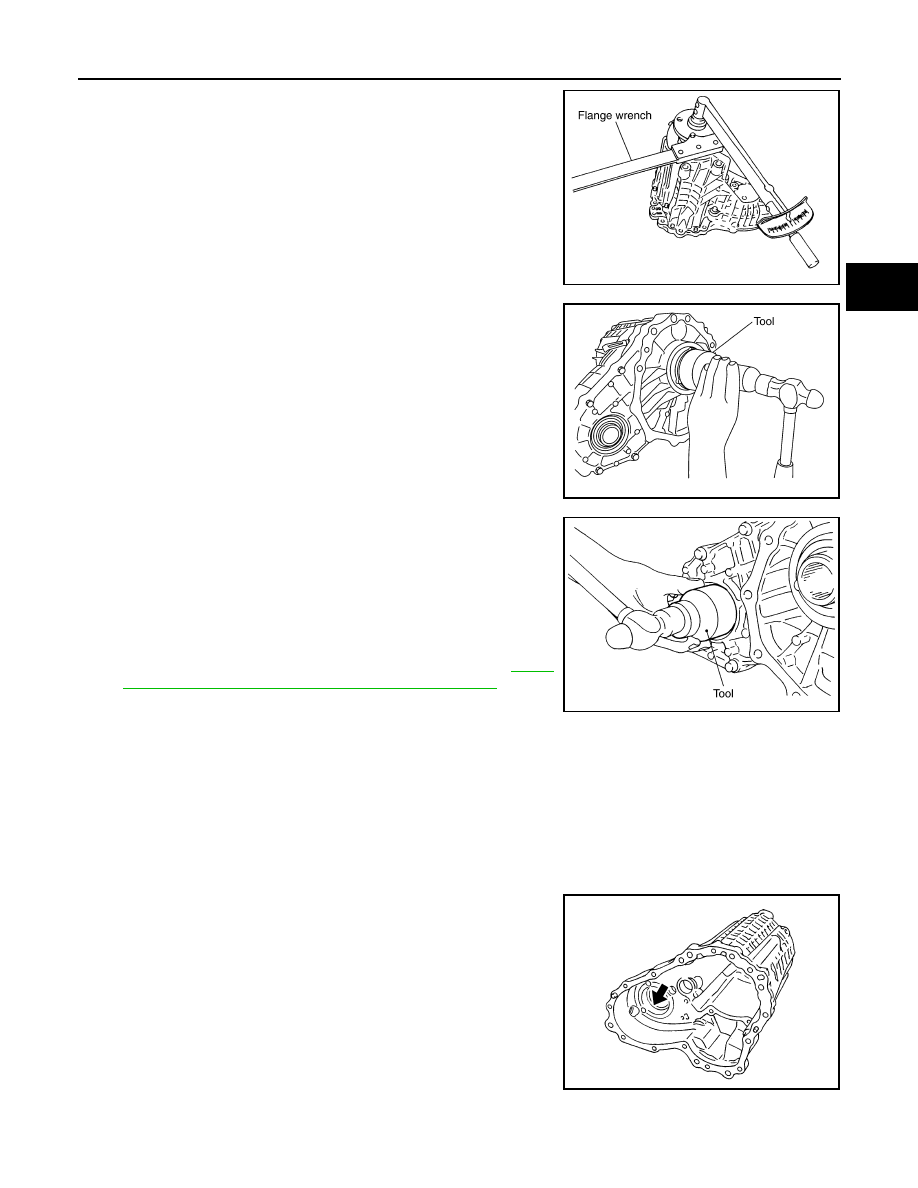

22. Tighten self-lock nut to the specified torque, with flange wrench.

CAUTION:

Never reuse self-lock nut.

23. Install mainshaft oil seal until it is flush with end face of front

case, using the drift [SST: ST30720000 (J-25405)].

CAUTION:

• Never reuse mainshaft oil seal.
• Apply ATF to mainshaft oil seal.
• When installing, never incline mainshaft oil seal.

24. Install front oil seal until it is flush with end face of front case,

using the drift [SST: ST27862000 (

—

)].

CAUTION:

• Never reuse front oil seal.
• Apply ATF to front oil seal.
• When installing, never incline front oil seal.

25. Apply sealant to threads of drain plug. Then install it to rear

case.
• Use Genuine Silicone RTV or equivalent. Refer to

GI-15,

"Recommended Chemical Products and Sealants"

.

CAUTION:

Remove old sealant and oil adhering to threads.

26. Set gasket to filler plug. Install it to rear case.

CAUTION:

• Never reuse gasket.
• After oil is filled, tighten filler plug to specified torque.

Inspection

INFOID:0000000000957294

Check items below. If necessary, replace them with new ones.

CASES

• Contact surfaces of bearing for wear, damage, etc.
• Damage and cracks of case.

BEARING

SDIA2369E

PDIA0282E

PDIA0287E

PDIA0293E

DLN-68

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ETX13B]

FRONT CASE AND REAR CASE

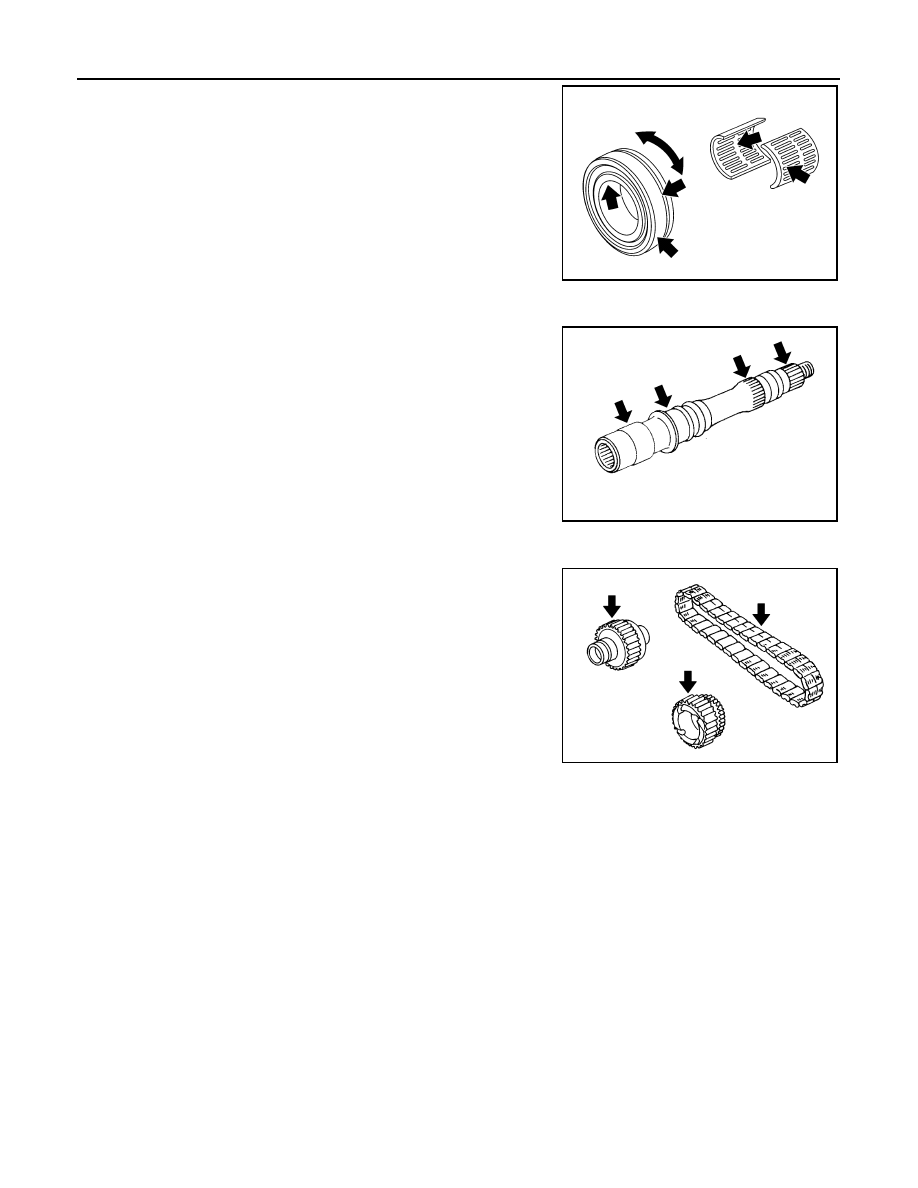

• Damage and rough rotation of bearing.

SHAFT

• Damage, peeling, dent, uneven wear, bending, etc. of shaft.

GEARS AND CHAIN

• Excessive wear, damage, peeling, etc. of gear and chain.

PDIA0300E

PDIA0294E

SDIA2365E

MAINSHAFT

DLN-69

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ETX13B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

MAINSHAFT

Exploded View

INFOID:0000000000957295

Disassembly

INFOID:0000000000957296

1.

Separate front case and rear case, then remove mainshaft assembly. Refer to

DLN-58, "Disassembly"

.

1.

Drive chain

2.

Front drive shaft rear bearing

3.

Front drive shaft

4.

Front drive shaft front bearing

5.

Sprocket

6.

Mainshaft

7.

Needle bearing

8.

Snap ring

9.

Mainshaft bearing

10. Front case

11.

Front oil seal

12. Mainshaft oil seal

13. Oil cover

14. Temperature sensor

15. Electric controlled coupling

16. Spacer

17. Snap ring

18. O-ring

19. Oil gutter

20. Drain plug

21. Baffle plate

22. Rear bearing

23. Snap ring

24. Spacer

25. Rear oil seal

26. Companion flange

27. Self-lock nut

28. Breather tube

29. Rear case

30. Harness bracket

31. Retainer

32. Filler plug

33. Gasket
