Infiniti G35 (V35) Sedan. Manual - part 365





BCM (BODY CONTROL MODULE)

DLK-121

< ECU DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR SW-RL

Rear LH door closed

OFF

Rear LH door opened

ON

DOOR SW-BK

NOTE:
The item is indicated, but not monitored.

OFF

CDL LOCK SW

Other than power door lock switch LOCK

OFF

Power door lock switch LOCK

ON

CDL UNLOCK SW

Other than power door lock switch UNLOCK

OFF

Power door lock switch UNLOCK

ON

KEY CYL LK-SW

Other than driver door key cylinder LOCK position

OFF

Driver door key cylinder LOCK position

ON

KEY CYL UN-SW

Other than driver door key cylinder UNLOCK position

OFF

Driver door key cylinder UNLOCK position

ON

KEY CYL SW-TR

NOTE:
The item is indicated, but not monitored.

OFF

HAZARD SW

Hazard switch is not pressed

OFF

Hazard switch is pressed

ON

REAR DEF SW

NOTE:
The item is indicated, but not monitored.

OFF

H/L WASH SW

NOTE:
The item is indicated, but not monitored.

OFF

TR CANCEL SW

Trunk lid opener cancel switch OFF

OFF

Trunk lid opener cancel switch ON

ON

TR/BD OPEN SW

Trunk lid opener switch OFF

OFF

While the trunk lid opener switch is turned ON

ON

TRNK/HAT MNTR

Trunk lid closed

OFF

Trunk lid opened

ON

RKE-LOCK

LOCK button of Intelligent Key is not pressed

OFF

LOCK button of Intelligent Key is pressed

ON

RKE-UNLOCK

UNLOCK button of Intelligent Key is not pressed

OFF

UNLOCK button of Intelligent Key is pressed

ON

RKE-TR/BD

TRUNK OPEN button of Intelligent Key is not pressed

OFF

TRUNK OPEN button of Intelligent Key is pressed

ON

RKE-PANIC

PANIC button of Intelligent Key is not pressed

OFF

PANIC button of Intelligent Key is pressed

ON

RKE-P/W OPEN

UNLOCK button of Intelligent Key is not pressed

OFF

UNLOCK button of Intelligent Key is pressed and held

ON

RKE-MODE CHG

LOCK/UNLOCK button of Intelligent Key is not pressed and held si-
multaneously

OFF

LOCK/UNLOCK button of Intelligent Key is pressed and held simul-
taneously

ON

OPTICAL SENSOR

Outside of the vehicle bright

Close to 5 V

Outside of the vehicle dark

Close to 0 V

REQ SW-DR

Driver door request switch is not pressed

OFF

Driver door request switch is pressed

ON

REQ SW-AS

Passenger door request switch is not pressed

OFF

Passenger door request switch is pressed

ON

Monitor Item

Condition

Value/Status

DLK-122

< ECU DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

REQ SW-BD/TR

Trunk request switch is not pressed

OFF

Trunk request switch is pressed

ON

PUSH SW

Push-button ignition switch (push switch) is not pressed

OFF

Push-button ignition switch (push switch) is pressed

ON

IGN RLY2 -F/B

Ignition switch in OFF or ACC position

OFF

Ignition switch in ON position

ON

ACC RLY -F/B

Ignition switch in OFF position

OFF

Ignition switch in ACC or ON position

ON

CLUCH SW

The clutch pedal is not depressed

OFF

The clutch pedal is depressed

ON

BRAKE SW 1

The brake pedal is not depressed

ON

The brake pedal is depressed

OFF

DETE/CANCL SW

Selector lever in P position

OFF

Selector lever in any position other than P

ON

SFT PN/N SW

Selector lever in any position other than P and N

OFF

Selector lever in P or N position

ON

S/L -LOCK

Steering is locked

OFF

Steering is unlocked

ON

S/L -UNLOCK

Steering is unlocked

OFF

Steering is locked

ON

S/L RELAY-F/B

Ignition switch is OFF or ACC position

OFF

Ignition switch is ON position

ON

UNLK SEN-DR

Driver door is unlocked

OFF

Driver door is locked

ON

PUSH SW -IPDM

Push-button ignition switch (push-switch) is not pressed

OFF

Push-button ignition switch (push-switch) is pressed

ON

IGN RLY1 -F/B

Ignition switch is OFF or ACC position

OFF

Ignition switch is ON position

ON

DETE SW -IPDM

Selector lever in P position

OFF

Selector lever in any position other than P

ON

SFT PN -IPDM

Selector lever in any position other than P and N

OFF

Selector lever in P or N position

ON

SFT P -MET

Selector lever in any position other than P

OFF

Selector lever in P position

ON

SFT N -MET

Selector lever in any position other than N

OFF

Selector lever in N position

ON

ENGINE STATE

Engine stopped

STOP

While the engine stalls

STALL

At engine cranking

CRANK

Engine running

RUN

S/L LOCK-IPDM

Steering is locked

OFF

Steering is unlocked

ON

S/L UNLK-IPDM

Steering is unlocked

OFF

Steering is locked

ON

Monitor Item

Condition

Value/Status

BCM (BODY CONTROL MODULE)

DLK-123

< ECU DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

S/L RELAY-REQ

Ignition switch in OFF or ACC position

OFF

Ignition switch in ON position

ON

VEH SPEED 1

While driving

Equivalent to speedometer reading

VEH SPEED 2

While driving

Equivalent to speedometer reading

DOOR STAT-DR

Driver door is locked

LOCK

Wait with selective UNLOCK operation (5 seconds)

READY

Driver door is unlocked

UNLK

DOOR STAT-AS

Passenger door is locked

LOCK

Wait with selective UNLOCK operation (5 seconds)

READY

Passenger door is unlocked

UNLK

ID OK FLAG

Ignition switch in ACC or ON position

RESET

Ignition switch in OFF position

SET

PRMT ENG STRT

The engine start is prohibited

RESET

The engine start is permitted

SET

PRMT RKE STRT

NOTE:
The item is indicated, but not monitored.

RESET

KEY SW -SLOT

Intelligent Key is not inserted into key slot

OFF

Intelligent Key is inserted into key slot

ON

RKE OPE COUN1

During the operation of Intelligent Key

Operation frequency of Intelligent Key

RKE OPE COUN2

NOTE:
The item is indicated, but not monitored.

AIR PRESS FL

Ignition switch ON (Only when the signal from the transmitter is re-
ceived)

Air pressure of front LH tire

AIR PRESS FR

Ignition switch ON (Only when the signal from the transmitter is re-
ceived)

Air pressure of front RH tire

AIR PRESS RR

Ignition switch ON (Only when the signal from the transmitter is re-
ceived)

Air pressure of rear RH tire

AIR PRESS RL

Ignition switch ON (Only when the signal from the transmitter is re-
ceived)

Air pressure of rear LH tire

ID REGST FL1

ID of front LH tire transmitter is registered

DONE

ID of front LH tire transmitter is not registered

YET

ID REGST FR1

ID of front RH tire transmitter is registered

DONE

ID of front RH tire transmitter is not registered

YET

ID REGST RR1

ID of rear RH tire transmitter is registered

DONE

ID of rear RH tire transmitter is not registered

YET

ID REGST RL1

ID of rear LH tire transmitter is registered

DONE

ID of rear LH tire transmitter is not registered

YET

WARNING LAMP

Tire pressure indicator OFF

OFF

Tire pressure indicator ON

ON

BUZZER

Tire pressure warning alarm is not sounding

OFF

Tire pressure warning alarm is sounding

ON

Monitor Item

Condition

Value/Status

DLK-124

< ECU DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

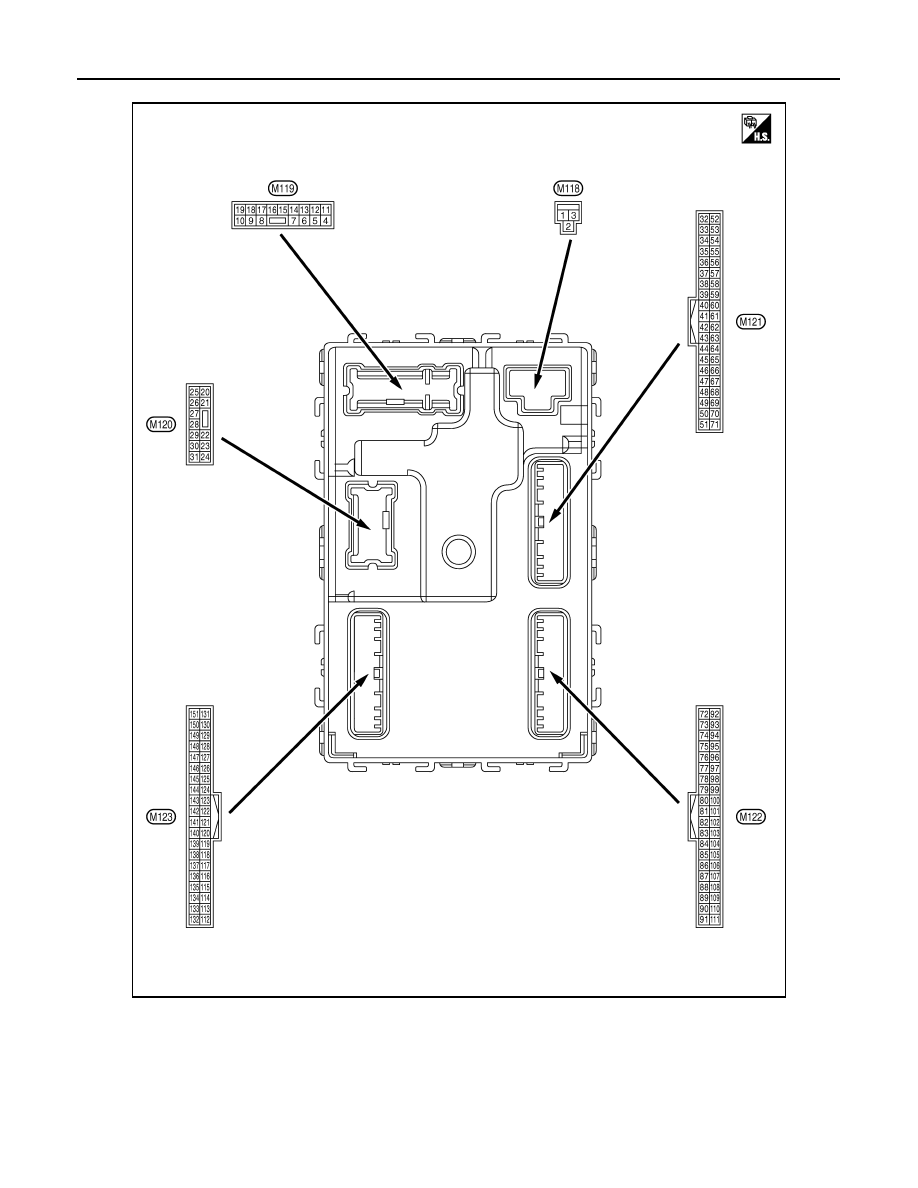

TERMINAL LAYOUT

PHYSICAL VALUES

JPMIA0062ZZ
