DEF-22

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

1

(W)

Ground

Battery power supply

Input

Ignition switch OFF

Battery voltage

2

(Y)

Ground

P/W power supply
(BAT)

Output

Ignition switch OFF

Battery voltage

3

(O)

Ground

P/W power supply
(RAP)

Output

Ignition switch ON

Battery voltage

4

(LG)

Ground

Interior room lamp
power supply

Output

After passing the interior room lamp battery sav-
er operation time

0 V

Any other time after passing the interior room
lamp battery saver operation time

Battery voltage

5

(V)

Ground

Passenger door UN-
LOCK

Output

Passenger door

UNLOCK (Actuator is acti-
vated)

Battery voltage

Other than UNLOCK (Actu-
ator is not activated)

0 V

7

(Y)

Ground

Step lamp

Output

Step lamp

ON

0 V

OFF

Battery voltage

8

(V)

Ground

All doors, fuel lid
LOCK

Output

All doors, fuel lid

LOCK (Actuator is activat-
ed)

Battery voltage

Other than LOCK (Actuator
is not activated)

0 V

9

(G)

Ground

Driver door, fuel lid
UNLOCK

Output

Driver door, fuel
lid

UNLOCK (Actuator is acti-
vated)

Battery voltage

Other than UNLOCK (Actu-
ator is not activated)

0 V

10

(BR)

Ground

Rear RH door and
rear LH door UN-
LOCK

Output

Rear RH door
and rear LH door

UNLOCK (Actuator is acti-
vated)

Battery voltage

Other than UNLOCK (Actu-
ator is not activated)

0 V

11

(R)

Ground

Battery power supply

Input

Ignition switch OFF

Battery voltage

13

(B)

Ground

Ground

Ignition switch ON

0 V

14

(W)

Ground

Push-button ignition
switch illumination
ground

Output

Tail lamp

OFF

0 V

ON

NOTE:
When the illumination brighten-
ing/dimming level is in the neutral
position

15

(Y)

Ground

ACC indicator lamp

Output

Ignition switch

OFF

Battery voltage

ACC or ON

0 V

JSNIA0010GB

BCM (BODY CONTROL MODULE)

DEF-23

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

17

(W)

Ground

Turn signal (front RH)

Output

Ignition switch
ON

Turn signal switch OFF

0 V

Turn signal switch RH

6.5 V

18

(O)

Ground

Turn signal (front LH)

Output

Ignition switch
ON

Turn signal switch OFF

0 V

Turn signal switch LH

6.5 V

19

(V)

Ground

Room lamp timer
control

Output

Interior room
lamp

OFF

Battery voltage

ON

0 V

20

(V)

Ground

Turn signal (rear RH)

Output

Ignition switch
ON

Turn signal switch OFF

0 V

Turn signal switch RH

6.5 V

23

(G)

Ground

Trunk lid opening.

Output

Trunk lid

Open (Trunk lid opener ac-
tuator is activated)

Battery voltage

Close (Trunk lid opener ac-
tuator is not activated)

0 V

25

(G)

Ground

Turn signal (rear LH)

Output

Ignition switch
ON

Turn signal switch OFF

0 V

Turn signal switch LH

6.5 V

30

(R)

Ground

Trunk room lamp

Output

Trunk room lamp

ON

0 V

OFF

Battery voltage

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

PKID0926E

PKID0926E

PKID0926E

PKID0926E

DEF-24

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

34

(SB)

Ground

Trunk room antenna
1 (-)

Output

Ignition switch
OFF

When Intelligent Key is in
the passenger compart-
ment

When Intelligent Key is not
in the passenger compart-
ment

35

(V)

Ground

Trunk room antenna
1 (+)

Output

Ignition switch
OFF

When Intelligent Key is in
the passenger compart-
ment

When Intelligent Key is not
in the passenger compart-
ment

38

(B)

Ground

Rear bumper anten-
na (-)

Output

When the trunk
lid request switch
is operated with
ignition switch
OFF

When Intelligent Key is in
the antenna detection area

When Intelligent Key is not
in the antenna detection
area

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

JMKIA0062GB

JMKIA0063GB

JMKIA0062GB

JMKIA0063GB

JMKIA0062GB

JMKIA0063GB

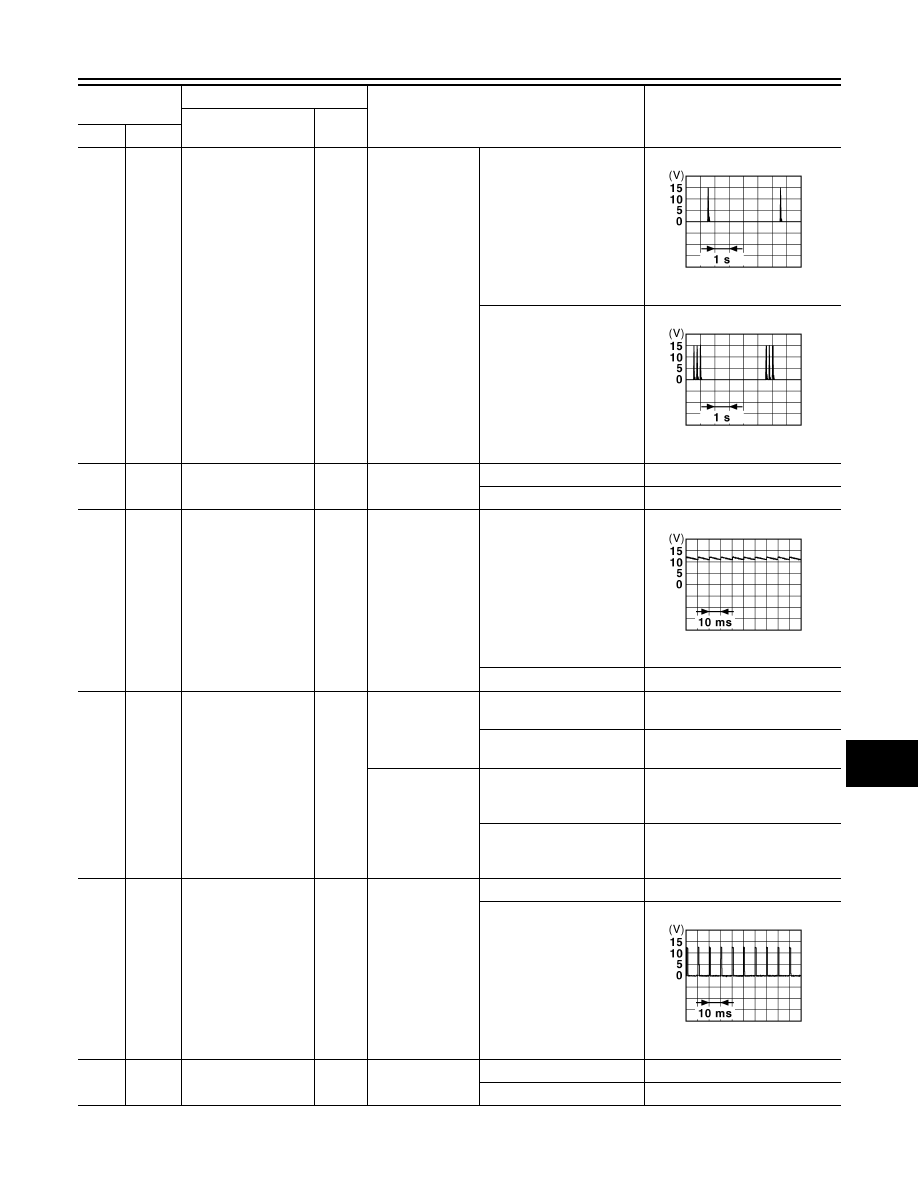

BCM (BODY CONTROL MODULE)

DEF-25

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

39

(W)

Ground

Rear bumper anten-
na (+)

Output

When the trunk
lid request switch
is operated with
ignition switch
OFF

When Intelligent Key is in
the antenna detection area

When Intelligent Key is not
in the antenna detection
area

47

(Y)

Ground

Ignition relay (IPDM
E/R) control

Output

Ignition switch

OFF or ACC

Battery voltage

ON

0 V

50

(R)

Ground

Trunk room lamp
switch

Input

Trunk room lamp
switch

OFF (Trunk is closed)

11.8 V

ON (Trunk is open)

0 V

52

(SB)

Ground

Starter relay control

Output

Ignition switch
OFF (M/T mod-
els)

When the clutch pedal is
depressed

Battery voltage

When the clutch pedal is
not depressed

0 V

Ignition switch
ON (A/T models)

When selector lever is in P
or N position and the brake
is depressed

Battery voltage

When selector lever is in P
or N position and the brake
is not depressed

0 V

61

(W)

Ground

Trunk request switch

Input

Trunk request
switch

ON (Pressed)

0 V

OFF (Not pressed)

1.0 V

64

(V)

Ground

Request switch buzz-
er

Output

Request switch
buzzer

Sounding

0 V

Not sounding

Battery voltage

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

JMKIA0062GB

JMKIA0063GB

JPMIA0011GB

JPMIA0016GB
