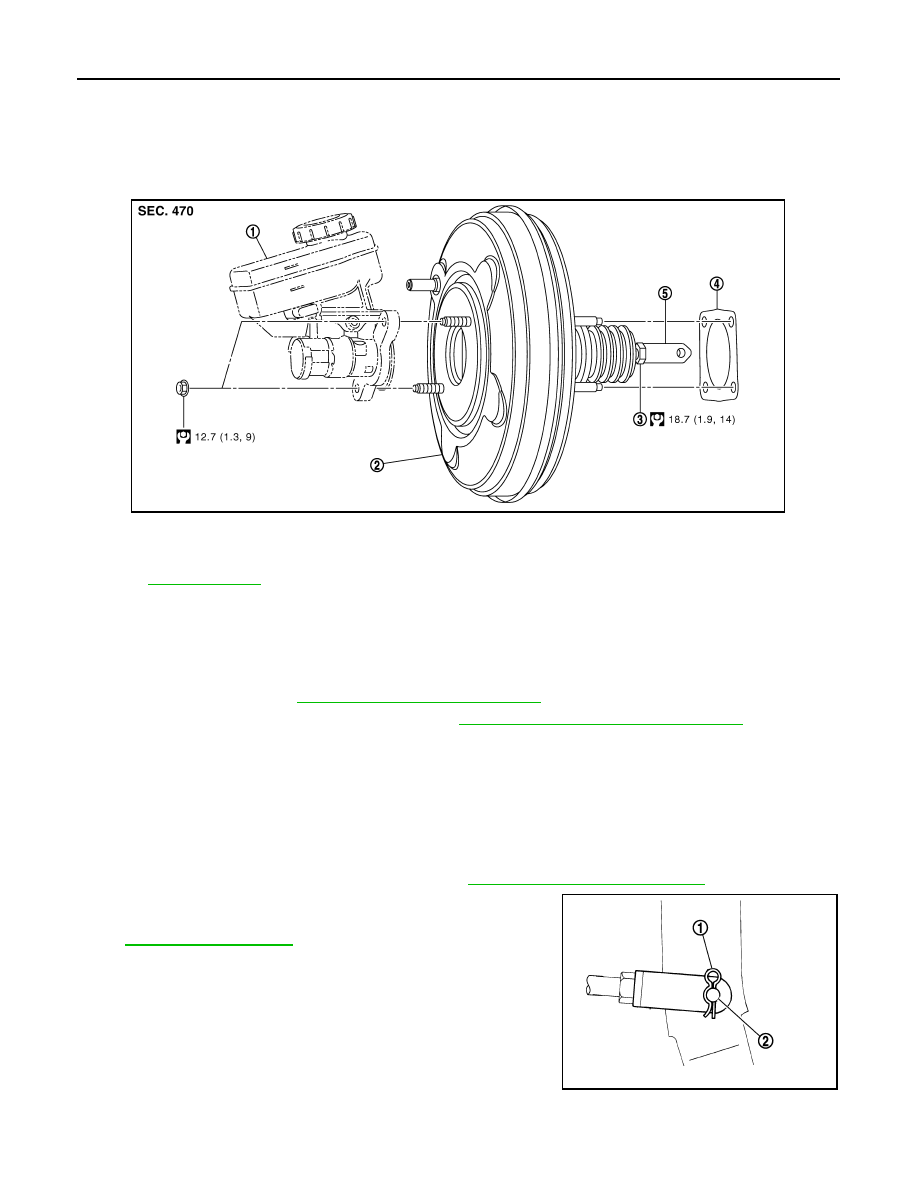

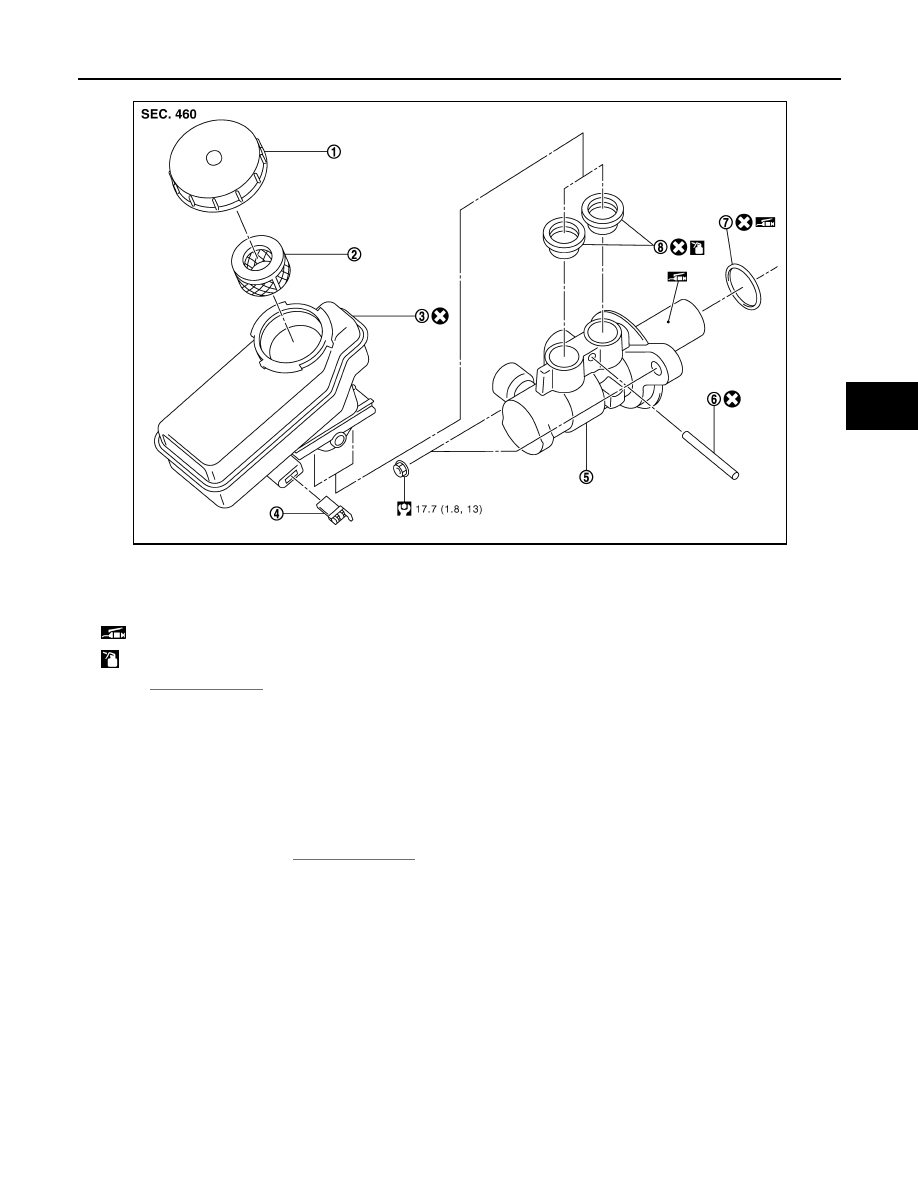

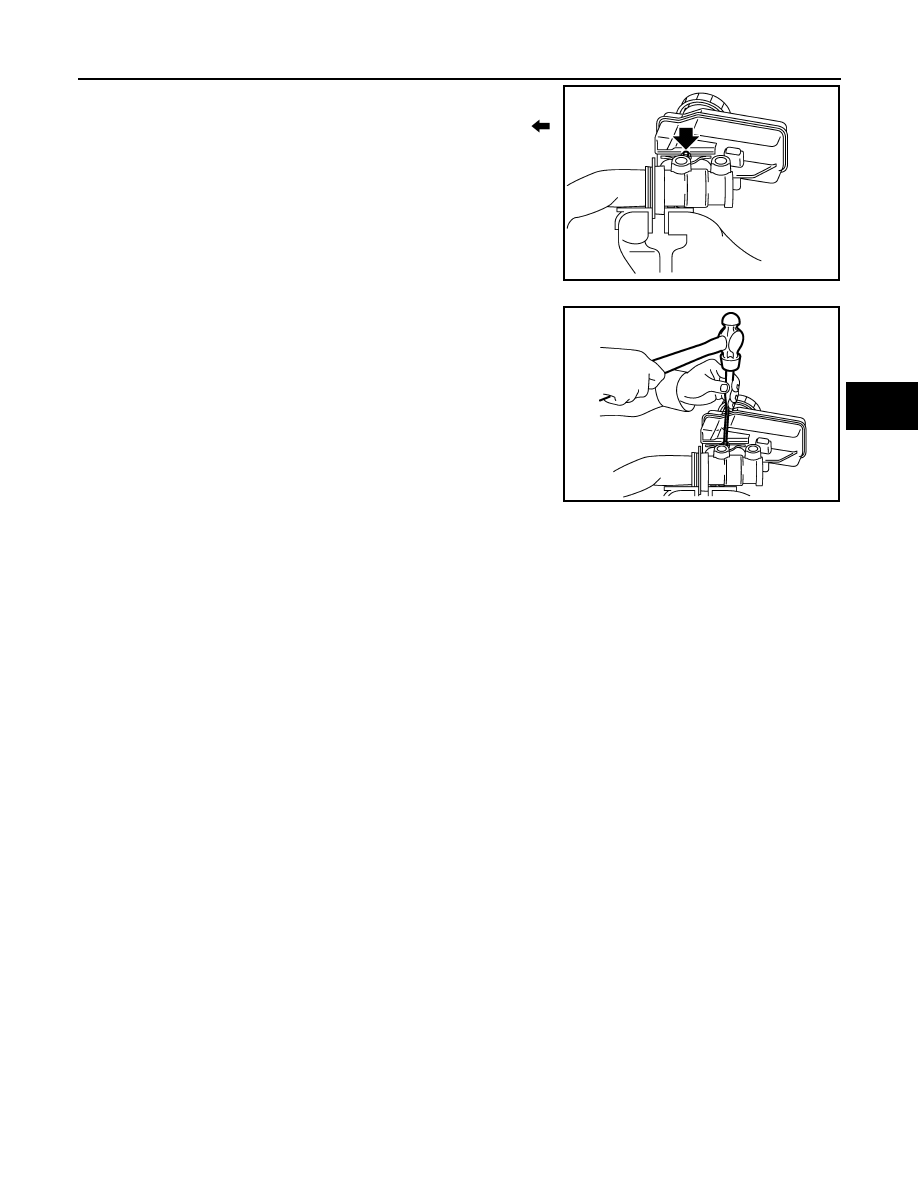

BRAKE MASTER CYLINDER BR-29 < ON-VEHICLE REPAIR > C D E G H I J K L M A B BR N O P AWD : Removal and Installation INFOID:0000000000958435 REMOVAL CAUTION: Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it 1. Remove the master cylinder cover. 2. Drain brake fluid. Refer to 3. Separate the brake fluid level switch harness connector. 4. Separate the brake tube from the master cylinder assembly with a flare nut wrench. CAUTION: Never scratch the flare nut and the brake tube. 5. Remove the master cylinder assembly. CAUTION: • Depress the brake pedal several times to release the vacuum pressure from the brake booster. Then remove the master cylinder assembly. • Never depress the brake pedal after the master cylinder assembly is removed. master cylinder. • The piston may drop off when pulled out strongly. Never hold the piston. Hold the cylinder body when handling the master cylinder assembly. INSTALLATION CAUTION: 1. Reservoir cap 2. Oil strainer 3. Reservoir tank 4. Brake fluid level switch connector 5. Cylinder body 6. Pin 7. O-ring 8. Grommet : Apply PBC (Poly Butyl Cuprysil) grease or silicone-based grease. : Apply brake fluid. Refer to for symbols not described on the above. JPFIA0069GB |
