Infiniti G35 (V35) Sedan. Manual - part 180

AV-492

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

CAMERA CONTROL UNIT

JCNWA0064GB

AV

CAMERA CONTROL UNIT

AV-493

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

JCNWA0065GB

AV-494

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

CD CHANGER

CD CHANGER

Reference Value

INFOID:0000000000964899

TERMINAL LAYOUT

PHYSICAL VALUES

JPNIA0005ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

2

(R)

1

(W)

CD changer sound signal
LH

Output

Ignition

switch

ON

When CD change mode is
selected

4

(B)

3

(G)

CD changer sound signal
RH

Output

Ignition

switch

ON

When CD change mode is
selected

5

—

Shield

—

—

—

—

6

—

Shield

—

—

—

—

8

(P)

Ground

Request signal
(CD

→

CONT)

Output

Ignition

switch

ON

When CD change mode is
selected

9

(L)

Ground

Communication signal
(CD

→

CONT)

Output

Ignition

switch

ON

When CD change mode is
selected

SKIB3609E

SKIB3609E

SKIA9299J

SKIA9300J

AV

CD CHANGER

AV-495

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

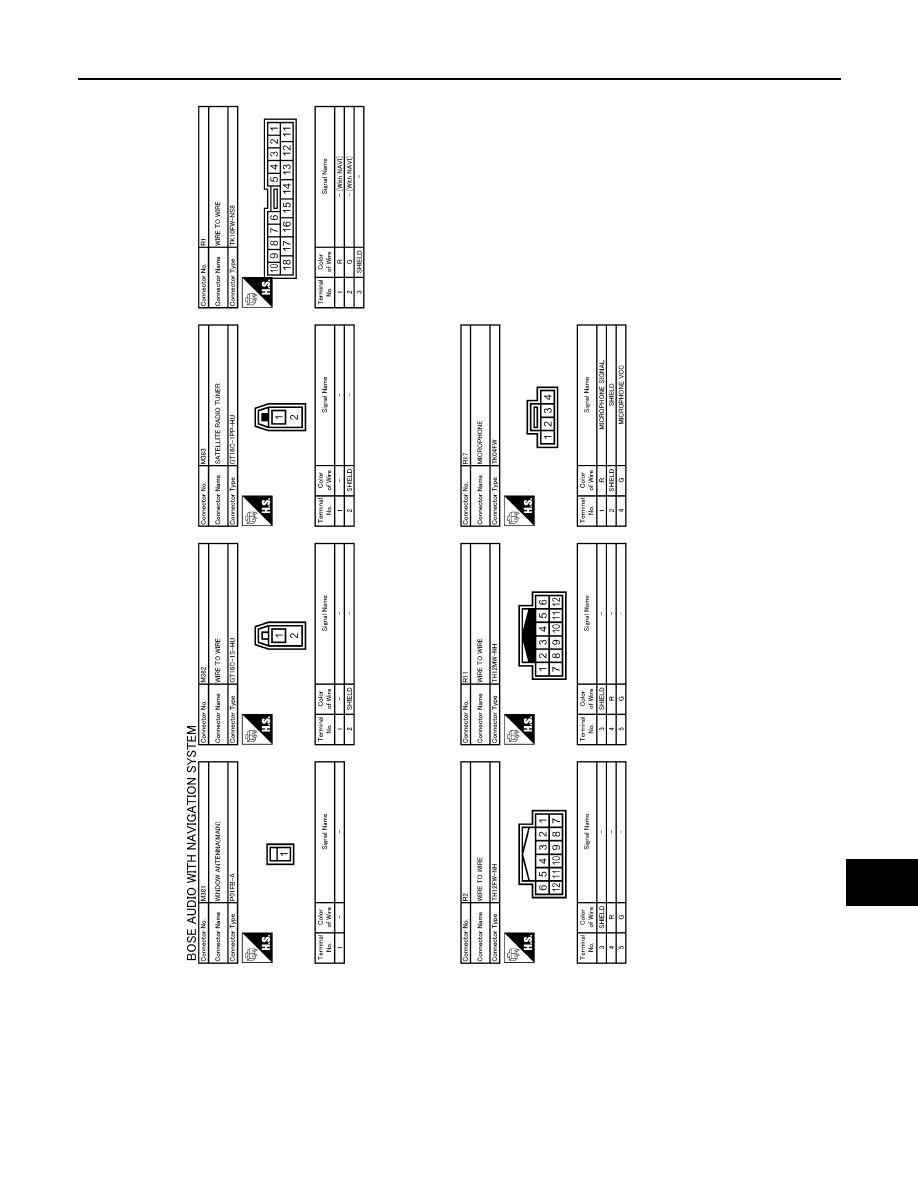

Wiring Diagram — BOSE AUDIO WITH NAVIGATION  SYSTEM —

INFOID:0000000000964900

NOTE:

10

(G)

Ground

Communication signal
(CONT

→

CD)

Input

Ignition

switch

ON

When CD change mode is
selected

12

(Y)

Ground

Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

16

(V)

Ground

ACC power supply

Input

Ignition

switch

ACC

—

Battery voltage

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIA9301J
