Infiniti G35 (V35) Sedan. Manual - part 170





AV-452

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

BOSE AMP.

BOSE AMP.

Reference Value

INFOID:0000000000964895

TERMINAL LAYOUT

PHYSICAL VALUES

JPNIA0008ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

Signal name

Input/

Output

1

(L)

2

(W)

Sound signal front door
squawker LH

Output

Ignition

switch

ON

Voice output

3

(LG)

4

(V)

Sound signal front door
squawker RH

Output

Ignition

switch

ON

Voice output

5

(G)

6

(R)

Sound signal front door
woofer RH

Output

Ignition

switch

ON

Voice output

7

(B)

Ground

GND

Ignition

switch

ON

0  V

10

(Y)

Ground

Battery power supply

Input

Ignition

switch

OFF

Battery voltage

11

(GR)

Ground

Battery power supply

Input

Ignition

switch

OFF

Battery voltage

12

(B)

Ground

GND

Ignition

switch

ON

0  V

SKIB3609E

SKIB3609E

SKIB3609E

AV

BOSE AMP.

AV-453

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

14

(B)

9

(W)

Sound signal front door
woofer LH

Output

Ignition

switch

ON

Voice output

16

(SB)

17

(V)

Sound signal woofer

Output

Ignition

switch

ON

Voice output

18

(L)

19

(P)

Sound signal rear door
speaker LH

Output

Ignition

switch

ON

Voice output

20

(V)

Ground

Amp. ON signal

Input

Ignition

switch

ACC

12  V

21

Shield

22

(GR)

Ground

Woofer Amp. ON signal

Output

Ignition

switch

ACC

12  V

24

(V)

23

(SB)

Sound signal rear LH

Input

Ignition

switch

ON

Voice output

26

(BR)

25

(Y)

Sound signal rear RH

Input

Ignition

switch

ON

Voice output

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

Signal name

Input/

Output

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

AV-454

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

BOSE AMP.

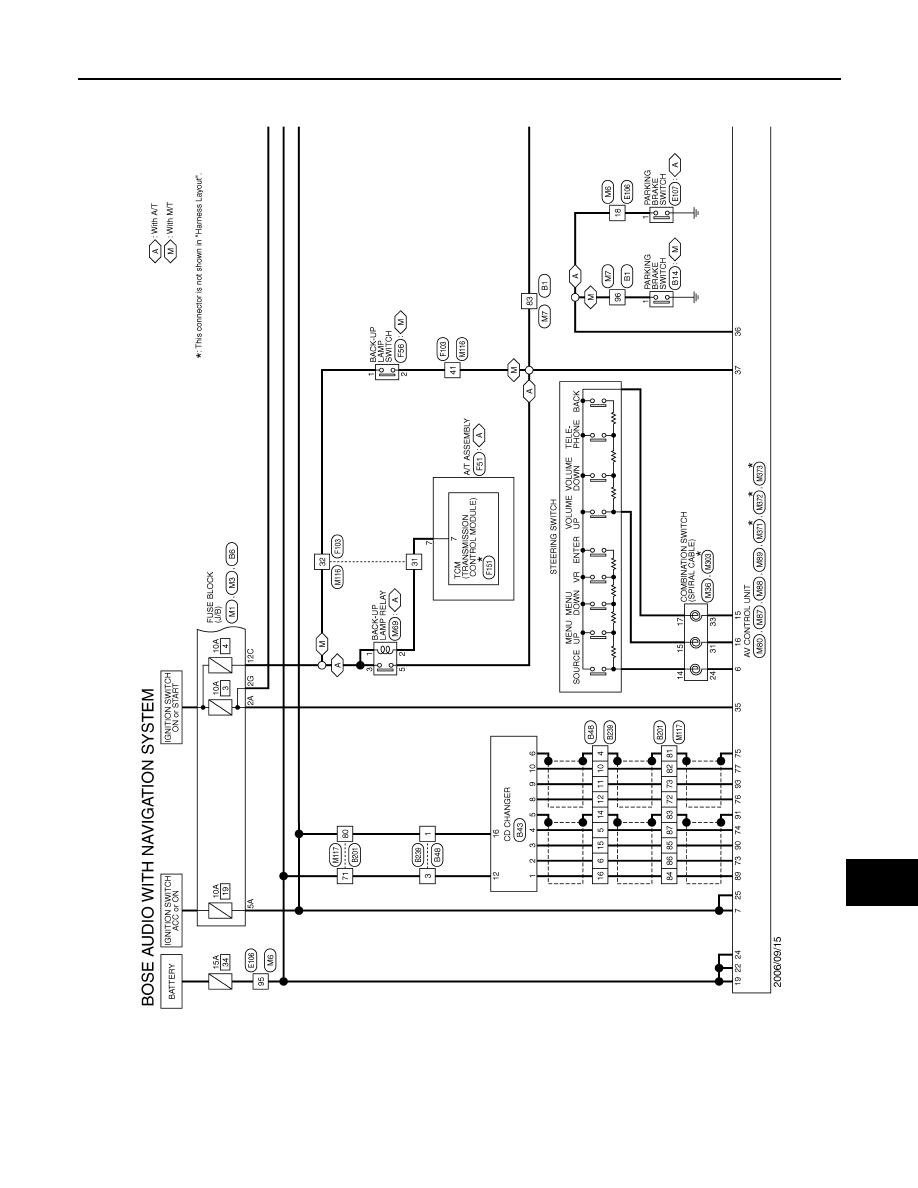

Wiring Diagram — BOSE AUDIO WITH NAVIGATION  SYSTEM —

INFOID:0000000000964896

NOTE:

29

(Y)

30

(G)

Sound signal center speak-
er

Output

Ignition

switch

ON

Voice output

31

(LG)

32

(Y)

Sound signal rear door
speaker RH

Output

Ignition

switch

ON

Voice output

33

(R)

34

(G)

Sound signal front RH

Input

Ignition

switch

ON

Voice output

35

(P)

36

(L)

Sound signal front LH

Input

Ignition

switch

ON

Voice output

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

Signal name

Input/

Output

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

AV

BOSE AMP.

AV-455

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION
SWITCH virtually.

JCNWA0048GB
