STEERING ANGLE SENSOR SIGNAL 1, 2 CIRCUIT

STEERING ANGLE SENSOR SIGNAL 1, 2 CIRCUIT

Description

INFOID:0000000000964877

• Steering angle sensor signal 1, 2 detects the turning direction and quantity of the steering and transmits it to

the camera control unit.

• Steering angle sensor signal 3 detects the neutral position of the steering and transmits it to the camera con-

trol unit.

• Camera control unit performs the correction of neutral position with sensor signal 1, 2, 3 and vehicle speed

signal.

Diagnosis Procedure

INFOID:0000000000964878

1.

CHECK CONTINUITY STEERING ANGLE SENSOR SIGNAL 1, 2 CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect camera control unit connector and steering angle sensor connector.

3.

Check continuity between camera control unit harness connector terminals 23, 24 and steering angle sen-
sor harness connector terminals 3, 4.

4.

Check continuity between camera control unit harness connector terminals 23, 24 and ground.

Is inspection result OK?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK SIGNAL SENSOR SIGNAL 1, 2

1.

Connect camera control unit connector.

2.

Turn ignition switch ON.

3.

Check voltage between camera control unit harness connector terminals 23, 24 and ground.

Is inspection result OK?

YES

>> GO TO 3.

NO

>> Replace camera control unit.

3.

CHECK SIGNAL SENSOR SIGNAL 1, 2

1.

Connect steering angle sensor connector.

2.

Check signal between camera control unit harness connector terminal 23, 24 and ground.

23 - 3

: Continuity should exist.

24 - 4

: Continuity should exist.

23, 24 - Ground

: Continuity should not exist.

23 - Ground

: Approx. 5 V

24 - Ground

: Approx. 5 V

AV

STEERING ANGLE SENSOR SIGNAL 1, 2 CIRCUIT

AV-397

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

Is inspection result OK?

YES

>> INSPECTION END

NO

>> Replace Steering angle sensor.

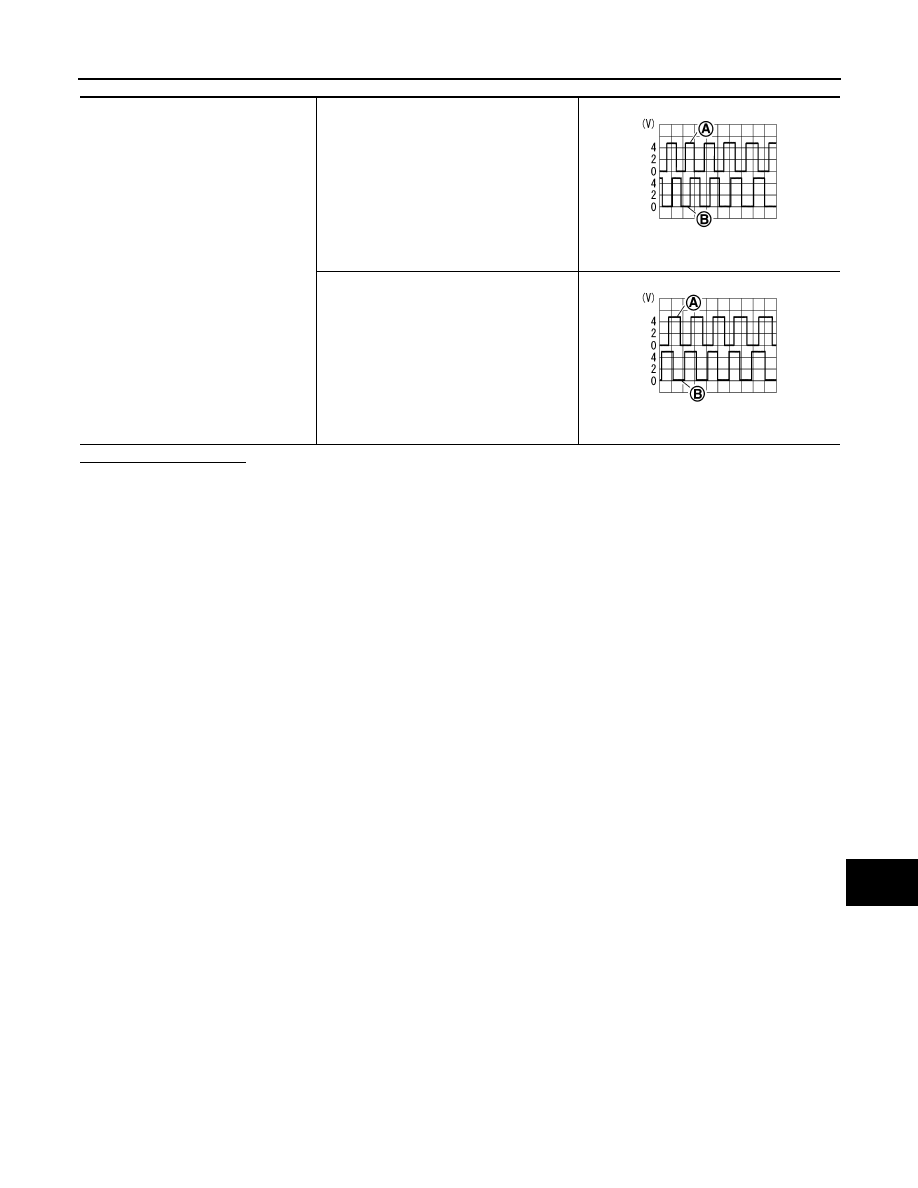

23, 24 - Ground

Turn the steering to the right

A: Sensor signal 1
B: Sensor signal 2

Turn the steering to the left

A: Sensor signal 1
B: Sensor signal 2

SKIB3827E

SKIB3828E

AV-398

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

STEERING ANGLE SENSOR SIGNAL 3 CIRCUIT

STEERING ANGLE SENSOR SIGNAL 3 CIRCUIT

Description

INFOID:0000000000964879

• Steering angle sensor signal 1, 2 detects the turning direction and quantity of the steering and transmits it to

the camera control unit.

• Steering angle sensor signal 3 detects the neutral position of the steering and transmits it to the camera con-

trol unit.

• Camera control unit performs the correction of neutral position with sensor signal 1, 2, 3 and vehicle speed

signal.

Diagnosis Procedure

INFOID:0000000000964880

1.

CHECK CONTINUITY STEERING ANGLE SENSOR SIGNAL 3 CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect camera control unit connector and steering angle sensor connector.

3.

Check continuity between camera control unit harness connector terminal 25 and steering angle sensor
harness connector terminal 5.

4.

Check continuity between camera control unit harness connector terminal 25 and ground.

Is inspection result OK?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK SIGNAL SENSOR SIGNAL 3

1.

Connect camera control unit connector.

2.

Turn ignition switch ON.

3.

Check voltage between camera control unit harness connector terminal 25 and ground.

Is inspection result OK?

YES

>> GO TO 3.

NO

>> Replace camera control unit.

3.

CHECK SIGNAL SENSOR SIGNAL 3

1.

Connect steering angle sensor connector.

2.

Check signal between camera control unit harness connector terminal 25 and ground.

Is inspection result OK?

YES

>> INSPECTION END

NO

>> Replace Steering angle sensor.

25 - 5

: Continuity should exist.

5 - Ground

: Continuity should not exist.

25 - Ground

: Approx. 5 V

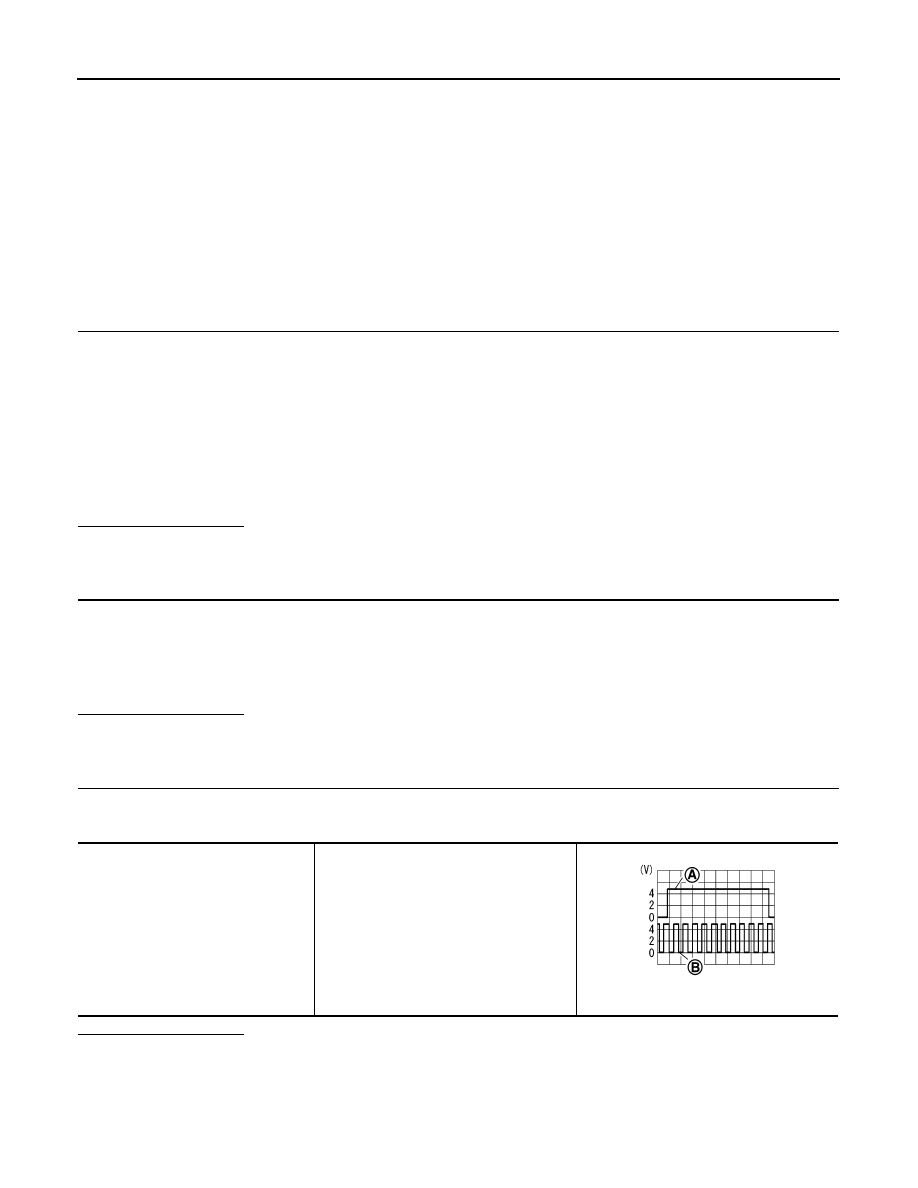

25 - Ground

Turn the steering around the neutral position

A: Sensor signal 3
B: Sensor signal 1

SKIB3829E

AV

STEERING SWITCH SIGNAL A CIRCUIT

AV-399

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

STEERING SWITCH SIGNAL A CIRCUIT

Description

INFOID:0000000000964881

Transmits the steering switch signal to AV control unit.

Diagnosis Procedure

INFOID:0000000000964882

1.

CHECK STEERING SWITCH SIGNAL A CIRCUIT

1.

Disconnect AV control unit connector and spiral cable connector.

2.

Check continuity between AV control unit harness connector terminal 6 and spiral cable harness connec-
tor terminal 24.

3.

Check continuity between AV control unit harness connector terminals 6 and ground.

Is inspection result OK?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK SPIRAL CABLE

Check spiral cable.

Is inspection result OK?

YES

>> GO TO 3.

NO

>> Replace spiral cable.

3.

CHECK AV CONTROL UNIT VOLTAGE

1.

Connect AV control unit connector and spiral cable connector.

2.

Turn ignition switch ON.

3.

Check voltage between AV control unit harness connector terminals 6 and 15.

Is inspection result OK?

YES

>> GO TO 4.

NO

>> Replace AV control unit.

4.

CHECK STEERING SWITCH

1.

Turn ignition switch OFF.

2.

Check steering switch. Refer to

AV-399, "Component Inspection"

.

Is inspection result OK?

YES

>> INSPECTION END

NO

>> Replace steering switch.

Component Inspection

INFOID:0000000000964883

Measure the resistance between the steering switch connecter terminals 14 to 17 and 15 to 17.

6 - 24

: Continuity should exist.

6 - Ground

: Continuity should not exist.

6 - 15

: Approx. 5 V
