FRONT WIPER MOTOR GROUND CIRCUIT

Diagnosis Procedure

INFOID:0000000000962646

1.

CHECK FRONT WIPER MOTOR (GND) OPEN CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect front wiper motor connector.

3.

Check continuity between front wiper motor harness connector and ground.

Does continuity exist?

YES

>> Front wiper motor ground circuit is normal.

NO

>> Repair the harnesses or connectors.

Front wiper motor

Ground

Continuity

Connector

Terminal

E42

2

Existed

WW-22

< COMPONENT DIAGNOSIS >

FRONT WIPER AND WASHER SYSTEM

FRONT WIPER AND WASHER SYSTEM

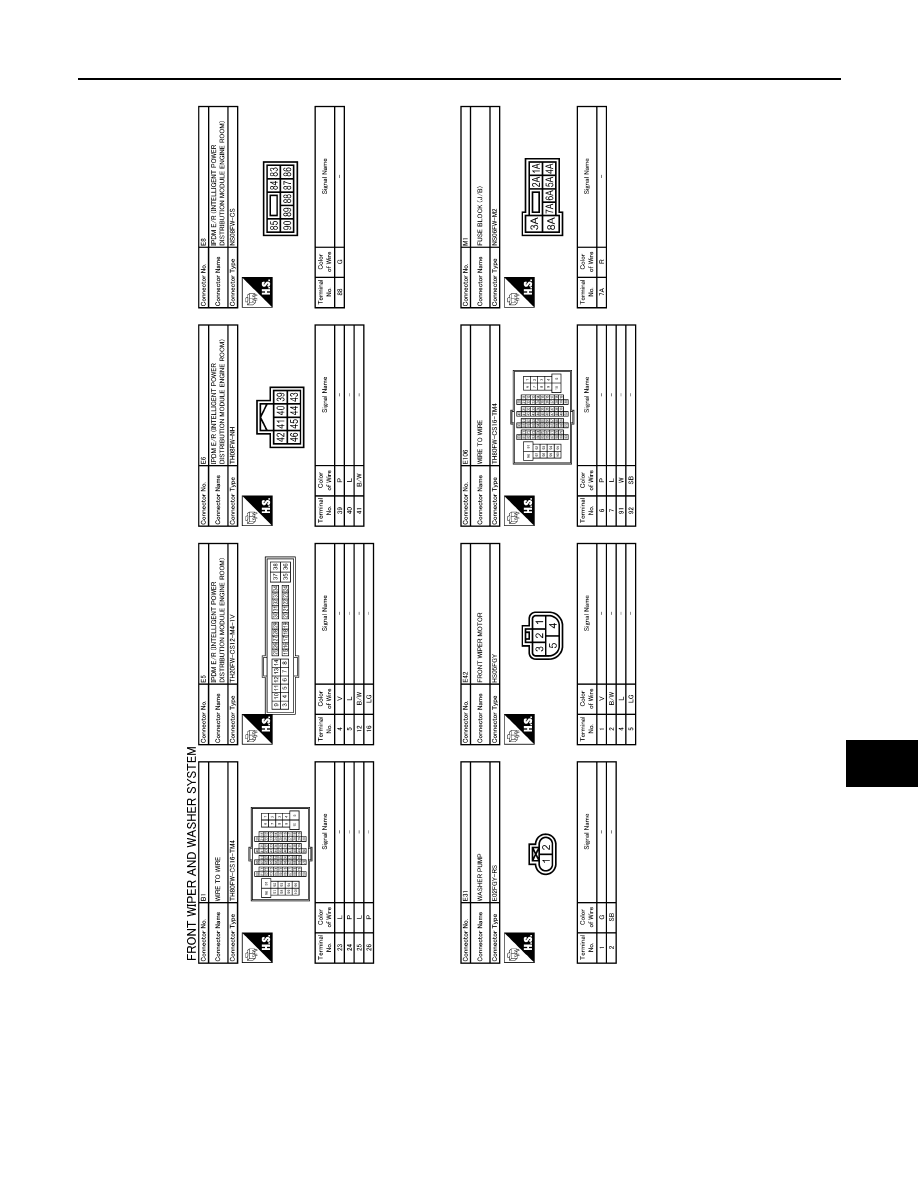

Wiring Diagram -FRONT WIPER AND WASHER SYSTEM-

INFOID:0000000000962647

JCLWA0065GB

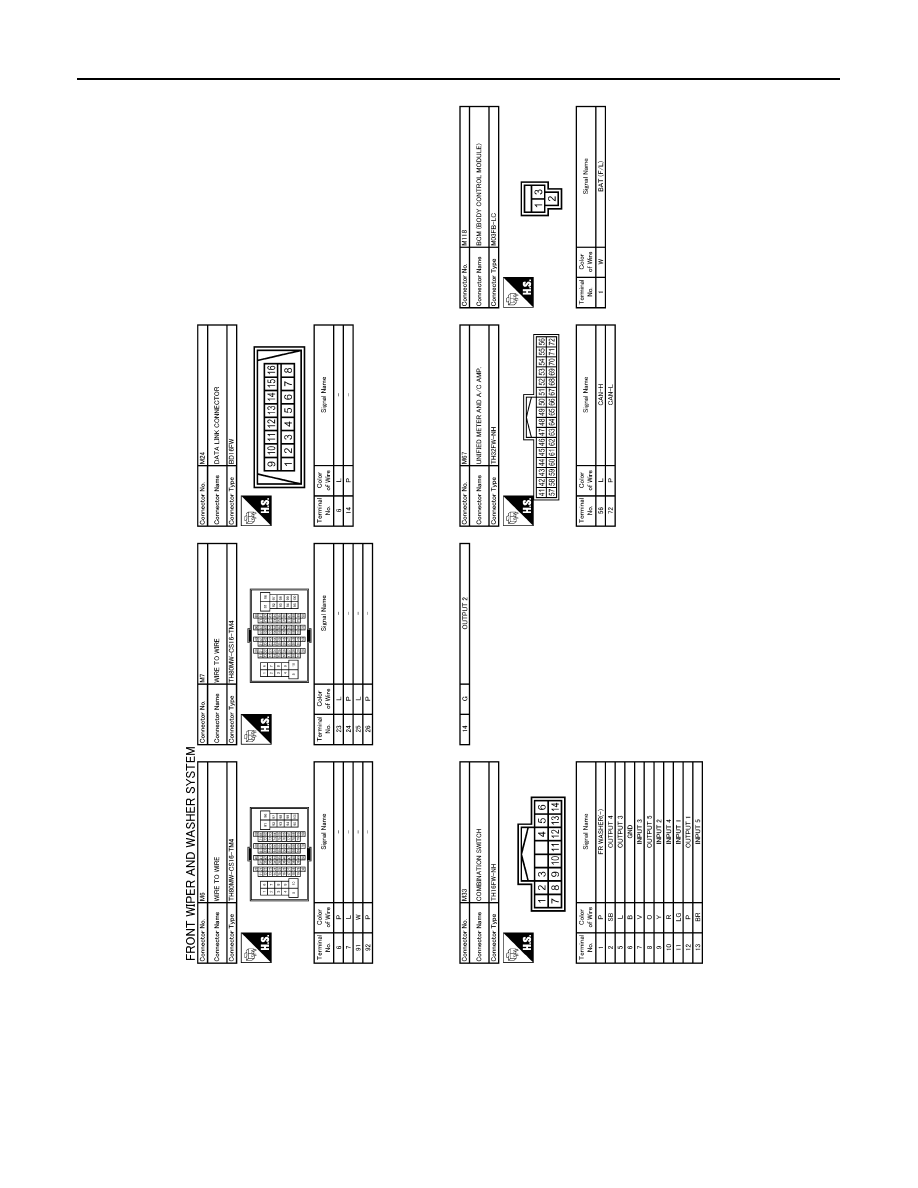

FRONT WIPER AND WASHER SYSTEM
