Infiniti G35 (V35) Sedan. Manual - part 1443





WCS-56

< ECU DIAGNOSIS >

UNIFIED METER AND A/C AMP.

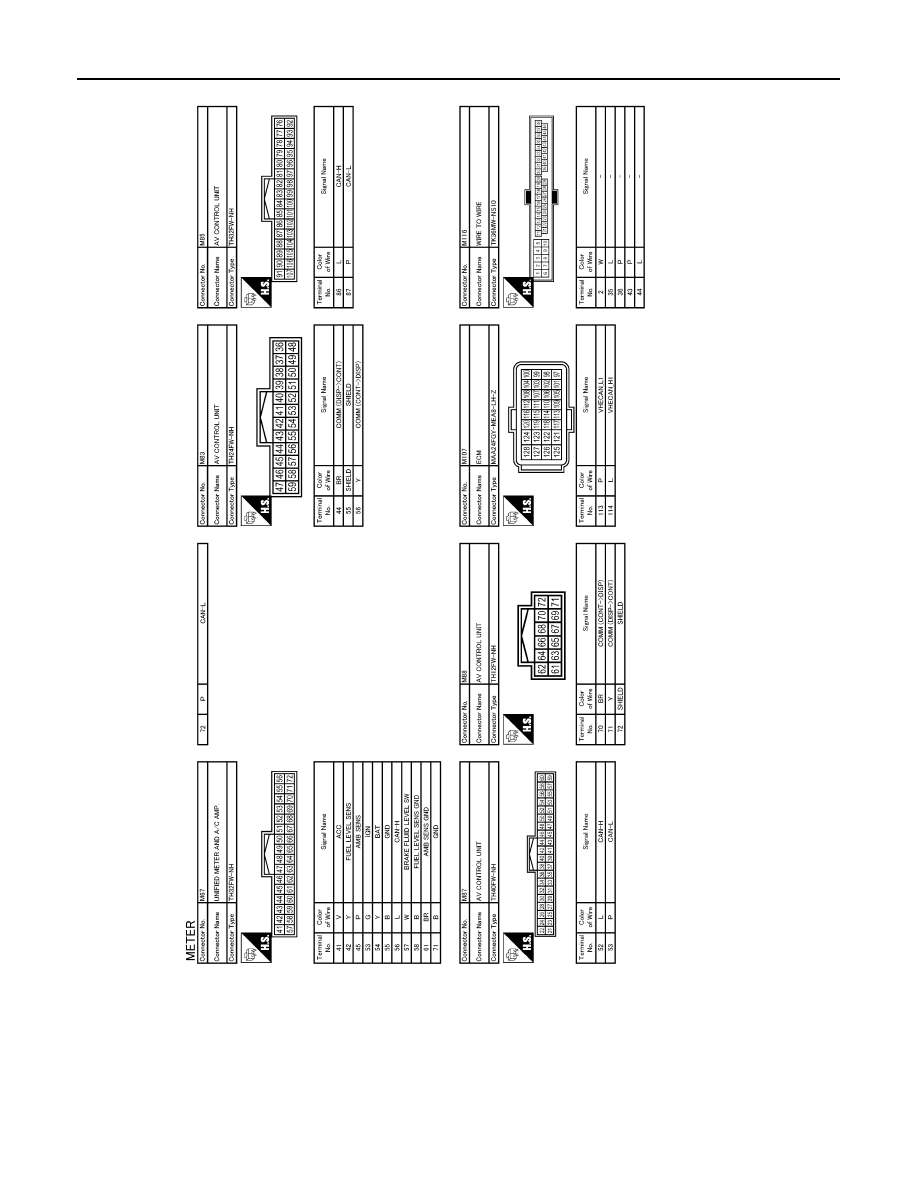

JCNWA0009GB

WCS

UNIFIED METER AND A/C AMP.

WCS-57

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

Fail Safe

INFOID:0000000000964505

FAIL SAFE

The unified meter and A/C amp. activates the fail-safe control if CAN communication with each unit is malfunc-
tioning.

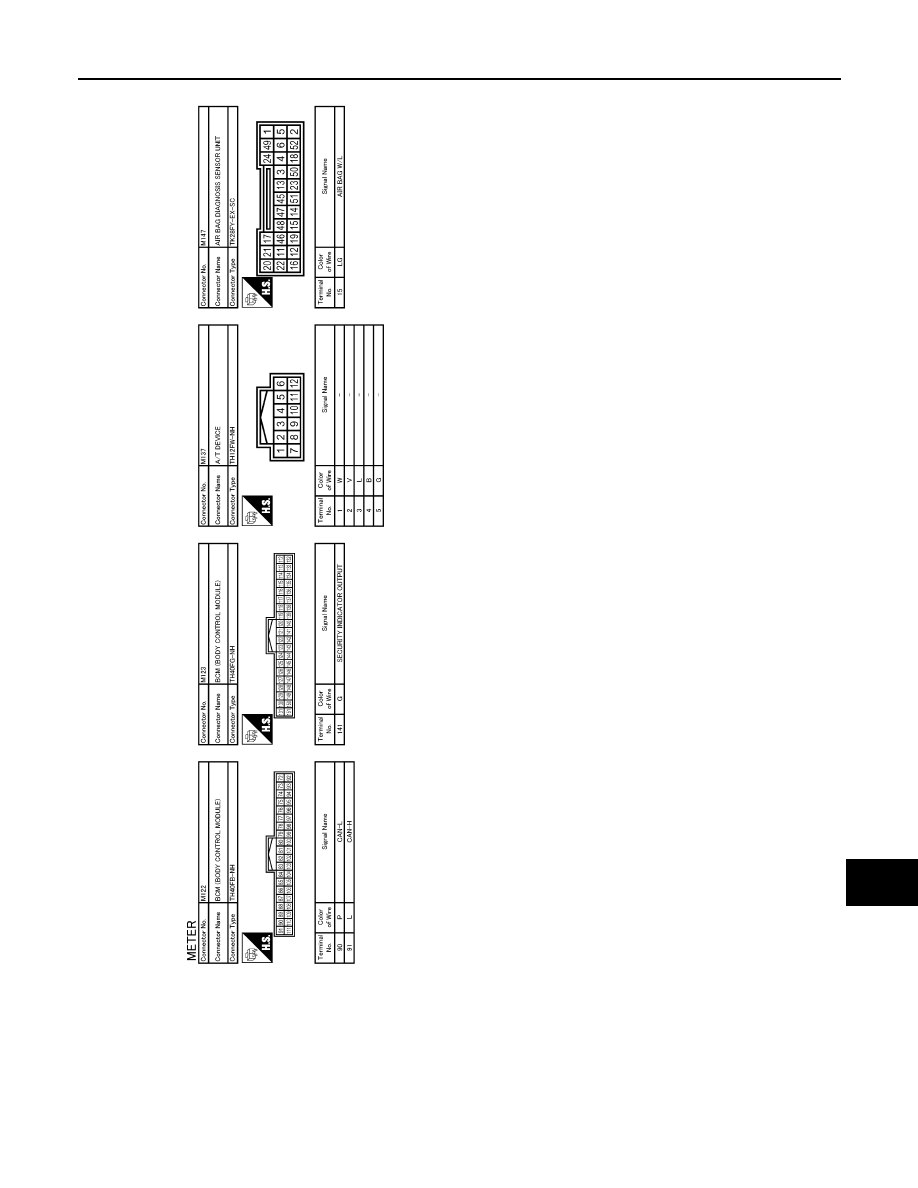

JCNWA0010GB

WCS-58

< ECU DIAGNOSIS >

UNIFIED METER AND A/C AMP.

DTC Index

INFOID:0000000000964506

Function

Specifications

Speedometer

Reset to zero by suspending communication.

Tachometer

Fuel gauge

Water temperature gauge

Illumination control

When suspending communication, change to nighttime mode.

Information display

The display turns off by suspending communication.

Buzzer

The buzzer turns off by suspending communication.

Warning lamp/indicator
lamp

ABS warning lamp

The lamp turns on by suspending communication.

VDC OFF indicator lamp

SLIP indicator lamp

Brake warning lamp

CRUISE warning lamp

BA warning lamp

AWD warning lamp

Low tire pressure warning lamp

4WAS warning lamp

AFS OFF indicator lamp

The lamp blinking caused by communication malfunction

High beam indicator

The lamp turns off by suspending communication.

Turn signal indicator lamp

Front fog indicator lamp

Oil pressure warning lamp

Malfunction indicator lamp

A/T CHECK warning lamp

Key warning lamp

Master warning lamp

Display contents of CON-

SULT-III

Time

Diagnostic item is detected when ...

Refer to

CAN COMM CIRCUIT
[U1000]

CRNT, 1 - 39

When unified meter and A/C amp. is not transmitting or receiving CAN
communication signal for 2 seconds or more.

MWI-40

CONTROL UNIT (CAN)
[U1010]

CRNT, 1 - 39

When detecting error during the initial diagnosis of CAN controller of
unified meter and A/C amp.

MWI-41

COMM ERROR 1
[B2201]

CRNT, 1 - 39

If a communication error is present in the communication line between
unified meter and A/C amp. and combination meter for 2 seconds or
more.

MWI-42

COMM ERROR 2
[B2202]

CRNT, 1 - 39

If a communication error is present in the communication line between
unified meter and A/C amp. and combination meter for 2 seconds or
more.

MWI-44

VEHICLE SPEED
[B2205]

CRNT, 1 - 39

The abnormal vehicle speed signal is input from ABS actuator and elec-
tric unit (control unit) for 2 seconds or more.

MWI-46

ENGINE SPEED
[B2267]

CRNT, 1 - 39

If ECM continuously transmits abnormal engine speed signals for 2 sec-
onds or more.

MWI-47

WATER TEMP
[B2268]

CRNT, 1 - 39

If ECM continuously transmits abnormal engine coolant temperature
signals for 60 seconds or more.

MWI-48

WCS

BCM (BODY CONTROL MODULE)

WCS-59

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

BCM (BODY CONTROL MODULE)

Reference Value

INFOID:0000000000964507

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

FR WIPER HI

Other than front wiper switch HI

OFF

Front wiper switch HI

ON

FR WIPER LOW

Other than front wiper switch LO

OFF

Front wiper switch LO

ON

FR WASHER SW

Front washer switch OFF

OFF

Front washer switch ON

ON

FR WIPER INT

Other than front wiper switch INT

OFF

Front wiper switch INT

ON

FR WIPER STOP

Front wiper is not in STOP position

OFF

Front wiper is in STOP position

ON

INT VOLUME

Wiper intermittent dial is in a dial position 1 - 7

Wiper intermittent dial position

TURN SIGNAL R

Other than turn signal switch RH

OFF

Turn signal switch RH

ON

TURN SIGNAL L

Other than turn signal switch LH

OFF

Turn signal switch LH

ON

TAIL LAMP SW

Other than lighting switch 1ST and 2ND

OFF

Lighting switch 1ST or 2ND

ON

HI BEAM SW

Other than lighting switch HI

OFF

Lighting switch HI

ON

HEAD LAMP SW 1

Other than lighting switch 2ND

OFF

Lighting switch 2ND

ON

HEAD LAMP SW 2

Other than lighting switch 2ND

OFF

Lighting switch 2ND

ON

PASSING SW

Other than lighting switch PASS

OFF

Lighting switch PASS

ON

AUTO LIGHT SW

Other than lighting switch AUTO

OFF

Lighting switch AUTO

ON

FR FOG SW

Front fog lamp switch OFF

OFF

Front fog lamp switch ON

ON

RR FOG SW

NOTE:
The item is indicated, but not monitored.

OFF

DOOR SW-DR

Driver door closed

OFF

Driver door opened

ON

DOOR SW-AS

Passenger door closed

OFF

Passenger door opened

ON

DOOR SW-RR

Rear RH door closed

OFF

Rear RH door opened

ON

DOOR SW-RL

Rear LH door closed

OFF

Rear LH door opened

ON
