Infiniti G35 (V35) Sedan. Manual - part 143





AV-344

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

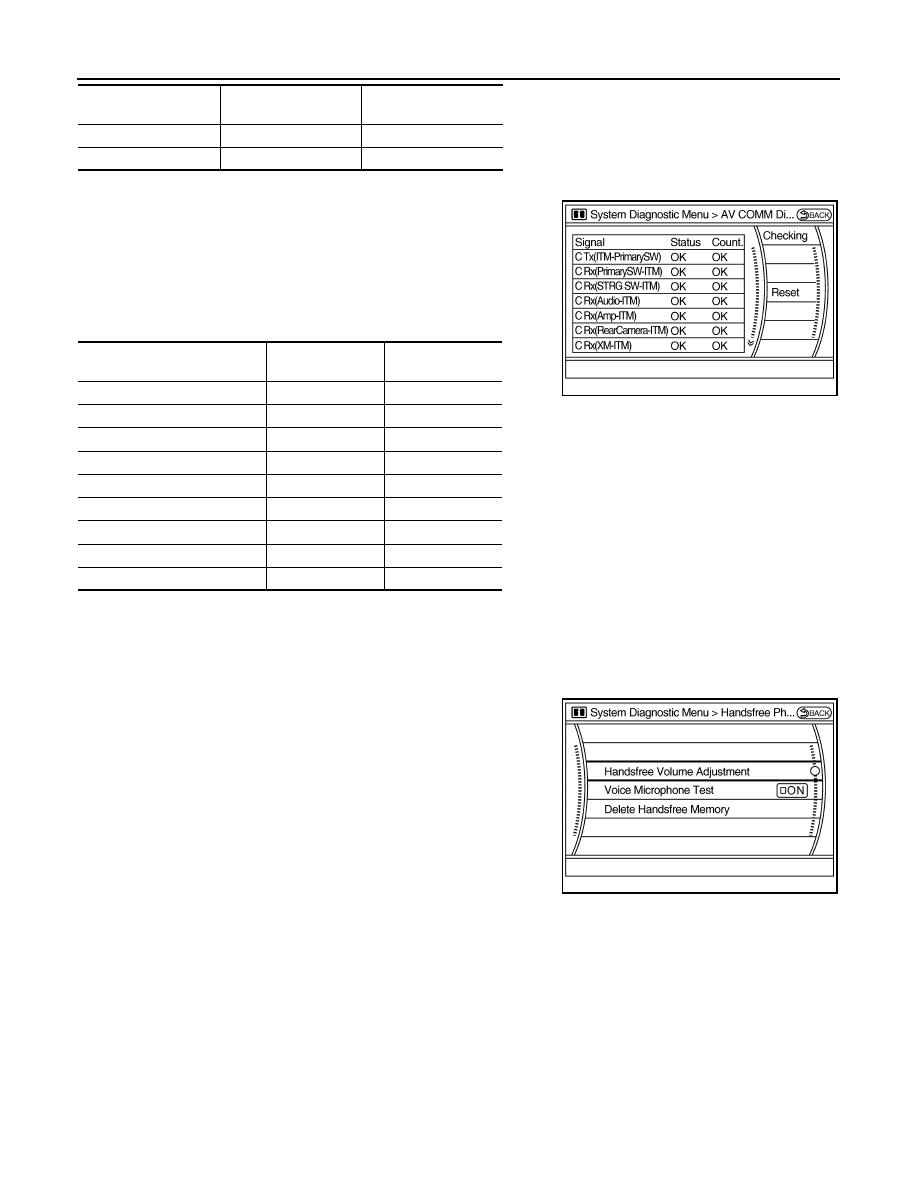

AV COMM Diagnosis

• Displays the communication status between AV control unit (mas-

ter unit) and each unit.

• The error counter displays “OK” if any malfunction was not

detected in the past and displays “0” if a malfunction is detected. It
increases by 1 if the condition is normal at the next ignition switch
ON cycle. The upper limit of the counter is 39.

• If it resets, the error counter is erased.

NOTE:

• Any units with “—” displayed have no history of vehicle connection.

• “Audio” and “Amp” indicate the same status because “Amp” indicates the status of the amplifier integrated in the AV control unit.

• “STRG SW”, “Amp”“XM” indicate the same status as “Audio”.

Handsfree Phone

The hands-free phone reception volume adjustment, microphone
and speaker test, and memory erase functions are also available.

Camera Cont.

The two functions of “Connection Confirmation” and “Adjust Offset of Rear view Camera” are available.
CONNECTION CONFIRAMATION

Rx (HVAC)

OK / UNKWN

OK / 0 – 39

Rx (USM)

OK / UNKWN

OK / 0 – 39

Items

Display (Current)

Malfunction counter

(Past)

Items

Status

(Current)

Counter

(Past)

C Tx(ITM–PrimarySW)

OK / UNKWN

OK / 0 – 39

C Rx(PrimarySW–ITM)

OK / UNKWN

OK / 0 – 39

C Rx(STRG SW–ITM)

OK / UNKWN

OK / 0 – 39

C Rx (Audio–ITM)

OK / UNKWN

OK / 0 – 39

C Rx(Amp–ITM)

OK / UNKWN

OK / 0 – 39

C Rx(RearCamera–ITM)

OK / UNKWN

OK / 0 – 39

C Rx(XM–ITM)

OK / UNKWN

OK / 0 – 39

C Rx(Amp–Audio)

C Tx(Audio–ITM)

OK / UNKWN

OK / 0 – 39

JSNIA0081GB

JSNIA0083GB

AV

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-345

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

The steering angle sensor, reverse signal and vehicle speed sensor
can be inspected.

ADJUST OFFSET OF REAR VIEW CAMERA
Use this mode to adjust the guide line display position of the rear-
view monitor if necessary after removing the rear view monitor cam-
era.

Bluetooth

Passkey confirmation/change
• The passkey of Bluetooth can be confirmed and changed.
• The passkey can be changed by four digits within 0 to 9.

Device name check/change

JSNIA0084GB

Diagnosis item

Display

Vehicle status

Steer. Angle Sensor

ON

When steering the vehicle with ignition switch ON (remains ON until connection
mode is stopped when it is turned ON)

OFF

• Ignition switch at ACC
• No steering with ignition switch ON

Malfunction detected in camera-connection recognition signal

Reverse Sensor

ON

Selector lever is in “R” with ignition switch ON.

OFF

• Ignition switch at ACC
• Selector lever is in position other than “R” with ignition switch ON.

Malfunction detected in camera-connection recognition signal

Vehicle Speed Sensor

ON

Vehicle speed is more than 0 km/h with ignition switch ON

OFF

• Ignition switch at ACC
• Vehicle speed is 0 km/h with ignition switch ON

Malfunction detected in camera-connection recognition signal

Side view Switch

JSNIA0085GB

JSNIA0086GB

AV-346

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

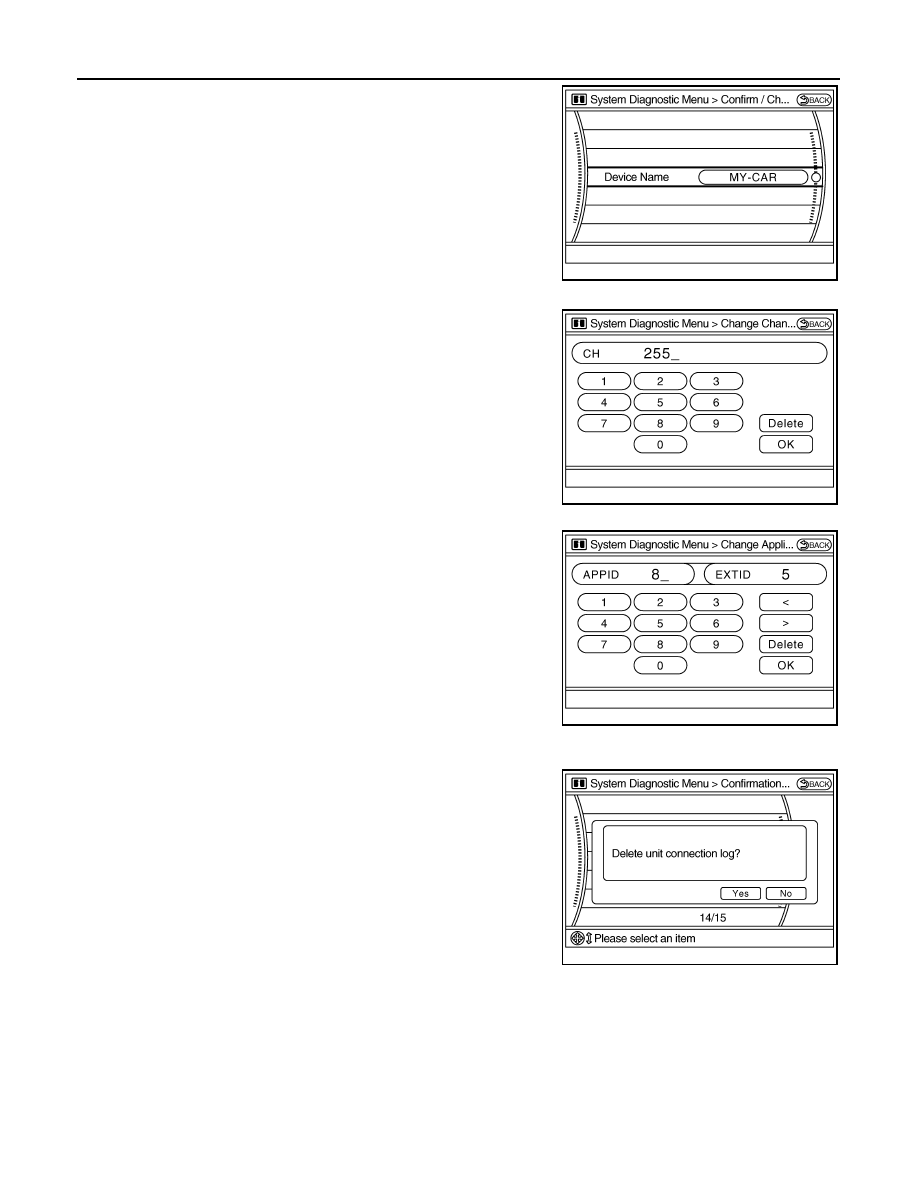

• The device name of Bluetooth can be confirmed and changed.
• The device name can be changed by sixteen digits within A to Z

(small character can be used) and - (hyphen).

SAT

• Change Channel
- Any necessary channels required to receive traffic information from

the satellite radio system can be set.

• Change Application ID
- Any application ID's required to receive traffic information from the

satellite radio system can be set.

Delete Unit Connection Log

Deletes any unit connection records and error records from the AV
control unit memory. (Clear the records of the unit that has been
removed)

Initialize Settings

JSNIA0087GB

JSNIA0092GB

JSNIA0093GB

JSNIA0088GB

AV

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-347

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

Deletes data stored in HDD.

CONSULT - III Function

INFOID:0000000000964781

CONSULT-III functions

CONSULT-III performs the following functions via the communication with the AV control unit.

Self-diagnosis results

• In CONSULT-III self-diagnosis, self-diagnosis results and error history are displayed collectively.
• The current malfunction indicates “CRNT”. The past malfunction indicates “PAST”.
• The timing is displayed as “0” if any of the error codes [U1000], [U1010], [U1300] and [U1310] is detected.

The counter increases by 1 if the condition is normal at the next ignition switch ON cycle.

Self-diagnosis detection range

Self-diagnosis results display item

JSNIA0095GB

Diagnosis mode

Description

SELF-DIAG RESULTS

Performs a diagnosis on the AV control unit and a connection diagnosis for the communication
circuit of the Multi AV system, and displays the current and past malfunctions collectively.

DATA MONITOR

The diagnosis of vehicle signal that is input to the AV control unit can be performed.

AV COMM MONITOR

Allows the technician to monitor the status of the Multi AV system communication signals.

ECU PART NUMBER

The part number of AV control unit can be checked.

JSNIA0181GB
