TM-304

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

TRANSMISSION ASSEMBLY

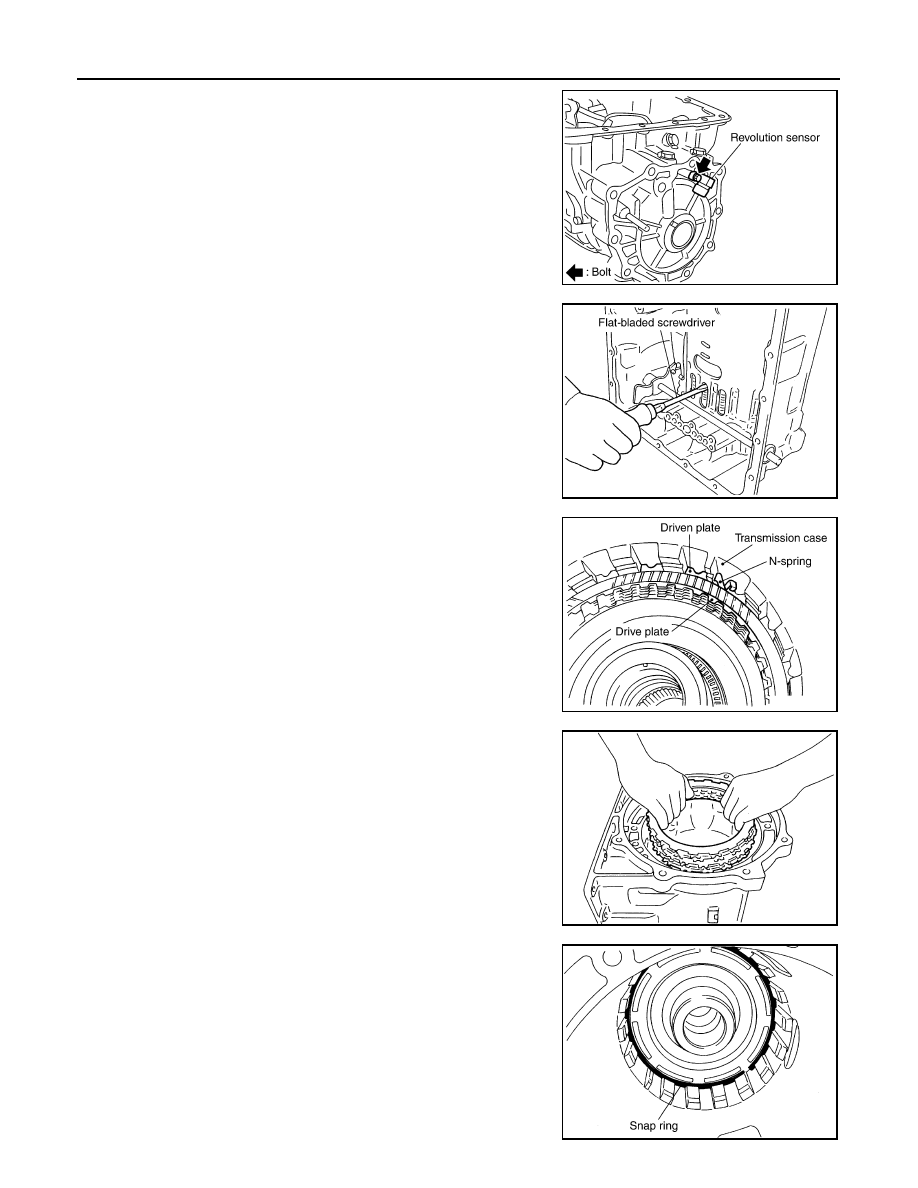

45. Remove revolution sensor from transmission case.

CAUTION:

• Do not subject it to impact by dropping or hitting it.
• Do not disassemble.
• Do not allow metal filings, etc. to get on the sensor's front

edge magnetic area.

• Do not place in an area affected by magnetism.

46. Remove reverse brake snap ring (fixing plate) using 2 flat-

bladed screwdrivers.
NOTE:
Press out snap ring from the transmission case oil pan side gap
using a flat-bladed screwdriver, and remove it using a another
screwdriver.

47. Remove reverse brake retaining plate from transmission case.

• Check facing for burns, cracks or damage. If necessary,

replace the plate.

48. Remove N-spring from transmission case.

49. Remove reverse brake drive plates, driven plates, dish plates

and retaining plate transmission case.
• Check facing for burns, cracks or damage. If necessary,

replace the plate.

50. Remove snap ring (fixing spring retainer) using a flat-bladed

screwdriver.

SCIA2320E

SCIA5032E

SCIA5214E

SCIA2322E

SCIA2323E

TRANSMISSION ASSEMBLY

TM-305

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

51. Remove spring retainer and return spring from transmission

case.

52. Remove seal rings from drum support.

53. Remove needle bearing from drum support edge surface.

54. Remove reverse brake piston from transmission case with com-

pressed air. Refer to

TM-287, "Oil Channel"

.

CAUTION:

Care should be taken not to abruptly blow air. It makes pis-
tons incline, as the result, it becomes hard to disassemble
the pistons.

SCIA2324E

SCIA3333E

SCIA2796E

SCIA5047E

TM-306

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

TRANSMISSION ASSEMBLY

55. Remove D-rings from reverse brake piston.

56. Use a pin punch [4 mm (0.16 in) dia. commercial service tool] to

knock out retaining pin.

57. Remove manual shaft retaining pin with pair of nippers.

58. Remove manual plate (with parking rod) from manual shaft.

59. Remove parking rod from manual plate.

SCIA6330E

SCIA2328E

SCIA2329E

SCIA5715E

SCIA5220E

TRANSMISSION ASSEMBLY

TM-307

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

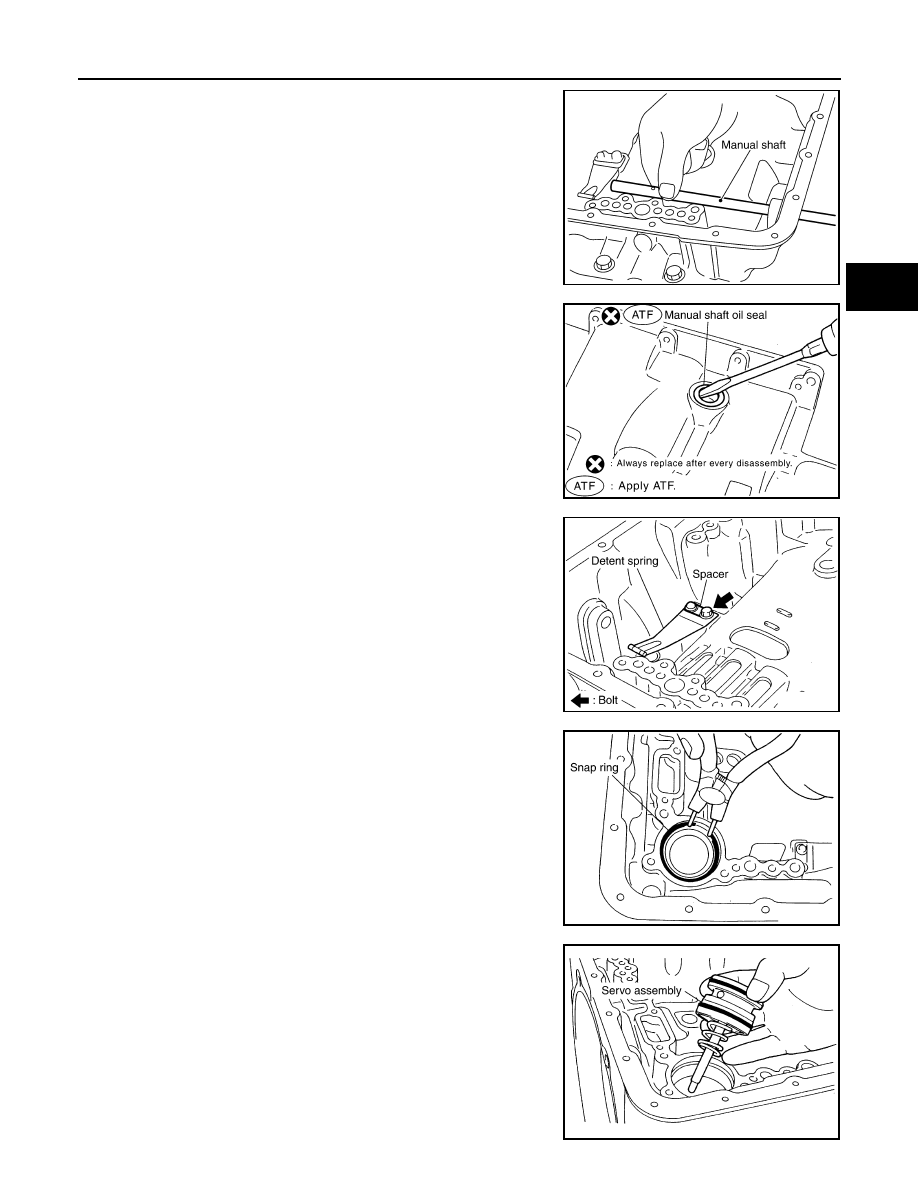

60. Remove manual shaft from transmission case.

61. Remove manual shaft oil seals using a flat-bladed screwdriver.

CAUTION:

Be careful not to scratch transmission case.

62. Remove detent spring and spacer from transmission case.

63. Using pair of snap ring pliers, remove snap ring from transmis-

sion case.

64. Remove servo assembly (with return spring) from transmission

case.

SCIA5716E

SCIA2331E

SCIA5248E

SCIA2333E

SCIA5679E
