Infiniti G35 (V35) Sedan. Manual - part 138





AV-324

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

NAVIGATION SYSTEM

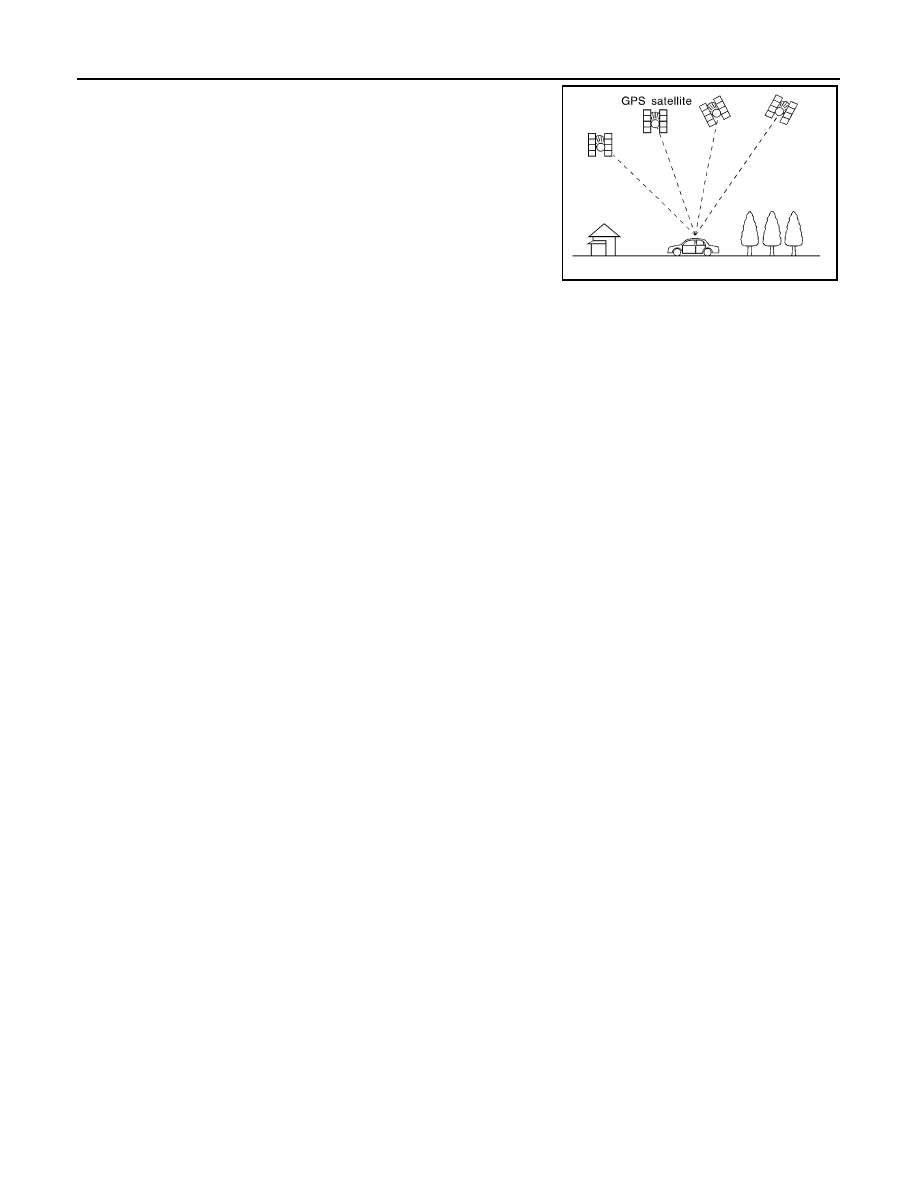

GPS (Global Positioning System) is developed for and is controlled
by the US Department of Defense. The system utilizes GPS satel-
lites (NAVSTAR), sending out radio waves while flying on an orbit
around the earth at an altitude of approximately 21,000 km.
The receiver calculates the travel position in three dimensions (lati-
tude/longitude/altitude) according to the time lag of the radio waves
that four or more GPS satellites transmit (three-dimensional position-
ing). The GPS receiver calculates the travel position in two dimen-
sions (latitude/longitude) with the previous altitude data if the GPS
receiver receives only three radio waves (two-dimensional position-
ing). GPS position correction is not performed while stopping the
vehicle.

Accuracy of the GPS will deteriorate under the following conditions:
• In two-dimensional positioning, GPS accuracy will deteriorate when altitude of the vehicle position changes.
• The position of GPS satellite affects GPS detection precision. The position detection may not be precisely

performed.

• The position detection is not performed if GPS receiver does not receive radio waves from GPS satellites.

(Inside a tunnel, parking in a building, under an elevated highway etc.) GPS receiver may not receive radio
waves from GPS satellites if any object is placed on the GPS antenna.

NOTE:
• The detection result has an error of approximately 10 m even with a high-precision three dimensional posi-

tioning.

• There may be the cases that the accuracy is lowered and radio waves are stopped intentionally because the

GPS satellite signal is controlled by the US trace control center.

Component Parts Location

INFOID:0000000000964770

SEL526V

AV

NAVIGATION SYSTEM

AV-325

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

Component Description

INFOID:0000000000964771

1.

Center speaker

2.

Tweeter LH

3.

Front door squawker LH

4.

Front door woofer LH

5.

Rear door speaker

6.

Antenna amp.

7.

BOSE amp.

8.

CD changer

9.

Woofer

10. Rear view camera

11. Camera control unit

12. Rear door speaker RH

13. Satellite radio antenna

14. Auxiliary input jacks

15. Front door woofer RH

16. Front door squawker RH

17. Tweeter RH

18. Microphone

19. GPS antenna

20. Steering switch

21. Steering angle sensor

22. Preset switch

23. AV control unit

24. Multifunction switch

25. Display unit

A.

Within rear pillar finisher LH

B.

Lower part of rear parcel shelf (inside
of CD changer)

C.

Rear parcel shelf lower part (left side)

D.

Trunk room right side

E.

Spiral cable part

F.

Instrument panel rear side

JSNIA0170ZZ

AV-326

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

NAVIGATION SYSTEM

Part name

Description

AV CONTORL UNIT

• It is the master unit that controls each operation of the Navigation system.
• The HDD (Hard Disk Drive) is built in, and the map data is stored in HDD.
• The RGB signal (map information) is output to the display.
• The voice guidance signal is output to the BOSE amp.

DISPLAY UNIT

• Map image signal is input from AV control unit, and it is indicated on the dis-

play.

• Each operation of navigation can be performed by the touch panel function.

BOSE AMP.

Voice guidance signal is input from AV control unit, and it is output to front LH/
RH speakers.

FRONT DOOR WOOFER

Voice guidance signal from BOSE amp. is output.

FRONT DOOR SQUAWKER

TWEETER

MULTIFUNCTION SWITCH

• Each operation of navigation can be performed.
• Connected with preset switch via cable and operation signal is sent to AV

control unit via AV communication.

STEERING SWITCH

• Each operation of navigation, etc. can be performed.
• Switch operating signal is output to AV control unit.

GPS ANTENNA

GPS signal is received and is output to AV control unit.

AV

REAR VIEW MONITOR SYSTEM

AV-327

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

REAR VIEW MONITOR SYSTEM

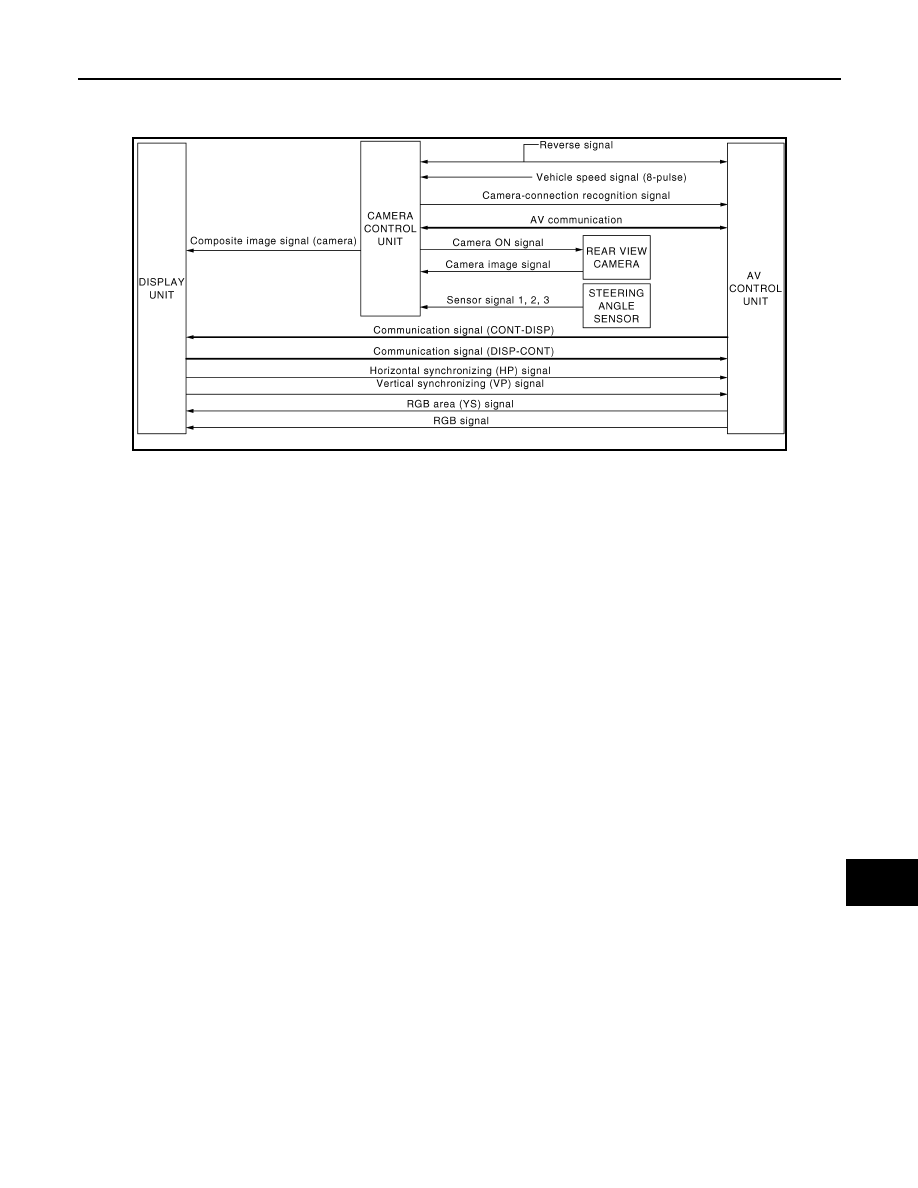

System Diagram

INFOID:0000000000964772

System Description

INFOID:0000000000964773

Camera image operation principle

• Power is supplied to rear view camera from camera control unit and outputs camera image signal to camera

control unit when selector lever is set to R position and the reverse signal on camera control unit is input.

• Camera control unit synthesizes guide lines and possible route lines with camera image signal from rear

view camera, and transmits camera image signal to the display. In this case, since the reverse signal is also
input to AV control unit, the AV control unit recognizes the selector lever as in R position, and it switches
communication signal between AV control unit and display unit, and image that is displayed on the display
unit by RGB signal with rear view monitor image. In addition, possible route lines are controlled by original
sensor signal from steering angle sensor.

• The AV control unit determines whether rear view camera is equipped or not, based on the presence of cam-

era connection recognition signal. It switches to rear view monitor image at the time of reverse signal input
when it is not equipped.

• Warning message under the rear view monitor display is described by AV control unit.
• AV control unit is connected in communication with camera control unit and display unit, and it controls oper-

ation of rear view monitor system.

Component Parts Location

INFOID:0000000000964774

JSNIA0057GB
