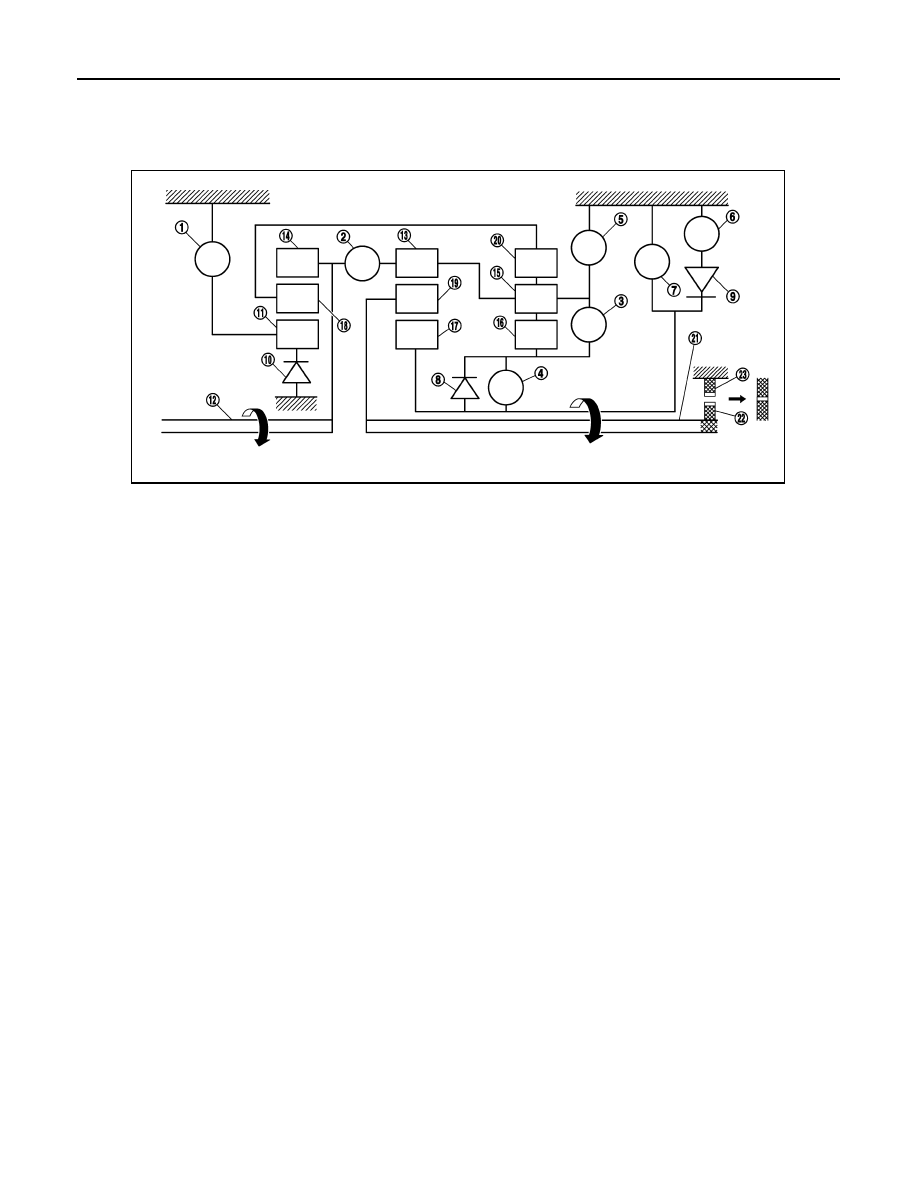

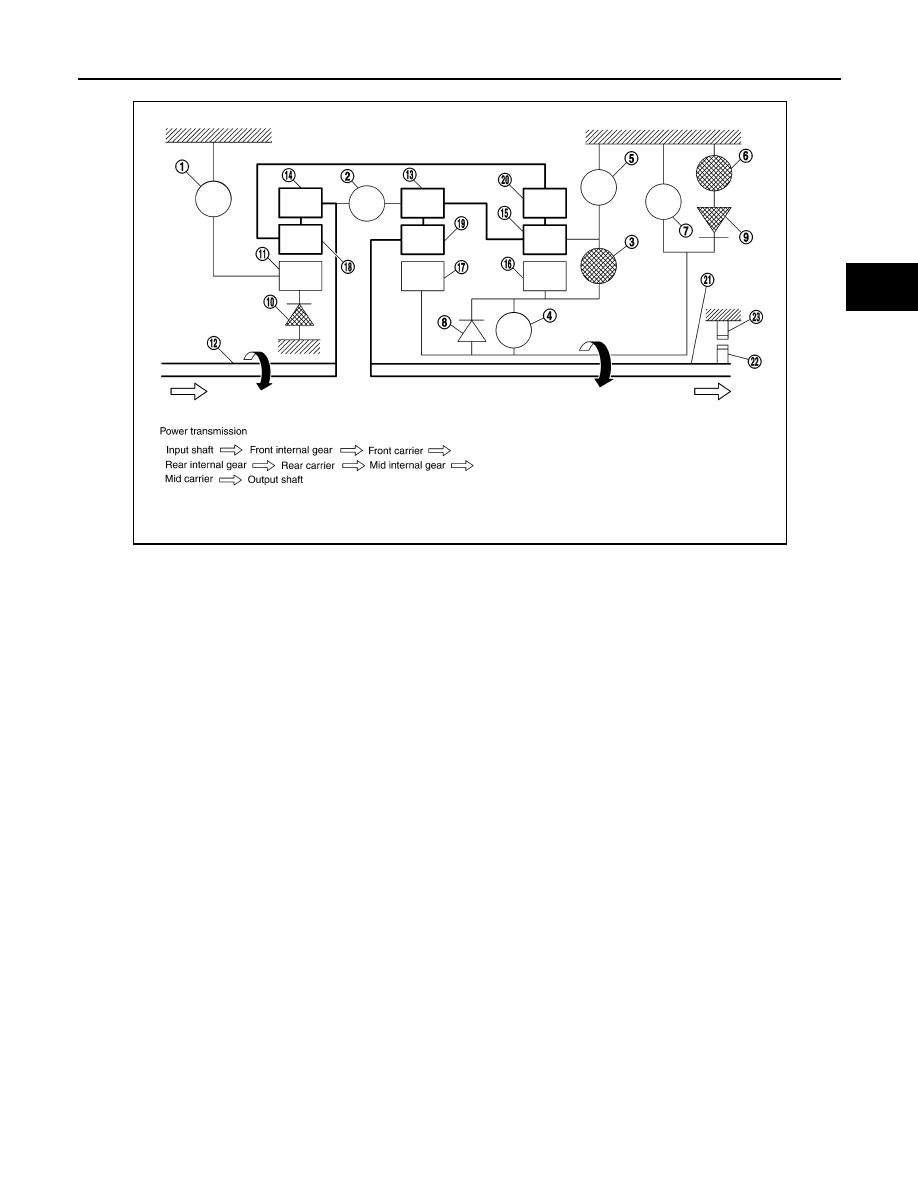

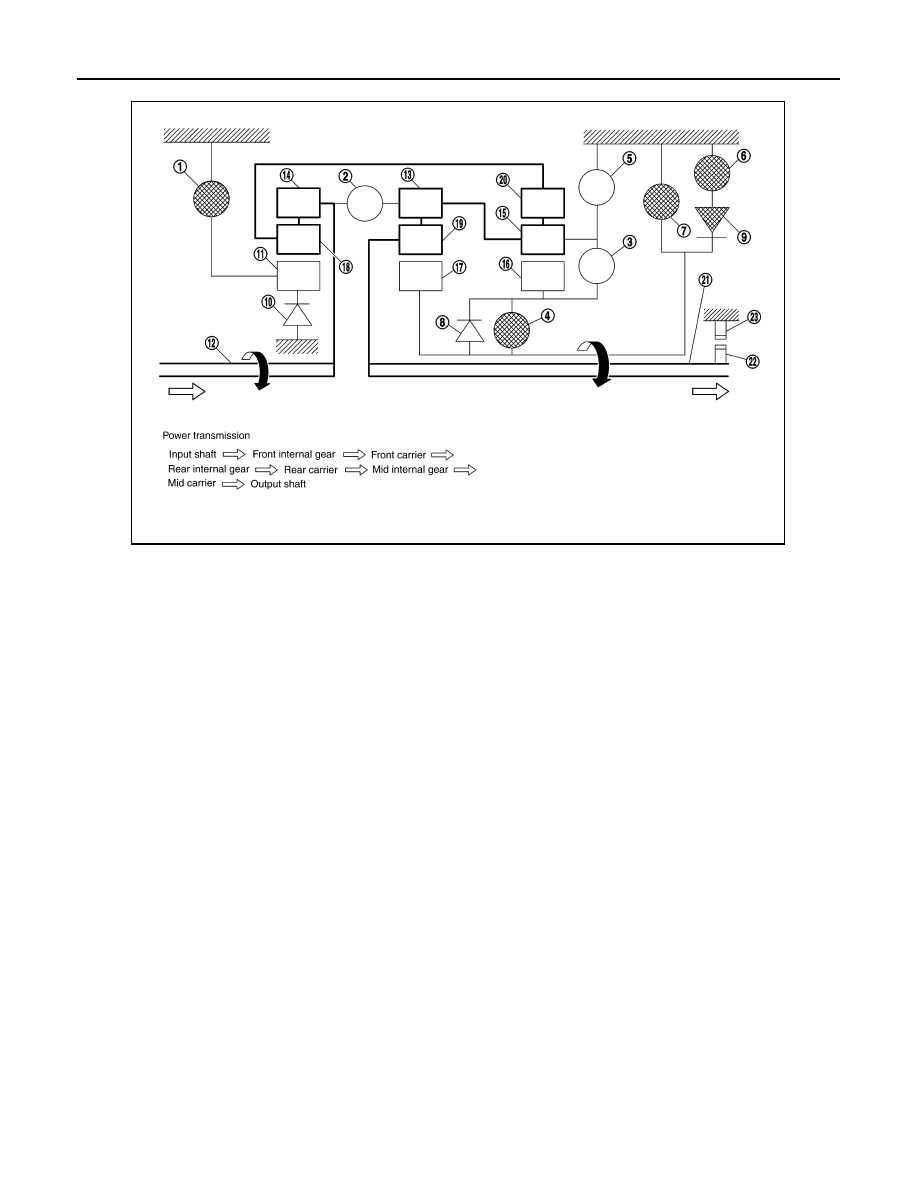

TM-96 < FUNCTION DIAGNOSIS > [5AT: RE5R05A] SHIFT MECHANISM • The same as for the “N” position, both the forward brake and the reverse brake are released, so torque from the input shaft drive is not transmitted to the output shaft. • The parking pawl linked with the selector lever meshes with the parking gear and fastens the output shaft mechanically. “D 1 ”, “DS 1 ” Position • The forward brake and the forward one-way clutch regulate reverse rotation of the mid sun gear. brake is not activated. 1. Front brake 2. Input clutch 3. Direct clutch 4. High and low reverse clutch 5. Reverse brake 6. Forward brake 7. Low coast brake 8. 1st one-way clutch 9. Forward one-way clutch 10. 3rd one-way clutch 11. Front sun gear 12. Input shaft 13. Mid internal gear 14. Front internal gear 15. Rear carrier 16. Rear sun gear 17. Mid sun gear 18. Front carrier 19. Mid carrier 20. Rear internal gear 21. Output shaft 22. Parking gear 23. Parking pawl PCIA0003J |
