Infiniti G35 (V35) Sedan. Manual - part 1340





TM-52

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

TRANSMISSION ASSEMBLY

7.

Tighten baffle plate mounting nut to the specified torque.

8.

Apply multi-purpose grease to lip of front cover oil seal (1).

9.

Install front cover oil seal to front cover using the drift (A) [SST:
KV38102100 (J-25803-01)].

CAUTION:

• Do not reuse front cover oil seal.
• When installing, do not incline front cover oil seal.

10. Install front cover gasket and front cover to transmission case.

CAUTION:

• Do not reuse front cover gasket.
• Do not damage front cover oil seal.

11. Temporary tightening 2 bolts in the positions shown in the figure.

SCIA1443E

Dimension “H”

: 8.55 - 9.55 mm (0.3366 - 0.3760 in)

JPDIC0028ZZ

PCIB0454J

TRANSMISSION ASSEMBLY

TM-53

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

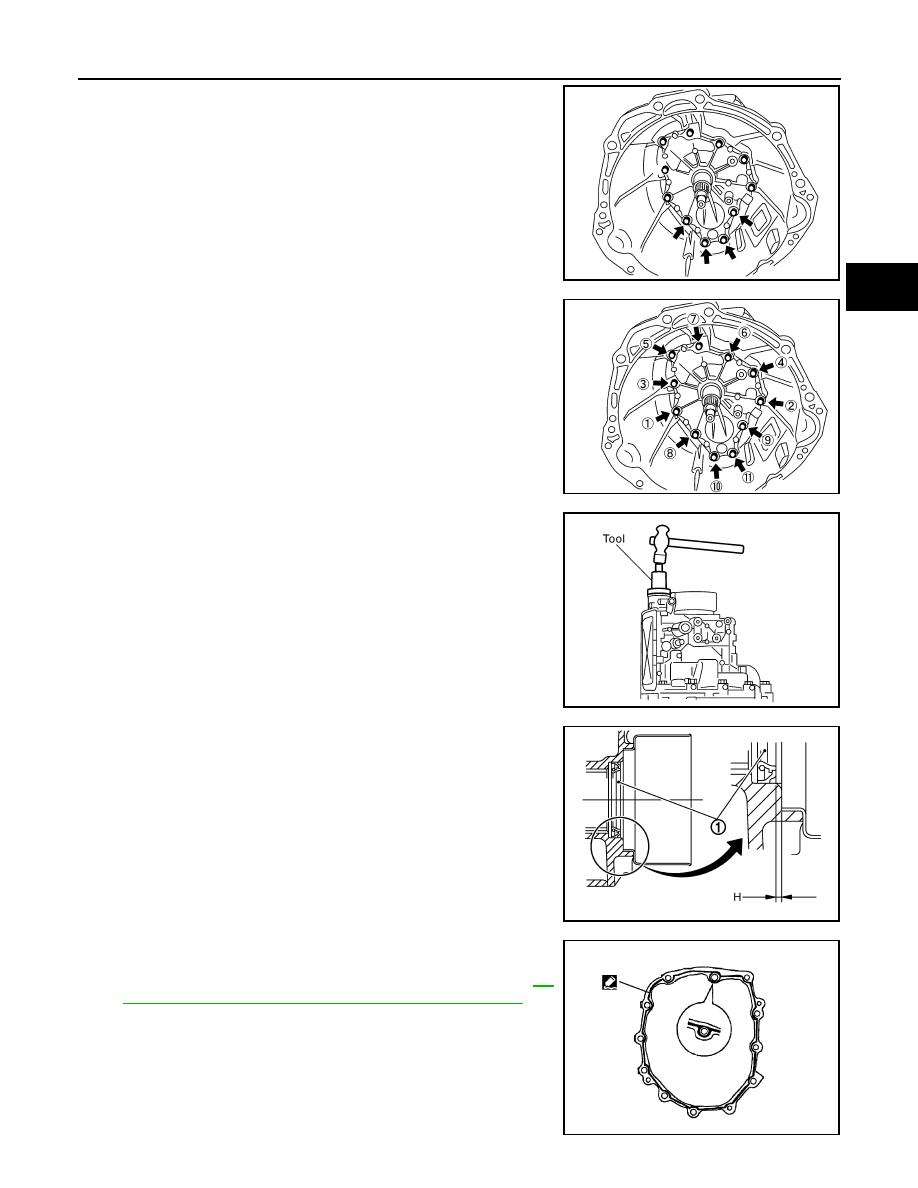

12. Temporary tightening remaining 9 bolts.

CAUTION:

Four bolts pointed by arrows in the figure are not reusable.

13. Tighten bolts to the specified torque in order as shown on the

figure.

14. Install rear extension oil gutter and cap to rear extension and

then tighten mounting bolt to specified torque.

15. Install bracket to transmission case and then tighten mounting

bolt to specified torque.

16. Apply recommended grease to reverse idler needle bearing.
17. Install reverse idler shaft, reverse idler needle bearing, reverse

idler gear and reverse idler thrust washer to adapter plate.

18. Apply multi-purpose grease to striking rod oil seal lip.

CAUTION:

Do not reuse striking rod oil seal.

19. Install striking rod oil seal to rear extension using the drift [SST:

ST33061000 (J-8107-2)].

CAUTION:

When installing, do not incline striking rod oil seal.

20. Apply multi-purpose grease to lip of rear oil seal (1).

CAUTION:

Do not reuse rear oil seal.

21. Install rear oil seal to rear extension using the drift [SST:

ST33400001 (J-26082)].

CAUTION:

When installing, do not incline rear oil seal.

22. Apply recommended sealant to adapter plate rear extension

mounting surface as shown in the figure.
• Use Genuine Silicone RTV or an equivalent. Refer to

GI-

15, "Recommended Chemical Products and Sealants"

.

CAUTION:

Remove old sealant adhering to the mounting surfaces.
Also remove any moisture, oil, or foreign material adhering
to both mounting surfaces.

PCIB0455J

PCIB0258E

PCIB0213E

Dimension “H”

: 1.2 - 2.2 mm (0.047 - 0.087 in)

JPDIC0033ZZ

PCIB1374E

TM-54

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

TRANSMISSION ASSEMBLY

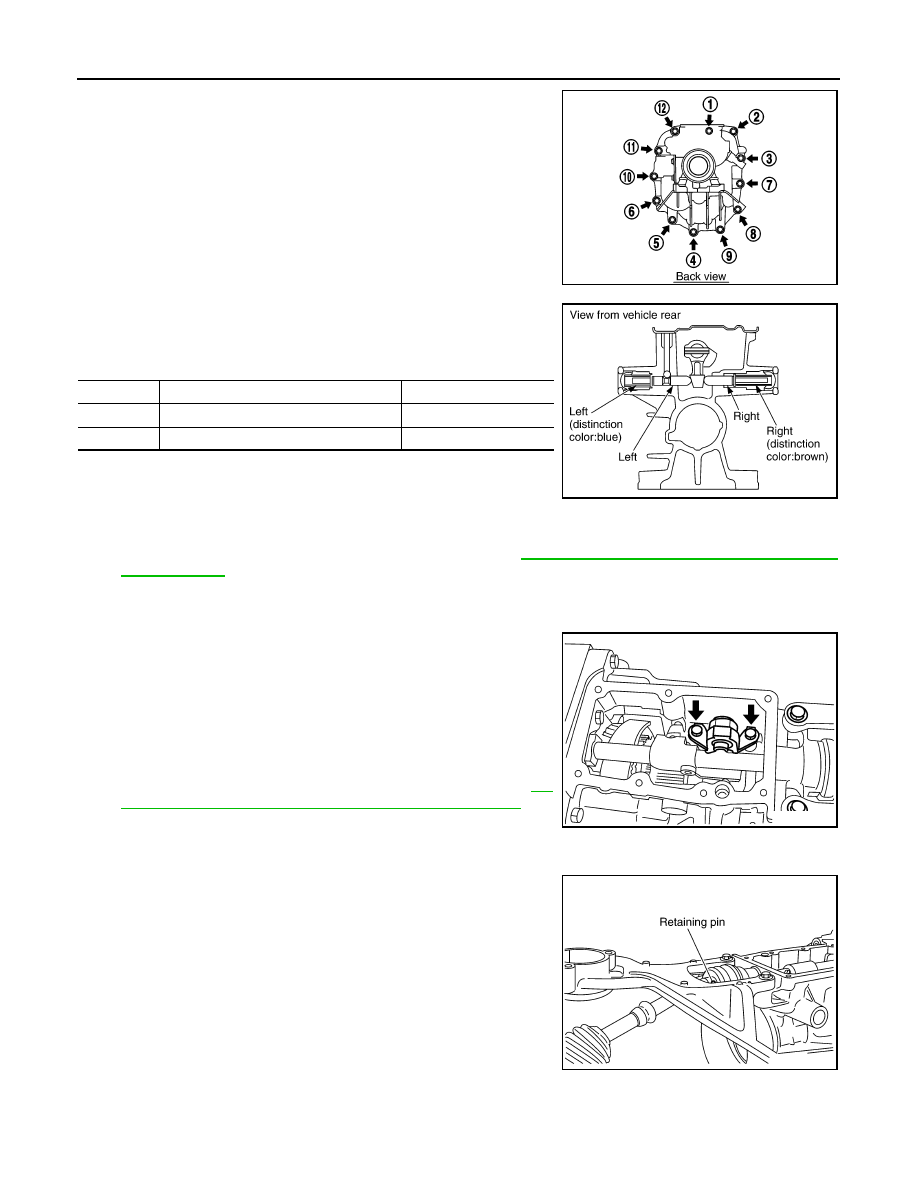

23. Install rear extension to adapter plate and then tighten mounting

bolts to the specified torque in order as shown on the figure.

CAUTION:

Do not damage rear oil seal and striking rod oil seal.

24. Install control lever housing to rear extension and then tighten

mounting bolts to the specified torque.

CAUTION:

Do not hold control lever housing to prevent bushing of
control lever housing from deformation when moving trans-
mission assembly.

25. Apply gear oil to return spring plungers.
26. Install return spring plungers and return springs into rear exten-

sion.

CAUTION:

The right and left return springs and return spring plungers
are different, so make sure they are installed correctly.

27. Apply recommended sealant to threads of return spring plugs and then tighten return spring plugs to the

specified torque.
• Use Genuine Silicone RTV or an equivalent. Refer to

GI-15, "Recommended Chemical Products

and Sealants"

.

CAUTION:

Remove old sealant and oil adhering to threads.

28. Install shift check pin as a one unit with control bracket to rear

extension and then tighten mounting bolts to the specified
torque.

29. Install plunger to rear extension and then screwing park/neutral

position (PNP) switch and back-up lamp switch to rear extension
with 1 - 2 pitches.

30. Apply recommended sealant to threads of switches and tighten

switches to the specified torque.
• Use Genuine Silicone RTV or an equivalent. Refer to

GI-

15, "Recommended Chemical Products and Sealants"

.

CAUTION:

Remove old sealant and oil adhering to threads.

31. Install brackets to rear extension and then tighten bracket mounting bolts to the specified torque.

32. Install boot and control rod to striking rod.

33. Install the retaining pin into the control rod using a pin punch.

Then fit the boot to the striking rod oil seal and the groove on the
control rod.

CAUTION:

Do not reuse retaining pin.

34. Install boot to control rod.

CAUTION:

Fit the boot to the groove on the control rod.

PCIB0256E

Region

Return spring identification mark

Plunger groove

RH

Brown

No

LH

Blue

Yes

SCIA1607E

PCIB1346E

PCIB1345E

TRANSMISSION ASSEMBLY

TM-55

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

35. Install check ball and check select spring into rear extension.

36. Install rear extension upper cover gasket and rear extension upper cover to rear extension.

CAUTION:

• Do not reuse rear extension upper cover gasket.
• Avoid tangling check select spring.

37. Tighten rear extension upper cover bolts to the specified torque

in order as shown on the figure.

38. Install gasket to drain plug and then install it to transmission

case. Tighten drain plug to the specified torque.

CAUTION:

Do not reuse gasket.

39. Install gasket to filler plug and then install it to transmission

case. Tighten filler plug to the specified torque.

CAUTION:

• Do not reuse gasket.
• After oil is filled, tighten filler plug to specified torque.

PCIB1344E

PCIB1353E
