Infiniti G35 (V35) Sedan. Manual - part 1330

TM-12

< PREPARATION >

[6MT: FS6R31A]

PREPARATION

PREPARATION

PREPARATION

Special Service Tools

INFOID:0000000000956953

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

KV381054S0
(J-34286)
Puller

Removing rear oil seal

ST33400001
(J-26082)
Drift
a: 60 mm (2.36 in) dia.
b: 47 mm (1.85 in) dia.

Installing rear oil seal

ST22490000
(

—

)

Adapter setting plate

Holding a adapter plate

ST33200000
(J-26082)
Drift
a: 60 mm (2.36 in) dia.
b: 44.5 mm (1.752 in) dia.

Installing counter rear bearing

KV32103300
(J-46529)
Press plate
a: 73 mm (2.87 in)

Installing reverse synchronizer assembly

ST01530000
(

—

)

Drift
a: 50 mm (1.97 in) dia.
b: 41 mm (1.61 in) dia.

Installing reverse synchronizer assembly

ZZA0601D

ZZA0814D

ZZC0465D

ZZA1002D

PCIB0165J

ZZA0534D

PREPARATION

TM-13

< PREPARATION >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

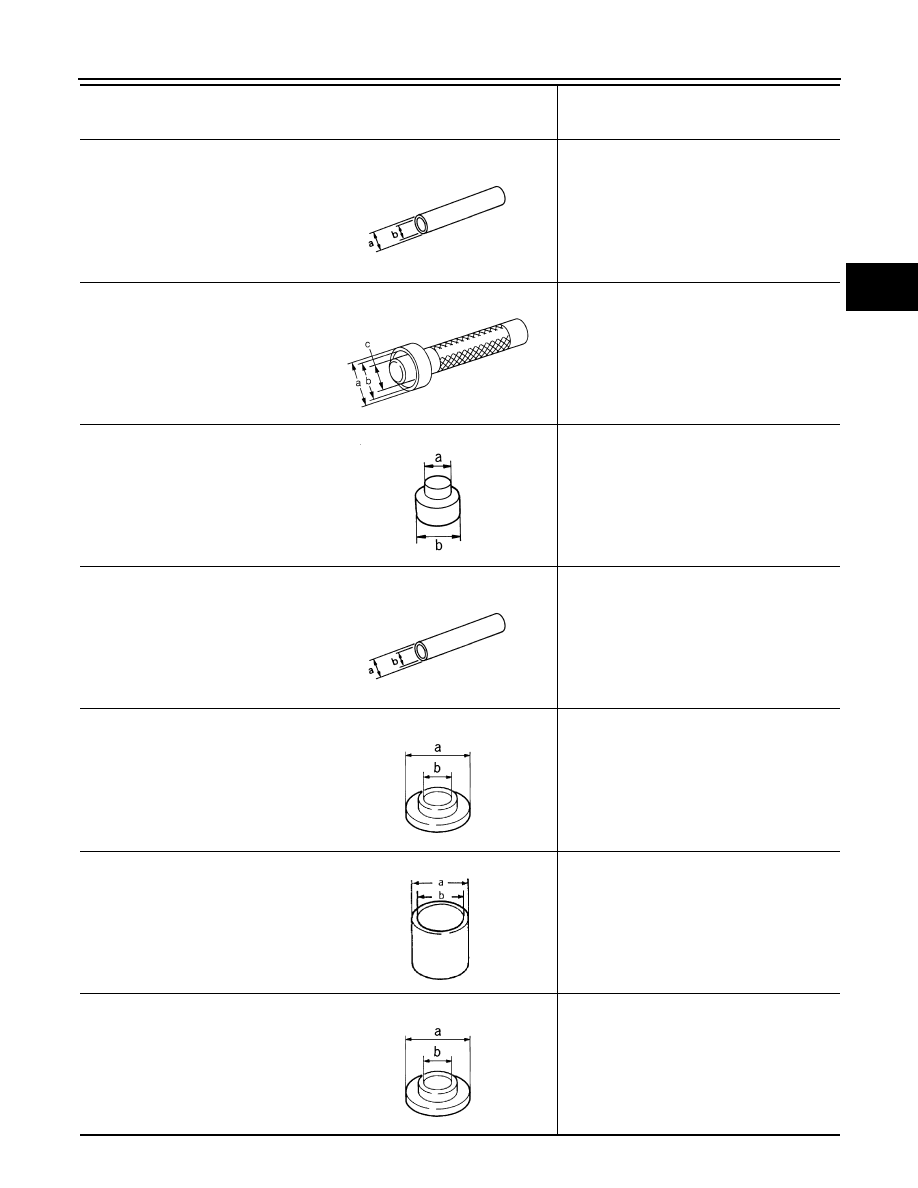

ST23860000
(

—

)

Drift
a: 38 mm (1.50 in) dia.
b: 33 mm (1.30 in) dia.

Installing reverse counter gear

KV38102100
(J-25803-01)
Drift
a: 44 mm (1.73 in) dia.
b: 36 mm (1.42 in) dia.
c: 24.5 mm (0.965 in) dia.

Installing front cover oil seal

ST33061000
(J-8107-2)
Drift
a: 28.5 mm (1.122 in) dia.
b: 38 mm (1.50 in) dia.

Installing striking rod oil seal

KV32102700
(

—

)

Drift
a: 48.6 mm (1.913 in) dia.
b: 41.6 mm (1.638 in) dia.

Installing main drive gear bearing

ST30911000
(

—

)

Inserter
a: 98 mm (3.86 in) dia.
b: 40.5 mm (1.594 in) dia.

• Installing 5th-6th synchronizer assembly
• Installing mainshaft bearing
• Installing reverse main gear bushing
• Installing 3rd gear bushing
• Installing 3rd-4th synchronizer assembly

ST27861000
(

—

)

Support ring
a: 62 mm (2.44 in) dia.
b: 52 mm (2.05 in) dia.

• Installing 1st-2nd synchronizer assembly
• Installing 1st gear bushing

ST30022000
(

—

)

Inserter
a: 110 mm (4.33 in) dia.
b: 46 mm (1.81 in) dia.

• Installing 3rd main gear
• Installing 4th main gear

Tool number
(Kent-Moore No.)
Tool name

Description

ZZA0534D

ZZA1046D

ZZA1023D

ZZA0534D

ZZA0920D

ZZA0832D

ZZA0920D

TM-14

< PREPARATION >

[6MT: FS6R31A]

PREPARATION

Commercial Service Tools

INFOID:0000000000956954

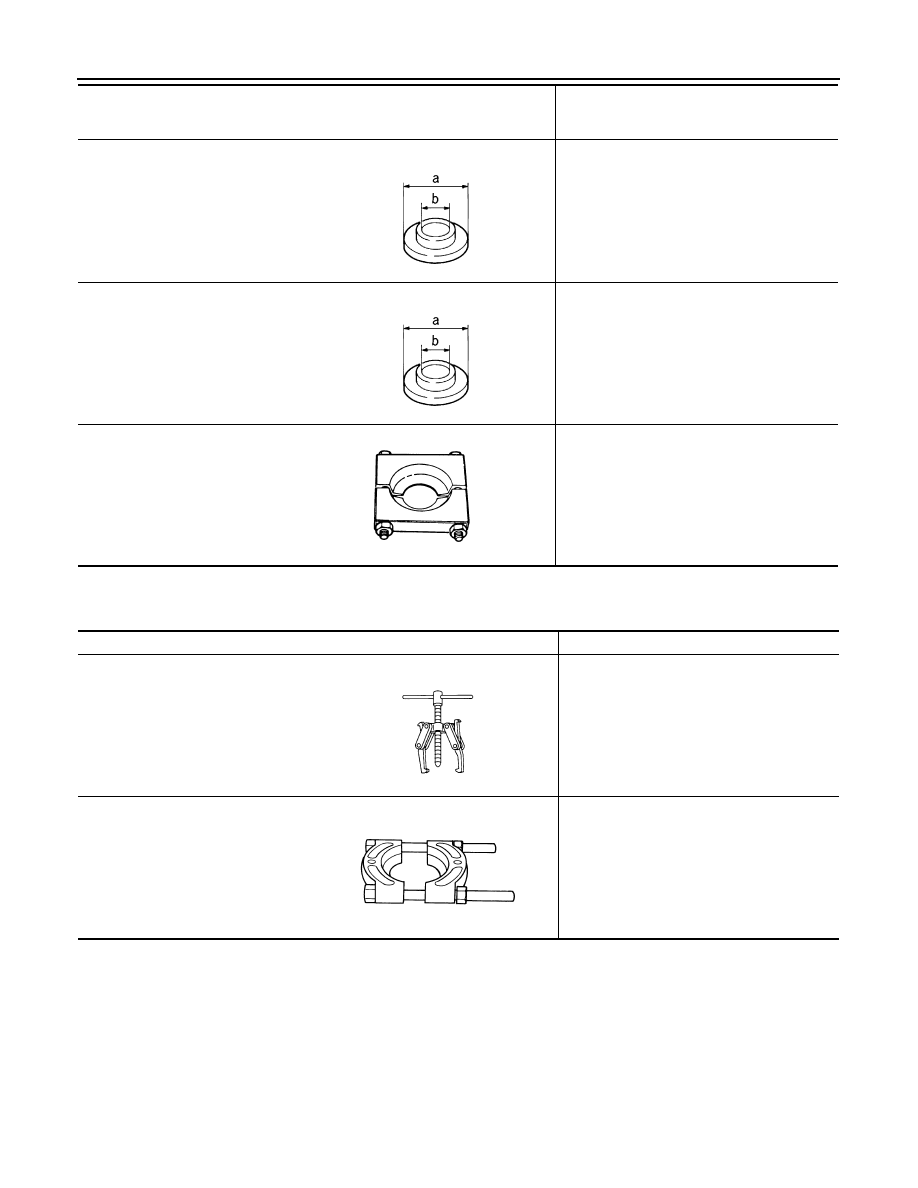

KV40100630
(J-26092)
Inserter
a: 67.5 mm (2.657 in) dia.
b: 38.5 mm (1.516 in) dia.

Installing 4th counter gear thrust washer

ST30032000
(J-26010-01)
Inserter
a: 80 mm (3.15 in) dia.
b: 31 mm (1.22 in) dia.

Installing counter rear bearing inner race

ST30031000
(J-22912-01)
Puller

Measuring wear of inner baulk ring

Tool number
(Kent-Moore No.)
Tool name

Description

ZZA0920D

ZZA0920D

ZZA0537D

Tool name

Description

Puller

• Removing reverse main gear
• Removing reverse synchronizer assembly
• Removing reverse counter gear

Puller

Removing each bearing, gear and bushing

NT077

ZZB0823D

PREPARATION

TM-15

< PREPARATION >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Pin punch
a: 6.0 mm (0.24 in) dia.

Removing and installing each retaining pin

Power tool

Loosening bolts and nuts

Tool name

Description

NT410

PBIC0190E
