Infiniti G35 (V35) Sedan. Manual - part 115

AV-232

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

BOSE AMP.

Wiring Diagram —  BOSE AUDIO WITHOUT NAVIGATON SYSTEM —

INFOID:0000000000964706

NOTE:

29

(Y)

30

(G)

Sound signal center speak-
er

Output

Ignition

switch

ON

Voice output

31

(LG)

32

(Y)

Sound signal rear door
speaker RH

Output

Ignition

switch

ON

Voice output

33

(R)

34

(G)

Sound signal front RH

Input

Ignition

switch

ON

Voice output

35

(P)

36

(L)

Sound signal front LH

Input

Ignition

switch

ON

Voice output

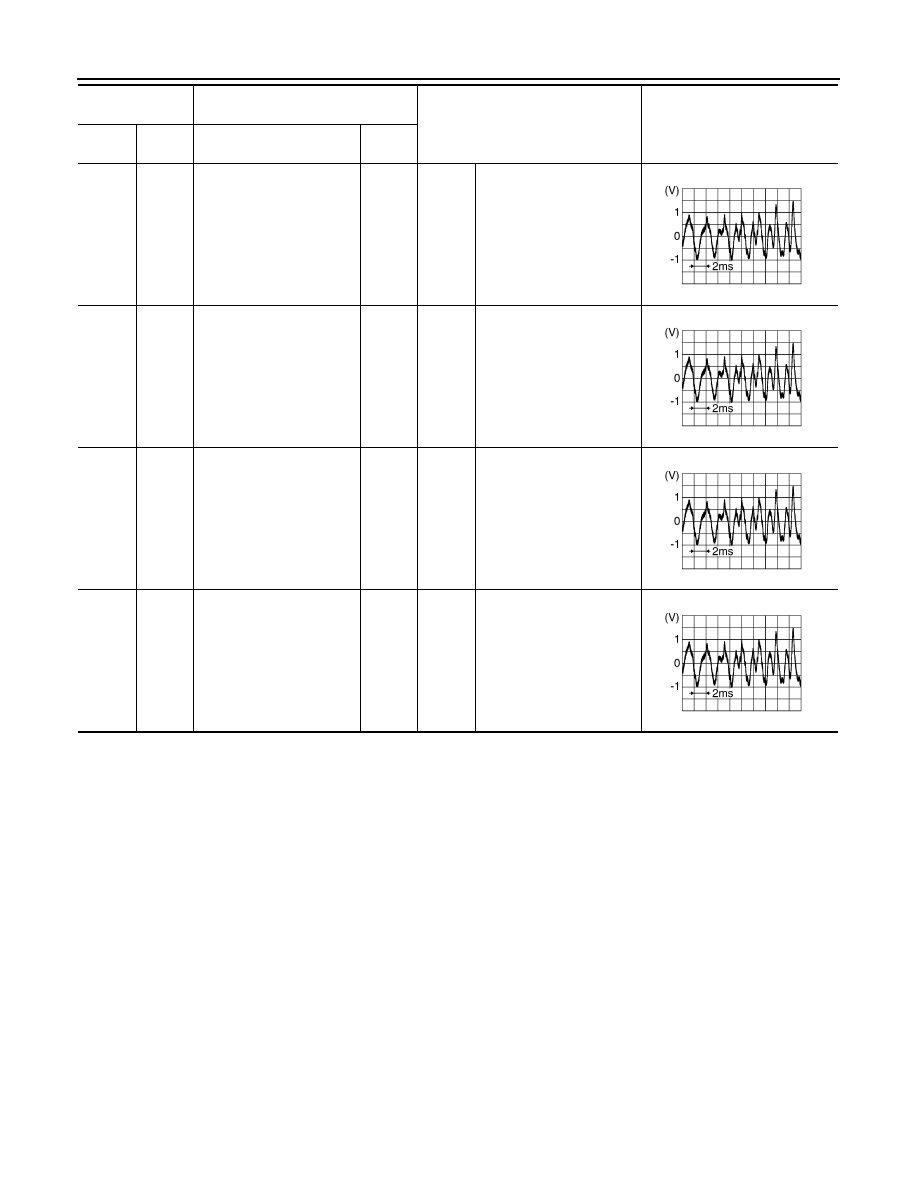

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

AV

BOSE AMP.

AV-233

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION
SWITCH virtually.

JCNWA0032GB

AV-234

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

BOSE AMP.

JCNWA0033GB

AV

BOSE AMP.

AV-235

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

JCNWA0034GB
